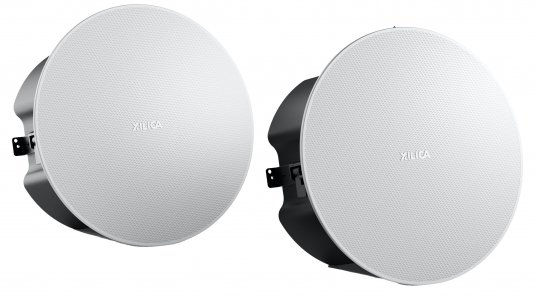

Sonia C5 incorporates a soft, silk-domed tweeter for smooth tonality and a 5.25” low-frequency transducer to give the ideal size-to-sound ratio for modern meeting spaces. Sonia C5’s wide, even dispersion pattern enables fewer speakers in large spaces.
Features of Sonia C5
- Power up to eight Sonia C5 speakers from a single Sonia Amp, linking them in pairs for greater coverage with less cable.
- Sonia is optimized for highly-intelligible speech with VoiceMatch™ in each Xilica processor.
- StudioX™-designed grille that is magnetically attached without tools, and paintable in any color with removable logo.
Specifications
| Input/Output | Audio in: RJ45, CatX, amplified audio over Category cable; Audio out: RJ45, CatX, amplified audio over Category cable (link) |
| Rated Power | 30W at eight (8) Ohms |
| Operating Temperature | 32-104⁰F (0-40⁰C) |
| Ethernet | (2) RJ45 with Link and Speed indicators |
| Fault Sensing | Yes; to Sonia Amp |
| VoiceMatch Support | Yes; via Sonia Amp/Solaro Series |
| Speaker Type | Two-way, eight (8) Ohm, 5.25″ coaxial, in-ceiling |
| Transducer(s) | Low Frequency: 134mm (5.25″) polypropylene cone, rubber surround; High Frequency : 19mm (0.75″) silk dome tweeter |
| Frequency Range | 50Hz to 20kHz (-10dB) |
| Coverage Angle | 180 degrees (-6dB at 2kHz), 107 degrees (-6dB at 10kHz) |
| Sensitivity | >91dB (at 1m) |
| Dimensions | Diameter: 269mm (10.6”) Depth: 121mm (5.7”) Cutout Diameter: 222mm (8.75”) |
| Enclosure | Drawn steel backcan with ABS baffle; Powder-coated, magnetically-attached speaker grille, painted white |
| Color | Grille: RAL 9010 (white) |
| Min/Max Ceiling Thickness | 0.9mm (0.35″) to 40.9mm (1.6″) |
| Coverage Angle | 180 degrees (-6dB at 2kHz), 107 degrees (-6dB at 10kHz) |
| Compliance | CE, RoHS |
| Warranty | Xilica Five Year Limited Warranty |
| Part Number(s) | 2200-007-0102 |
| Included Accessories | Sonia Tile Bridge Kit; UL-rated connector cover (with knockouts for conduit connection) |
