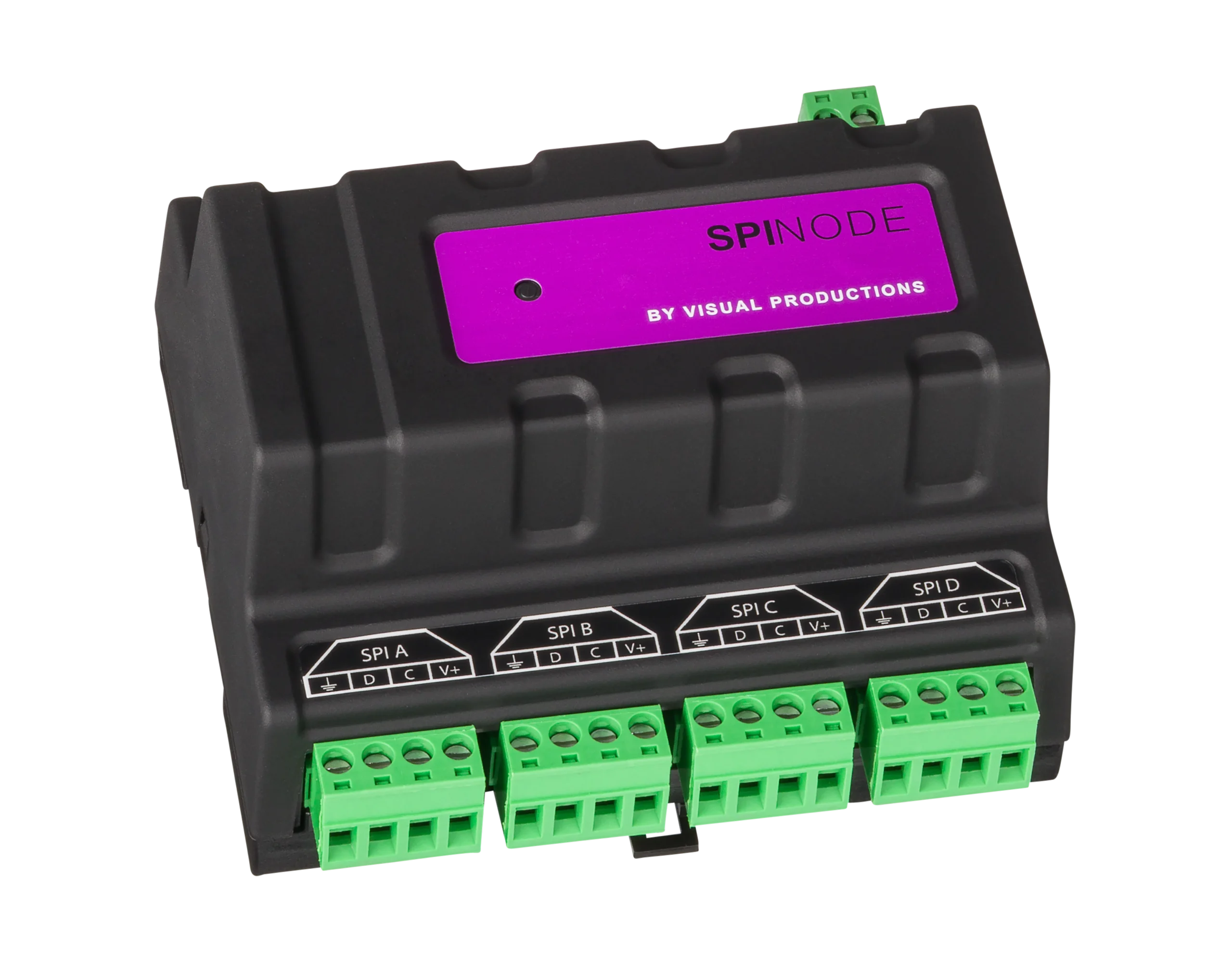

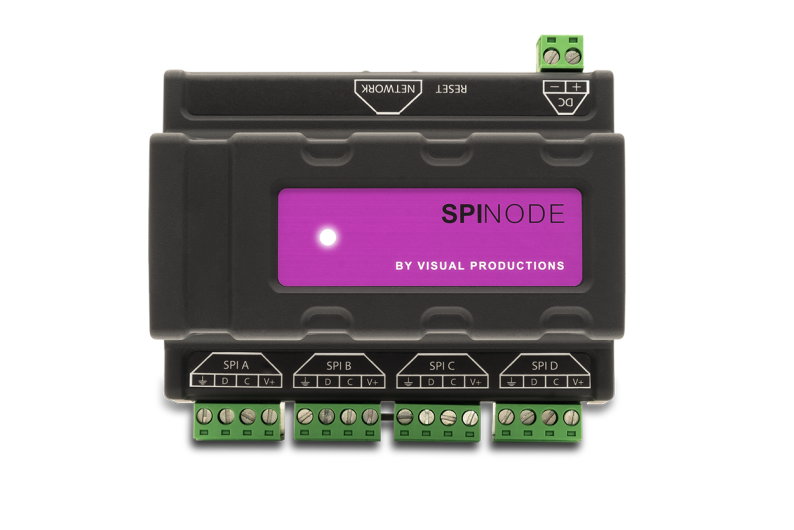

4-port SPI converter
The SpiNode is a 4-port SPI controller engineered to effortlessly translate Art-Net and sACN into SPI, bridging the gap between lighting control and pixel-mapped installations. Designed for versatility, the SpiNode supports all major SPI chip protocols ensuring compatibility with virtually any LED fixture or custom rig. Additionally, its compact DIN Rail form factor makes it ideal for permanent installations, and dynamic architectural lighting projects.
Specifications
- Ethernet port
- Programming via web-interface
- 4 x SPI port
- Art-Net
- sACN
- Power 5-24V DC 500mA (SpiNode only)
- Power over Ethernet (class I)
- Power through 20A system-wide (Only with DC input)
- Dimensions 105 x 86 x 60 mm (4.1 x 3.4 x 2.4 inches)
- Operating temperature -20°C to +50°C (-4°F to 122°F)
- Operating relative humidity 10% to 80% non-condensing
- Compliance: CE, ROHS, UKCA
