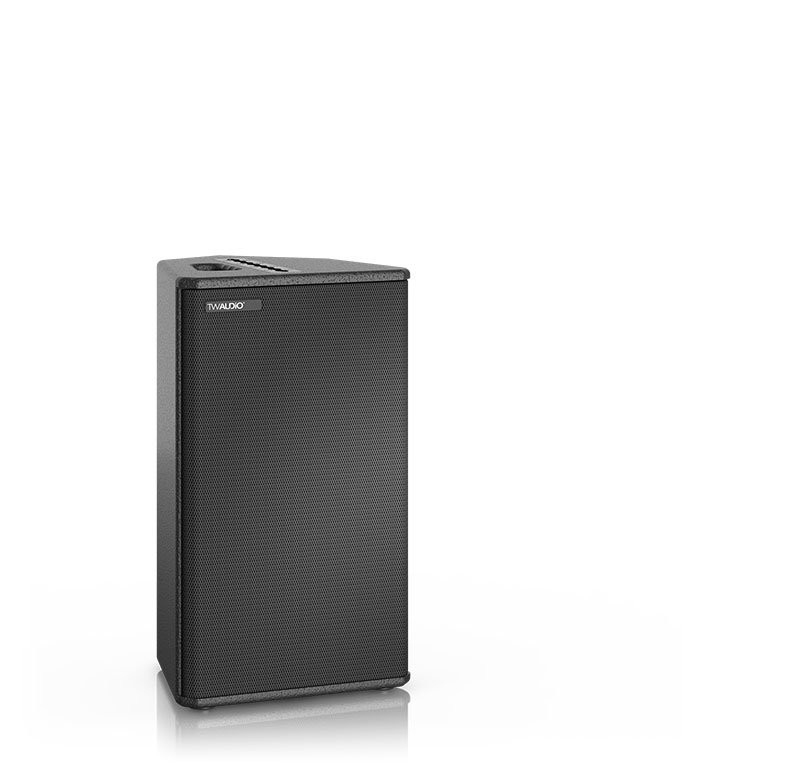

The M12 dispenses with extended bass reproduction, instead of placing special emphasis on enhanced mid-high performance.
It offers extraordinary increased efficiency from a compact enclosure with precise dispersion and impulse behavior with lowest possible distortion.
The M12 is eminently suitable for use as a high performance front fill or near fill, as a compact delay line loudspeaker or stage monitor, and especially as a 12" top in a two-way active setup with our B18 and B30 subwoofers in our PA-SYS-TWO.
Specifications
| Drivers | LF: 1 × 12" HF: 1 × 1.4" exit with 3" diaphragm |
| Frequency range | 60 – 19000 Hz |
| Power capacity program / peak | 700 / 1400 W |
| Impedance | 8 Ω |
| Coverage (h × v) | 75° × 50° HF-horn, rotatable |
| Sensitivity 1 W / 1 m | 101 dB |
| SPLmax / 1 m | 132 dB |
| Connection | NL4 1± |
| Dimensions (H × W × D) | 604 × 360 × 314 mm [23.78 × 14.17 × 12.36 in] |
| Weight | 20.2 kg [45 lbs] |
| Finish | Polyurea coating, black |
| Options | left and right version Warnex texture paint, RAL colors |
| Side | Left, Right |
