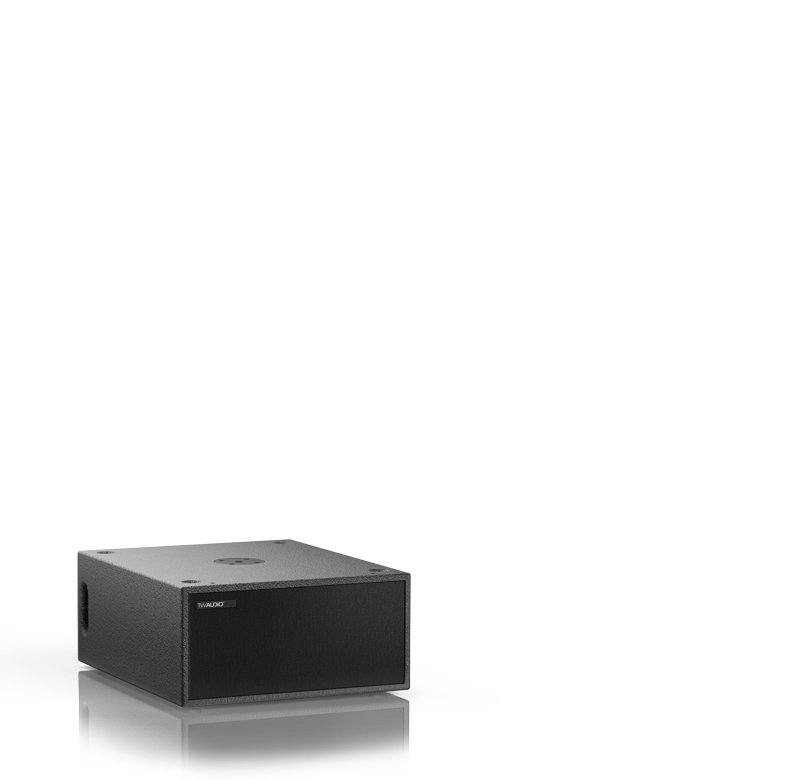

The B14 is a very compact, slim and powerful subwoofer with a height of only 24.6 cm (9.7 in). A specifically developed 14“ high excursion driver is housed in a bandpass enclosure design with a frequency response from 39 to 120 Hz.
The small enclosure makes the B14 perfectly suitable for placement under low stages, amongst furniture, in ceilings and behind curtains. Compared to a traditional 2× 8“ subwoofer of similar size, the B14 can reproduce up to 6 dB more SPL.
With the recessed M20 thread the B14 can be also used as a base plate for a distance pole. Two handles at the back of the B14 allow easy handling and transport.
Click to see the press release "Production Partner 03/2020" - B14 premiere at ISE. (German)
Specifications
| Drivers | 1 × 14" LF |
| Frequency range | 39 - 120 Hz |
| Power capacity program / peak | 1400 / 2800 W |
| Impedance | 8 Ω |
| Coverage (h × v) | omni |
| Sensitivity 1 W / 1 m | 93 dB |
| SPLmax / 1 m | 126 dB |
| Connection | NL4 2± |
| Dimensions (H × W × D) | 246 × 500 × 600 mm [9.69 × 19.69 × 23.62 in] |
| Weight | 21.8 kg [48 lbs] |
| Finish | Polyurea coating, black |
| Options | Warnex texture paint, RAL colors |
