Secure Control at Your Fingertips
- Control of Symetrix DSP Systems
- Various control input types
- Available in white and black with Decora plates
ARC-Series
Set up and configure the ARC-2e, ARC-K1e, ARC-SW4e, ARC-EX4e, and RC-3 remotes with the Jupiter or Zone Mix 761 DSP software applications.
Integrate ARC-Series remotes into audio systems for flexible and extensible control.
Key features

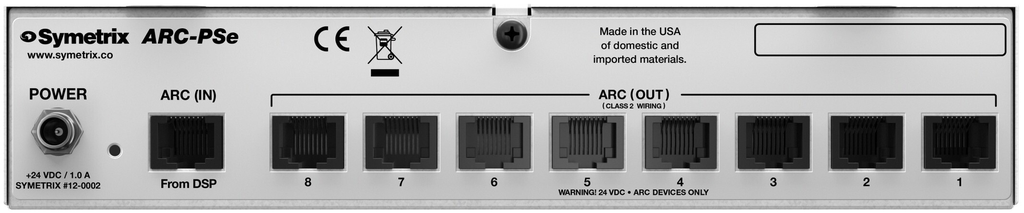

- Distributes long distance power and data to multiple ARC remotes via eight RJ-45 connectors.
- Connects directly to Symetrix Jupiter and ZoneMix 761 with standard CAT5/6 cables.
- Supports flexible ‘star’ configuration, ‘daisy-chain’, or a hybrid of the two.

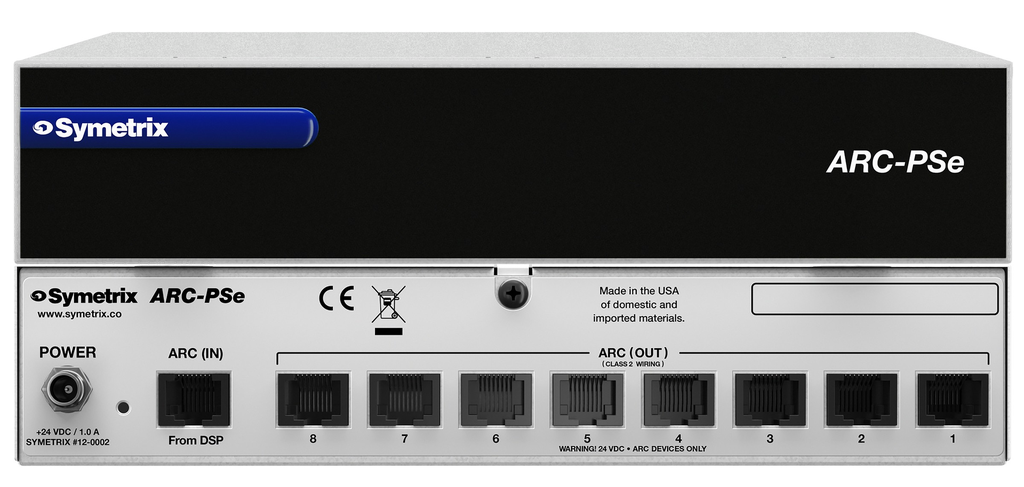

- Versatile half-rack design. Mounts in an optional 1U rack tray or surface mount with an optional bracket.
Specifications
| ARC Cable | Standard CAT5/6, maximum total cable length = 4000 ft. / 1219 m for RS-485 data. (Total ARC Cable Length (RS-485 from DSP to furthest ARC) |
| Number of ARCs Supported | The power draw is dependent upon ARC types used, number of each type, and total cable length. At least 8 ARC-2e with 800 feet / 243 meters of cable supported. |
| Space Required | Half rack unit; WDH: 8.2 in. (20.83 cm) x 9 in. (22.86 cm) x 1.72 in. (4.37 cm); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 24 VDC @ 1 Amps (24 Watts) maximum; No line voltage switching required |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm / 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Shipping Weight | 4.4 lbs. (2.0 kg) |
| Certifications and Compliance | EN 55103-1; EN 55103-2; FCC Part 15; RoHS |
