Features

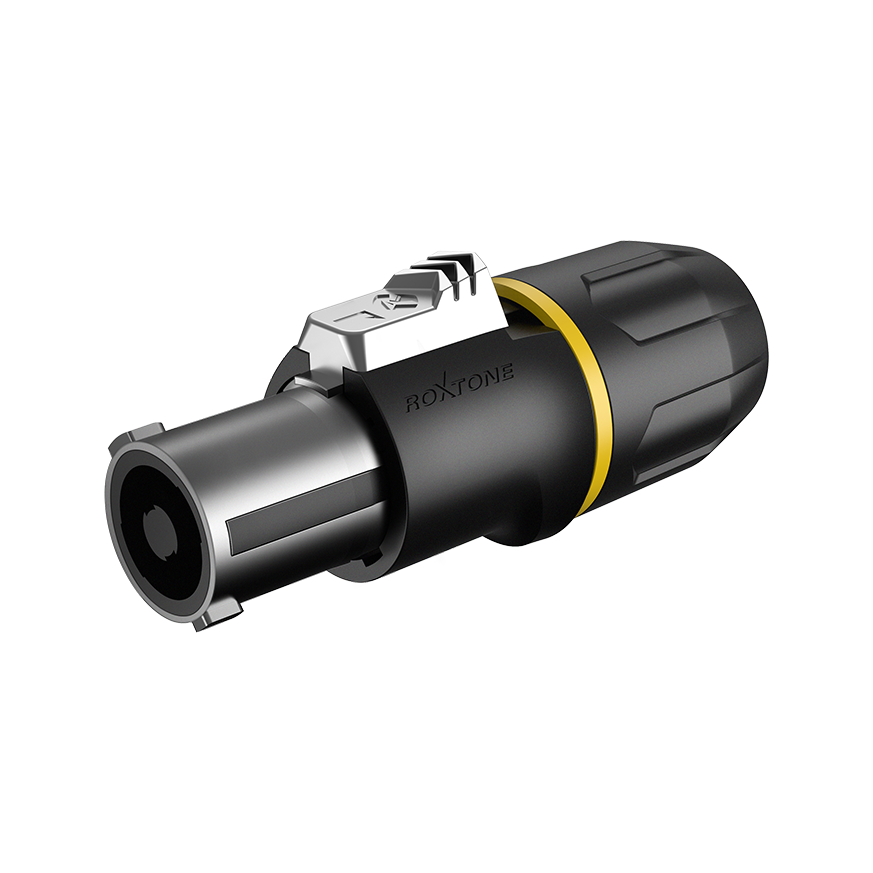

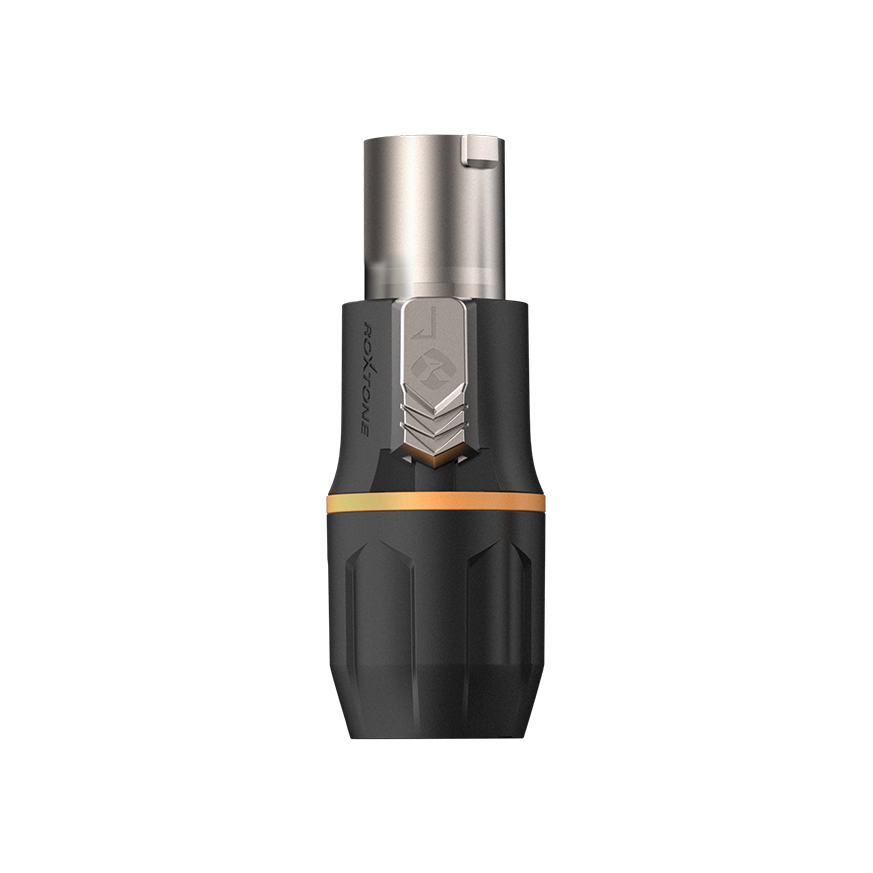

- Lockable 4 pin speaker connector
- Brass contacts supply excellent contact and ensure the conductivity
- Heavy duty zinc alloy insert for longlife use
- Replaceable color ring on connector indicates cable of different equipment or length, easy for operation
- Dust-proof design of the bushing makes the additional protection
- Patent-protected
TPE Dust-proof structure
Technical Data
| Housing | PA6 30%GF |
| Insert | PA66 20%GF |
| Latch | Zinc Alloy diecast |
| Contacts | Brass |
| Contacts plating | Nickel |
| Strain relief | POM |
| Color ring | PA6 30%GF |
| Number of contacts | 4 |
| Rated current per contact | 30 A rms |
| Cable O.D. range | 6-12 mm |
