Application & Assembly Instruction
APPLICATION & ASSEMBLY INSTRUCTION_POWERLINK
pdf - 2449KB

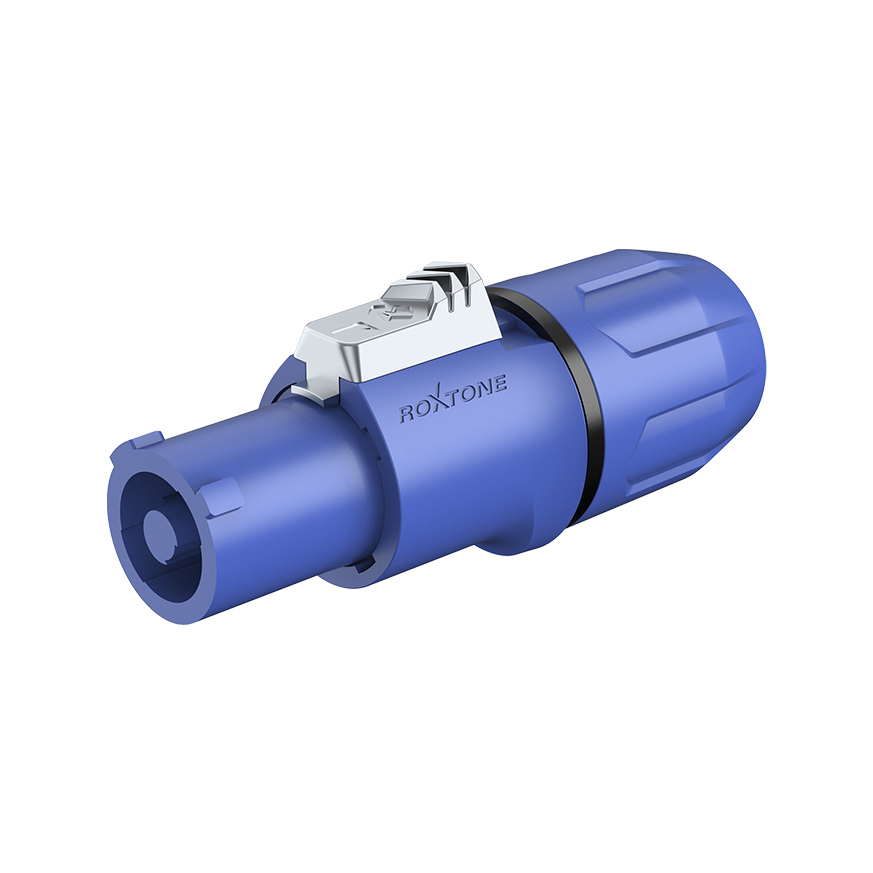

Features
- Lockable 3 pole equipment(AC) connectors
- Thicker silver plated brass and beryllium brozne contacts supply excellent contact and conduction properties
- Replaceable color ring on connector indicates cable of different equipment or length, easy for works
- Dust-proof design of the bushing makes the additional protection
- Raw material according with UL-V0 for safe use
- 2 pieces strain-relief clamps are provided for different cable diameter
- Patent-protected
included 2pcs Strain-relief clamp
- Used for cable diameter 6.0mm~9.0mm
- Used for cable diameter 9.0mm~12.0mm
TPE Dust-proof structure
Technical Data
| Housing | PA6 30%GF |
| Insert | PA66 20%GF |
| Latch | Zinc Alloy diecast |
| Unitary contacts | Brass |
| Contacts plating | Silver |
| Strain relief | POM |
| Color ring | PA6 20% GF |
| Number of contacts | 3 |
| Rated current per contact | 20 A rms |
| Rate voltage | 250 V ac |
| Cable O.D. range | 6-12 mm |
| Fammability | UL V-0 |
