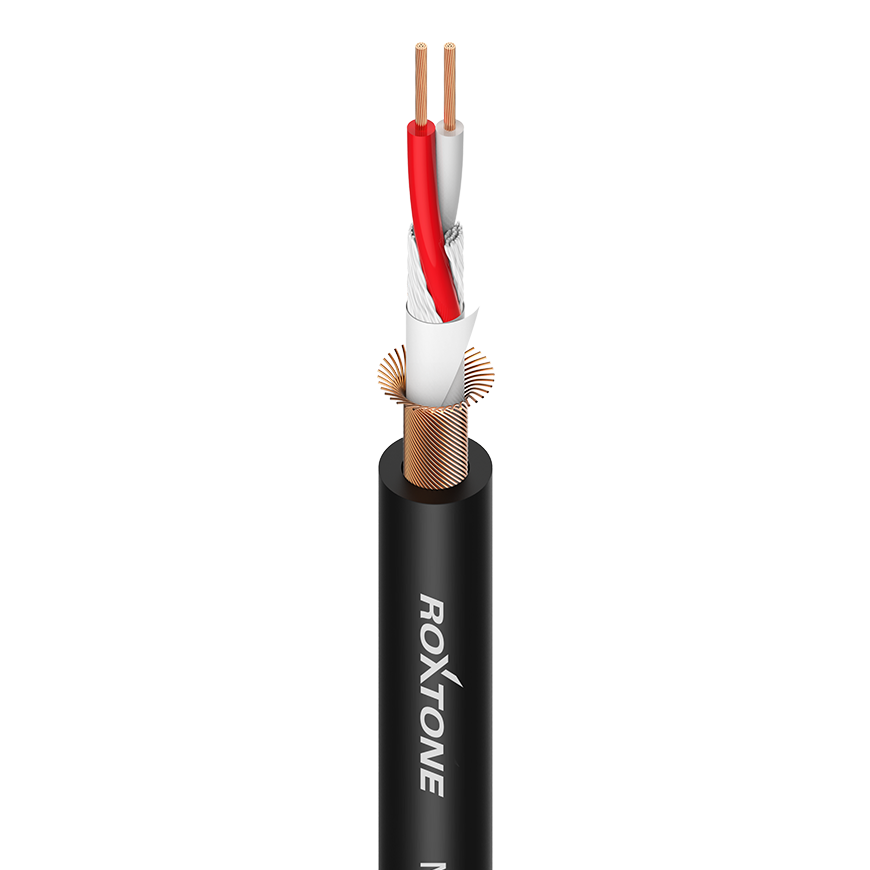

Features
- The use of OFC strands and a large conductor cross-section of 2 x 0.30 mm² ensure high-quality signal transmission
- Very low capacitance due to thick PE insulation
- Good shielding provided by dense copper spiral shielding
- Highly flexible, well-suited for use with cable drums
Technical Data
| Jacket,diameter | PVC 6.2mm |
| AWG | 22 |
| No. of inner conductors | 2 x 0.30 mm² |
| Copper strand per conductor | 38 x 0.10 mm |
| Conductor insulation | PE 1.50 mm |
| Shielding | copper spiral shielding with 80 x 0.10 mm |
| Shielding factor | 95 % |
| Temperature range | min. -20°C |
| Temperature range | max. +70°C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 59 pF |
| Capac. cond./shield. per 1 m | 118.5 pF |
| Cond. resistance per 1 m | 57 mΩ |
| Shield. resistance per 1 m | 32 mΩ |
