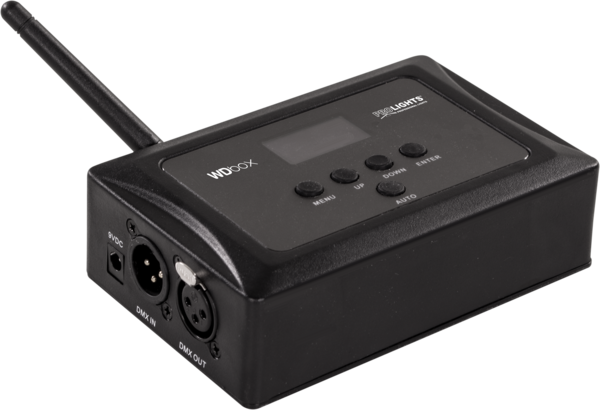

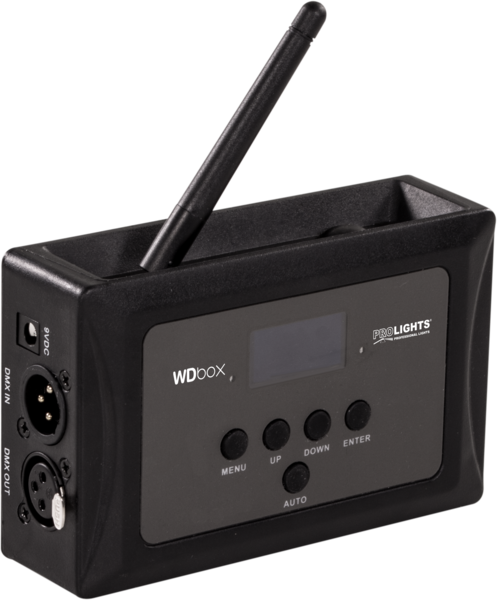

WDBOX is a compact, easy-to-use wireless transceiver designed to create wireless DMX systems with a single universe. This technology allows the user to wirelessly control each DMX device, using two WDBOX units in transmitter-receiver mode, giving a clean installation and removing long cables. It comes with an 'auto' function which automatically finds the best frequency and syncs the units easily. Thanks to the built-in M10 and M12 threaded holes it can be mounted in suspension on the truss. WDBOX is also compatible with the transceiver WIFIUSB that allows the user to control compatible devices.
WDBOX is a compact, easy-to-use wireless transceiver designed to create wireless DMX systems with a single universe. This technology allows the user to wirelessly control each DMX device, using two WDBOX units in transmitter-receiver mode, giving a clean installation and removing long cables. It comes with an 'auto' function which automatically finds the best frequency and syncs the units easily. Thanks to the built-in M10 and M12 threaded holes it can be mounted in suspension on the truss. WDBOX is also compatible with the transceiver WIFIUSB that allows the user to control compatible devices.
Features:Transmitter and receiver in a single compact unit
Manual or automatic channel operating options
16 channels dedicated to the manual mode
Simple user interface with black OLED display and 5 buttons
DMX512 protocol support

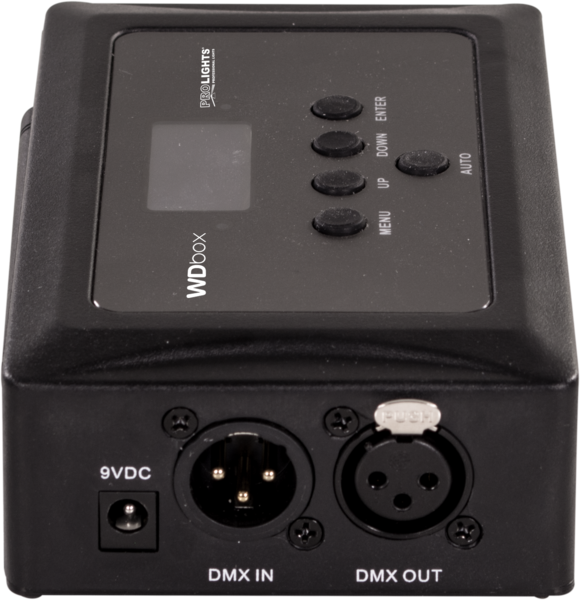

DMX IN/OUT connectors: 3-pin XLR
Operating frequency: 2,4 GHz
Max unobstructed distance: 200 m
Power supply (included): input 100 - 240 V 50 / 60 Hz, output DC 9 V, 1000 mA
Weight: 0,6 kg
Dimensions (WxHxD): 102x82x41 mm
- Compliance:CE, UKCA
