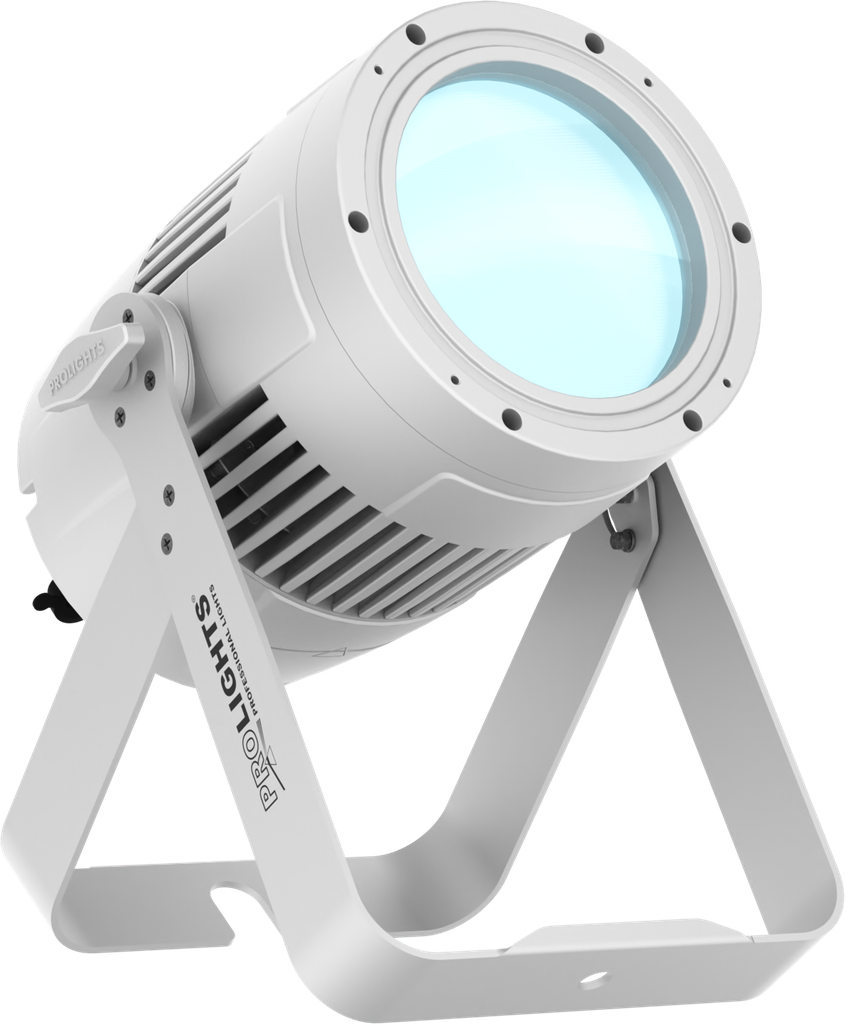

Prolights STUDIOCOBPLUSDYWH

كشّاف LED ضوء النهار 5.000K بقدرة 150W، 38°، تعتيم HDL، IP65، 145W، 4,95 kg، WH

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: STUDIOCOBPLUSDYWH

الفئة: كشّافات Par وواش

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

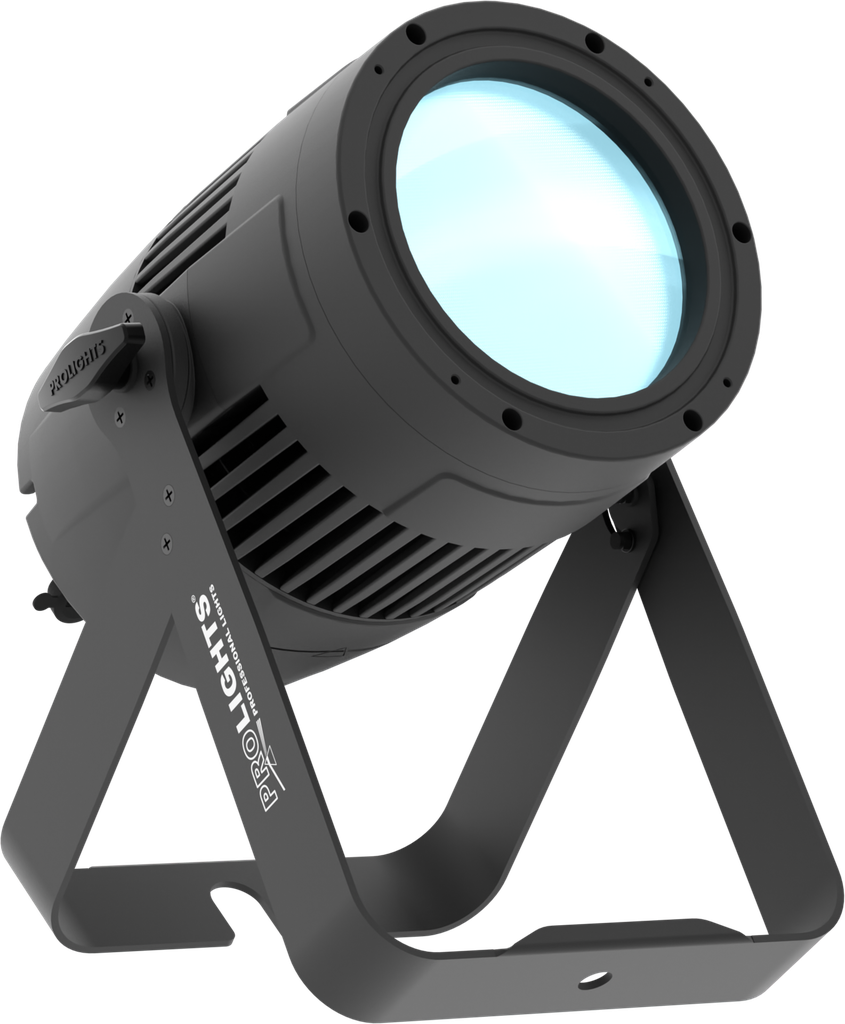

StudioCob PlusDY is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

IP65 rated connectors for easy use both indoor and outdoor

150W 5.000 K COB LED source with HD dimming and high CRI

Flexible lens options of 18° - 38° - 60°

Features:
IP65 rated connectors for easy use both indoor and outdoor
150W 5.000 K COB LED source with HD dimming and high CRI
Flexible lens options of 18° - 38° - 60°

LIGHT SOURCE

Source:

150
W

White COB LED
Source CCT:

5.000
K
Luminous flux:

(18°) 11'233lm - (38°) 10'429
Lux:

(18°) 8'454
lx

@3 m
Lux:

(38°) 1'994
lx

@3 m
CRI:

> 83
Source life expectancy:

> 30.000 h

OPTICS

Beam angle:

(on-board) 18° - (inc) 38°, (opt) 60
°
Field angle:

(on-board) 36° - (inc) 63
°
Lens type:

parabolic reflector in combination with HD fresnel lens
Additional optics:

flood (without lens) - 38° (inc)

DYNAMIC EFFECTS

Static mode:

selection of static colour
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM
DMX channels:

1 / 2 / 5
ch
RDM:

for remote addressing and parameter configuration
Display:

black OLED touch display
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 28

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Seetronic powerCON waterproof IN/OUT connectors
Signal connection:

Seetronic XLR 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

145
W
Output (at 230V):

12

units on a single power line
Max power consumption (120V):

145
W

PHYSICAL

IP rating:

IP65 for temporary outdoor use
Cooling:

forced-air with low-noise fan
Housing:

Sturdy die-cast aluminium body
Finish:

black or white finishing
Operating temperature:

Ta

-20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD):

258x354x257
mm
Weight:

4,95
kg

INSTALLATION

Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning

CERTIFICATIONS / REPORTS

Compliance:

CE, UKCA, RCM, cTUVus, FCC

Studiocobplusdy_USER_MANUAL_ITEN.pdf User / O&M Manual

STUDIOCOBPLUSDYWH - Drawing (PDF).pdf Drawing (PDF)

STUDIOCOBPLUSDYWH - Drawing (CAD).dwg Drawing (CAD)
