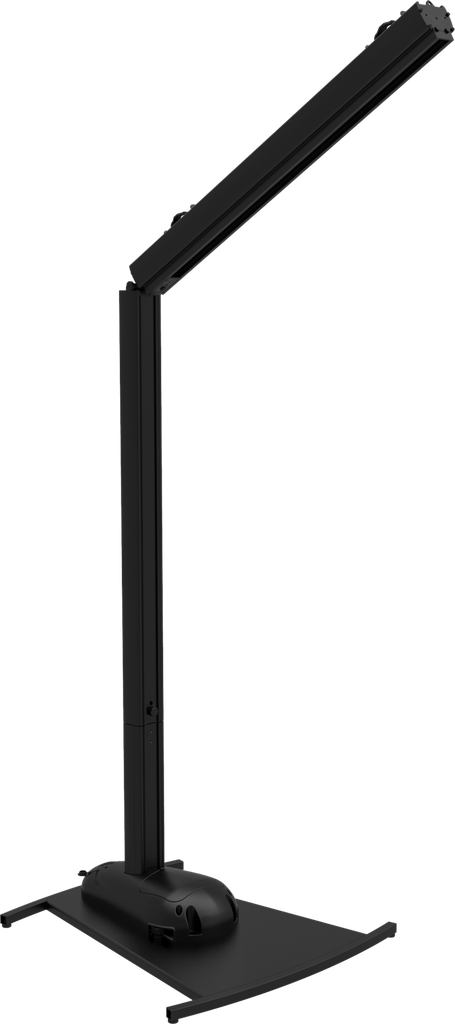

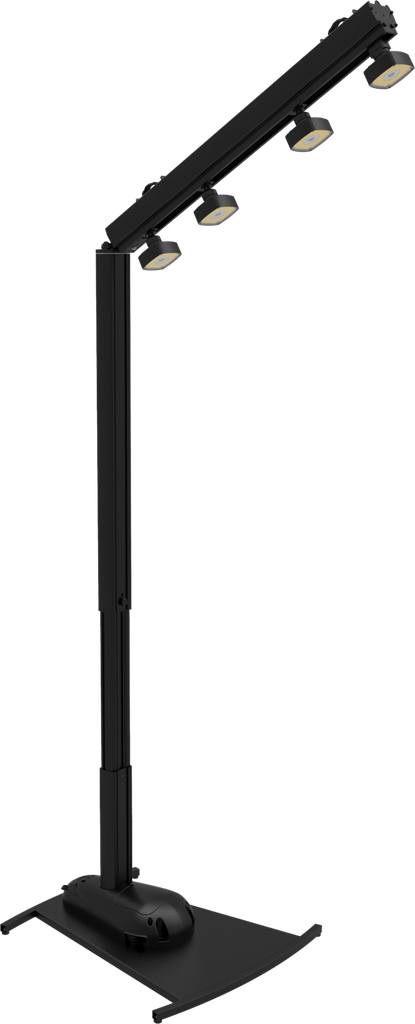

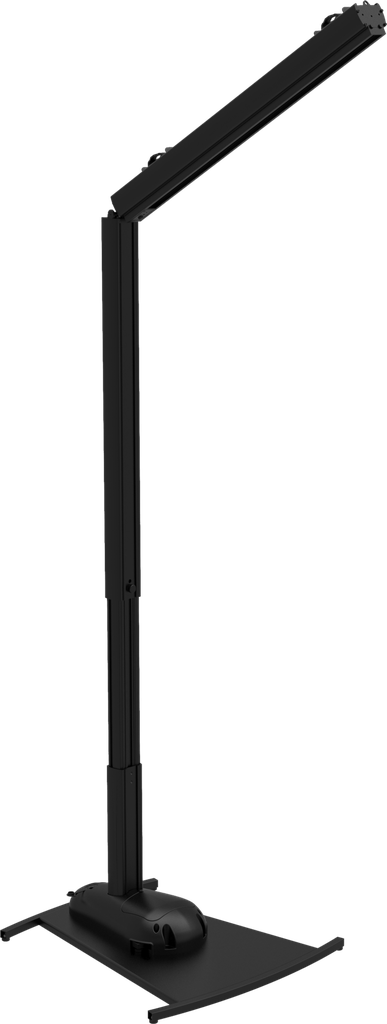

Smart Modula is a cable-free battery fixture which establishes a new form of decorative lighting for events, banquets and gardens. Its modular and customisable assembly allows for the light to stand from the floor or hang as a PINSPOT four-bar and to be packed in a comfortable carry-on size. The light emitters are adjustable and can slide on the track allowing for perfect focusing as well as fully interchangeable allowing for spot/wash or mixed configurations. All available in full colour or white colour mixing.
Smart Modula (Core components to be completed with accessories) includes:
- Metal baseplate
- Baseplate with supporting bar
- Extension bar with the adjustable height
- Heading bar with light track and electronics (containing 1 battery)
OPTIONAL accessories to complete the core element:
- MODULASPOT: 2pcs spot LED dot with 1 LED source 15° beam, available in full colour or white colour mixing (Max 6pcs on each SMARTMODULA)
- MODULAWASH: 1pc wash LED strip with 12 LED source, 60° beam, available in full colour or white colour mixing (Max 1pcs on each SMARTMODULA + 2 spot)
- MODULABBAT: 1pc base extra-battery to be installed inside the base to extend battery operation (Max 1pcs MODULABBAT in each baseplate)
Smart Modula is a cable-free battery fixture which establishes a new form of decorative lighting for events, banquets and gardens. Its modular and customisable assembly allows for the light to stand from the floor or hang as a PINSPOT four-bar and to be packed in a comfortable carry-on size. The light emitters are adjustable and can slide on the track allowing for perfect focusing as well as fully interchangeable allowing for spot/wash or mixed configurations. All available in full colour or white colour mixing.
Smart Modula (Core components to be completed with accessories) includes:
- Metal baseplate
- Baseplate with supporting bar
- Extension bar with the adjustable height
- Heading bar with light track and electronics (containing 1 battery)
OPTIONAL accessories to complete the core element:
- MODULASPOT: 2pcs spot LED dot with 1 LED source 15° beam, available in full colour or white colour mixing (Max 6pcs on each SMARTMODULA)
- MODULAWASH: 1pc wash LED strip with 12 LED source, 60° beam, available in full colour or white colour mixing (Max 1pcs on each SMARTMODULA + 2 spot)
- MODULABBAT: 1pc base extra-battery to be installed inside the base to extend battery operation (Max 1pcs MODULABBAT in each baseplate)
Features:Smart Modula design allows floor standing with flexible swivel joints, tilt-able stand or hanging with quick-lock omega brackets
Accessory fixtures available in RGBW / FC and white colour mixing as well as with spot or wash optics
Each emitter is pixel mapped and can slide and be focused individually (not included)
The base houses room for an extra battery (optional) and the stand can be height adjusted
- Source:Wlight source is supplied as accessory as spot, wash, full colour or white
- Source CCT:optional - FC or WH SPOT 5.600 K - WH WASK 6.400K
- Other:Light source is supplied as accessory as SPOT or WASH, FC or White
- Source life expectancy:> 30.000 h
- Beam angle:SPOT (Opt) 15° - WASH (Opt) 60°
- Colour mixing:interchangeable light source: spot or wash with full colour or white LED source
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:W-DMX
- Pixel control:pixel2pixel control
- Display:Graphic User Interface
- IR:infrared sensor controlled by remote
- Pan:360°metal joint for 360° rotation of header bar
- Tilt:120°with manual adjustment
- Dimmer:linear 0 - 100% electronic dimmer
- Strobe / shutter:1 - 25Hz, electronic
- Battery:(head) 1 x 14,8 V - (base - optional) 1 x 14,8Vlithium
- Battery life in colour change mode up to:refer to the user manualh
- Battery life in single colour mode up to:refer to the user manualh
- Battery life in full-mode up to:refer to the user manualh
- Recharge connection:power cable
- Recharge time:head battery 5,5 h/max - base battery 11h (max)
- Battery level indicator:LED battery status indicator
- Other:check user manual for further information about battery autonomy for all possible compositions
- Power connection:Neutrik powerCON IN connector
- Wireless Connection:integrated W-DMX receiver
- Mains power supply:100-240V - 50/60Hz
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +40 °C (+14 to +104 °F)
- Dimensions (WxHxD):739x(2920~3475)x689mm
- Weight:w/o baseplate 23,5 kg - with baseplate 38,5kg
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:see the introduction description
- Compliance:CE, UKCA, RCM
