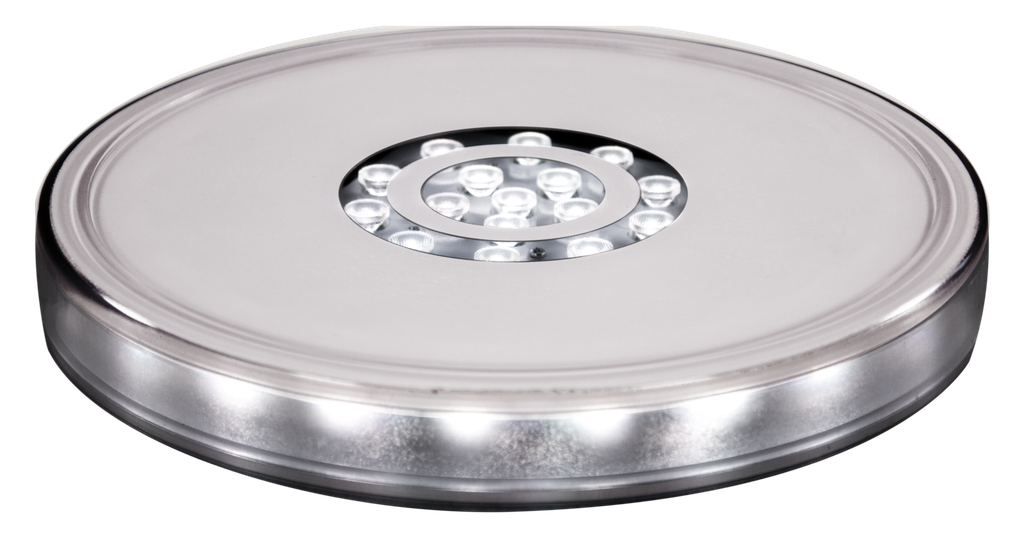

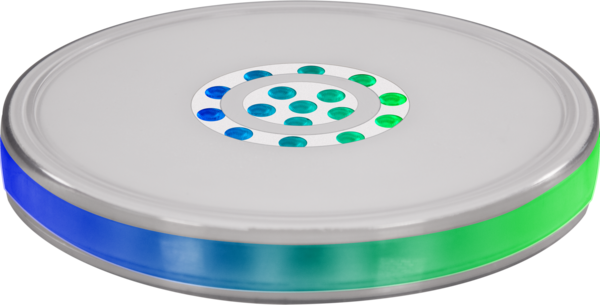

Smart Disk is an IP rated, wireless battery powered RGBW LED table centre. Designed for both branding events and adding a controllable element to a table - it adds an extra dimension to any event design.
Smart Disk is an IP rated, wireless battery powered RGBW LED table centre. Designed for both branding events and adding a controllable element to a table - it adds an extra dimension to any event design.
Features:Battery powered and wireless DMX control for fast deployment and accurate control
Separate control of each RGBW LED pixel of up-light and side-light for dynamic effects

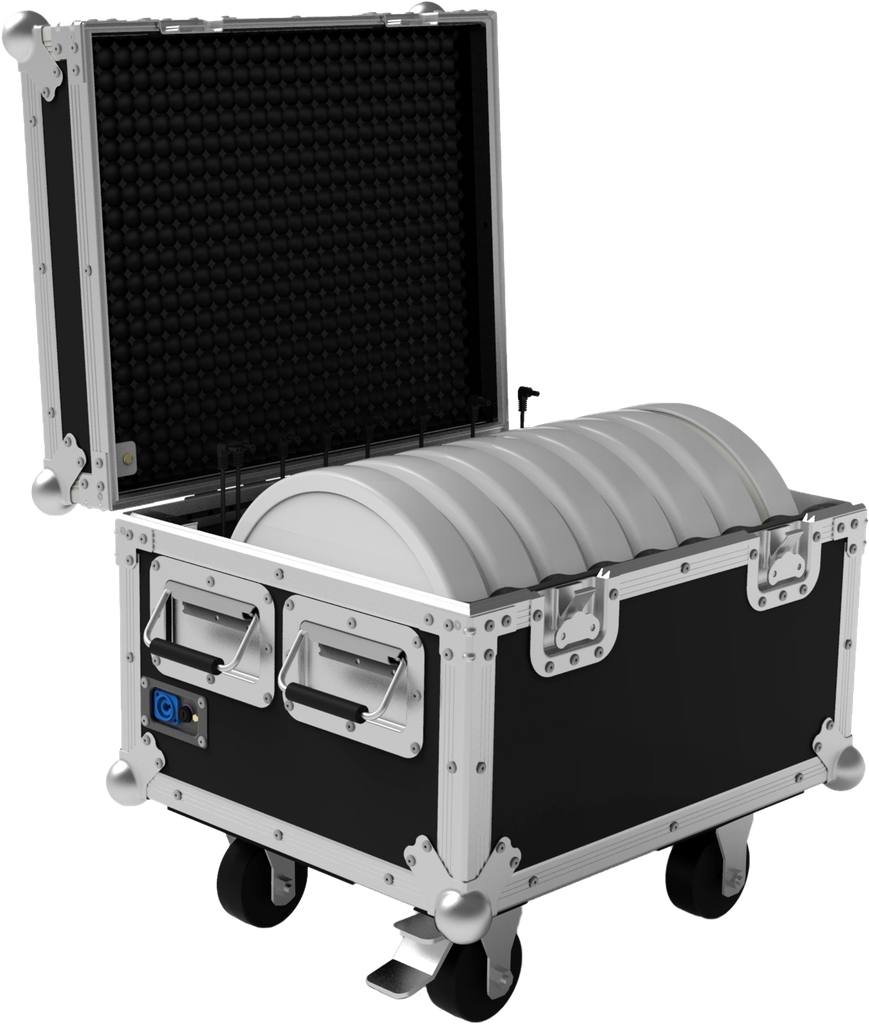

Available in a SMARTDISKPACK featuring 8 lights with accessories in an case with foam shell
LIGHT SOURCE

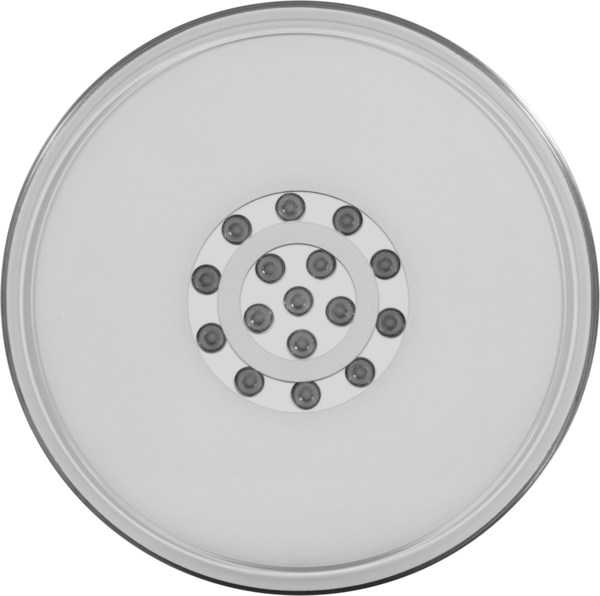

- Source:39x0,25WRGB + Warm White LEDs
- Source CCT:2.800 K ~ 6.000K
- Source life expectancy:> 30.000 h
OPTICS
- Beam angle:360°to light up tables and 25° to light up objects on top
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- Macros:several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- FX generator:adjustable foreground/background colour, index, speed, direction
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
CONTROL
- Supported Protocols:W-DMX
- DMX channels:4 / 8 / 17 / 165ch
- Pixel control:pixel2pixel control

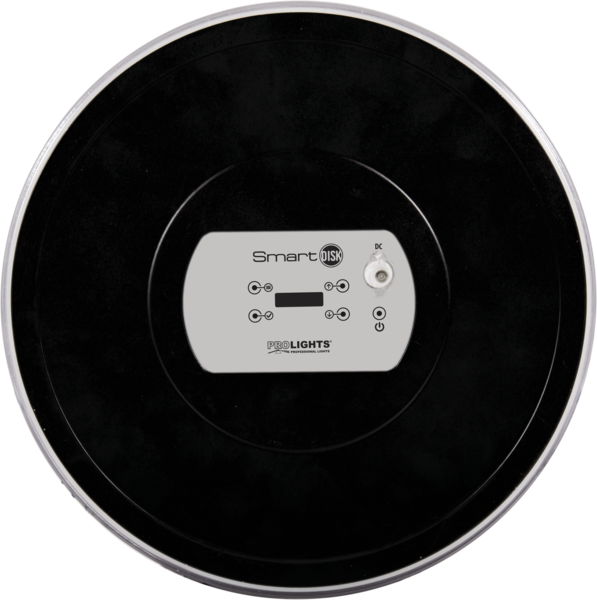

- Display:LCD display
- IR:infrared sensor controlled by remote
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Firmware upgrade:via DMX with UPBOX1U (not included)
BATTERY
- Battery:4,4 Ah - 11,1Vlithium
- Battery life in colour change mode up to:15h
- Battery life in single colour mode up to:24h
- Battery life in full-mode up to:8h
- Recharge connection:power cable
- Recharge time:5h (max)
- Battery level indicator:shown on display
CONNECTIONS
- Wireless Connection:integrated W-DMX receiver
- Data connection:W-DMX receiver
ELECTRICAL
- Max power consumption (230V):19,9W
PHYSICAL
- IP rating:IP54 for temporary outdoor use
- Housing:Sturdy polycarbonate body
- Finish:white
- Operating temperature:Ta0 to +45 °C (+32 to +113 °F)
- Dimensions (WxHxD):300x40x300mm
- Weight:1,62kg
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
