Prolights SMARTBATWASH

كشّاف واش 15x20W، IP65، مصدر LED RGB + أبيض دافئ، يعمل بالبطارية وسلكي

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: SMARTBATWASH

الفئة: تعمل بالبطارية

العلامة التجارية: Prolights

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

The Smart BatWash is a high-powered LED Wash light that can be operated wirelessly or wired.

This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, and it's Spektra™ calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282-lumen output.

The Smart BatWash is very flexible - it can be used wirelessly with the built-in battery, using CRMX or W-DMX or, alternatively, wired with power and data cables, bypassing the battery and enabling higher brightness levels.

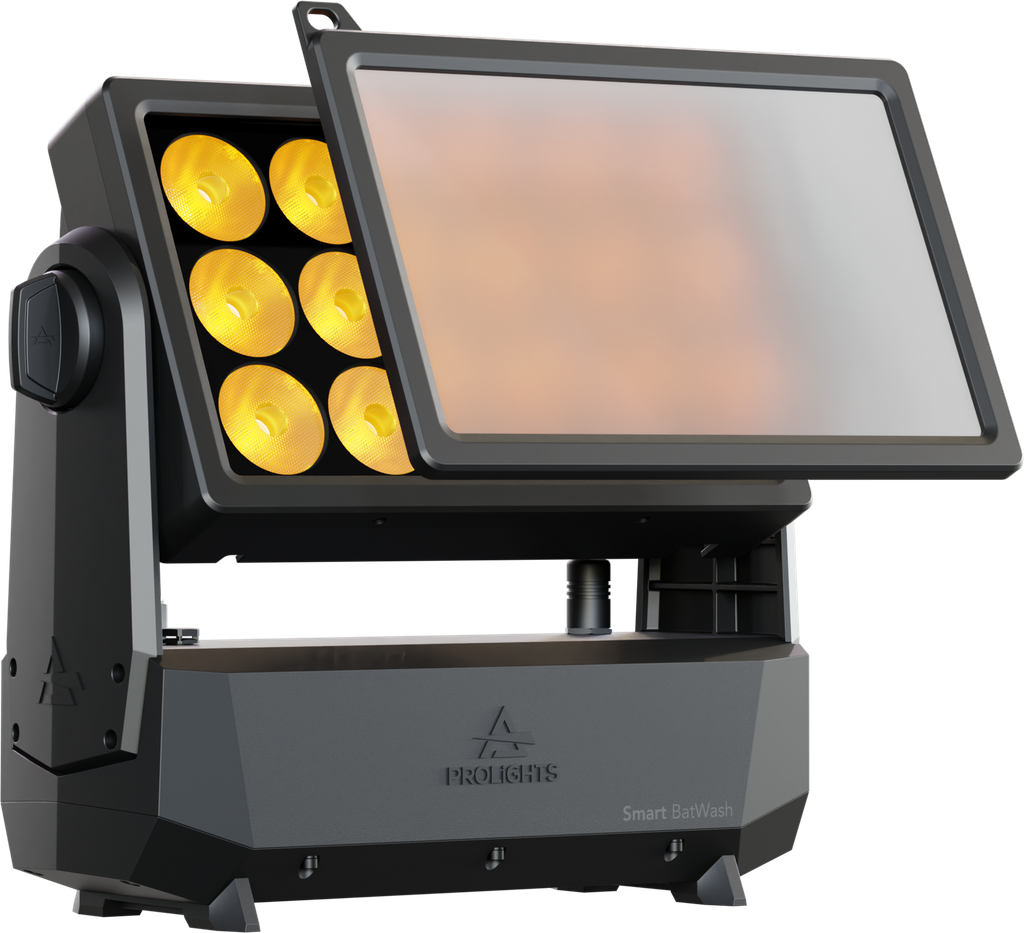

The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a broader coverage whilst keeping a high output. The Smart BatWash has all the software features of the Ecl range, sharing the same user settings and capabilities.

High-powered IP65 LED Wash light, wireless (CRMX+W-DMX)/wired control, battery/AC power

15x20W RGB + Warm White LED source, powerful 6,282-lumen output high CRI (>93)

Range of holographic filters that modify the shape of the beam angle

The Smart BatWash is a high-powered LED Wash light that can be operated wirelessly or wired.

Features:
High-powered IP65 LED Wash light, wireless (CRMX+W-DMX)/wired control, battery/AC power
15x20W RGB + Warm White LED source, powerful 6,282-lumen output high CRI (>93)
Range of holographic filters that modify the shape of the beam angle

LIGHT SOURCE

Source:

15x20
W

RGB + Warm White LED
Luminous flux:

6'300 lm @full
Lux:

4'451
lx

@5 m full
CRI:

> 95 @3200K ; > 93 @5600K
R9:

> 98 @3200K ; > 93 @5600K
TLCI:

> 84 @5600K
TM30 Rf:

94.2 @3200K ; > 92 @5600K
TM30 Rg:

104.4 @3200K ; > 105 @5600K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

10
°

COLOUR SYSTEM

Colour mixing:

RGBWW
CCT:

CCT control through dedicated DMX channel
White presets:

2'800K - 10'000
K
Colour wheel:

virtual colour wheel with macros
Macros:

built-in white presets

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX + WDMX
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
IR:

infrared sensor controlled by remote
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

BATTERY

Battery:

16,8
V

lithium
Estimated battery life:

up to 3 / 6 / 8 / 12 / 16 / 18 h (selectable)
Recharge connection:

Directly from the mains power or magnetic fast-charge in case
Recharge time:

5
h (max)
Battery level indicator:

shown on display
Other:

Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase

CONNECTIONS

Power connection:

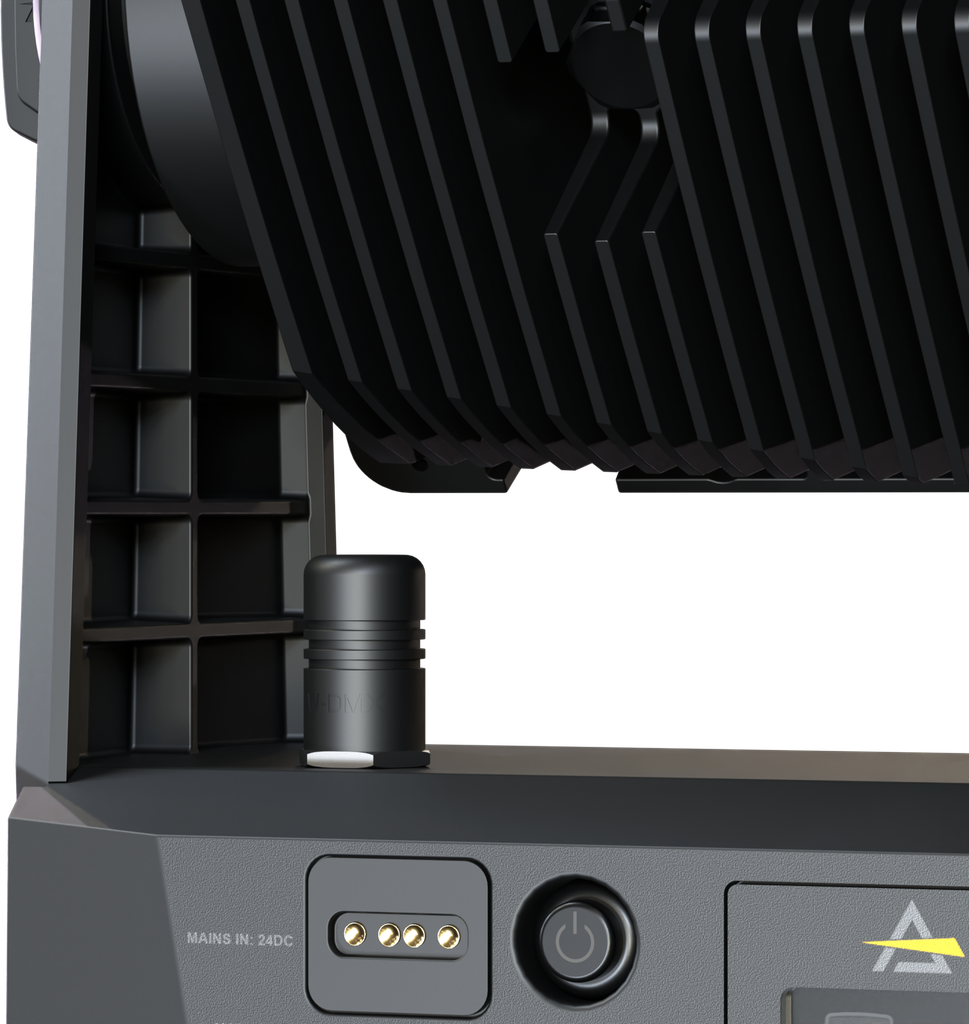

magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
Signal connection:

IP65

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL
