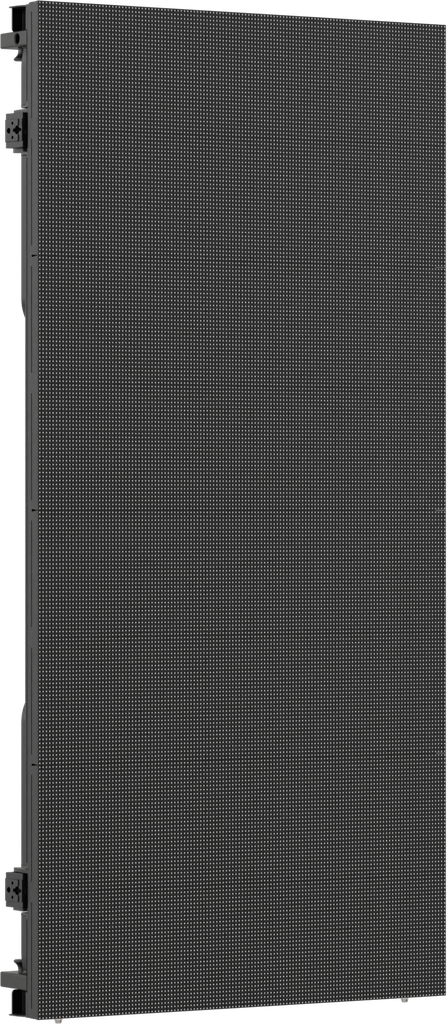

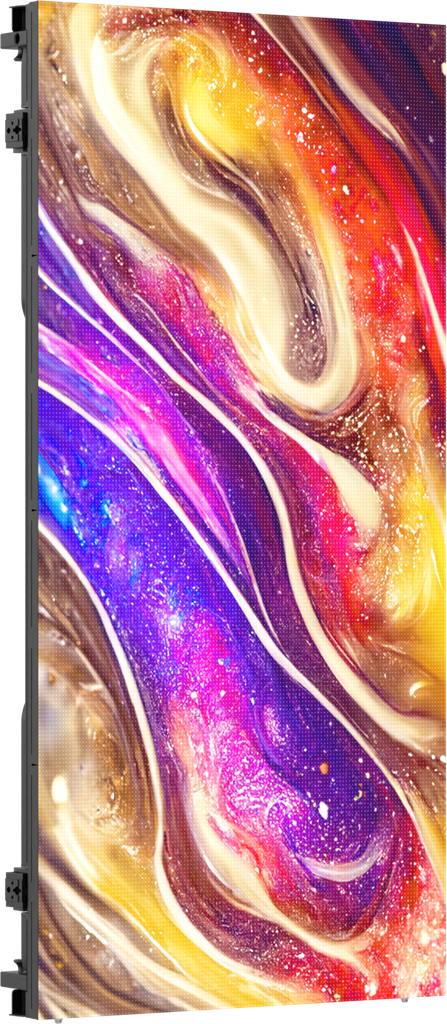

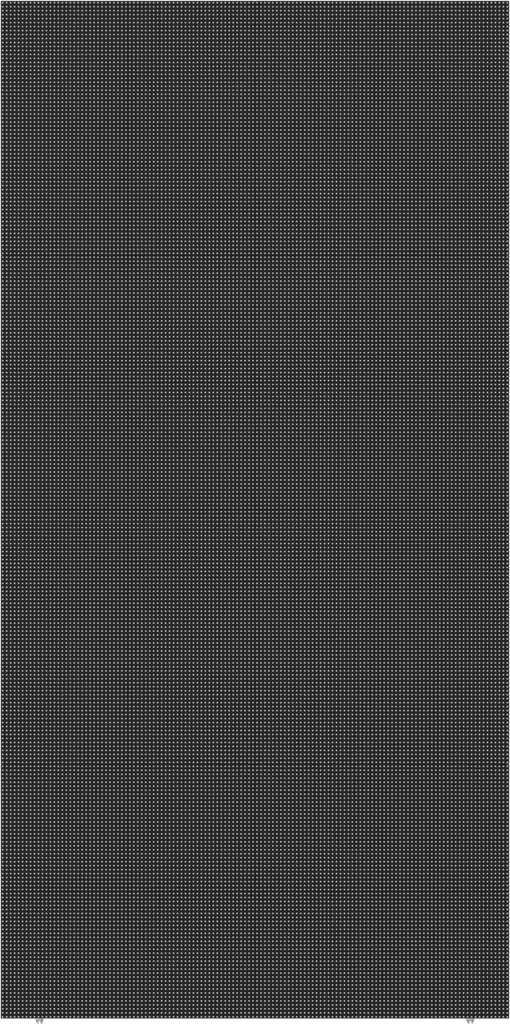

Prolights SIGMAX39T1X2BF

وحدة شاشة LED خارجية، SMD1921 BF، p.3,9، 50x100cm، 128x256pix، 3500nit، 14,6kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: SIGMAX39T1X2BF

الفئة: شاشات LED

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

SigmaPix 39T is a rental LED screen for outdoor use with a 3,9 mm pixel pitch, designed to meet requirements for touring, events and install applications. The outdoor Black&White& White LEDs grant a high brightness but increase contrast and the color gamut of the screen for an unprecedented visual experience both indoor and outdoor.

This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.

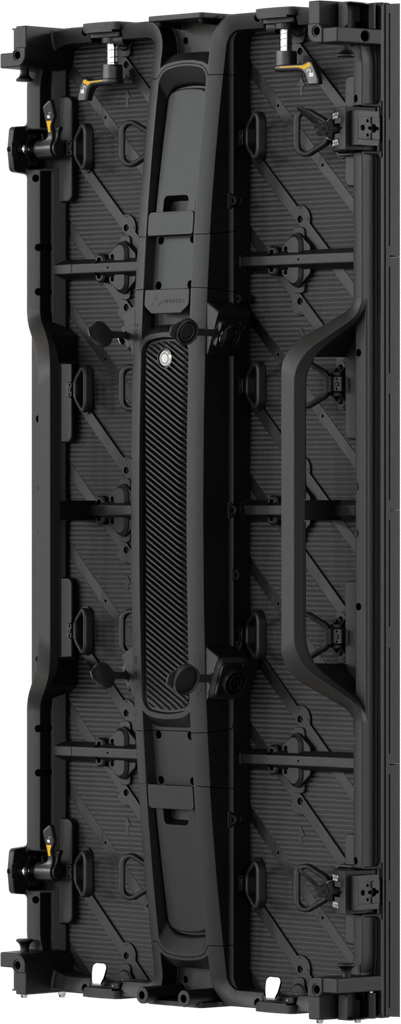

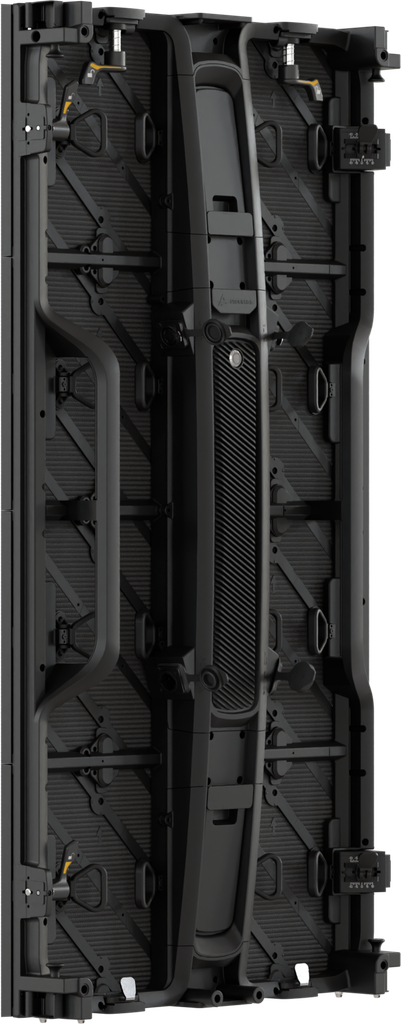

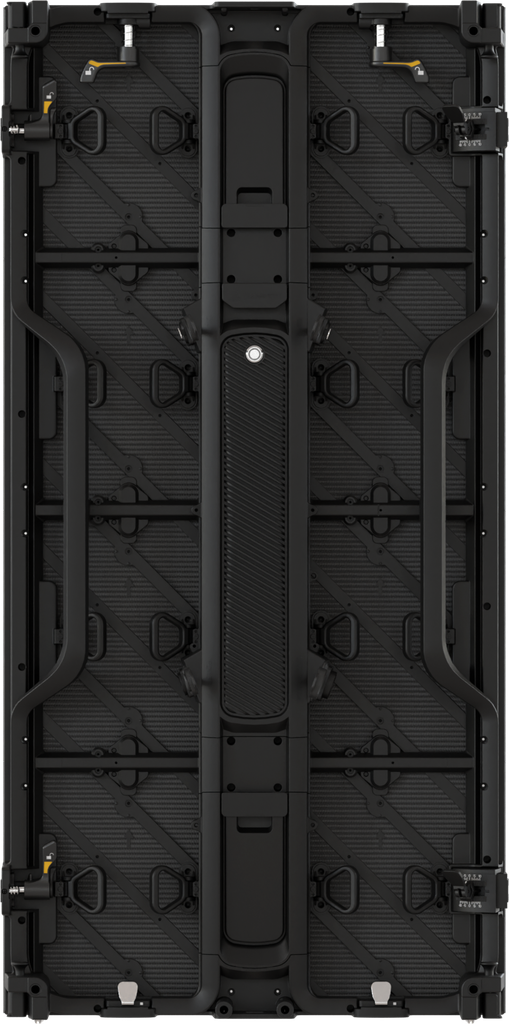

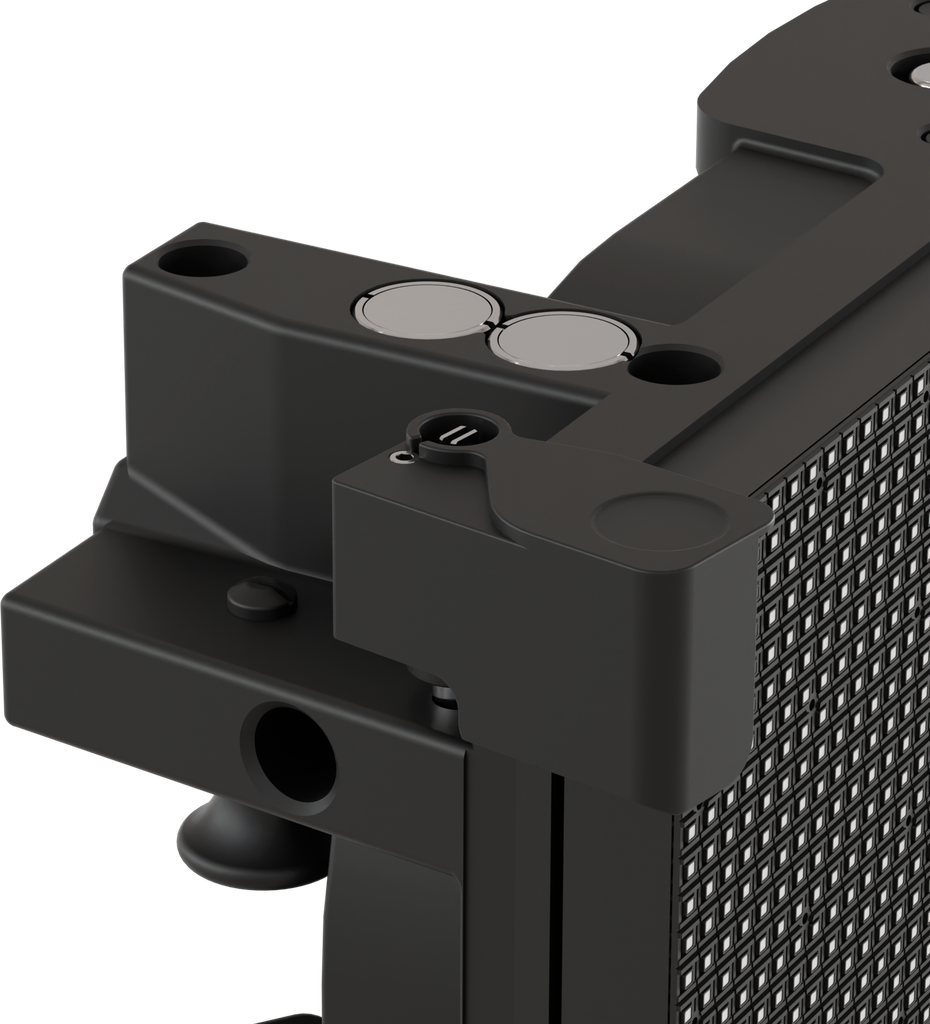

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as flip corner shield and bottom protection.

Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.

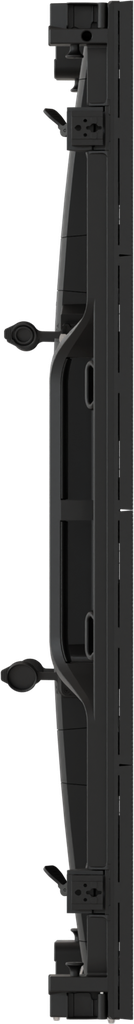

SigmaPix 39T tiles have on board curve mechanics allowing both concave and convex precise installation of +10° / -10° each tile and the weight has been reduced down to 8,6 kg (50x50) / 14,6 kg (50x100) per panels (34,4 /29,2 kg per sqm)

SigmaPix 39T is truly creative and it is enriched by the special C tiles, a special 90° cutted edge panel on every side allowing to create 90° seamless corner on every edge.

The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.

Outdoor Black LEDs

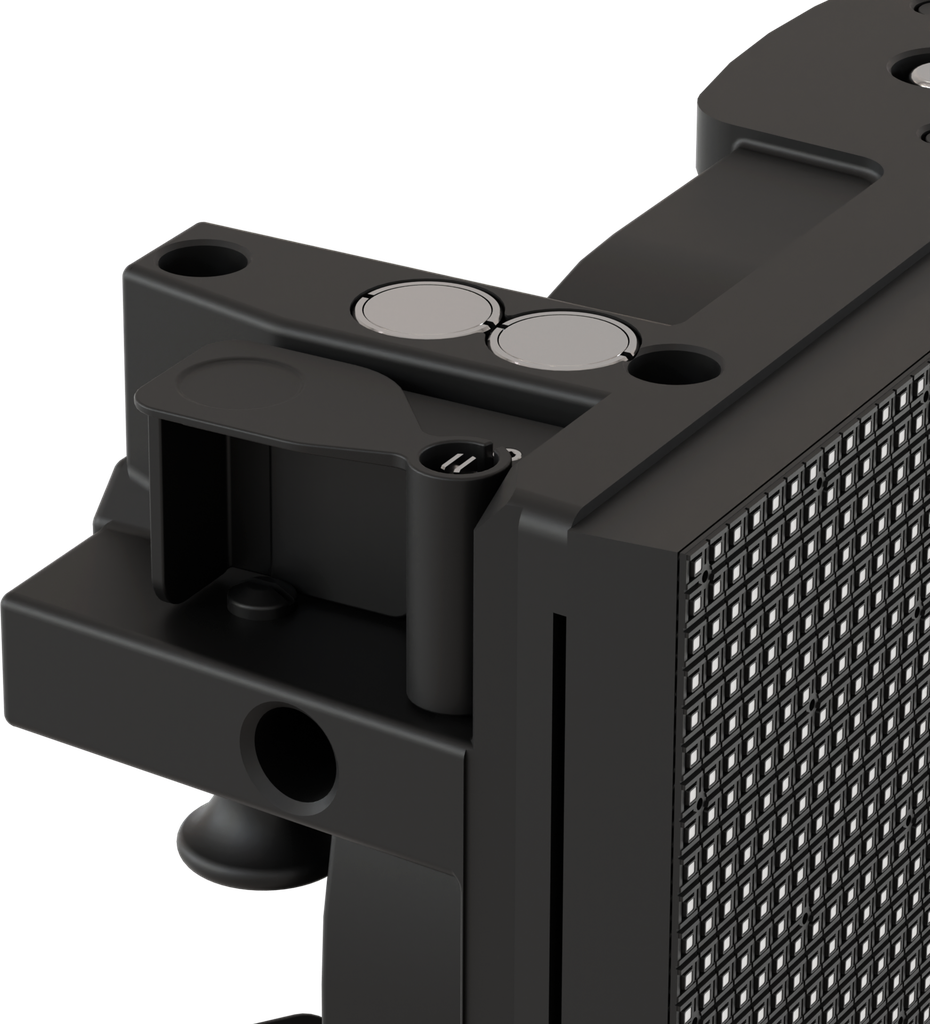

Single person installation, auto lock design, scratch protection and flip corner shield

Fast LED Module and PSU replacement

Built in curve mechanics for +10° / -10° concave & convex

Special C (90° corner) cabinet for unprecedented design

Refresh rate of 3.840 Hz

This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.

Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.

SigmaPix 39T is truly creative and it is enriched by the special C tiles, a special 90° cutted edge panel on every side allowing to create 90° seamless corner on every edge.

The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.

Features:
Outdoor Black LEDs
Single person installation, auto lock design, scratch protection and flip corner shield
Fast LED Module and PSU replacement
Built in curve mechanics for +10° / -10° concave & convex
Special C (90° corner) cabinet for unprecedented design
Refresh rate of 3.840 Hz

VIDEO

Driver chip type:

MBI 5253
LED source:

Kinglight SMD1921 full black
Pixel pitch:

3.9 mm
Panel resolution:

128x256
pixels
Module resolution:

64x64
pixels
Luminous flux:

3.500
nit
Contrast:

6.000:1
Grayscale:

14 bit
Refresh rate ≥:

3.840
Hz
Drive Mode:

1/16 scan, constan current
Vertical viewing angle:

120
°
Horizontal viewing angle:

140
°
LED density:

65.536
LED/sqm
Dead Pixel Ratio:

<0.002
LED avg life span:

100.000 h

ELECTRICAL

Power input/output:

IPKON Seetronic IN/OUT
Power supply:

AC 110/230 V 50/60 Hz
Max power consumption (panel):

420
W
Avg power consumption (panel):

150
W
Max power consumption (sqm):

840
W
Avg power consumption (sqm):

300
W
Standby power consumption (pannello):

100
W
Max rated current/panel::

AC 220V / 1.91A
Working temperature:

-20°C / +50
°C
Working humidity:

10~90 RH
%

CONTROL

Receiving card type:

A8S-N
Other controllers type:

mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
Control protocol:

Novastar
Signal input:

waterproof Seetronic RJ45
Signal output:

waterproof Seetronic RJ45

MECHANICS

Other specifics:

curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
Magnetic LED modules:

not available
Module size (WxH):

250x250
mm
Panel size(WxHxD):

500×1000×83
mm
Vertical hanging system:

built-in aliscaf clamp support
Connection:

seamless locking system
Panel weight:

14,6
kg
Weight per square meter:

29,2
kg
Hanging Panel Quantity ≤:

10 for hanging and 6 for stacking
