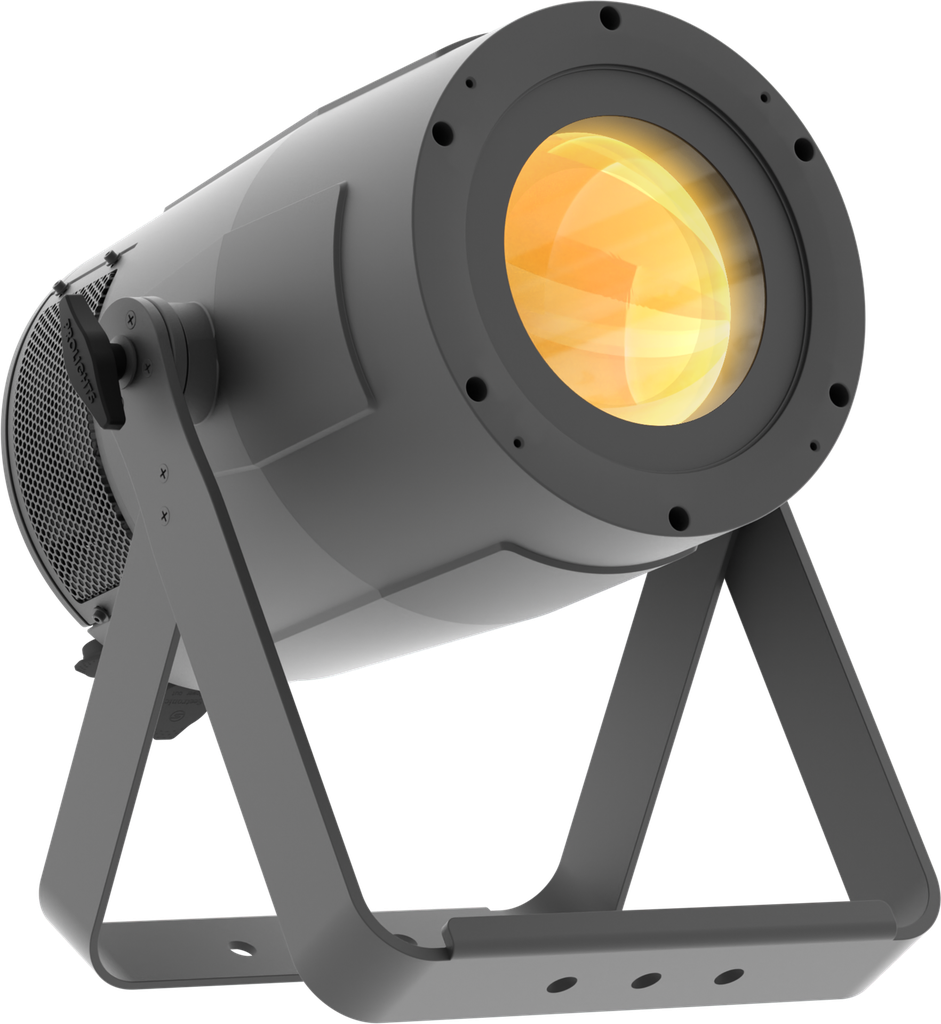

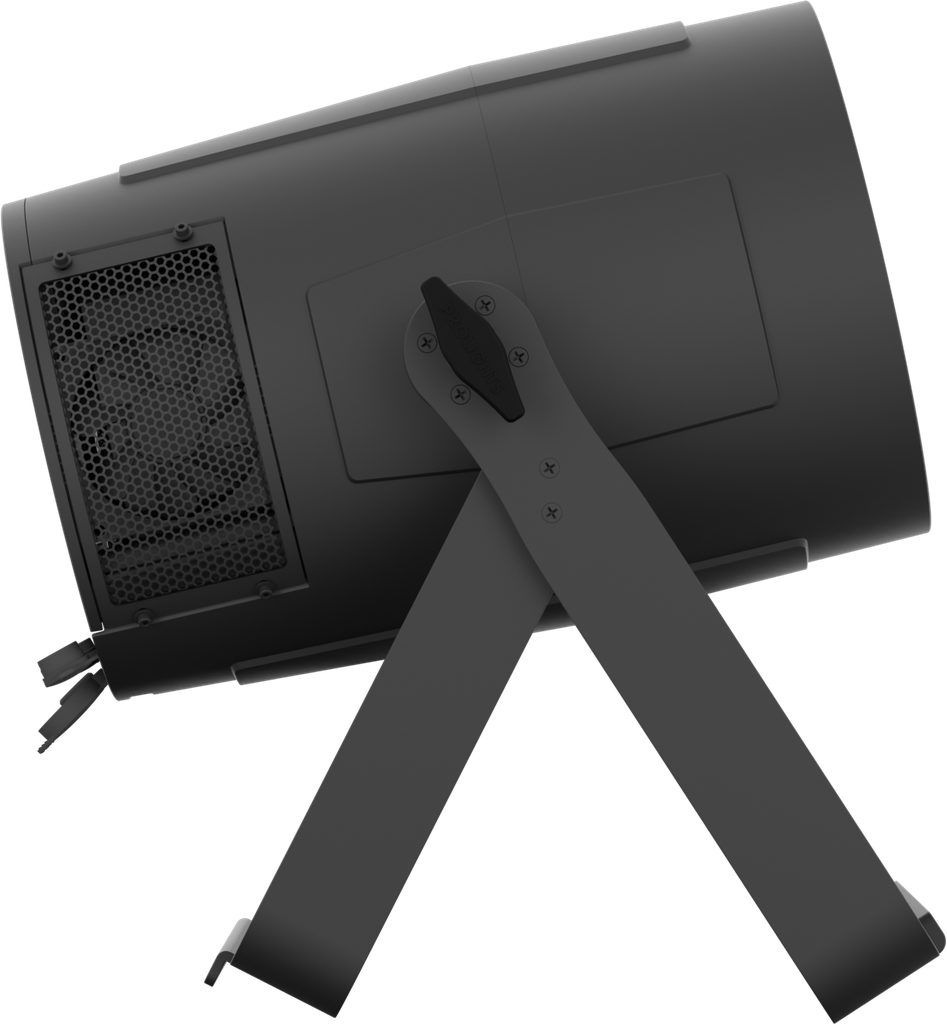

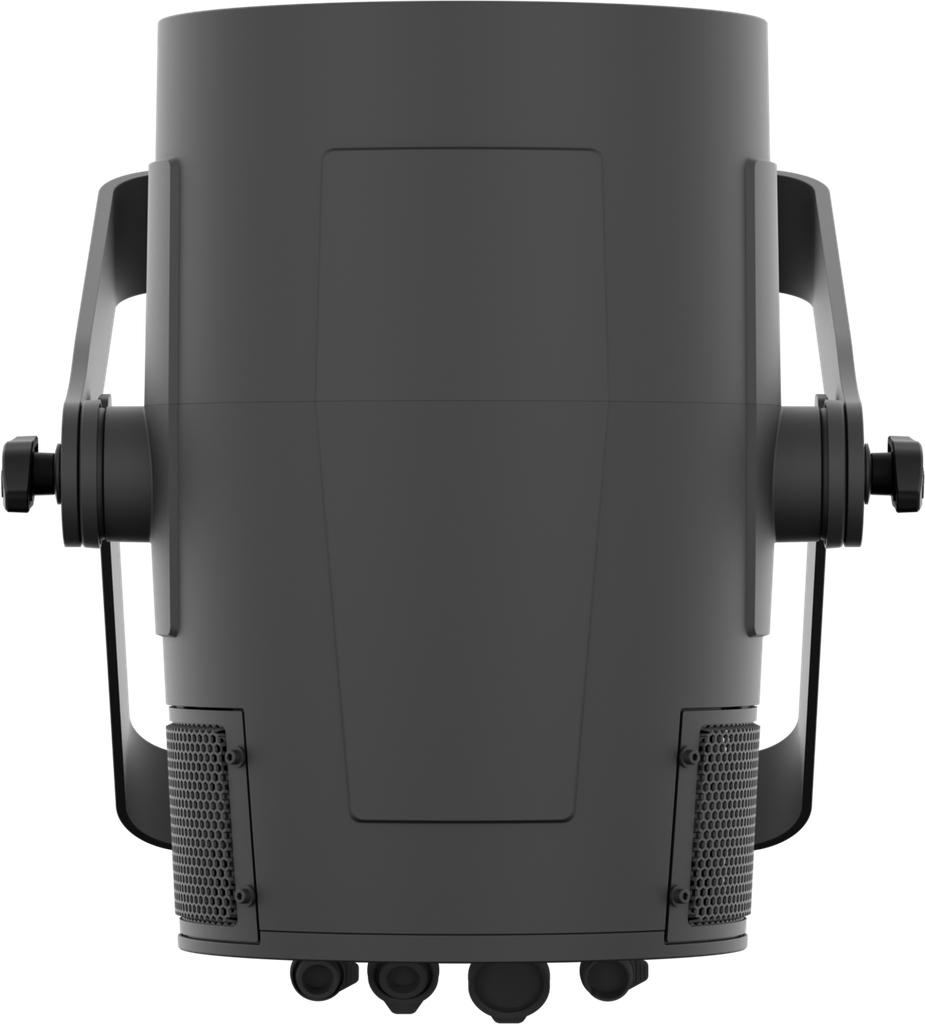

Prolights Pixie ZoomXB

كشّاف Par LED 280W RGBW/FC، زوم خطّي إلكتروني 7°-42°، IP65، 265W، 12 kg

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: PIXIEZOOMXB

الفئة: الإضاءة , إضاءة المسرح , تجهيزات خارجية , كشّافات Par وواش

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

Pixie ZoomXB is a super bright single-source IP rated LED PAR featuring a 7° - 42° linear zoom and a fully homogenised output. Pixie ZoomXB is equipped with a proprietary 280W RGB + Warm White LED module which delivers a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie ZoomXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being IP rated and offering a wide zoom range, the Pixie ZoomXB offers unprecedented flexibility and is a truly indispensable fixture for every rental company.

280W proprietary RGB + Warm White LED delivering high CRI, TLCI, TM30 values

7° to 42° linear zoom with superior evenness

IP65 for temporary installation and WDMX on-board

Features:
280W proprietary RGB + Warm White LED delivering high CRI, TLCI, TM30 values
7° to 42° linear zoom with superior evenness
IP65 for temporary installation and WDMX on-board

LIGHT SOURCE

Source:

280
W

RGB + Warm White LEDs
Source CCT:

@full 6.000
K
Luminous flux:

(7°) 2'516 lm - (42°) 2'757

@Full
Lux:

(7°) 6'531 lx - (42°) 477
lx

@5 m full
CRI:

91 @3.200 K; 88,6 @5.600 K
R9:

80 @3.200 K; 82,5 @5.600 K
TLCI:

80 @5.600 K
TM30 Rf:

89 @3.200 K; 88 @5.600 K
TM30 Rg:

108 @3.200 K; 108 @5.600 K
Source life expectancy:

> 30.000 h

OPTICS

Zoom range:

7° - 42
°

motorised linear zoom
Lens diameter:

125
mm
Lens type:

high-quality glass lens optics

COLOUR SYSTEM

Colour mixing:

RGB + Warm White
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K - 8.000
K
Colour wheel:

virtual colour wheel with macros
Macros:

several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

DMX512, RDM, W-DMX
DMX channels:

5 / 7 / 11
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

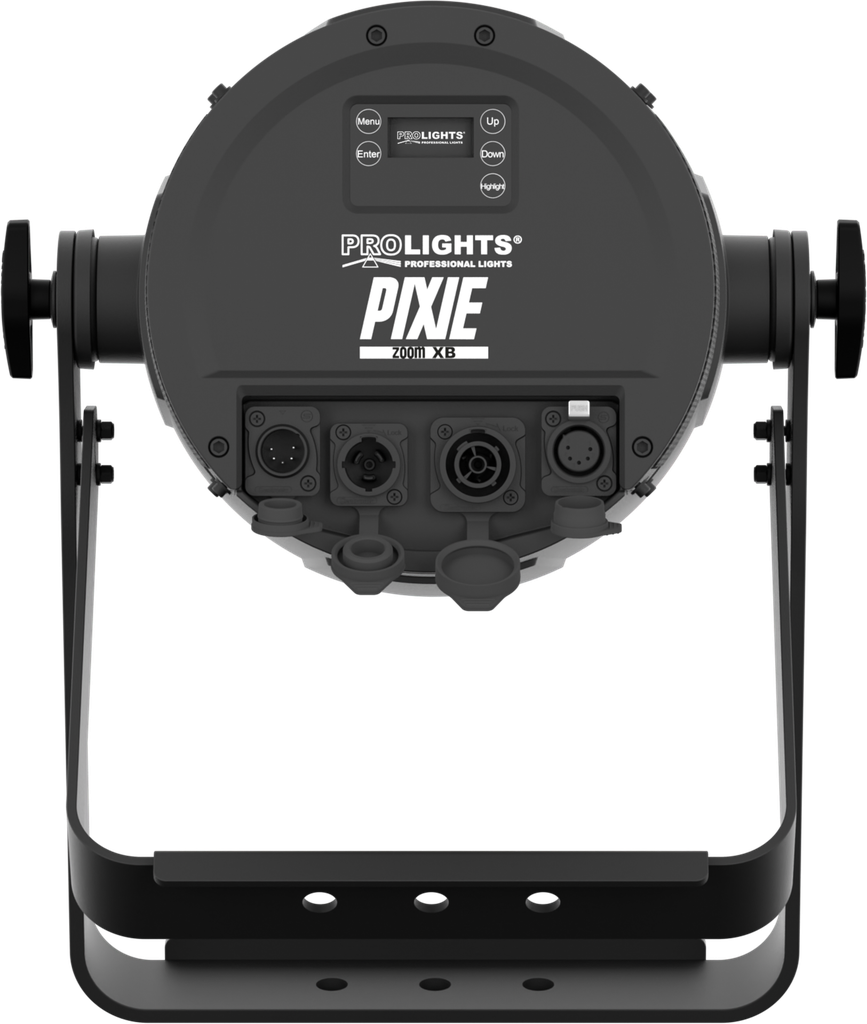

CONNECTIONS

Power connection:

Seetronic powerCON waterproof IN/OUT connectors
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL
