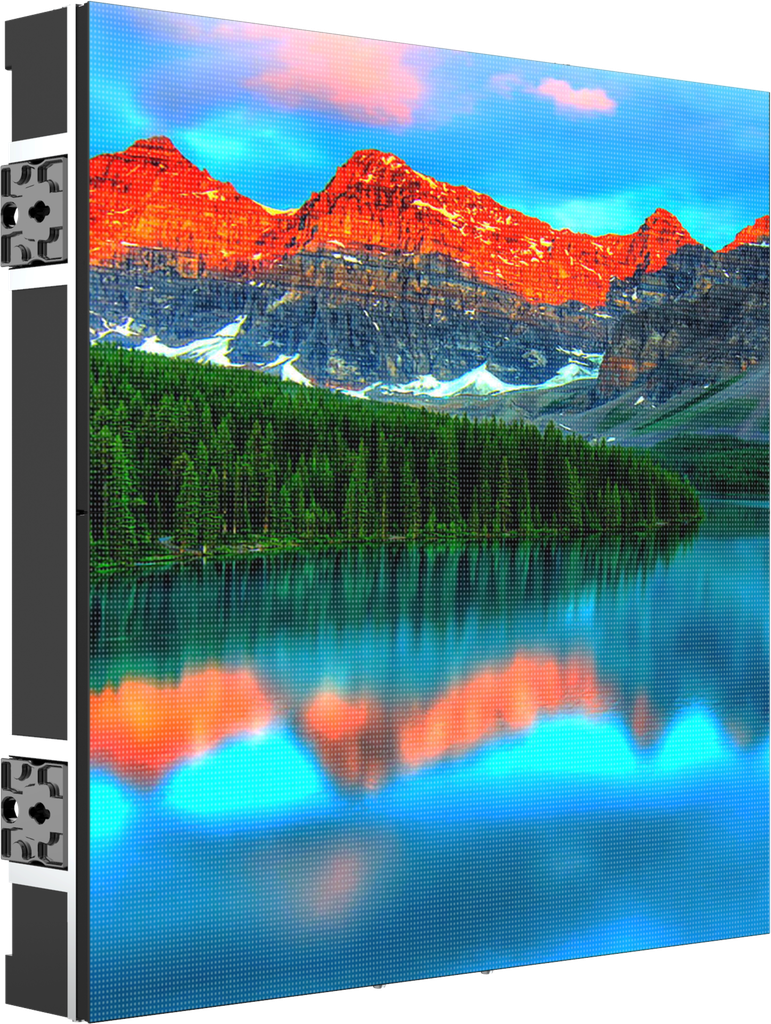

OmegaPix 26BE is a revolutionary indoor 2,6 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and superior video image quality.
Mechanical / assembly features:
- Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
- Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
- Front service of magnetic replacement of the LED module for immediate service
- Climbable, designed for a quick maintenance access
- Hot swapping of the back panel to replace PSU & electronics
- Assisted mounting magnets allowing for a one-man quick setup
- Ground stacking accessories available
- Corner protection for additional safe transport in case
- Velcro edged to avoid any gaps
- Fly bars are suitable for both hanging or ground stacking application
Components / electronic features:
- Premium Components
- Module with memory to store calibration database
- Magnetic front and back LED module replacement
- Black&White& White mask for superior contrast and rentability
- 18 bit+ greyscale (4x high than the market average)
- Rotation function enabled
- New Novastar A8s receiver
- IP powerCON IN/OUT
- IP dataCoN IN/OUT
- CE, EMC, UL approved
Image quality:
- New Novastar A8s receiving card
- 18 bit+ greyscale, x4 higher than the market average. Effectively improved greyscale performance under low-brightness, showing more exquisite and expressive images
- ClearView technology used adjusting the texture, size and contrast of images in different areas to further enhance the image details
- Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures
- Rotation enabled: rotation of panels recognised by software @ 360°
- RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported
OmegaPix 26BE is a revolutionary indoor 2,6 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and superior video image quality.
Mechanical / assembly features:
- Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
- Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
- Front service of magnetic replacement of the LED module for immediate service
- Climbable, designed for a quick maintenance access

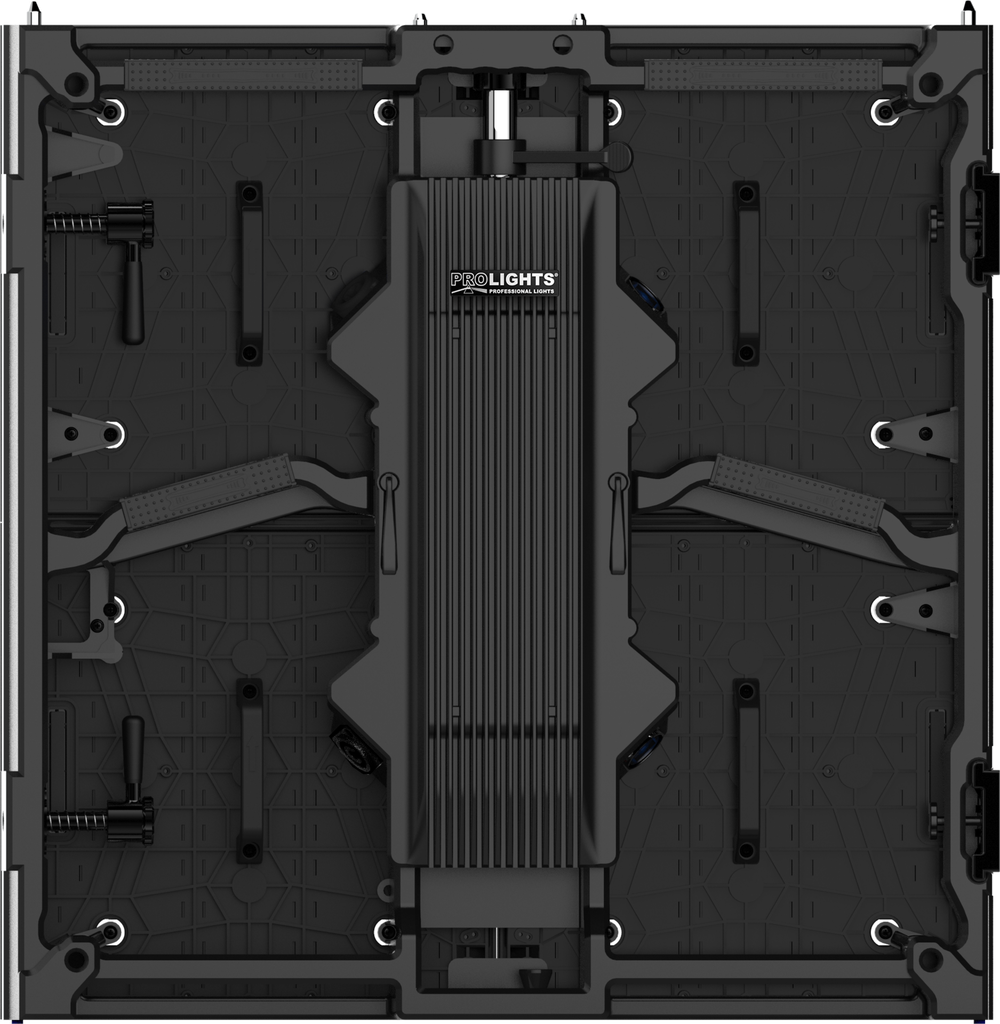

- Hot swapping of the back panel to replace PSU & electronics
- Assisted mounting magnets allowing for a one-man quick setup
- Ground stacking accessories available
- Corner protection for additional safe transport in case
- Velcro edged to avoid any gaps
- Fly bars are suitable for both hanging or ground stacking application
Components / electronic features:
- Premium Components
- Module with memory to store calibration database
- Magnetic front and back LED module replacement
- Black&White& White mask for superior contrast and rentability
- 18 bit+ greyscale (4x high than the market average)
- Rotation function enabled
- New Novastar A8s receiver
- IP powerCON IN/OUT
- IP dataCoN IN/OUT
- CE, EMC, UL approved
Image quality:
- New Novastar A8s receiving card
- 18 bit+ greyscale, x4 higher than the market average. Effectively improved greyscale performance under low-brightness, showing more exquisite and expressive images
- ClearView technology used adjusting the texture, size and contrast of images in different areas to further enhance the image details
- Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures
- Rotation enabled: rotation of panels recognised by software @ 360°
- RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported
2.6 mm pixel pitch indoor rental LED Screen
Seamless 90° angles
Curve configurations, concave and convex
Fly bar hanging/stacking
New Novastar A8s with 18bit+, ClearView and image rotation
VIDEO
- Driver chip type:MBI 5253
- LED source:SMD 2121 full black
- Pixel pitch:2.6 mm
- Panel resolution:192x192pixels
- Module resolution:96x96pixels
- Luminous flux:1.000nit
- Contrast:3.000:1
- Grayscale:14 bit
- Refresh rate ≥:2.760Hz
- Drive Mode:1/32 scan, constan current
- Vertical viewing angle:120°
- Horizontal viewing angle:140°
- LED density:147.456LED/sqm
- Dead Pixel Ratio:<0,002
- LED avg life span:100.000 h
ELECTRICAL
- Power input/output:IPKON Seetronic IN/OUT
- Power supply:AC 110/230 V 50/60 Hz
- Max power consumption (panel):160W
- Avg power consumption (panel):53W
- Max power consumption (sqm):640W
- Avg power consumption (sqm):160W
- Standby power consumption (pannello):20W
- Max rated current/panel::AC 220 V / 0,55 A
- Working temperature:-10°C/+45°C
- Working humidity:10~80 RH%
CONTROL
- Receiving card type:A8S-N
- Other controllers type:rotation, 22bit+, mapping, firmware copy, RCFGX restore, calibration restore
- Control protocol:Novastar
- Signal input:IP data Seetronic IN
- Signal output:IP data Seetronic OUT
MECHANICS
- Other specifics:curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
- Magnetic LED modules:available
- Module size (WxH):250x250mm
- Panel size(WxHxD):500×500×90.6mm
- Vertical hanging system:built-in aliscaf clamp support
- Connection:seamless locking system
- Panel weight:9kg
- Weight per square meter:36kg
- Hanging Panel Quantity ≤:20
PHYSICAL
- IP rating:IP30
- Cooling:fan-free with natural convection
- Housing:Die-cast aluminium housing
- Finish:black
INSTALLATION
- Curve configurations:concave 2°, 5°, 10° - convex 2°, 5°
CERTIFICATIONS / REPORTS
- Compliance:CE, EMC, UL
