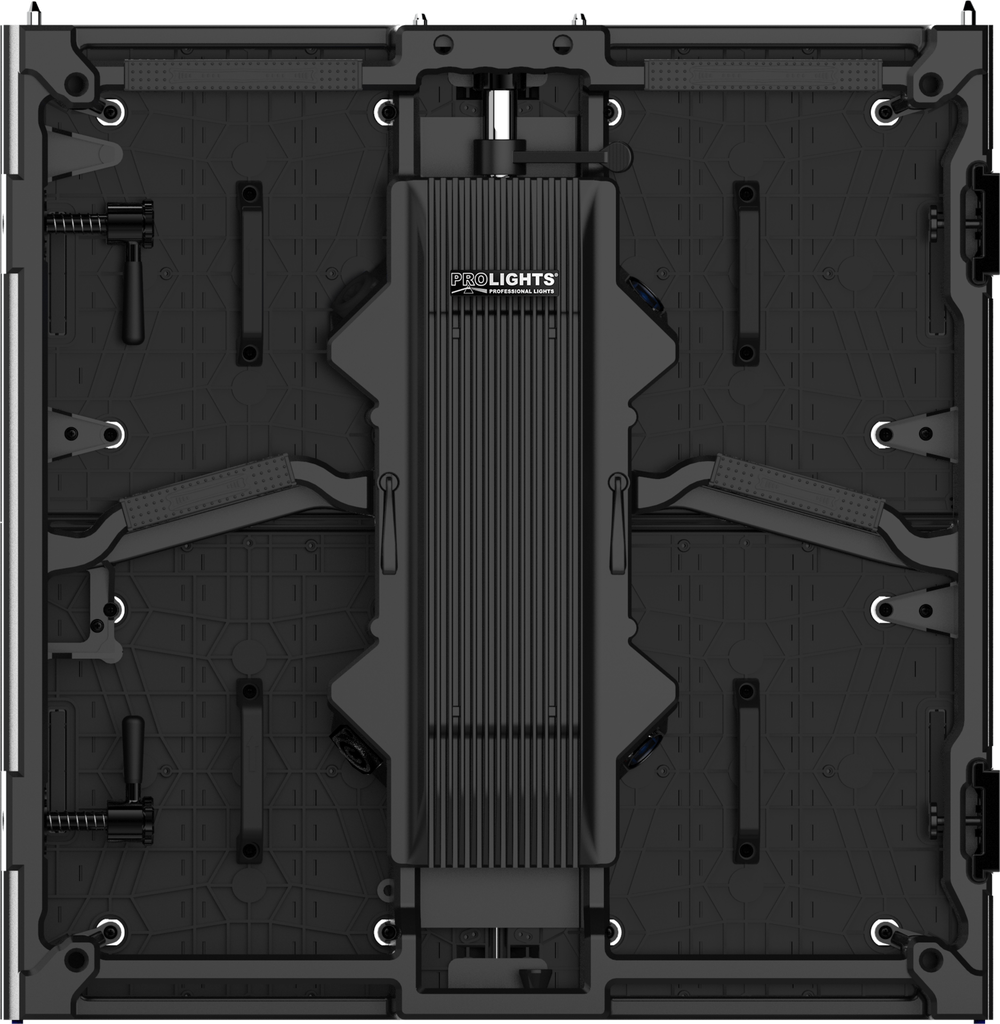

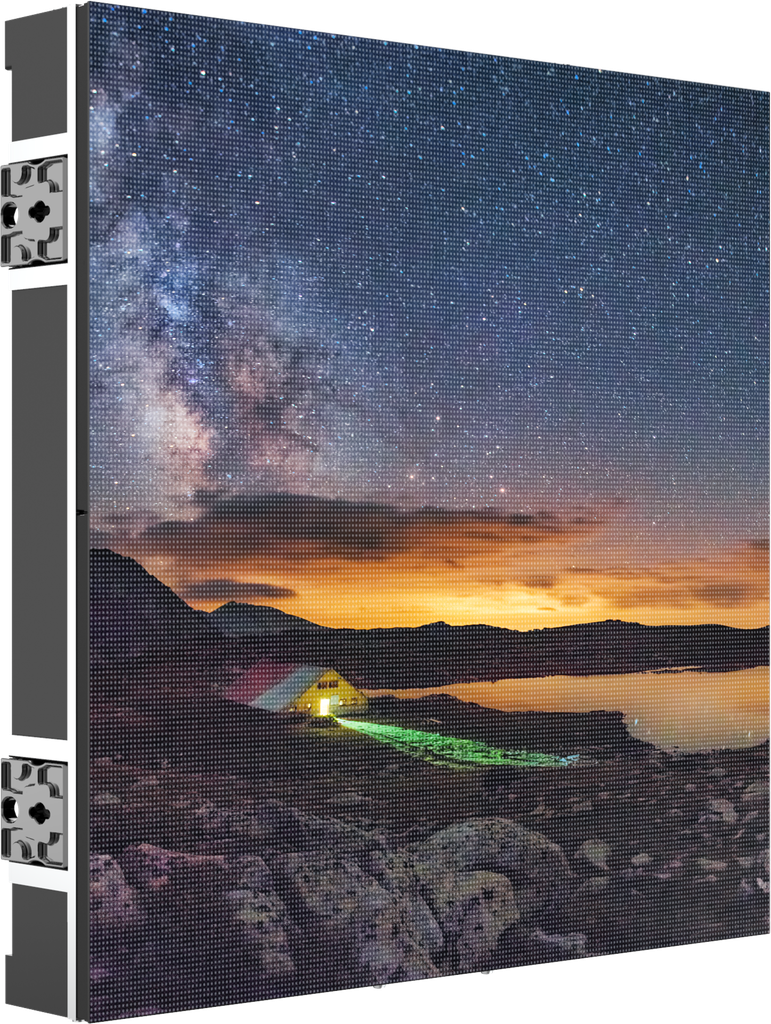

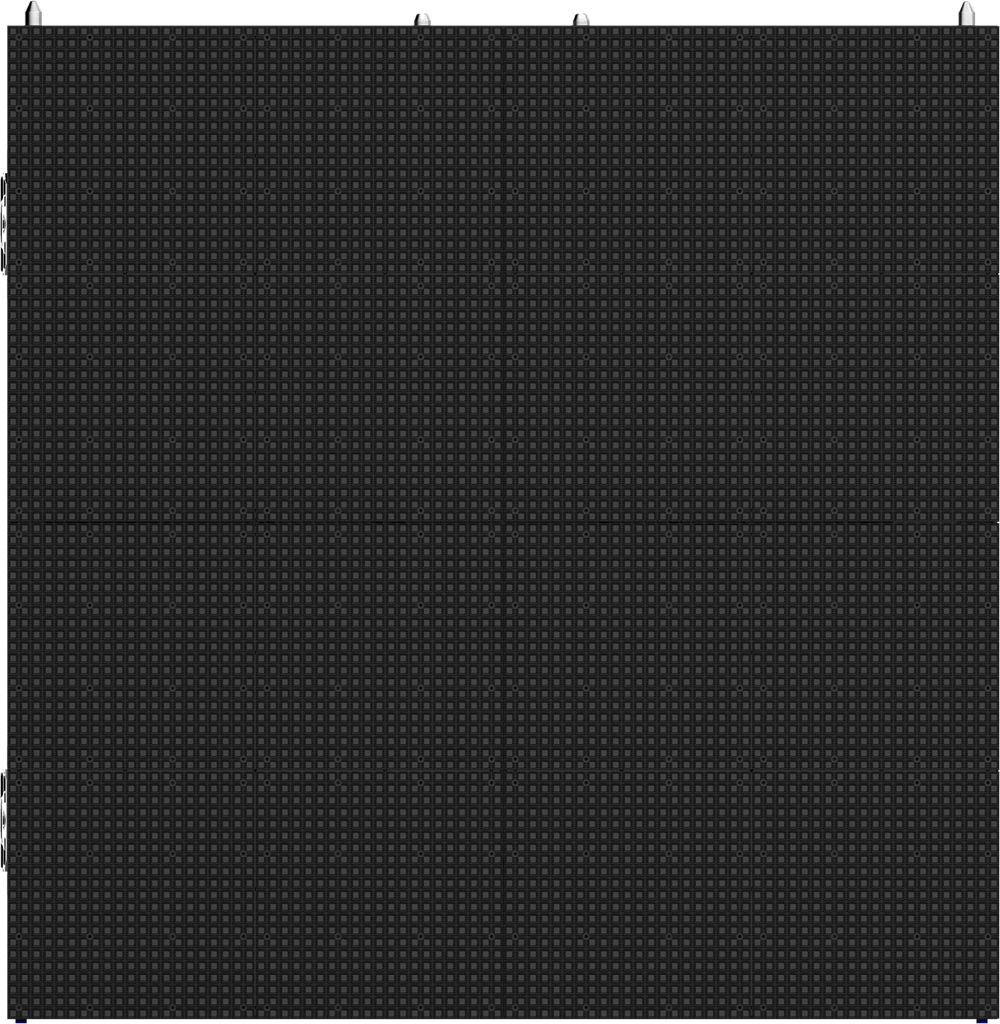

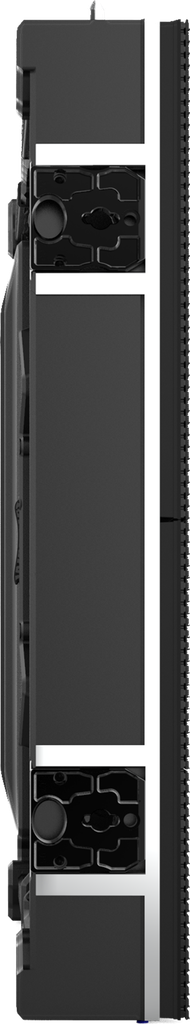

Prolights OMEGAX26B

وحدة شاشة LED داخلية، SMD2121 BF، p.2,6mm، 50x50cm، 192x192pix، 1.000 nit، 9kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: OMEGAX26B

الفئة: شاشات LED

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

OmegaPix 26B is a revolutionary indoor 2,6 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and superior video image quality.

Mechanical / assembly features:

Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
Front service of magnetic replacement of the LED module for immediate service
Climbable, designed for a quick maintenance access
Hot swapping of the back panel to replace PSU & electronics
Assisted mounting magnets allowing for a one-man quick setup
Ground stacking accessories available
Corner protection for additional safe transport in case
Velcro edged to avoid any gaps
Fly bars are suitable for both hanging or ground stacking application:

Components / electronic features:

Premium Components
Module with memory to store calibration database
Magnetic front and back LED module replacement
Black&White& White mask for superior contrast and rentability
22 bit+ greyscale (4x high than the market average)
Rotation function enabled
New Novastar A8s receiver
IP powerCON IN/OUT
IP dataCoN IN/OUT
CE, EMC, UL approved

Image quality:

New Novastar A8s-N receiving card
22 bit+ greyscale, x4 higher than the market average. Effectively improved greyscale performance under low-brightness, showing more exquisite and expressive images.
Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures.
Rotation enabled: rotation of panels recognised by software @ 360°
RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported

2,6 mm pixel pitch indoor rental LED Screen

Seamless 90° angles

Curve configurations, concave and convex

Fly bar hanging/stacking

New Novastar A8s with 22bit+ and image rotation

OmegaPix 26B is a revolutionary indoor 2,6 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and superior video image quality.

Mechanical / assembly features:

Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
Front service of magnetic replacement of the LED module for immediate service
Climbable, designed for a quick maintenance access
Hot swapping of the back panel to replace PSU & electronics
Assisted mounting magnets allowing for a one-man quick setup
Ground stacking accessories available
Corner protection for additional safe transport in case
Velcro edged to avoid any gaps
Fly bars are suitable for both hanging or ground stacking application:

Components / electronic features:

Premium Components
Module with memory to store calibration database
Magnetic front and back LED module replacement
Black&White& White mask for superior contrast and rentability
22 bit+ greyscale (4x high than the market average)
Rotation function enabled
New Novastar A8s receiver
IP powerCON IN/OUT
IP dataCoN IN/OUT
CE, EMC, UL approved

Image quality:

New Novastar A8s-N receiving card
22 bit+ greyscale, x4 higher than the market average. Effectively improved greyscale performance under low-brightness, showing more exquisite and expressive images.
Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures.
Rotation enabled: rotation of panels recognised by software @ 360°
RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported

Features:
2,6 mm pixel pitch indoor rental LED Screen
Seamless 90° angles
Curve configurations, concave and convex
Fly bar hanging/stacking
New Novastar A8s with 22bit+ and image rotation

VIDEO

Driver chip type:

MBI 5252
LED source:

SMD 2121 full black
Pixel pitch:

2.6 mm
Panel resolution:

192x192
pixels
Module resolution:

96x96
pixels
Luminous flux:

1.000
nit
Contrast:

3.000:1
Grayscale:

14 bit
Refresh rate ≥:

3.840
Hz
Drive Mode:

1/16 scan, constan current
Vertical viewing angle:

120
°
Horizontal viewing angle:

140
°
LED density:

147.456
LED/sqm
Dead Pixel Ratio:

<0,002
LED avg life span:

100.000 h

ELECTRICAL

Power input/output:

IPKON Seetronic IN/OUT
Power supply:

AC 110/230 V 50/60 Hz
Max power consumption (panel):

160
W
Avg power consumption (panel):

40
W
Max power consumption (sqm):

640
W
Avg power consumption (sqm):

160
W
Standby power consumption (pannello):

20
W
Max rated current/panel::

AC 220 V / 0.55 A
Working temperature:

-10°C / +45
°C
Working humidity:

10~80 RH
%

CONTROL

Receiving card type:

A8S-N
Other controllers type:

rotation, 22bit+, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol:

Novastar
Signal input:

IP data Seetronic IN
Signal output:

IP data Seetronic OUT

MECHANICS

Other specifics:

curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
Magnetic LED modules:

available
Module size (WxH):

250x250
mm
Panel size(WxHxD):

500×500×90.6
mm
Vertical hanging system:

built-in aliscaf clamp support
Connection:

seamless locking system
Panel weight:

9
kg
Weight per square meter:

36
kg
Hanging Panel Quantity ≤:

20
