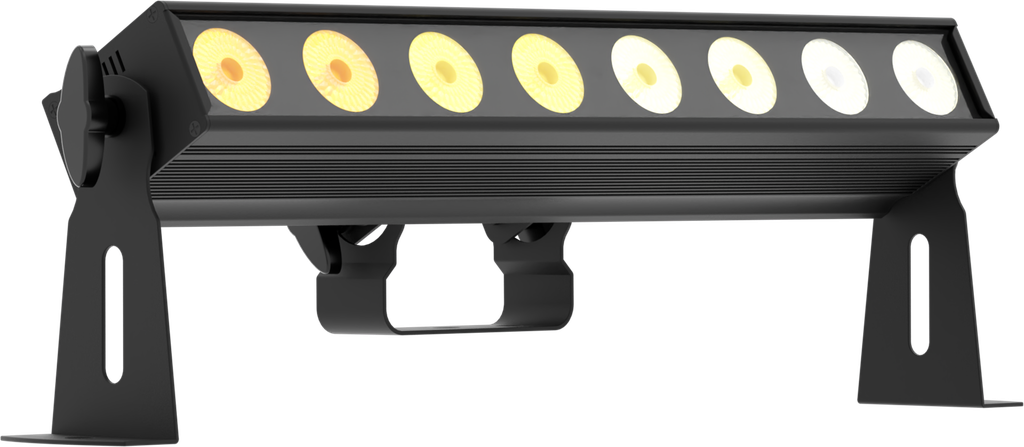

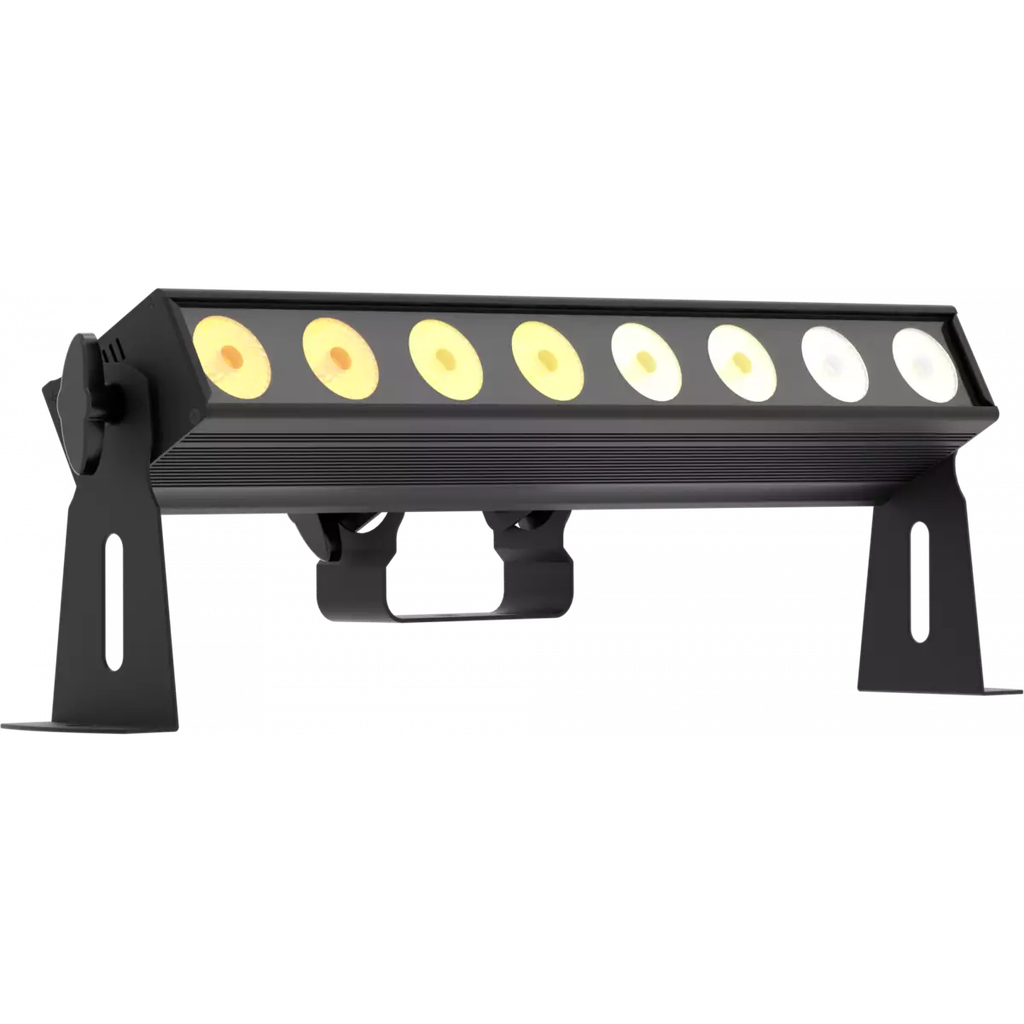

Lumipix 8H is a linear 50 cm LED batten designed for professional use, employing an innovative optical system combined with a new light source performing 6 primary colour mixing, RGBWAP full colour, granting unprecedented chromatic performance. The super-slim design combined with the extreme colour precision and light output make Lumipix 8H a flexible and versatile solution for every kind of application or within venues as their architectural, cyclorama, wall-washer, pixel effect or blinder.
Lumipix 8H is a linear 50 cm LED batten designed for professional use, employing an innovative optical system combined with a new light source performing 6 primary colour mixing, RGBWAP full colour, granting unprecedented chromatic performance. The super-slim design combined with the extreme colour precision and light output make Lumipix 8H a flexible and versatile solution for every kind of application or within venues as their architectural, cyclorama, wall-washer, pixel effect or blinder.
Features:LED batten with 8 individually controllable 12W RGBWA + UV LEDs
Extensive colour palette and powerful output
Flicker-free operation for IMAG and broadcast
- Source:8x12WRGBWAP LEDs
- Luminous flux:2'065
- Lux:(22°) 1'214lx@3 m full
- Source life expectancy:> 50.000 h
- Beam angle:22°
- Field angle:36°
- Lens diameter:42mm
- Additional optics:25° and 45° (optional)
- Colour mixing:RGBWAP / FC
- White presets:3.200 K -10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built pixel macros with adjustable speed
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512
- DMX channels:3 / 6 / 8 / 12 / 48 / 53ch
- Pixel control:pixel2pixel control
- Display:LCD display
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)

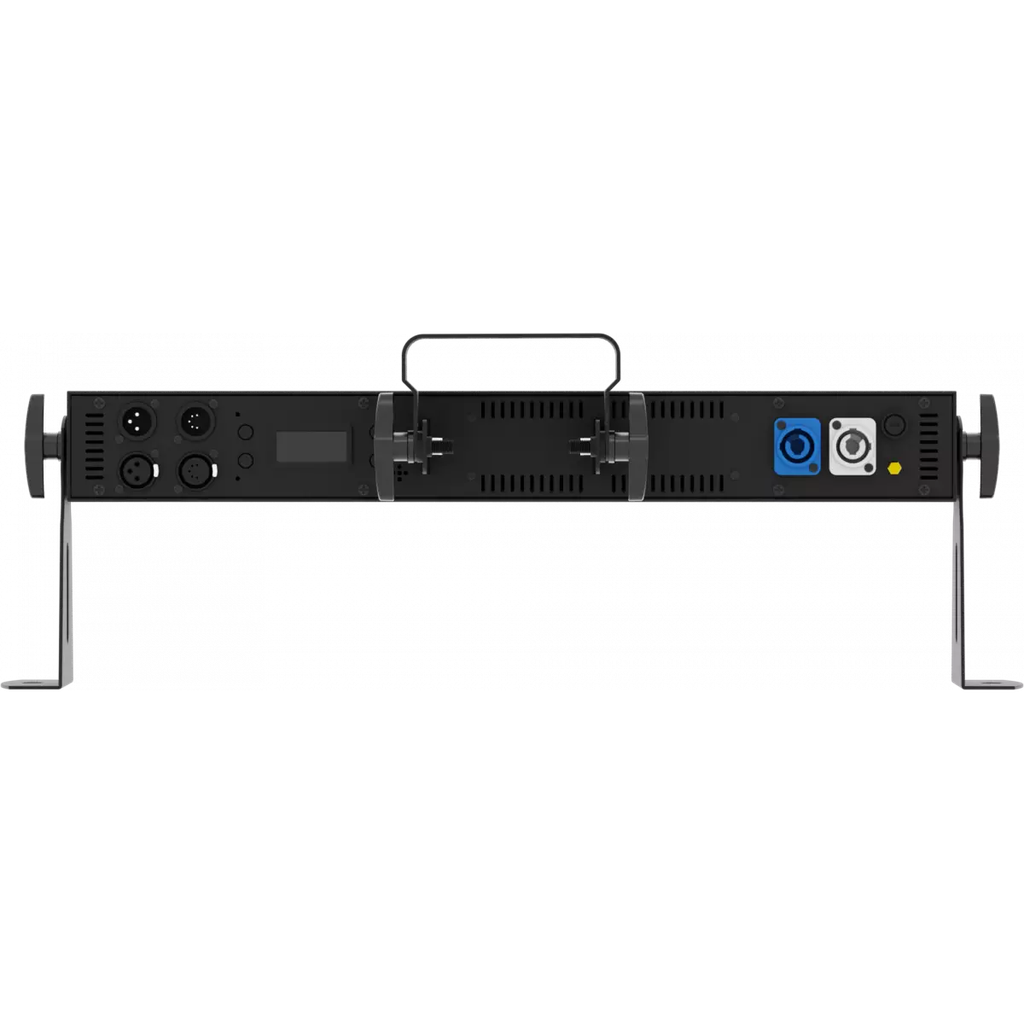

- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:XLR 3p + 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):85W
- Output (at 230V):12units on a single power line
- Max power consumption (120V):87W
- IP rating:IP33
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):582x80x183mm
- Weight:3,3kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM
