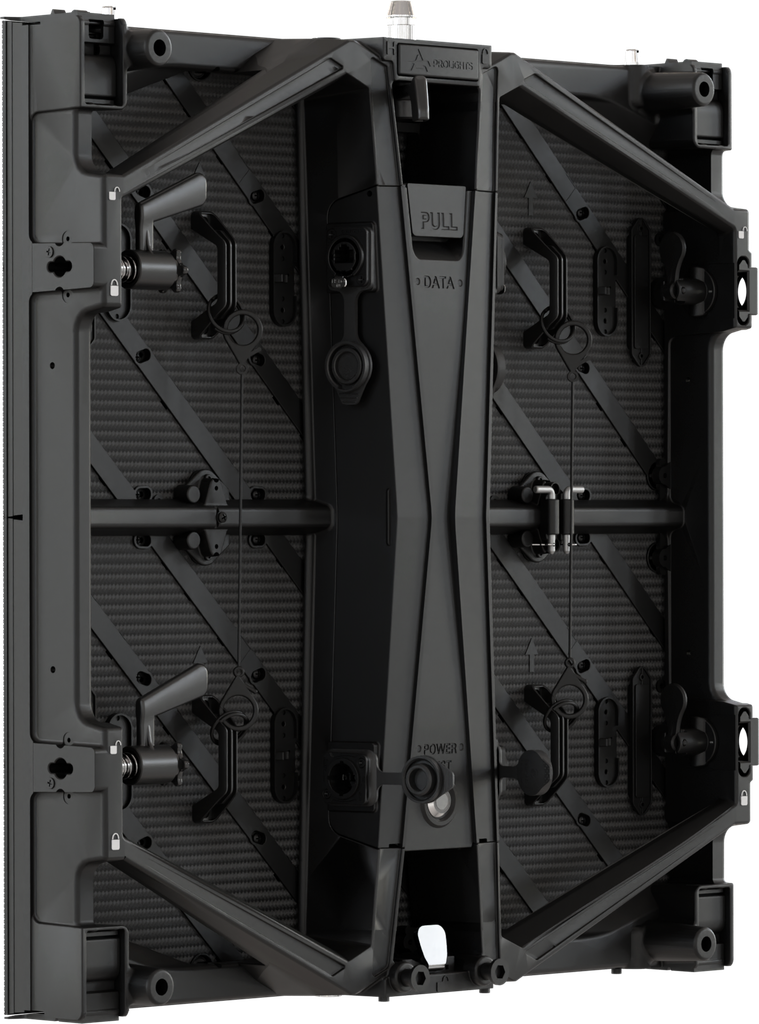

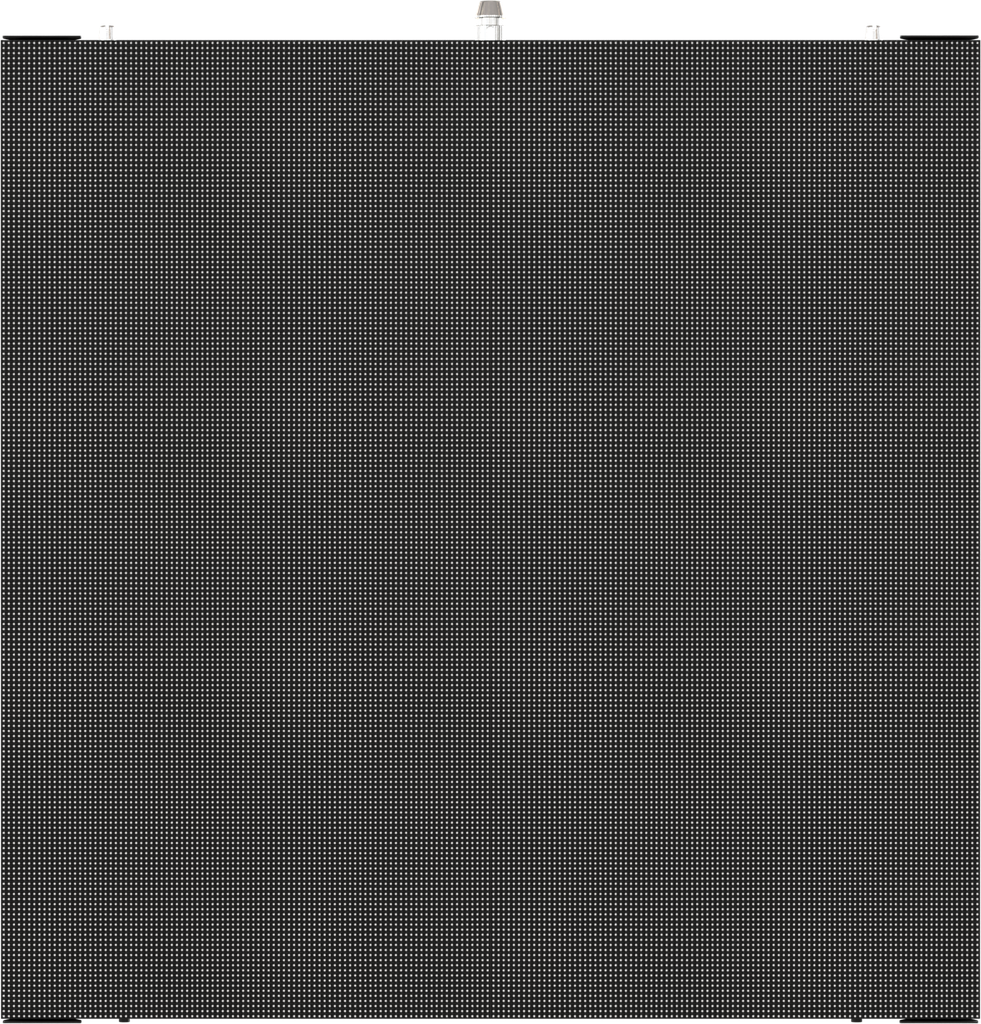

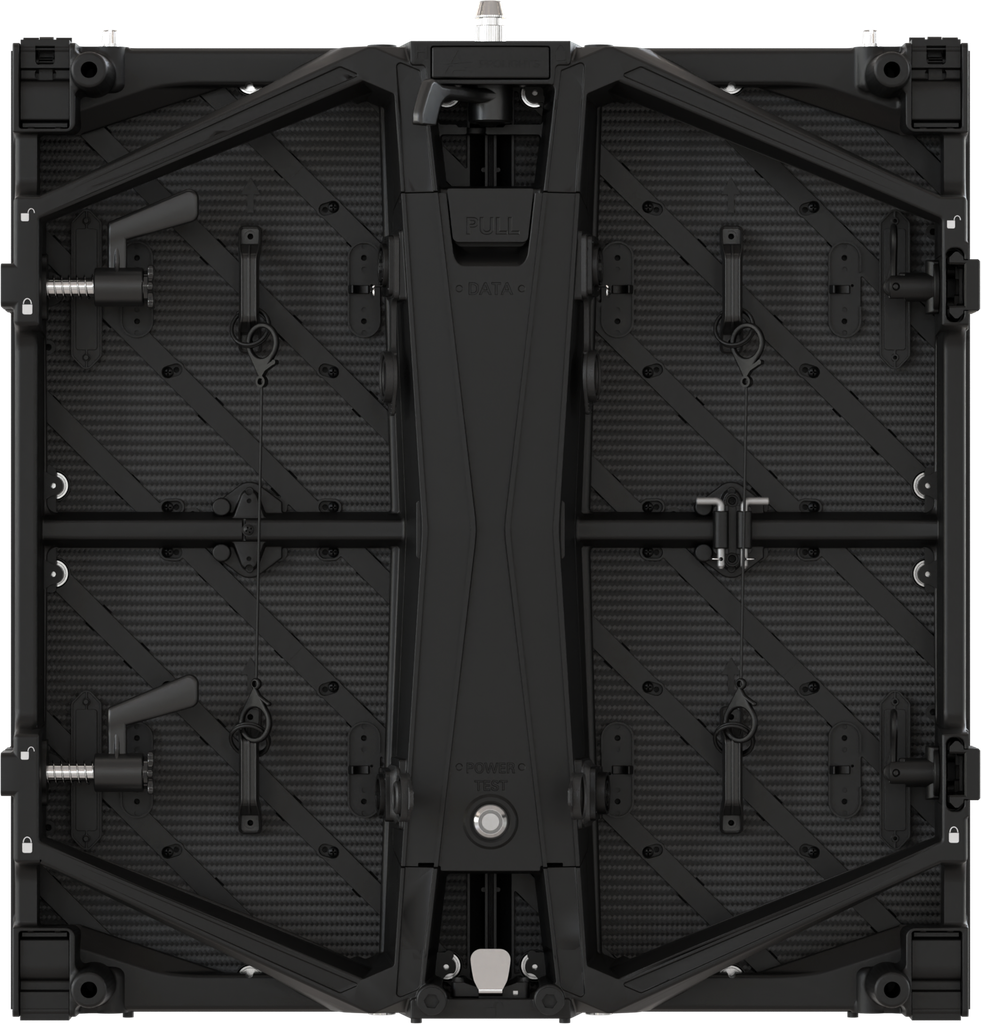

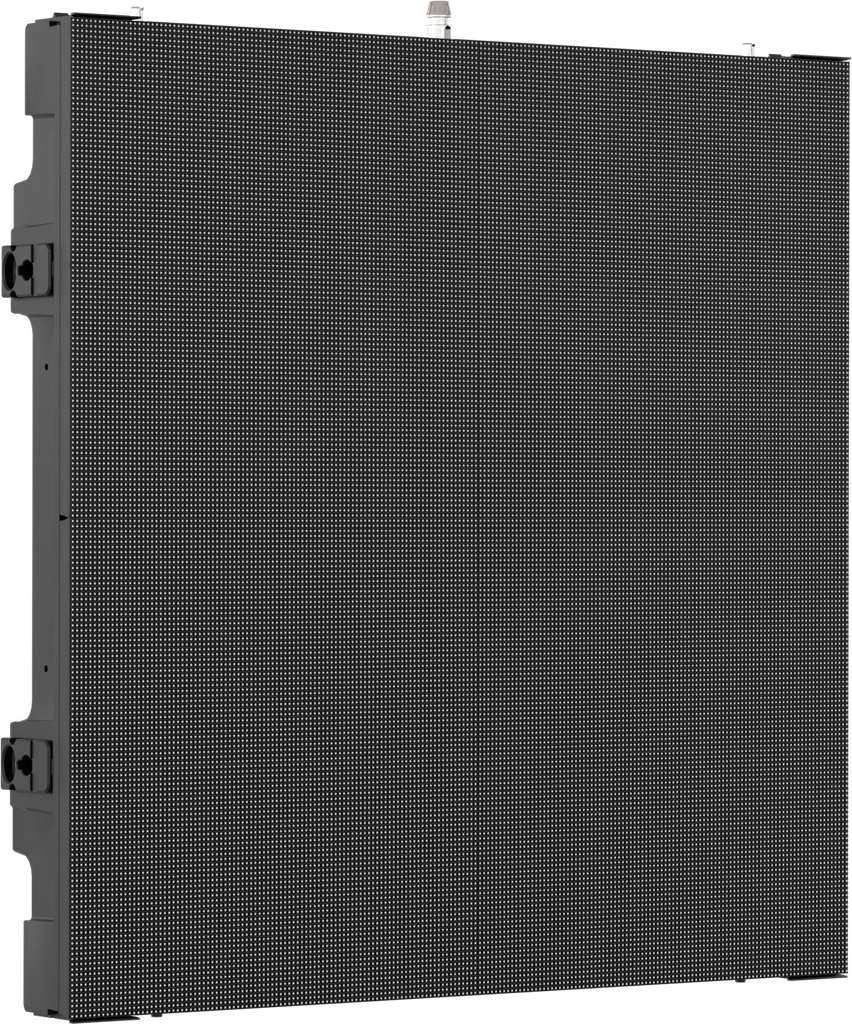

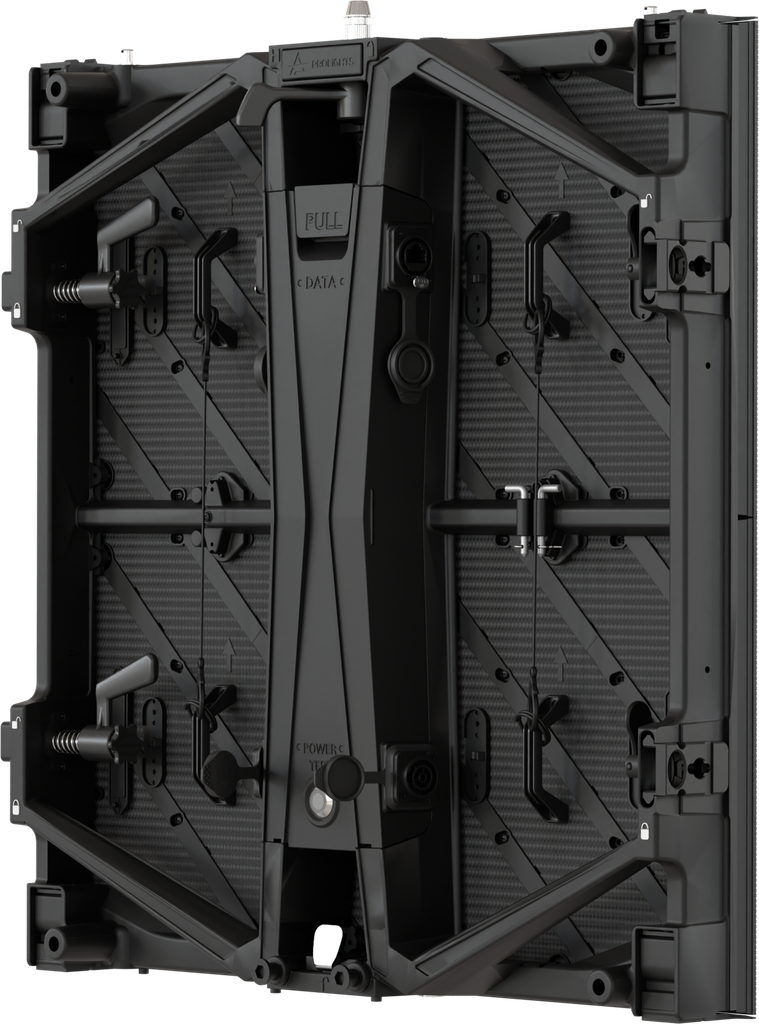

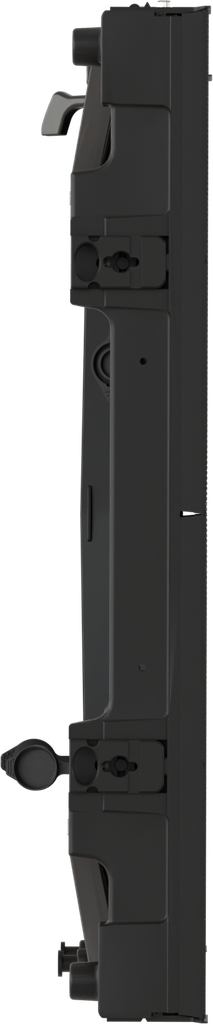

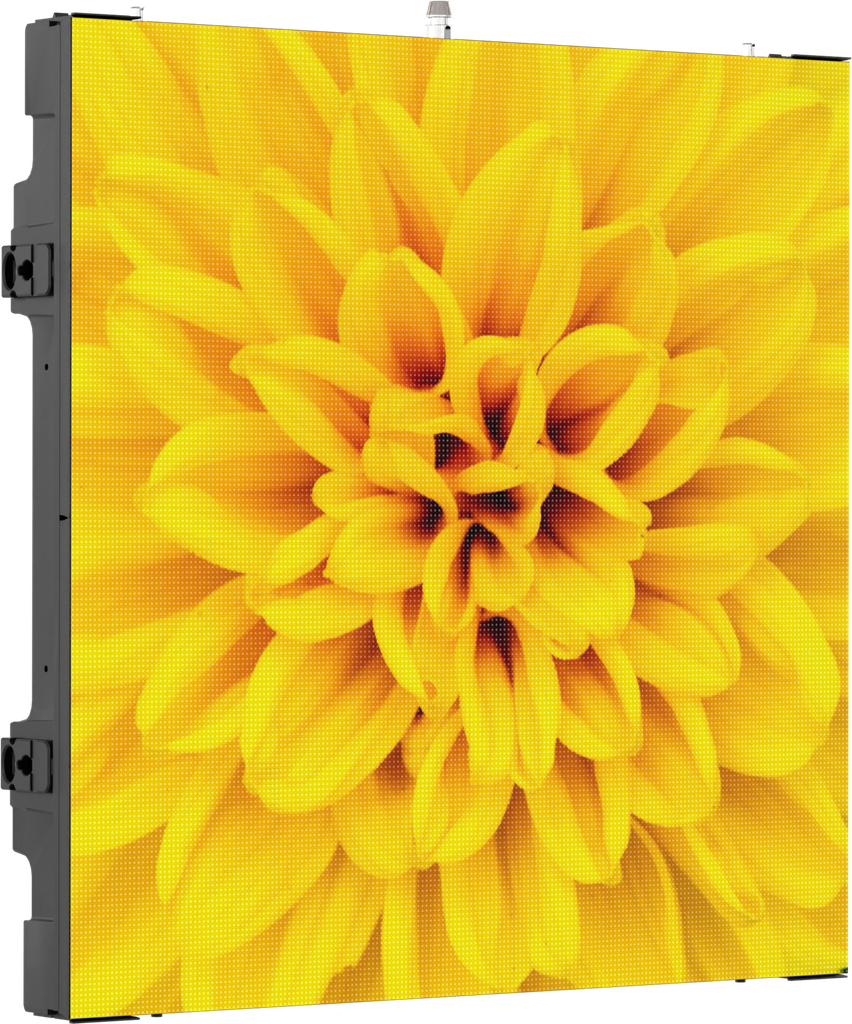

Prolights KAPPAX26B1X1BF

وحدة شاشة LED XR، SMD1515 BF، p2.6، 1200nit، 50x50، 7680Hz، Brompton، 6,3 kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: KAPPAX26B1X1BF

الفئة: شاشات LED

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

KappaPix 26B is an high standard LED screen for XR & Virtual Production with a 2,6 mm pixel pitch, designed to meet requirements for motion picture and XR studios.

KappaPix 26B uses premium components and it is equipped with Brompton R2 receiver cards on board, achieving >7680Hz Refresh rate, >251Hz image frame rate and up to 16bit grey scale, optimize behavior also in low light application.

The mechanical design of the tiles has been conceived to allow fast single person installation with extra safety & handling features such automatic edge and corner protection, LED module protection.

Panel maintenance has been furtherly enhanced allowing modular and tool free maintenance for LED modules and the PSU unit.

KappaPix 26B can be also curved concave and convex +10° / -5° through high precision curving plates. The cabinet, built into magnesium alloy are exceptionally lightweight with 6.3 kg per panel and 25,2 kg per sqm.

XR/VP Led screen with R2 Control system and >7680Hz Refresh rate

Single person installation, automatic edge & corner protection

Fast LED Module and PSU replacement

Curving plates concave and convex +10° / -5°

Up to 16bit grayscale and 251Hz Image frame rate

KappaPix 26B is an high standard LED screen for XR & Virtual Production with a 2,6 mm pixel pitch, designed to meet requirements for motion picture and XR studios.

The mechanical design of the tiles has been conceived to allow fast single person installation with extra safety & handling features such automatic edge and corner protection, LED module protection.

Panel maintenance has been furtherly enhanced allowing modular and tool free maintenance for LED modules and the PSU unit.

Features:
XR/VP Led screen with R2 Control system and >7680Hz Refresh rate
Single person installation, automatic edge & corner protection
Fast LED Module and PSU replacement
Curving plates concave and convex +10° / -5°
Up to 16bit grayscale and 251Hz Image frame rate

VIDEO

Driver chip type:

MBI 5264
LED source:

SMD 1515 full black with anti-reflection coating trattament
Pixel pitch:

2.6 mm
Panel resolution:

192x192
pixels
Module resolution:

96x96
pixels
Luminous flux:

1.200
nit
Contrast:

6.000:1
Grayscale:

16 bit
Refresh rate ≥:

7.680
Hz
Frame rate:

251 Hz
Drive Mode:

1/16 scan, constan current
Vertical viewing angle:

160
°
Horizontal viewing angle:

160
°
LED density:

147.456
LED/sqm
Dead Pixel Ratio:

<0,002
LED avg life span:

100.000 h

ELECTRICAL

Power input/output:

IP65 Neutrik powerCON
Power supply:

AC 110/230 V 50/60 Hz
Max power consumption (panel):

160
W
Avg power consumption (panel):

55
W
Max power consumption (sqm):

640
W
Avg power consumption (sqm):

220
W
Standby power consumption (pannello):

55
W
Max rated current/panel::

AC 220 V / 0.73 A
Working temperature:

-10°C / +45
°C
Working humidity:

10~80 RH
%

CONTROL

Receiving card type:

R2
Control protocol:

Brompton
Signal input:

waterproof Neutrik RJ45
Signal output:

waterproof Neutrik RJ45

MECHANICS

Other specifics:

curve configurations with blocks, corner protection, auto-lock mechanics, calibration chip on LDM
Magnetic LED modules:

available
Module size (WxH):

250x250
mm
Panel size(WxHxD):

500×500×70.1
mm
Vertical hanging system:

built-in aliscaf clamp support
Connection:

seamless locking system
Panel weight:

6,3
kg
Weight per square meter:

25,2
kg
Hanging Panel Quantity ≤:

20 for hanging and 12 for stacking
