Prolights JETPROFILE300LT

بروفايل LT برأس متحرك بقدرة 300W، مع زوم 4° - 44° و CMY+CTO

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: JETPROFILE300LT

الفئة: أضواء متحركة داخلية

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

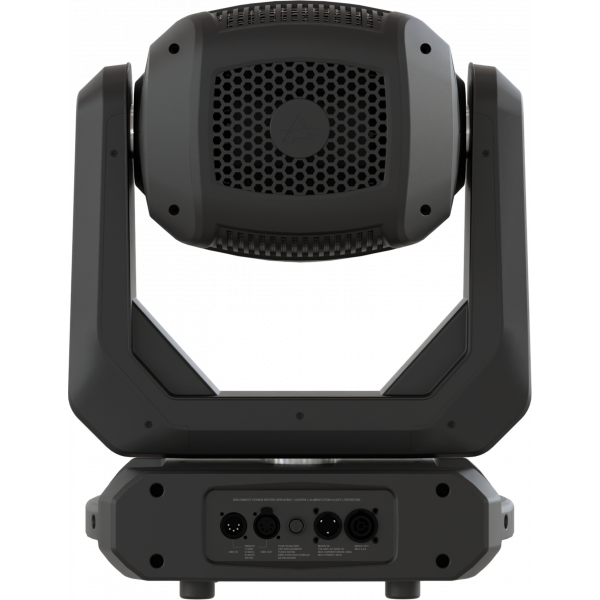

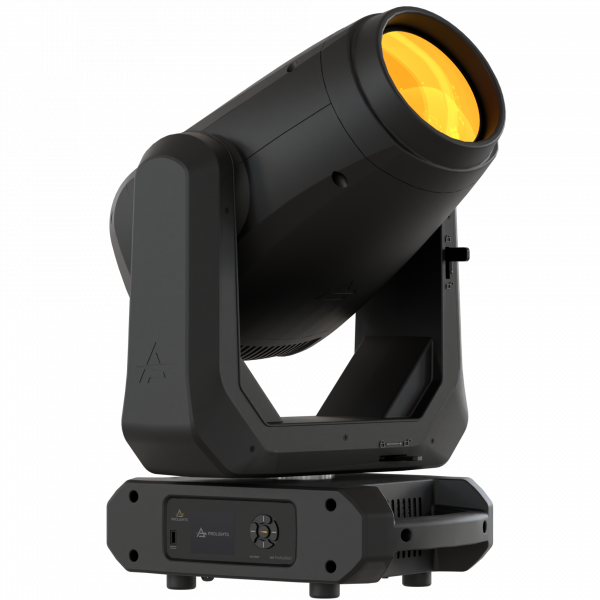

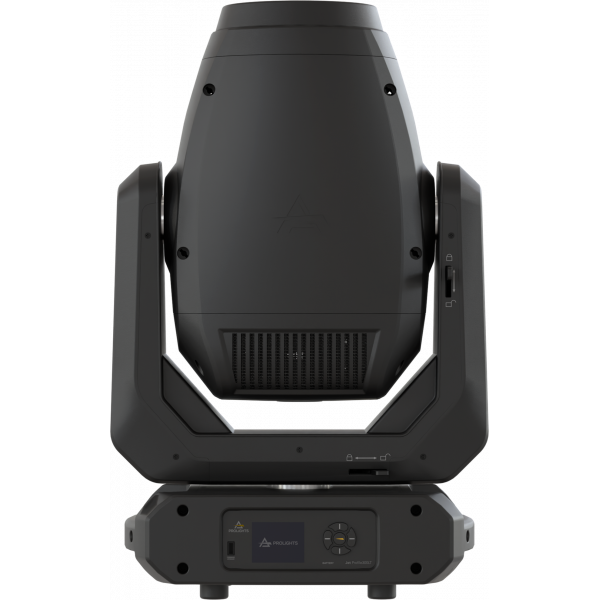

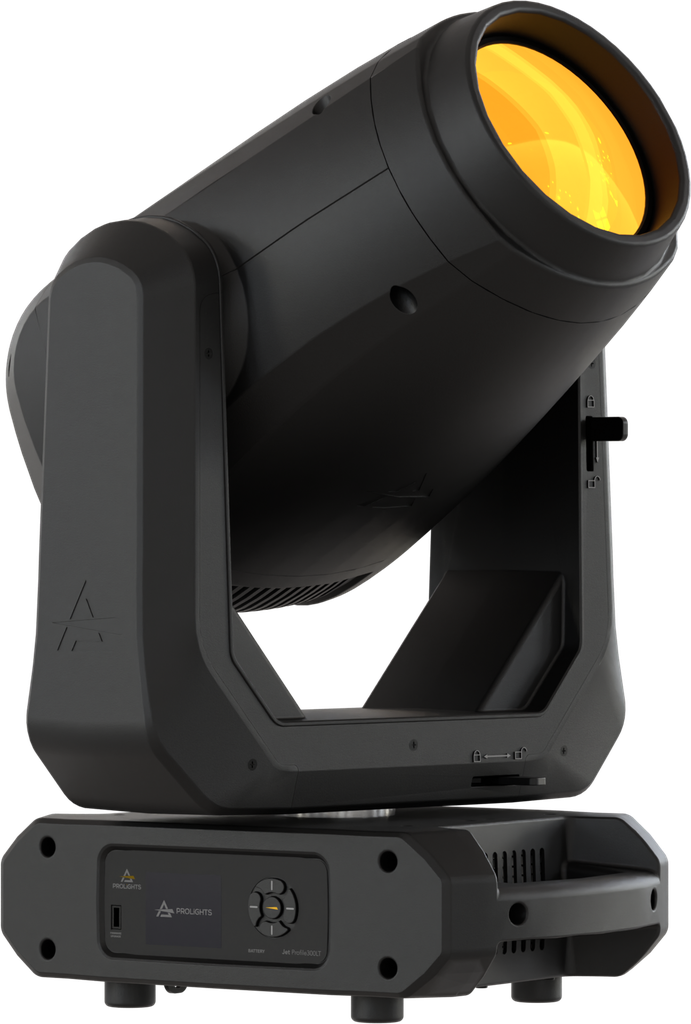

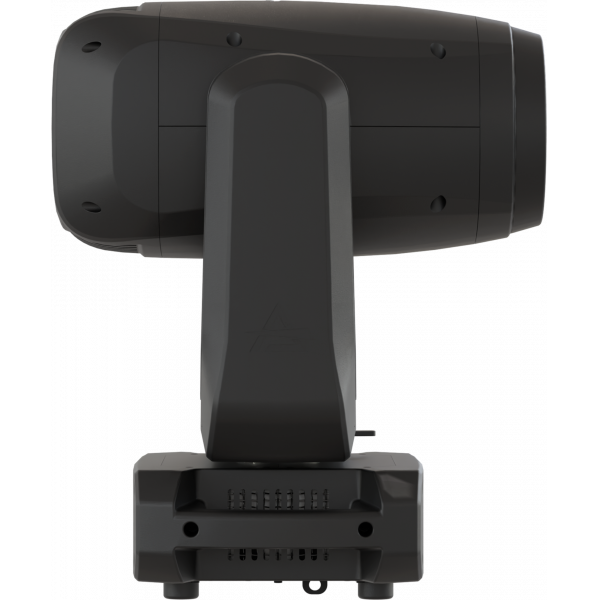

The Jet Profile300LT is a compact, quiet, and versatile moving LED profile designed for small to medium stages in theater, television, and live performances. Featuring a 300W white LED source and a long-throw optical system with a large 140mm front lens, it delivers a robust 12.000 lumen output.

Despite its super-compact design, it maintains high performance. The motorized zoom offers a range of 4°-44°, making it suitable for aerial effects and long-distance throws key light.

The Jet Profile300LT offers precise beam control with four framing shutters, each with individual plane rotation and full curtain effect capability. Additional features include a linear CMY system, linear CTO system, two half-color wheels, a rotating gobo wheel with seven images, animation wheels, soft frost, a circular prism and linear prism.

300W White LED source , 12.000 fixture lumen output

Long throw 4°-44 zoom

CMY+CTO Color mixing, 4 framing shutters, animation, two half-color wheels, gobo wheel, soft frost, a circular prism and linear prism

Despite its super-compact design, it maintains high performance. The motorized zoom offers a range of 4°-44°, making it suitable for aerial effects and long-distance throws key light.

Features:
300W White LED source , 12.000 fixture lumen output
Long throw 4°-44 zoom
CMY+CTO Color mixing, 4 framing shutters, animation, two half-color wheels, gobo wheel, soft frost, a circular prism and linear prism

LIGHT SOURCE

Source:

300
W

high-power white LED
Source CCT:

6500
K
Luminous flux:

(3,9°) 8'313 lm - (44,1°) 12'065 lm
Lux:

(3,9°) 88'597 lx (44,1°) 1'333
lx

@5 m
CRI:

> 70 (85 with 6000K High CRI filter on color wheel)
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

3,9° - 44,1
°

motorised linear zoom
Lens diameter:

140
mm
Lens type:

HD anti-reflection lenses with achromatic coating
Focus:

motorised 16-bit

COLOUR SYSTEM

Colour mixing:

CMY colour system on 3 gradually fading colour wheels
CCT:

linear CTO correction 2.800 K ~ 6.500 K
Colour wheel:

6

dichroic filters on 2 independent colour wheels

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Shutter system:

4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel:

animation wheel with CW and CCW rotation
FX generator:

prisms overlap for spectacular aerial effects
Circular prism:

4
-f

with bi-directional rotation, indexing, interchangeable
Linear prism:

4
-f

with bi-directional rotation, indexing, interchangeable
Frost:

linear 0-100% light interchangeable

GOBOS

Rotating gobos:

7

rotating gobos + open, interchangeable, indexing
Gobo size:

outer diameter: 20 mm; image diameter: 15 mm; thick: up to 3 mm

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

(STD) 38 / (EXT) 42
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface

MOVEMENT

Pan:

540
°

- 16-bit resolution
Tilt:

265
°

- 16-bit resolution
Position feedback:

automatic repositioning after external movement
Pan / tilt lock:

for transport and maintenance

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 50000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Neutrik XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL
