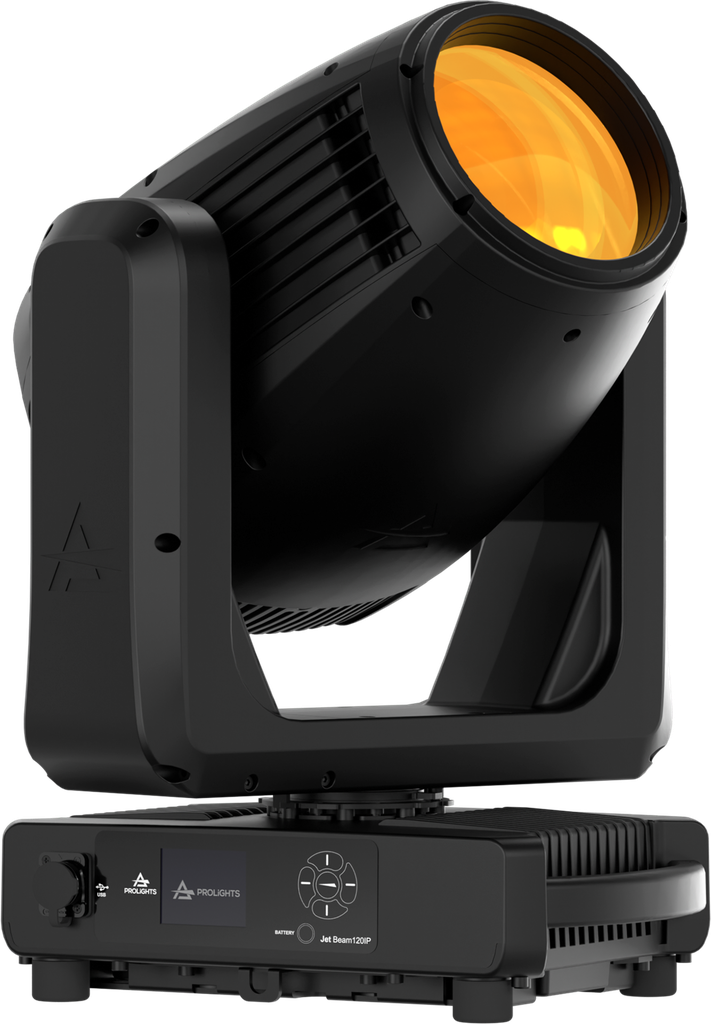

Prolights JETBEAM120IP

كشّاف حزمة متحرك IP65 بقدرة 120W مع مصدر ليزر فوسفوري

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: JETBEAM120IP

الفئة: أضواء متحركة داخلية

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

Jet Beam120IP is a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive, powerful looks without breaking the budget. Designed for long-throw aerial effects, it delivers extreme intensity and razor-sharp definition for professional indoor and outdoor productions.

A 120W phosphor-laser source (7.000 K) produces a tight 0.6° beam for maximum reach and contrast. Delivering over 200'000 lx at 15 m through a 143 mm front lens, Jet Beam120IP maintains a dense, parallel beam that stays clean and impactful over distance, with motorised focus for crisp output along the entire beam path.

Its effects package is optimised for speed and clarity: a 24-filter colour wheel (including CTB/CTO), 29 fixed gobos, an animation wheel, dual frost, and a prism system with six prisms across two independent wheels for layered aerial textures.

Built on a die-cast magnesium-alloy chassis with full IP65 construction, it's ready for demanding environments. Control is flexible via DMX/RDM, with optional CRMX wireless connectivity for large indoor and outdoor stage applications.

120W phosphor-laser source, IP65

0.6° beam, 143mm front lens

18 Kg, compact sizes

1 colour wheel (24 filters, CTB/CTO), 29 fixed gobos, 1 animation wheel, 2 frost, 6 prisms

Features:
120W phosphor-laser source, IP65
0.6° beam, 143mm front lens
18 Kg, compact sizes
1 colour wheel (24 filters, CTB/CTO), 29 fixed gobos, 1 animation wheel, 2 frost, 6 prisms

LIGHT SOURCE

Source:

120
W

Phosphor Laser source
Source CCT:

7000
K
Lux:

204'167
lx

@15 m full
Source life expectancy:

> 12.000 h

OPTICS

Beam angle:

0,6
°
Lens diameter:

143
mm
Lens type:

HD anti-reflection lenses with achromatic coating
Focus:

motorised 16-bit

COLOUR SYSTEM

CCT:

several CTB/CTO on wheel
Colour wheel:

open + 24

colour filters

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Animation wheel:

animation wheel with CW and CCW rotation
FX generator:

prisms overlap for spectacular aerial effects
FX Wheel A:

8-f circular prism / 4-f & 6-f linear prism / heavy frost, bi-directional rotation, indexing, interchangeable
FX Wheel B:

16-f & 6-f circular prism / 6-f linear prism, bi-directional rotation, indexing, interchangeable
Frost:

dual soft-edge and heavy

GOBOS

Fixed gobos:

29

fixed gobos + open

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

18
ch
RDM:

for remote addressing and parameter configuration
Display:

LCD high resolution colour display with autoflip

MOVEMENT

Pan:

540
°

- 16-bit resolution
Tilt:

270
°

- 16-bit resolution
Position feedback:

automatic repositioning after external movement
Pan / tilt lock:

for transport and maintenance

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 50000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN
Signal connection:

IP65

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL
