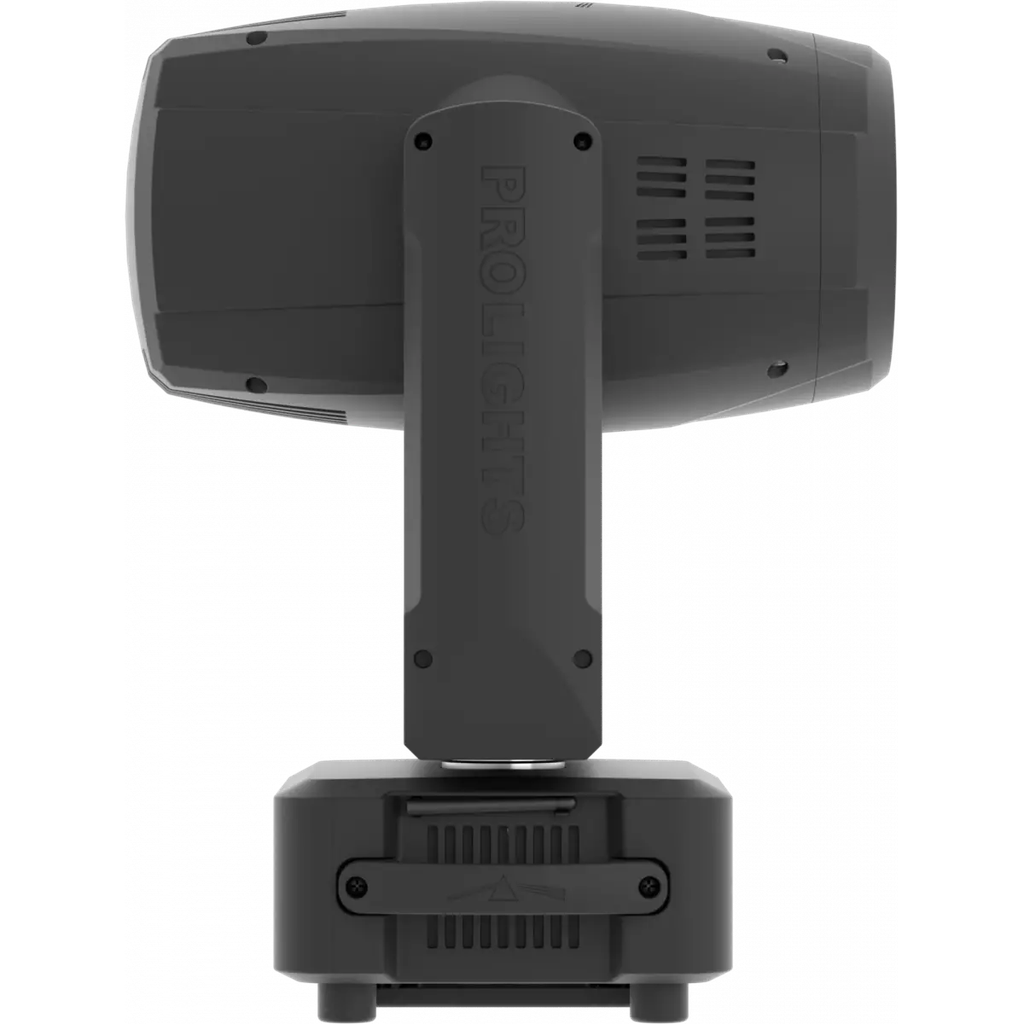

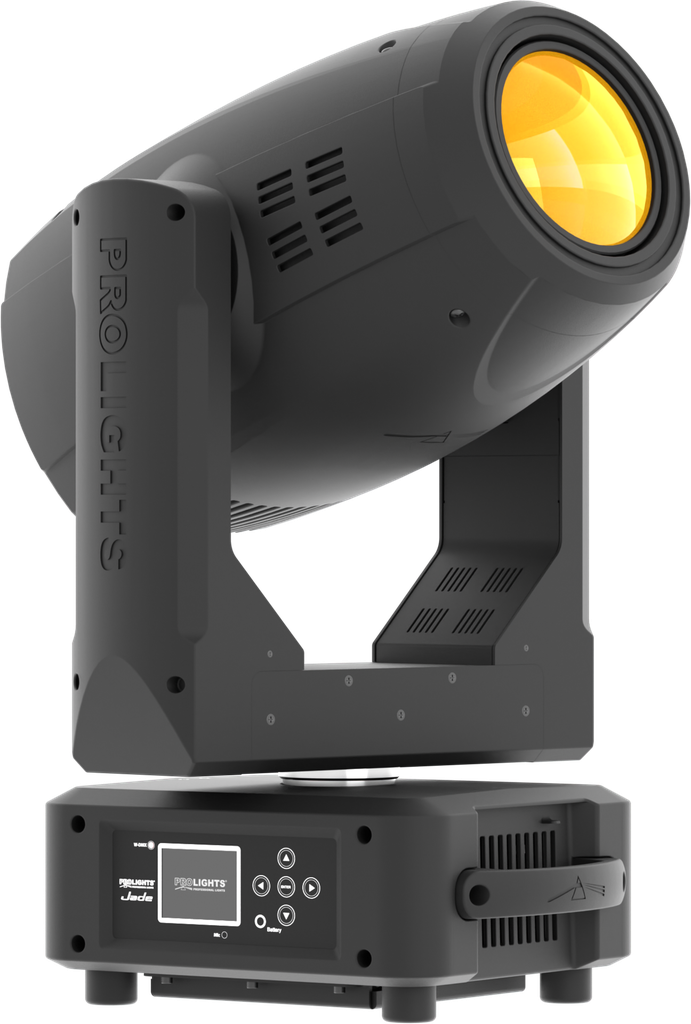

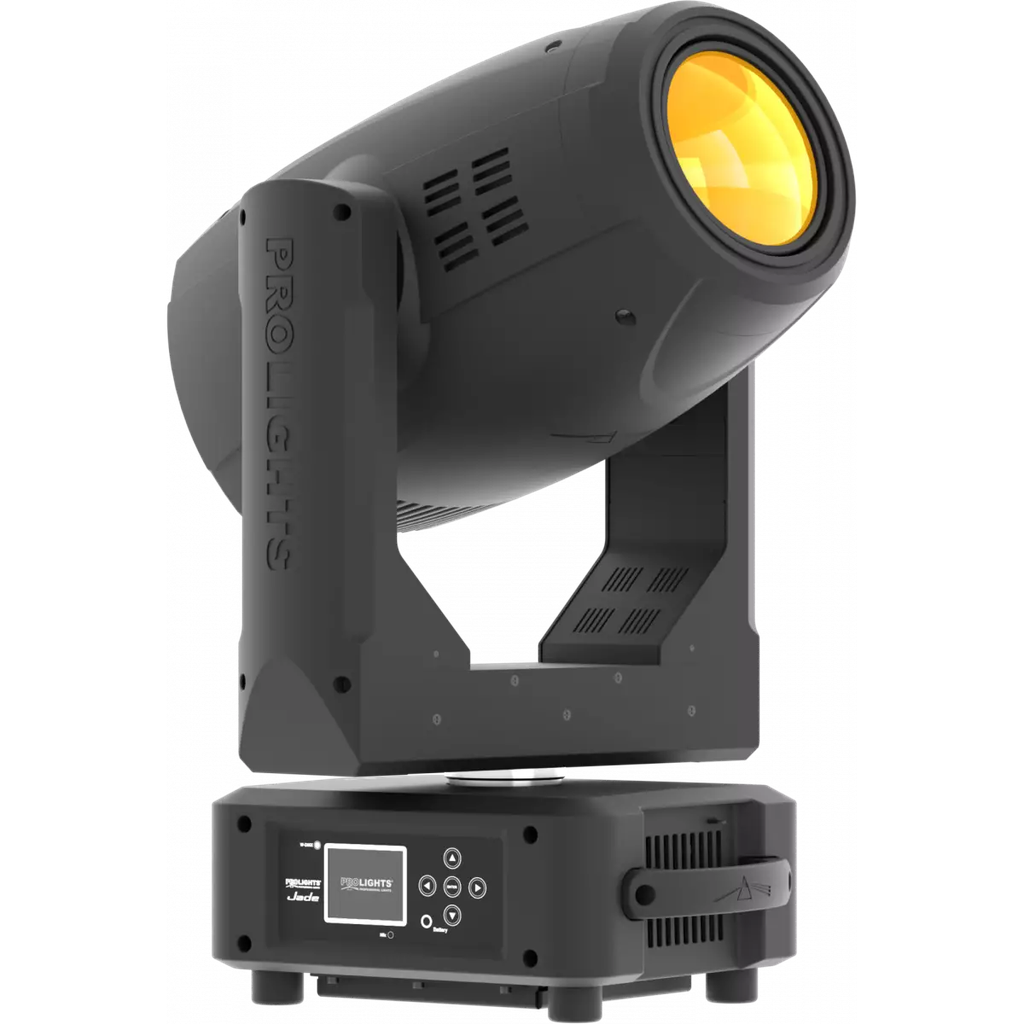

Prolights JADE

تجهيزة هجينة حزمة-موضعي-واش، Osram Sirius HRI 280W HO، منشور 8f-6f، 423W، 18kg

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: JADE

الفئة: أضواء متحركة داخلية

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

Jade is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.

Massive 2° to 23° zoom range with beam and spot modes

13 position colour wheel including CTC filters

Extensive effects including: rotating gobo wheel, static gobo wheel, dual prisms and linear frost

Features:
Massive 2° to 23° zoom range with beam and spot modes
13 position colour wheel including CTC filters
Extensive effects including: rotating gobo wheel, static gobo wheel, dual prisms and linear frost

LIGHT SOURCE

Source:

280
W

S Osram Sirius HRI
Source CCT:

7.800
K
Luminous flux:

8'866
Lux:

(1.5°) 288'031
lx

@5 m full
Lux:

(4.5°) 42'264
lx

@5 m
Source life expectancy:

2.000 h

OPTICS

Zoom range:

beam: 2° - 10° / spot: 5,5° - 23
°

motorised linear zoom
Lens diameter:

117
mm
Lens type:

high-quality glass lens optics
Additional optics:

heat filter to switch from beam to spot modes
Focus:

motorised with auto-focus

COLOUR SYSTEM

CCT:

on wheel 2.500 K and 3.200 K + CTB
Colour wheel:

13

colour filters

DYNAMIC EFFECTS

Circular prism:

8
-f

with bi-directional rotation, indexing
Linear prism:

6
-f

with bi-directional rotation, indexing
Frost:

to soften the beam edge

GOBOS

Rotating gobos:

9

rotating gobos + open, interchangeable
Gobo size:

outer: 15,7 mm - image: 12 mm - thickness: 1,1 mm
Fixed gobos:

14

fixed gobos + open

CONTROL

Supported Protocols:

DMX512, RDM, W-DMX
DMX channels:

14 / 16 / 22 / 23
ch
RDM:

for remote addressing and parameter configuration

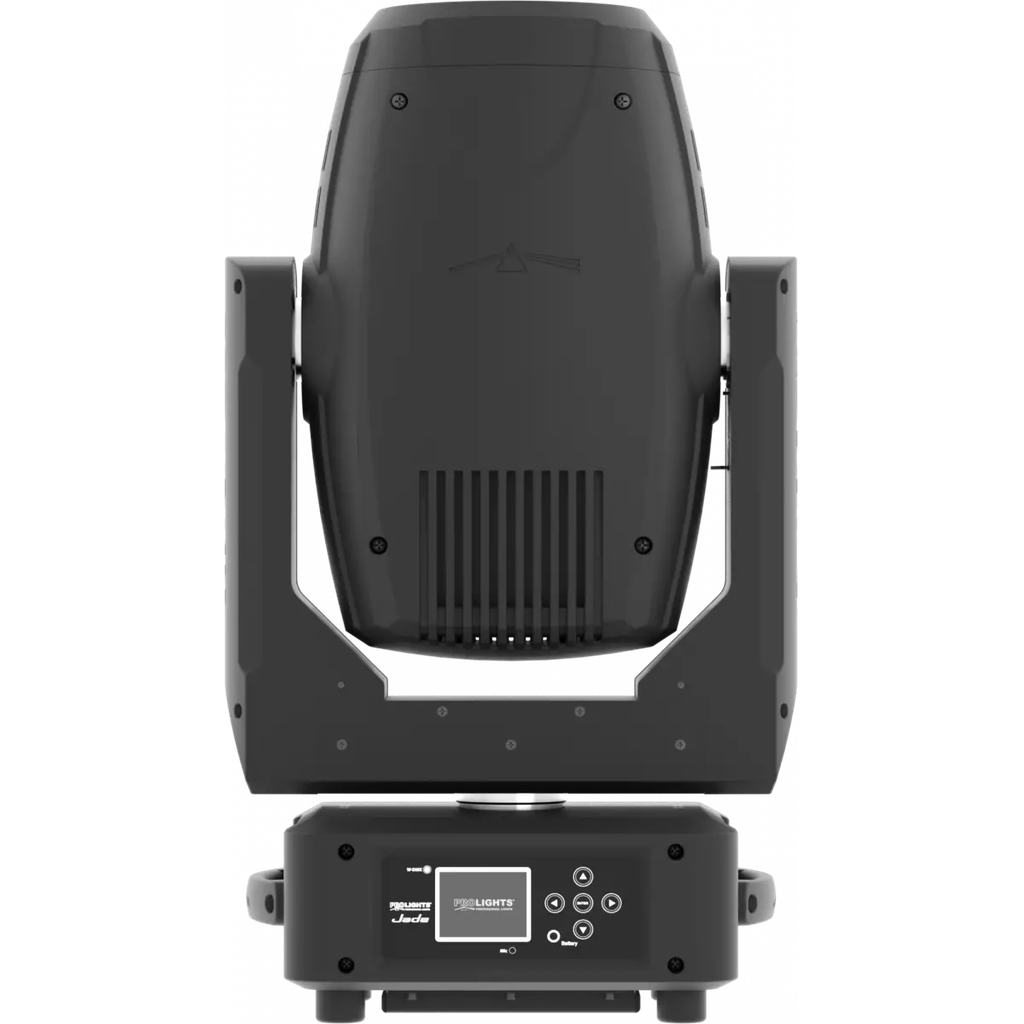

Display:

LCD high resolution colour display
Hibernation:

power safe mode when lost DMX

MOVEMENT

Pan:

630° - 540
°

- 8/16-bit resolution
Tilt:

265
°

- 8/16-bit resolution
Position feedback:

automatic repositioning after external movement

ELECTRONICS

Dimmer:

linear 0 - 100% mechanical dimmer
Strobe / shutter:

1 - 25

flash(s), mechanical
Display battery:

included, self-charging battery backup
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included)

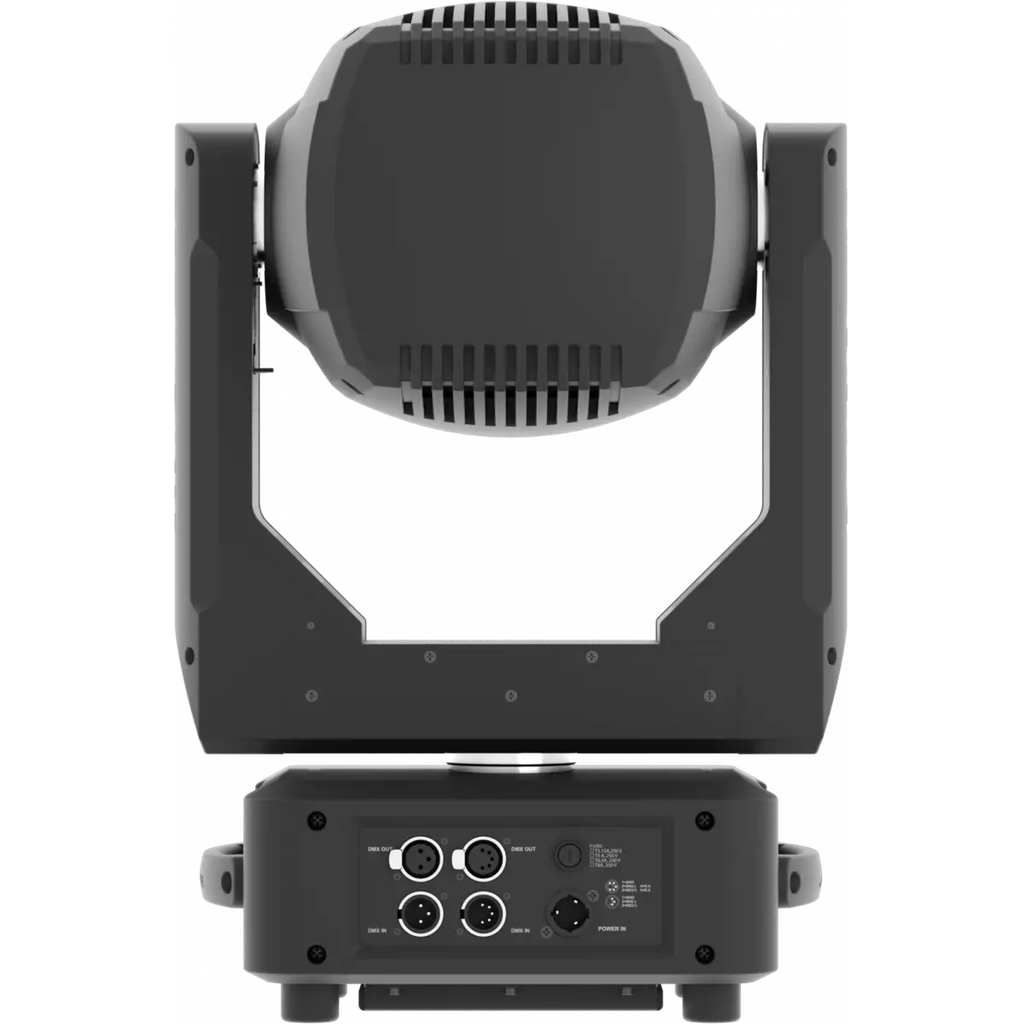

CONNECTIONS

Power connection:

Neutrik powerCON TRUE1 IN connector
Signal connection:

Amphenol XLR 3p + 5p IN/OUT connectors
Wireless Connection:

integrated W-DMX receiver

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

423
W
Max power consumption (120V):

423
W
Standby power:

53.3W
Power factor:

0,99

PHYSICAL

IP rating:

IP20
Cooling:

forced-air with low-noise fan
Housing:

Aluminium structure with high-resistance polycarbonate cover
Finish:

black
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

355x619x235
mm
Weight:

17
kg

INSTALLATION

Suspension and fixing:

any position with quick-lock omega brackets

CERTIFICATIONS / REPORTS

Compliance:

CE, UKCA, RCM

Jade_A4_DATASHEET_(EN).pdf Data Sheet

Jade_USER_MANUAL_ITEN.pdf User / O&M Manual

JADE - Drawing (PDF).pdf Drawing (PDF)

JADE - Drawing (CAD).dwg Drawing (CAD)

JADE - DMX Chart.pdf DMX Chart
