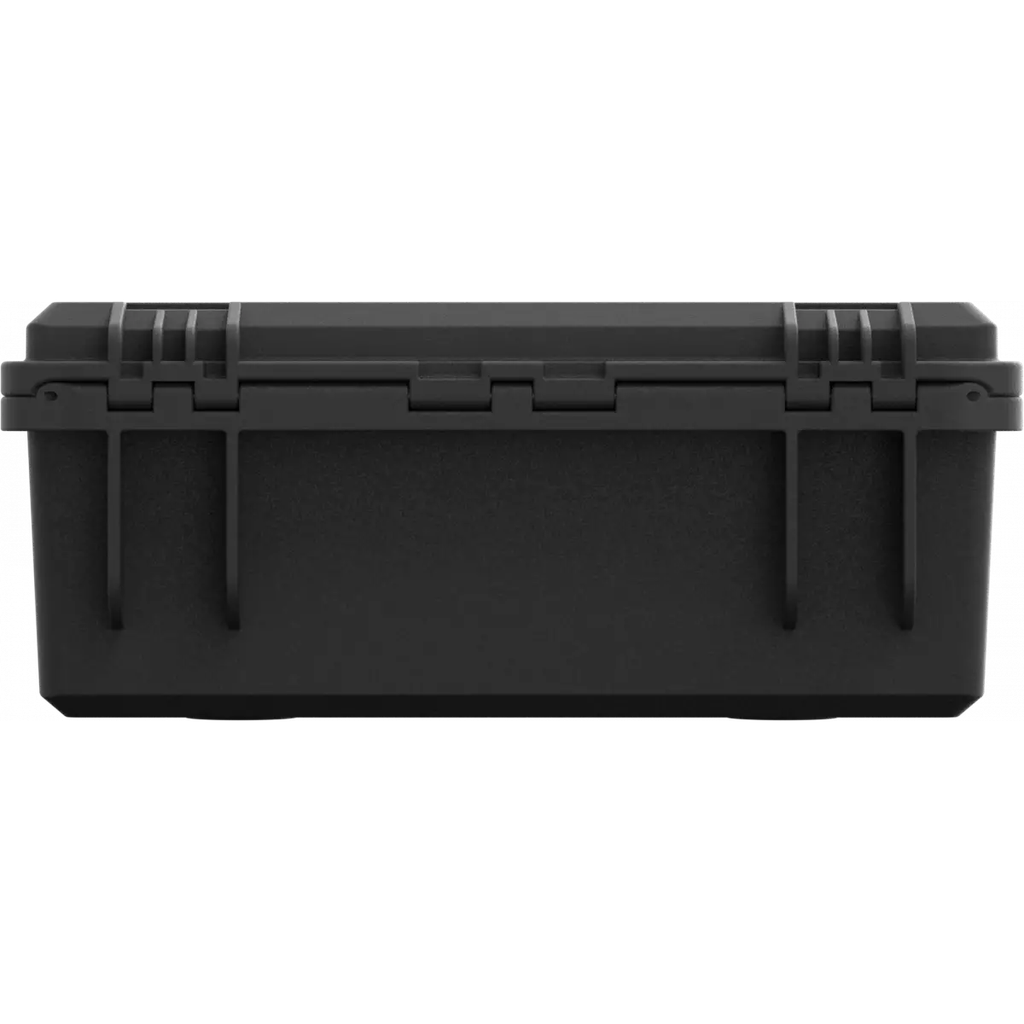

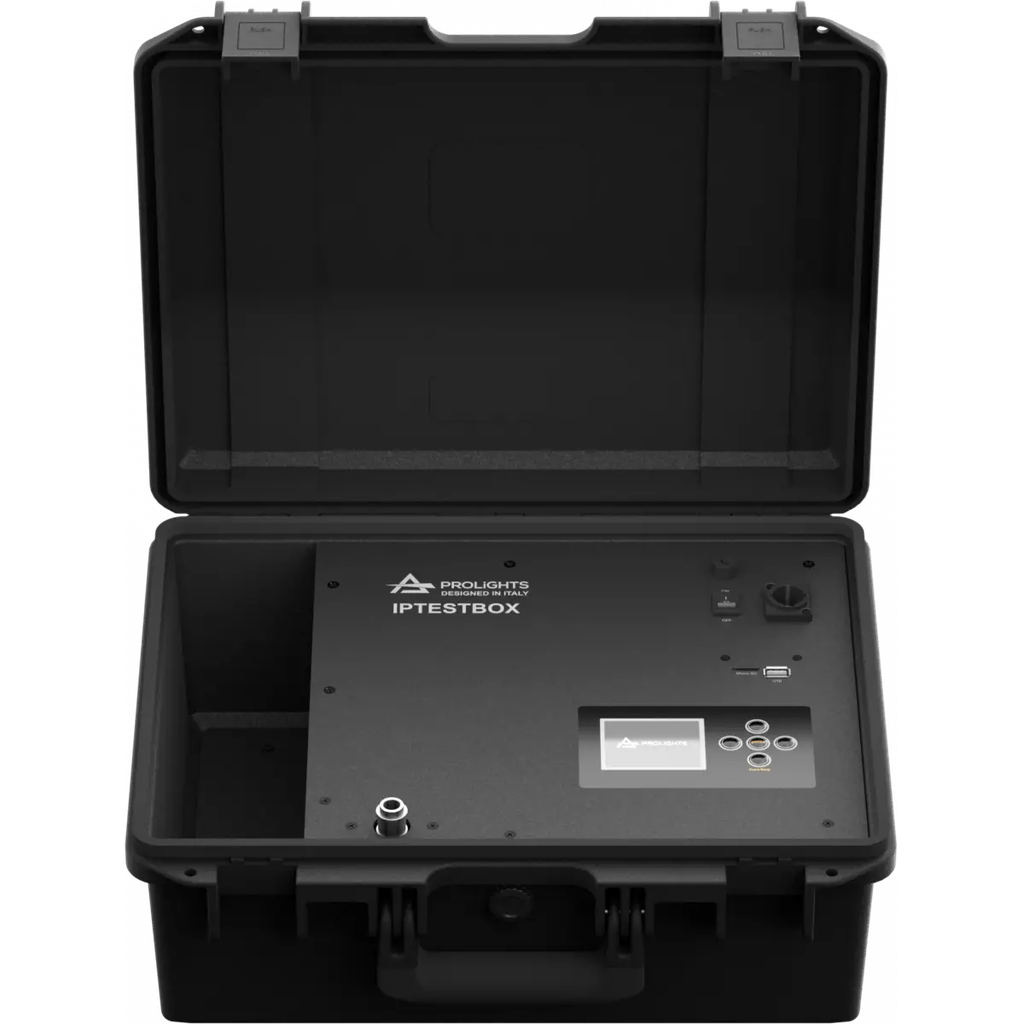

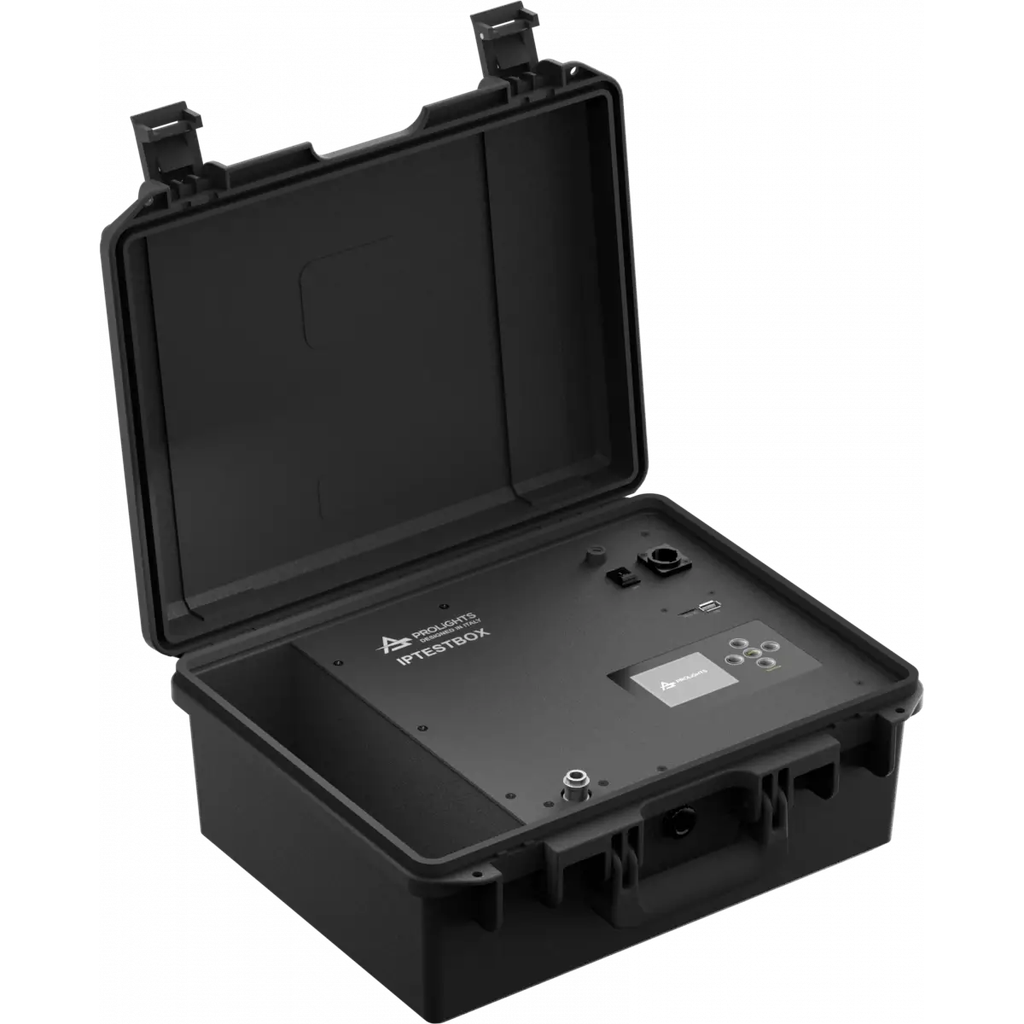

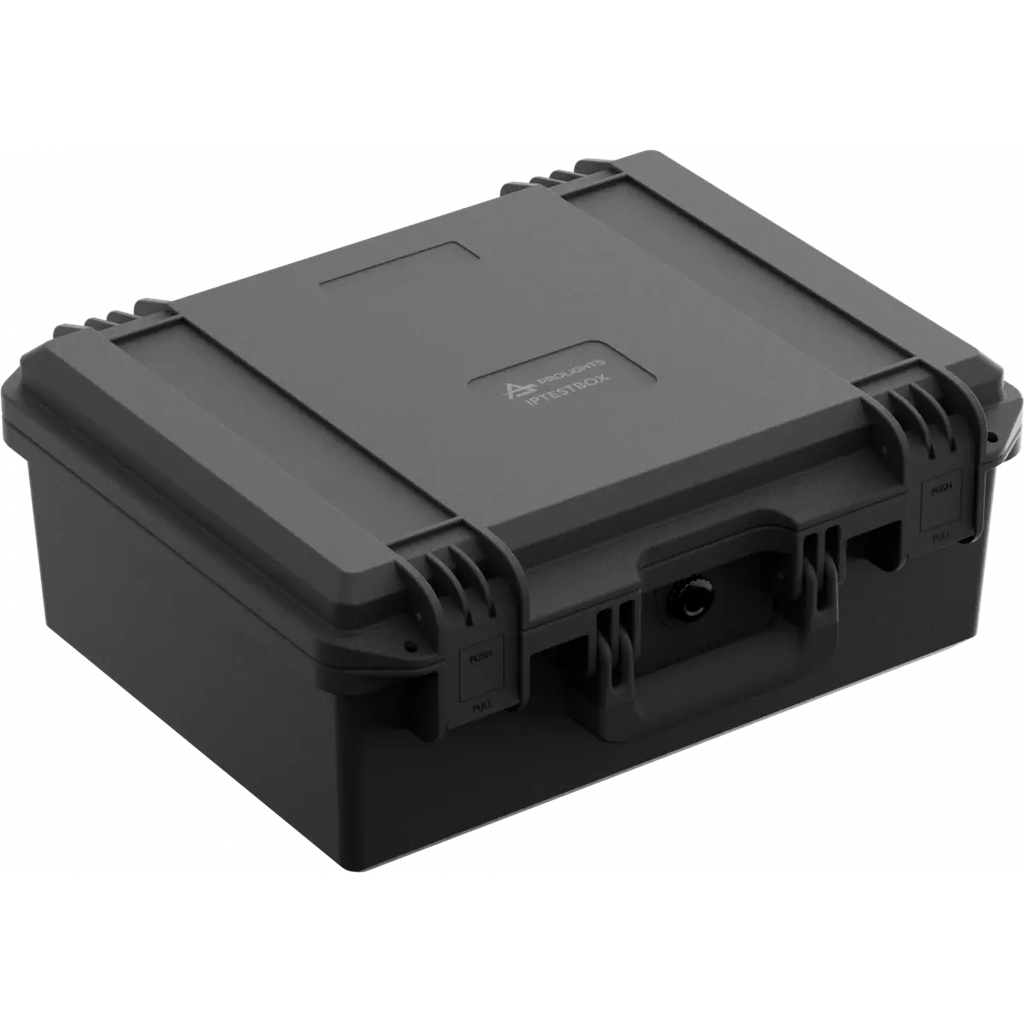

IPTESTBOX is a portable tool coming into an ABS case that is capable to test IP rating for multiple PROLIGHTS products. The tool features features both vacuum (sucking the air) and pressure (pushing hair) test of the lighting fixtures through the internal air compressor, monitoring the pressure behaviour inside the unit housing according to the IP class or product selected.
IPTESTBOX is simple to use, just unscrew the IP air vent valve on the product and connect the IP tester air-duct cable, replace the other valve with a supplied adapter, press a button and wait for the result.
Key features
- Test according to a specific PROLIGHTS product program, or according to an IP class
- Continuous stress test mode with multiple cycles
- Save and load report from SD card
- Generating reports with fixture name, serial number and date/time of test
- Report readable in CSV format
- Import/Export settings
- Unit Auto test for self diagnostic of the IPTESTBOX
- Firmware upgrade through SD card
Specifications
| Display | Graphic User Interface |
| Firmware upgrade with | via menu with internal SD Card memory |
| Power connection | Neutrik powerCON TRUE1 IN connector |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 40 W |
| Finish | black (RAL 9004) |
| Operating temperature | Ta -20 to +45 °C (-4 to +113 °F) |
| Dimensions (WxHxD) | 420x362x165 mm |
| Weight | 7 kg |
