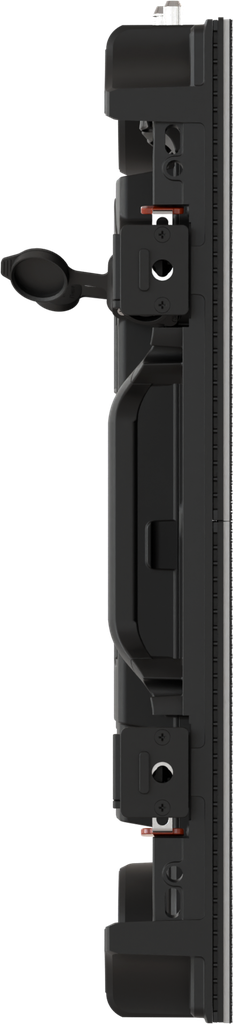

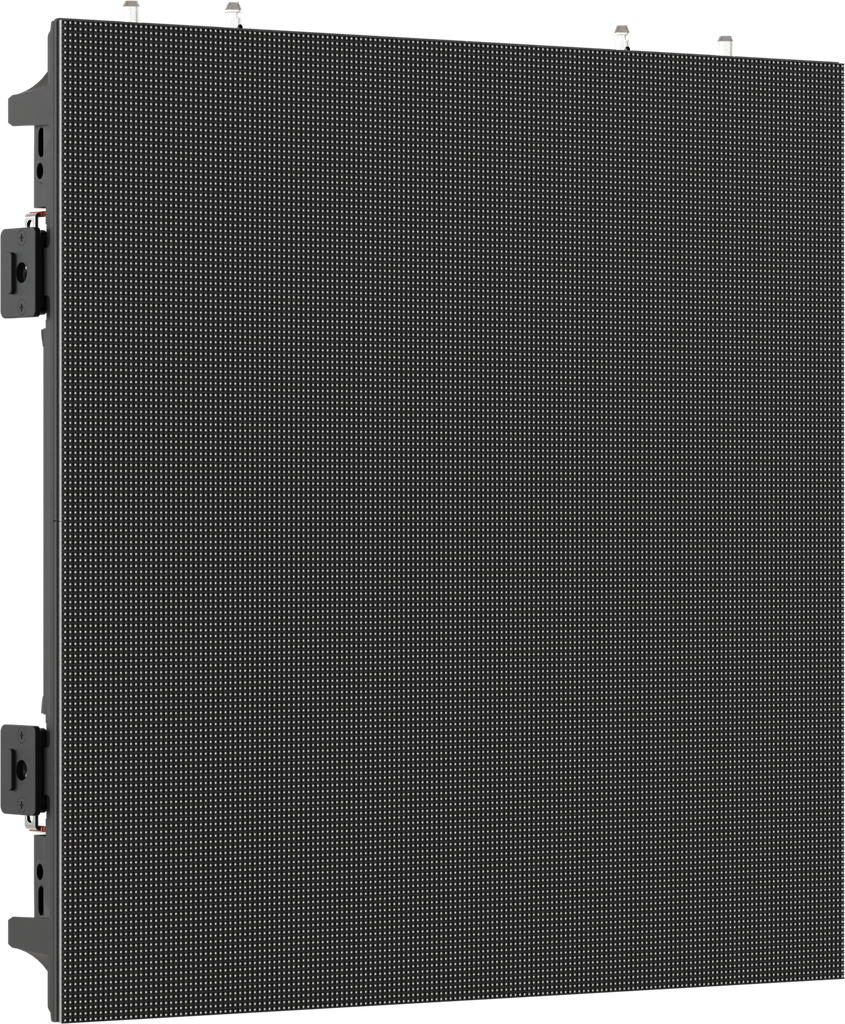

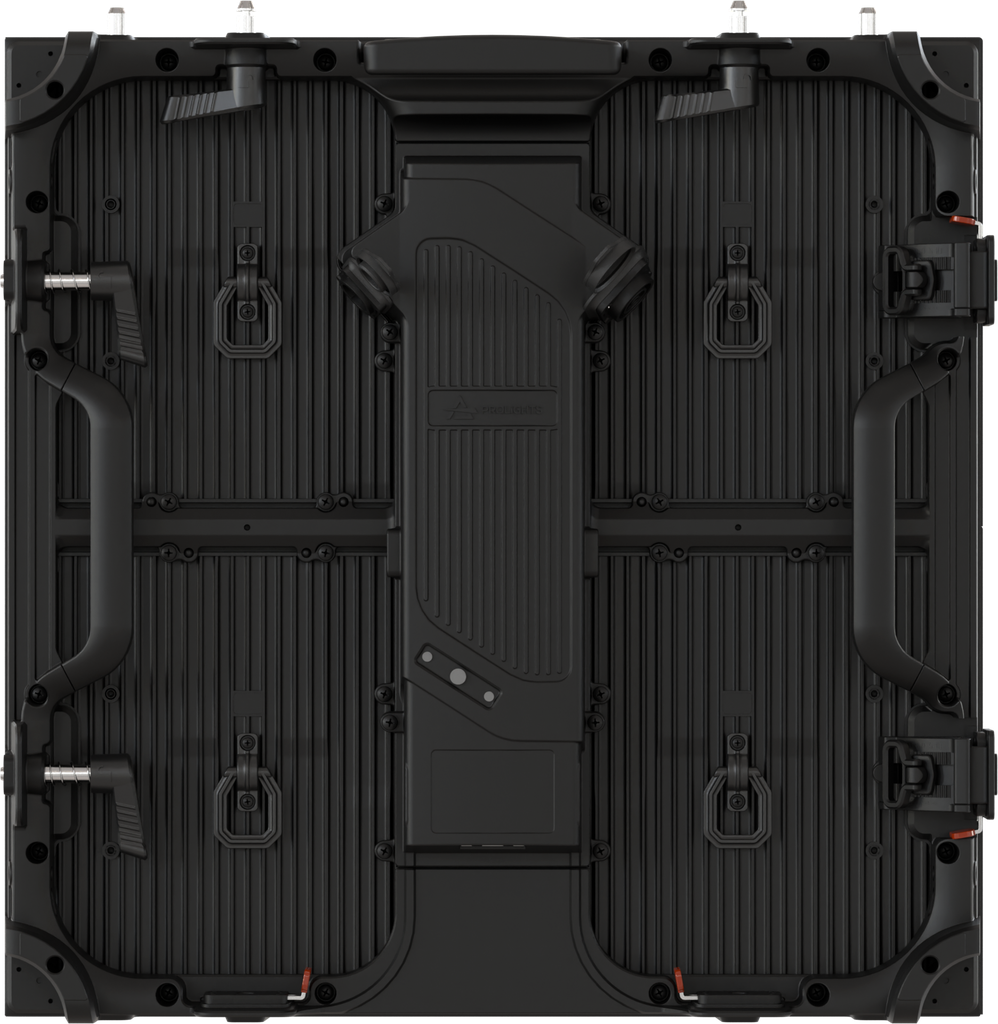

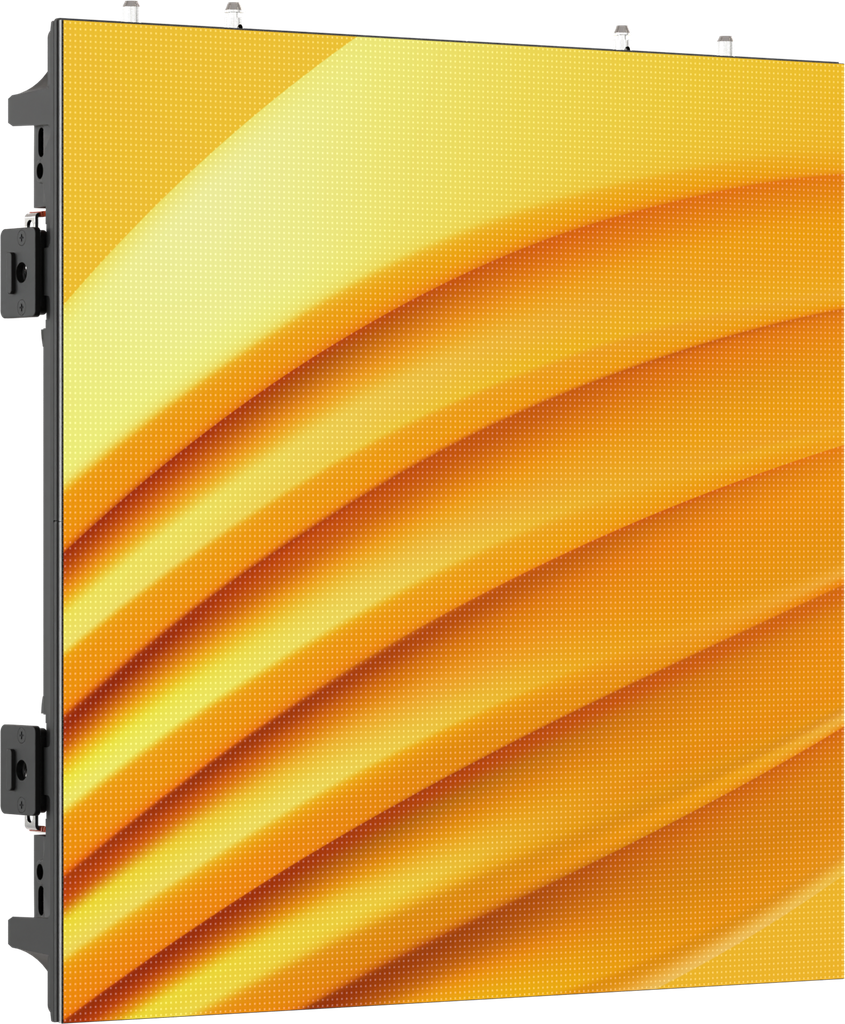

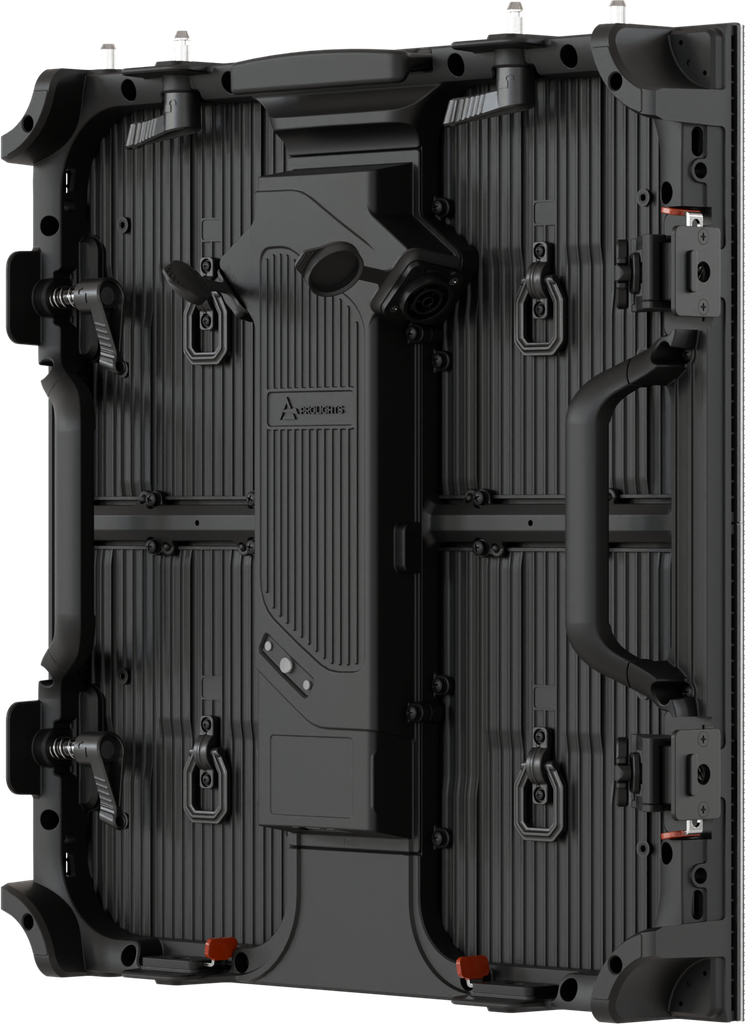

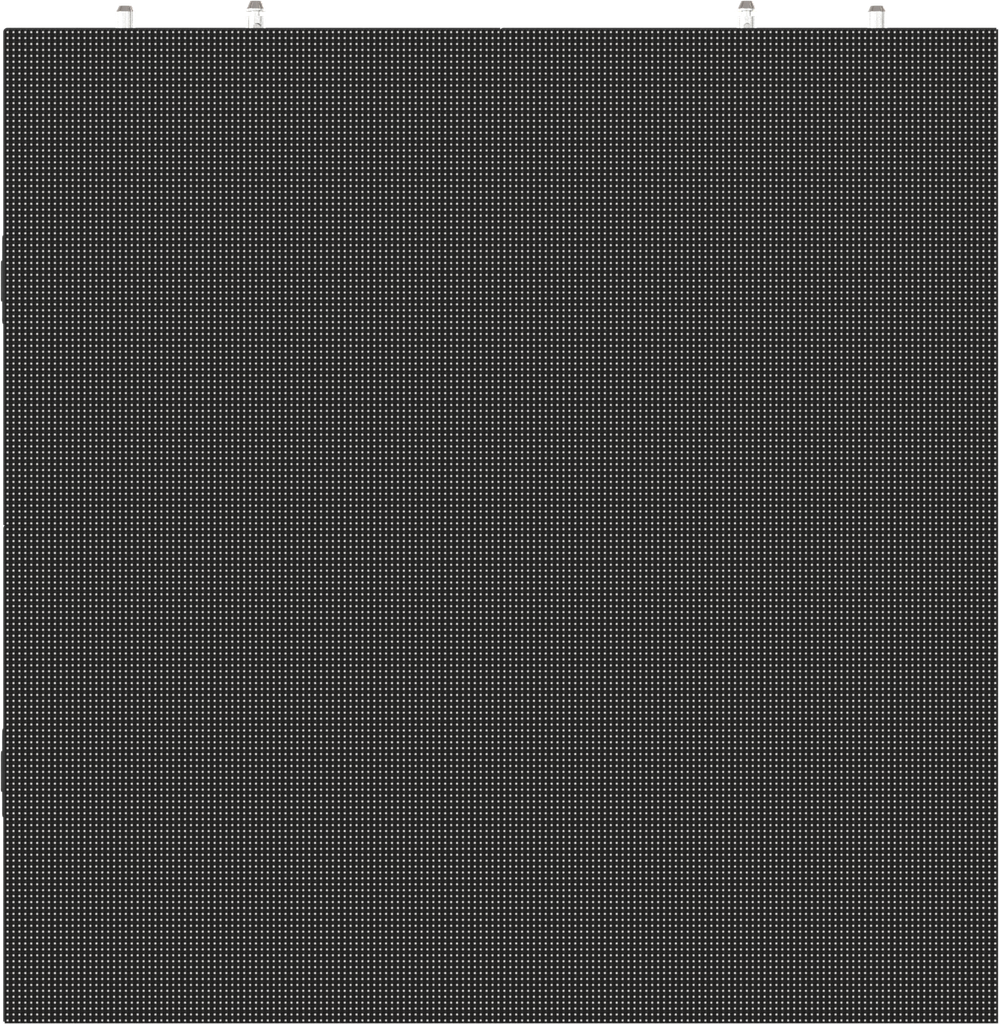

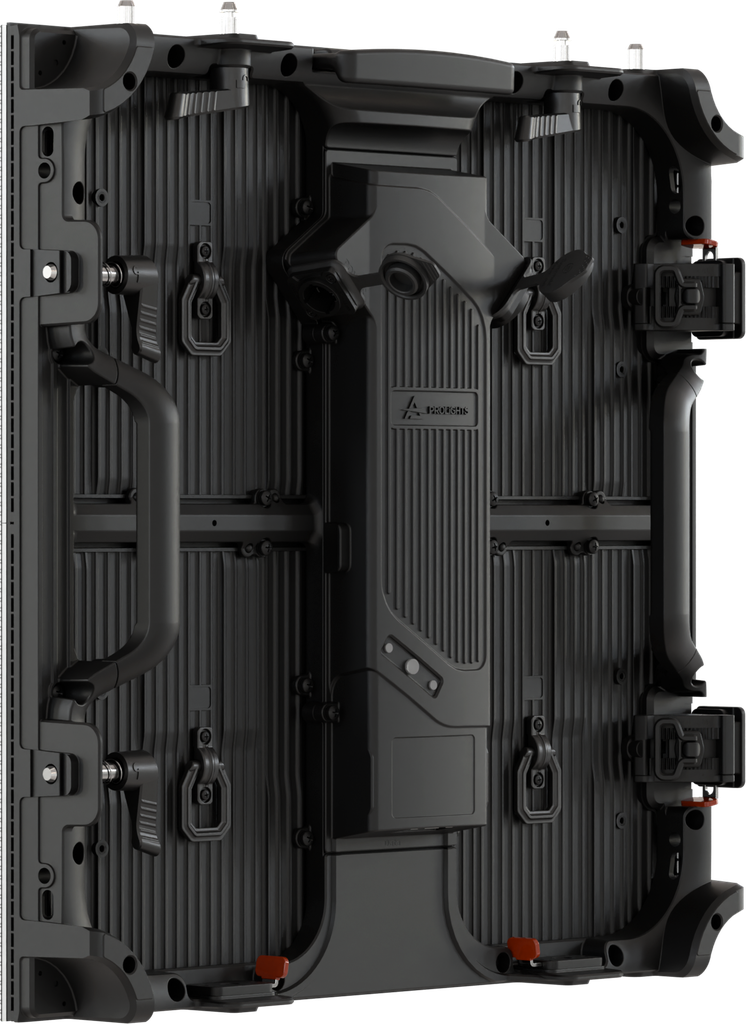

Prolights GAMMAX29B1X1BF

وحدة شاشة LED داخلية، SMD1515 BF، p.2,97mm، 50x50cm، 168x168pix، 650 nit، 5,9kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: GAMMAX29B1X1BF

الفئة: شاشات LED

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

GammaPix 29B is a rental LED screen for indoor use with a 2,9 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as scratch protection of the lamp face, flip corner shield and bottom protection.

GammaPix 29B tiles have on board curve mechanics allowing both concave and convex precise installation of +10° / -10° each tile and the weight has been reduced down to 5.9 kg per panels (23,6 kg per sqm).

The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Single person installation, auto lock design, scratch protection and flip corner shield

Built in curve mechanics for +10° / -10° concave & convex

Refresh rate of 3.840 Hz

GammaPix 29B is a rental LED screen for indoor use with a 2,9 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.

The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Features:
Single person installation, auto lock design, scratch protection and flip corner shield
Built in curve mechanics for +10° / -10° concave & convex
Refresh rate of 3.840 Hz

VIDEO

Driver chip type:

ICN 2153
LED source:

Kinglight SMD 1515 full black
Pixel pitch:

2.97 mm
Panel resolution:

168x168
pixels
Module resolution:

84x84
pixels
Luminous flux:

650
nit
Contrast:

3.000:1
Grayscale:

14 bit
Refresh rate ≥:

3.840
Hz
Drive Mode:

1/21 scan, constant current
Vertical viewing angle:

120
°
Horizontal viewing angle:

140
°
LED density:

112.896
LED/sqm
Dead Pixel Ratio:

<0,002
LED avg life span:

100.000 h

ELECTRICAL

Power input/output:

IPKON Seetronic IN/OUT
Power supply:

AC 110/230 V 50/60 Hz
Max power consumption (panel):

120
W
Avg power consumption (panel):

40
W
Max power consumption (sqm):

480
W
Avg power consumption (sqm):

160
W
Standby power consumption (pannello):

35
W
Max rated current/panel::

AC 220 V / 0.55 A
Working temperature:

-10°C / +45
°C
Working humidity:

10~80 RH
%

CONTROL

Receiving card type:

A5S PLUS
Other controllers type:

mapping, firmware copy, RCFGX restore, calibration chip on LDM (module flash)
Control protocol:

Novastar
Signal input:

RJ45
Signal output:

RJ45

MECHANICS

Other specifics:

curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
Magnetic LED modules:

available
Module size (WxH):

250x250
mm
Panel size(WxHxD):

500×500×63
mm
Vertical hanging system:

built-in aliscaf clamp support
Connection:

seamless locking system
Panel weight:

5,9
kg
Weight per square meter:

23,6
kg
Hanging Panel Quantity ≤:

20 for hanging and 12 for stacking
