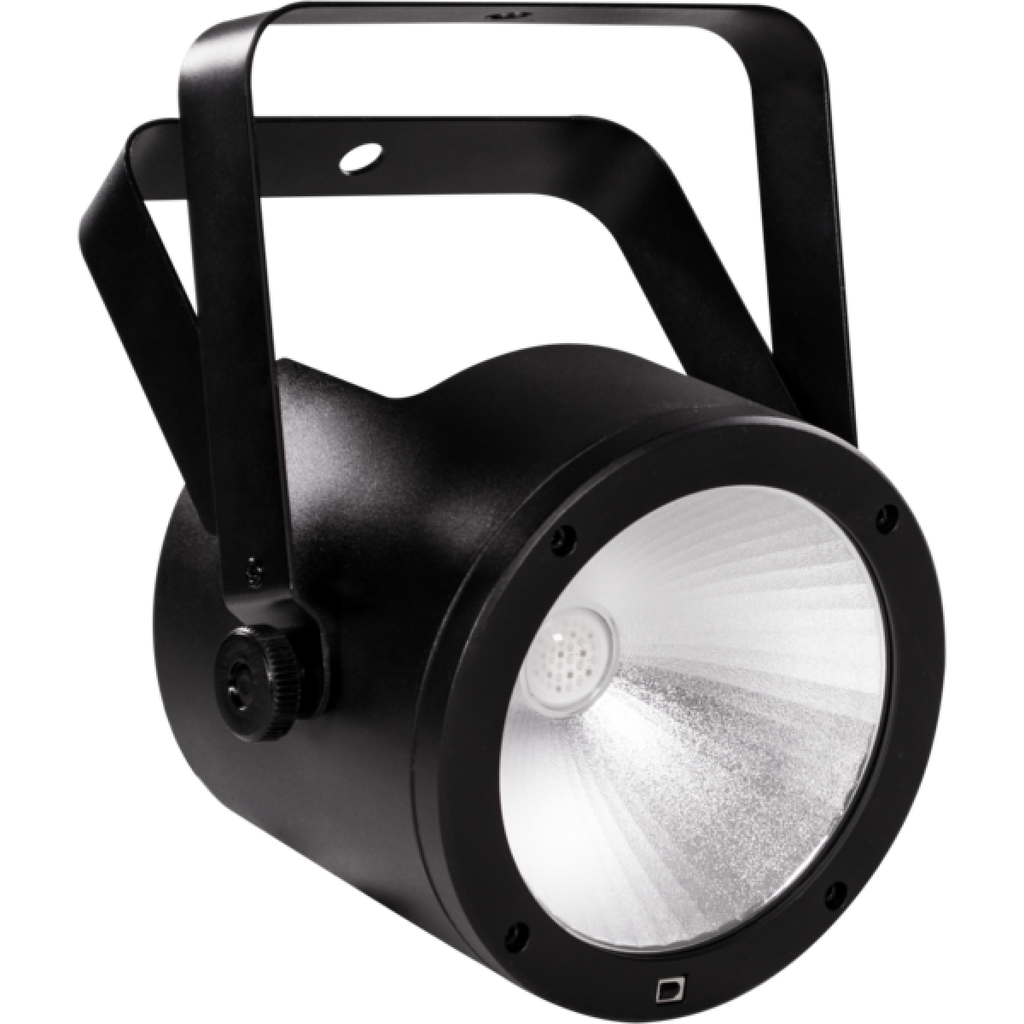

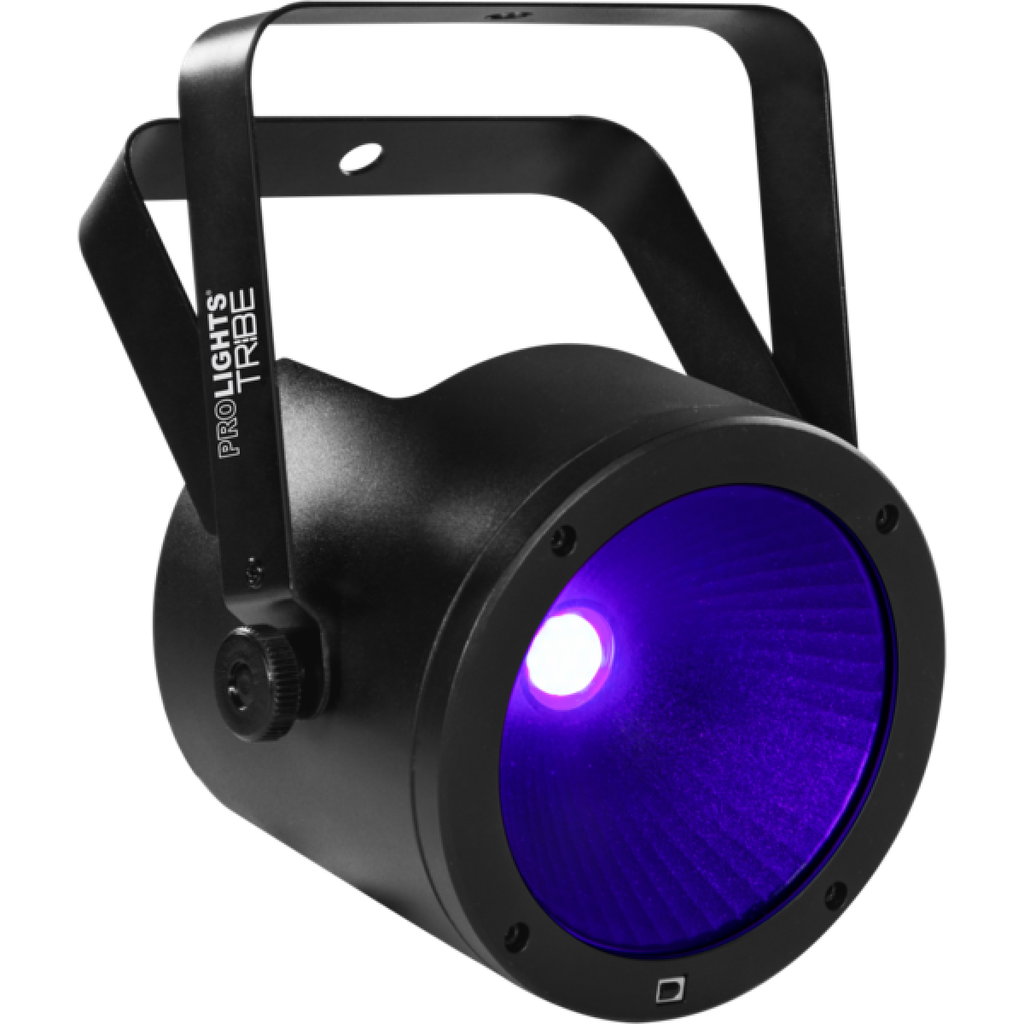

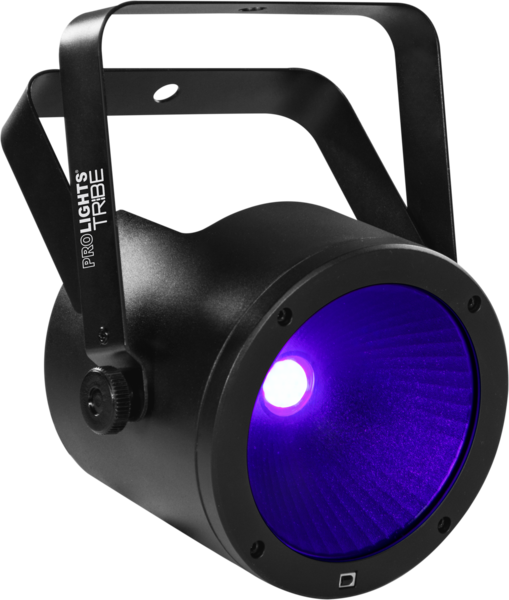

FlatCob 80UV is a compact LED projector equipped with a COB source that allows for the placing of a bright UV 80W LED in a super-slim housing. The light source features 60° beam angle with a magnetic lens holder (included) to switch the projection at 30°. FlatCob 80UV can be controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app or through IR remote.
FlatCob 80UV is a compact LED projector equipped with a COB source that allows for the placing of a bright UV 80W LED in a super-slim housing. The light source features 60° beam angle with a magnetic lens holder (included) to switch the projection at 30°. FlatCob 80UV can be controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app or through IR remote.
Features:80W UV high-power LED
LED + parabolic reflector featuring classic PAR CAN concept applying new LED technology
Interchangeable optics: 60° without optics, 30° included
Silent operation and HD dimming system with adjustable PWM for studio application
USB port for USB WIFI transceiver (optional)
- Source:80WUV LED
- Luminous flux:44,5
- Source life expectancy:> 50.000 h
- Beam angle:16° - 51°
- Field angle:38° - 92°
- Lens type:reflector with collimator to achieve asymmetric beam diffusion
- Additional optics:30° (inc)
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Supported Protocols:DMX512
- DMX channels:1 / 5ch

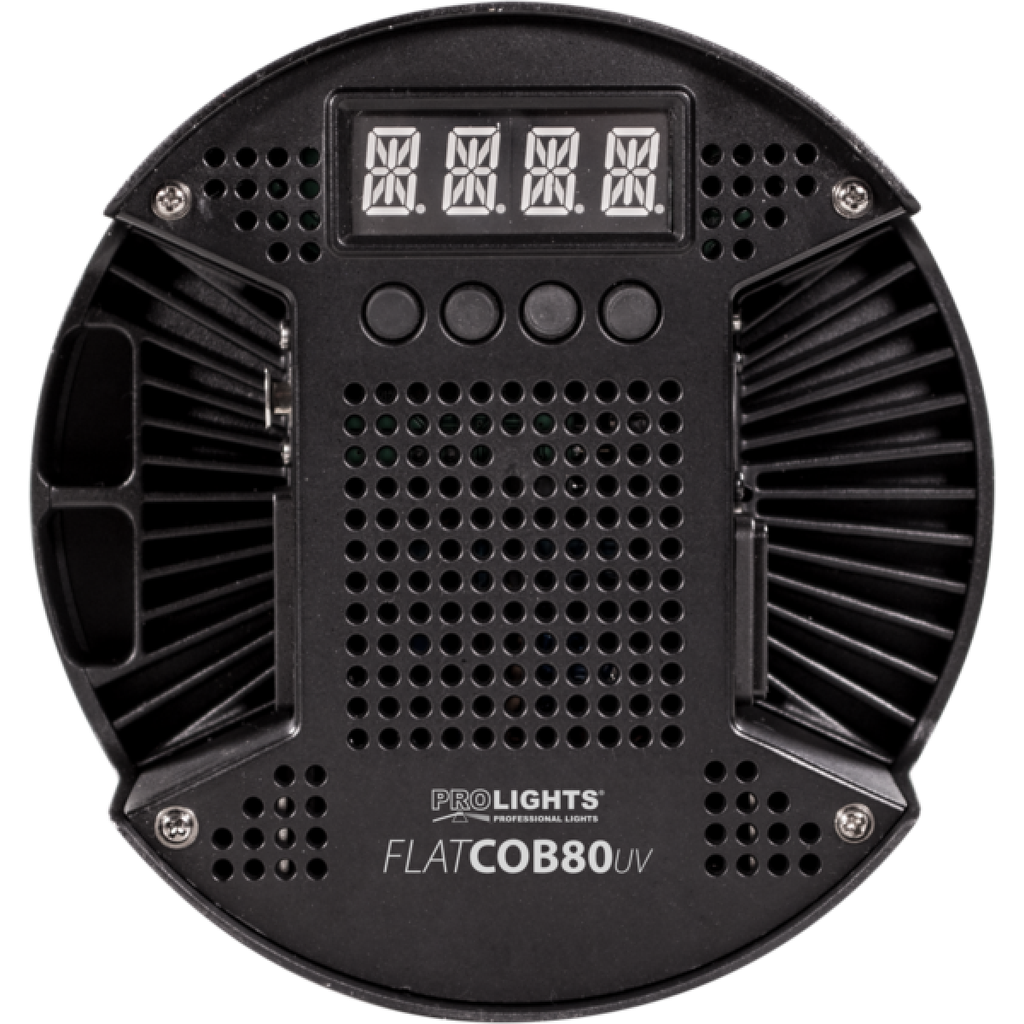

- Display:LED display user interface
- IR:infrared sensor controlled by remote
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)

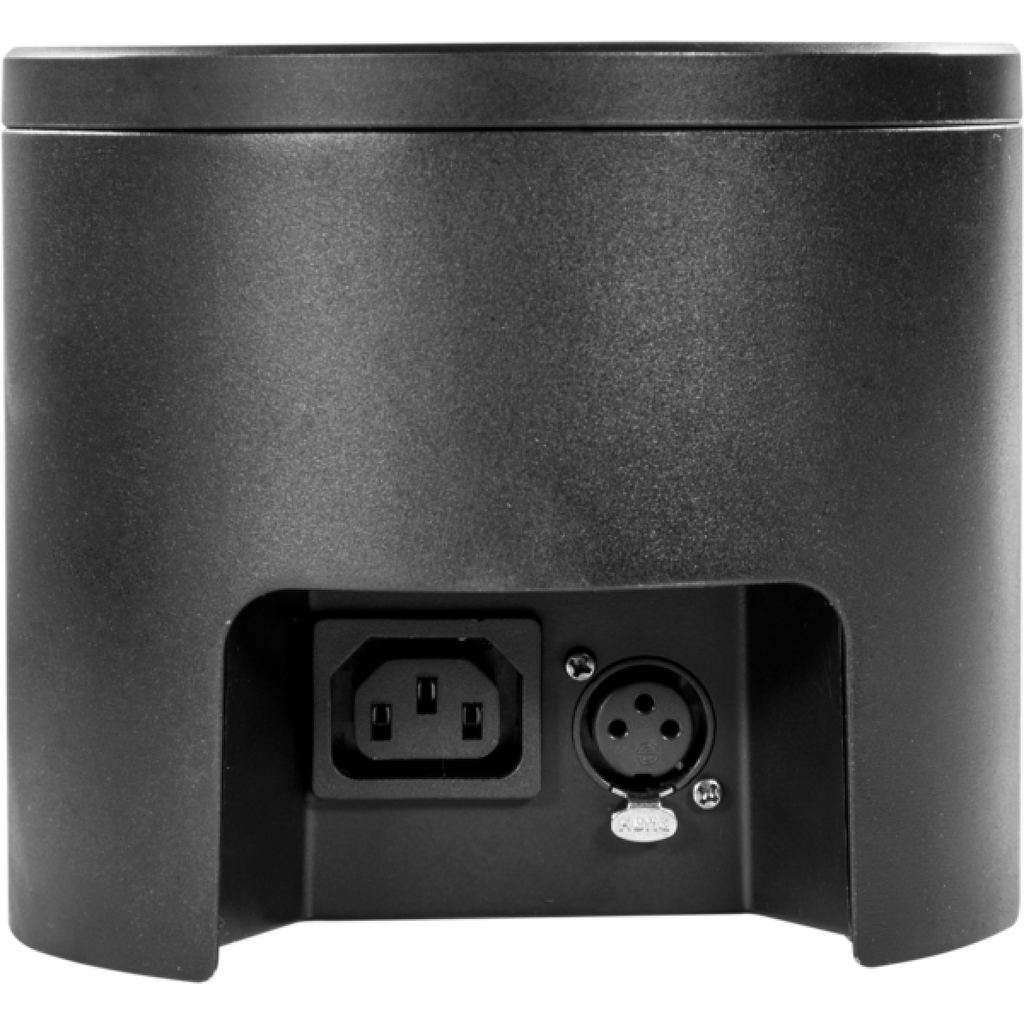

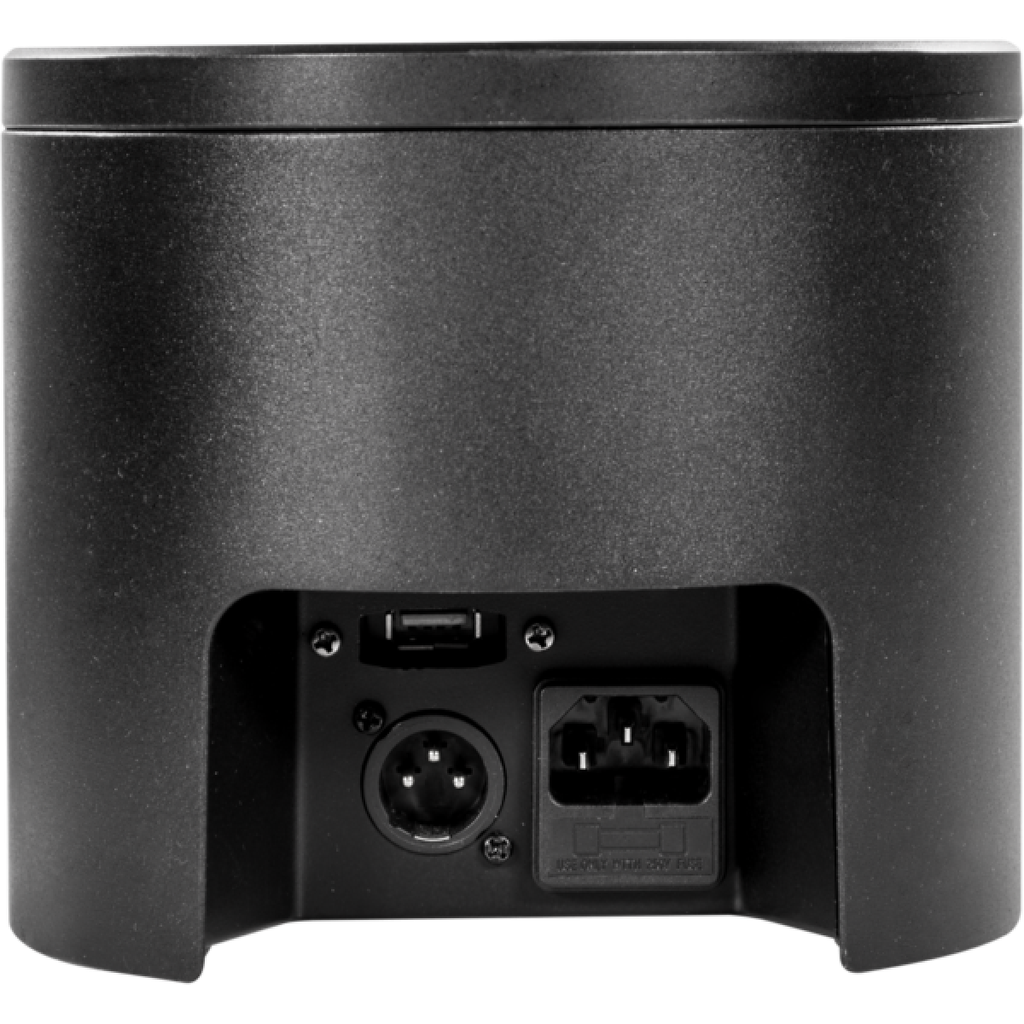

- Power connection:IEC IN/OUT connectors
- Signal connection:XLR 3p IN/OUT connectors
- Wireless Connection:optional WIBOX, WDBOX proprietary protocol
- Data:USB port for USB WIFI transmitter (optional)
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):65W
- Output (at 230V):20units on a single power line
- Max power consumption (120V):65,5W
- Output (at 120V):10units on a single power line
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):200x162x230mm
- Weight:2kg
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Compliance:CE, UKCA
