Prolights ECLSOFTTUBE100

أنبوب إضاءة ناعمة 100cm يعمل بالبطارية، IP، بمصدر LED RGB+أبيض دافئ، WDMX وسلكي

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLSOFTTUBE100

الفئة: إضاءة ناعمة

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

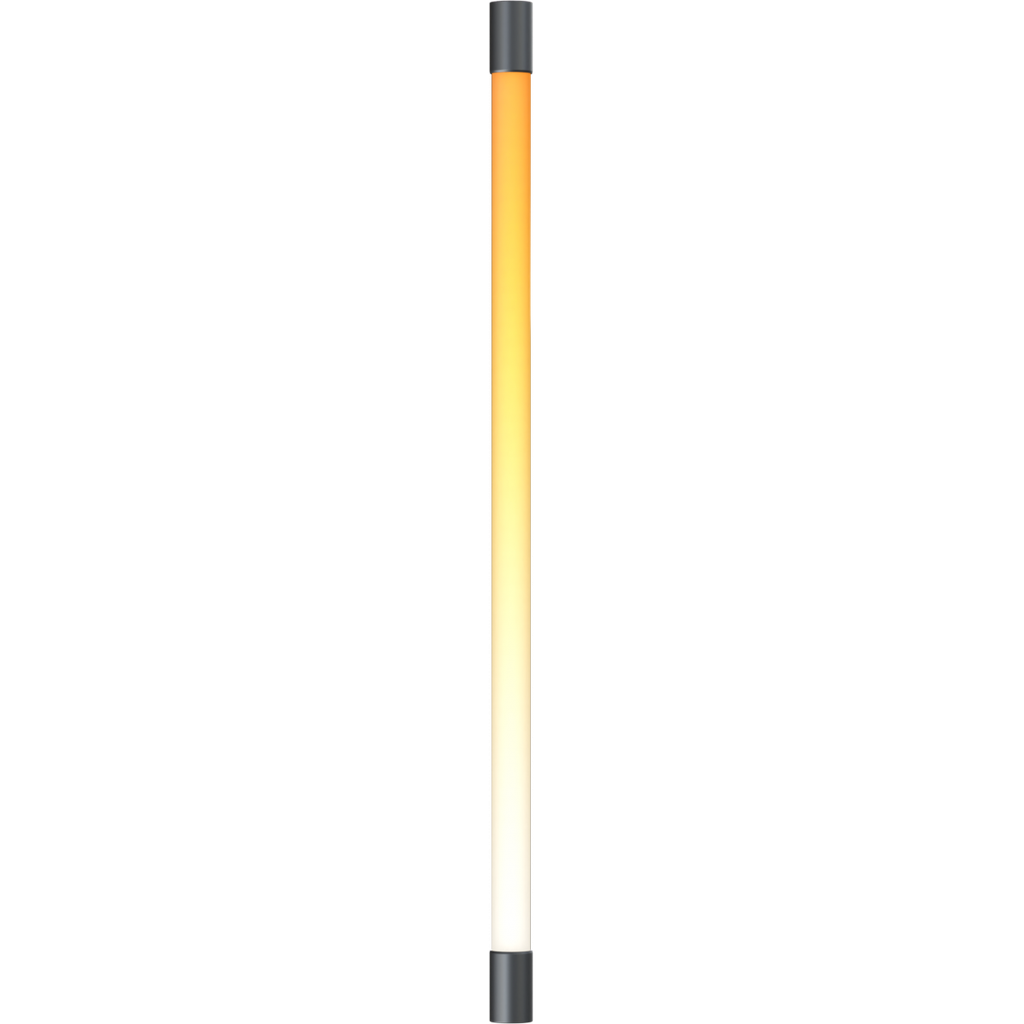

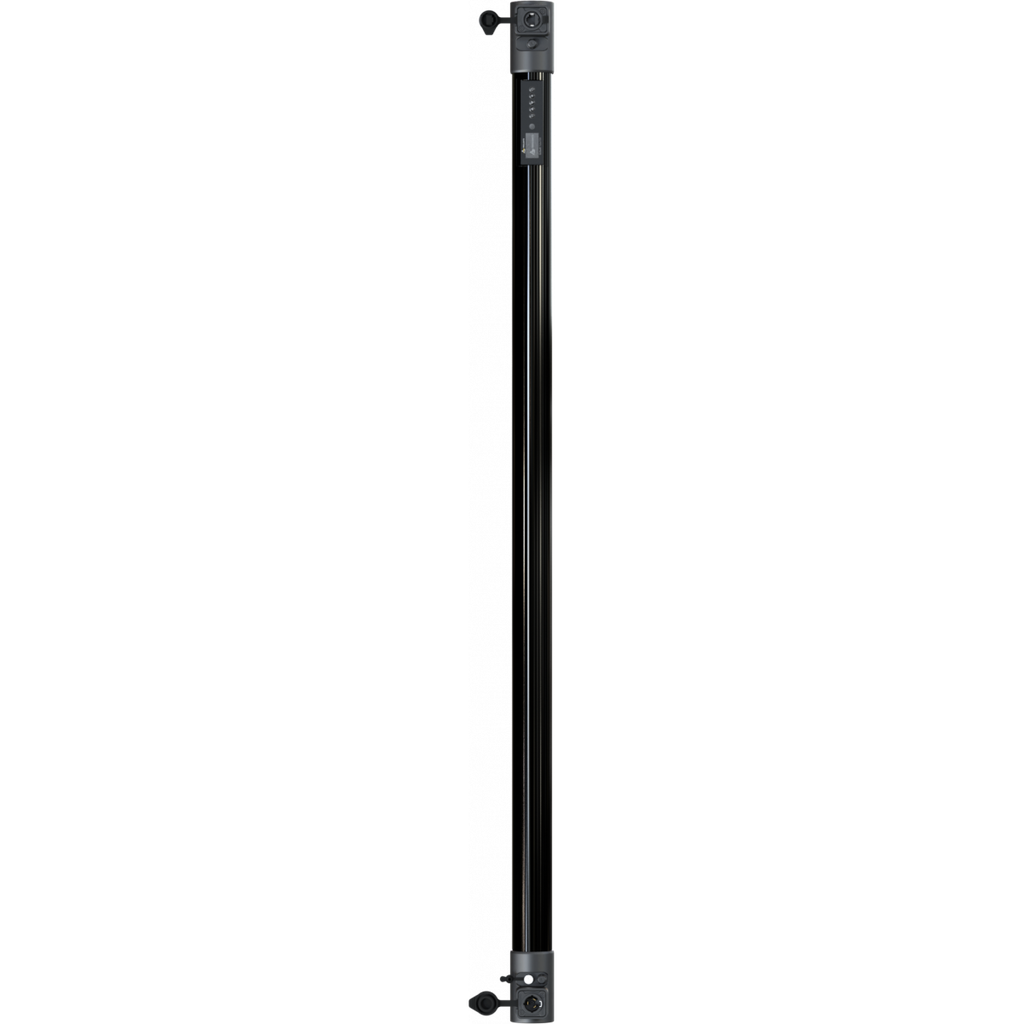

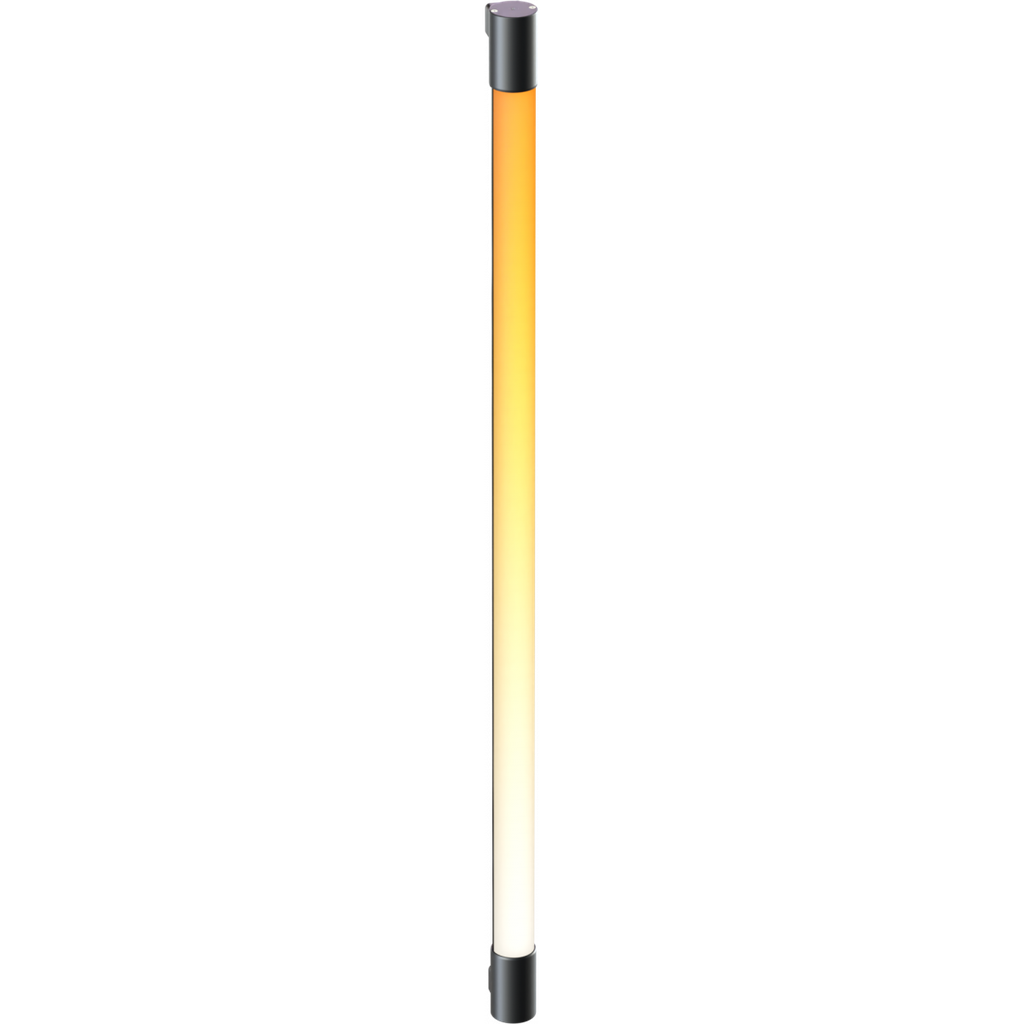

The EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments. The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. Similar the other fixtures in the soft light range, it has an RGBW mode, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects. This fixture is also “Spektra™ Calibrated”, sharing the same colour calibration standard as some other luminaires. The EclSoft Tube100 can be used wirelessly with its on-board battery and Wireless DMX control (CRMX + W-DMX). There is also a wired connection for mains power and an ethernet port for Art-Net or s/ACN.

Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power

Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI

IP65 for outdoor applications

Features:
Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power
Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI
IP65 for outdoor applications

LIGHT SOURCE

Source:

48
W

RGB + Warm White LEDs
Luminous flux:

2'386

@Full
Lux:

71
lx

@3 m
Lux:

161
lx

@2 m
CRI:

93
R9:

92
TLCI:

91
TM30 Rf:

91
TM30 Rg:

105
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

128
°
Field angle:

199
°
Lens type:

frosted acrylic tube

COLOUR SYSTEM

Colour control:

XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
Colour mixing:

RGB + Warm White
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K - 10.000
K

with 28 K resolution
Colour wheel:

virtual colour wheel with macros
Macros:

several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Pixel patterns:

pre-programmed pixel macros and cinema lighting effects
FX generator:

16 sections with

adjustable foreground/background colour, index, speed, direction
Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

Art-Net, sACN, CRMX+W-DMX, Kling-Net
DMX channels:

main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
IR:

infrared sensor controlled by remote (included in the pack, not included in single unit)
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

3000 to 24000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOX1+EST100UPBOXI (not included)

BATTERY

Battery:

24
V

lithium
Estimated battery life:

up to 3 / 6 / 8 / 12 / 16 / 18 h (selectable)
Recharge connection:

DC with jack and AC with standard powercon connector
Recharge time:

5
h (max)
Battery level indicator:

shown on display
Other:

Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through external charger

CONNECTIONS

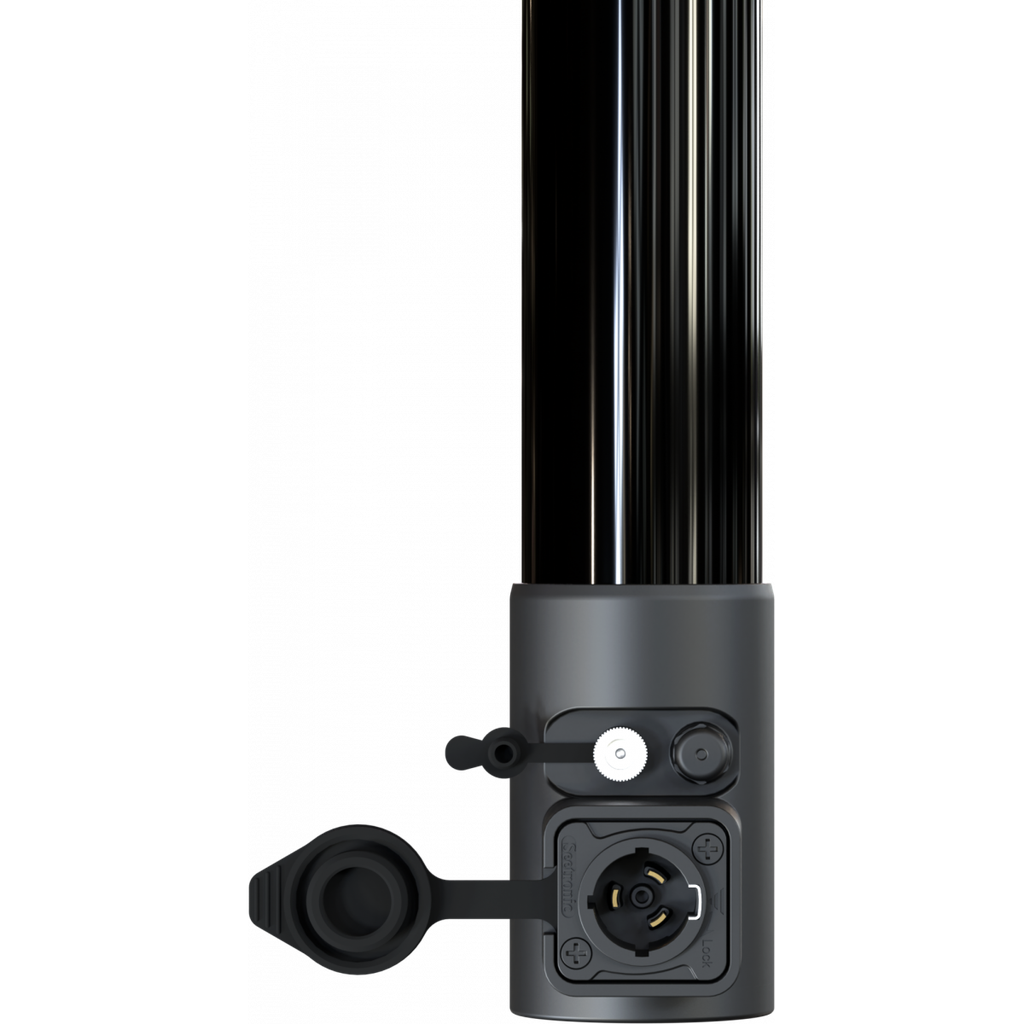

Power connection:

DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

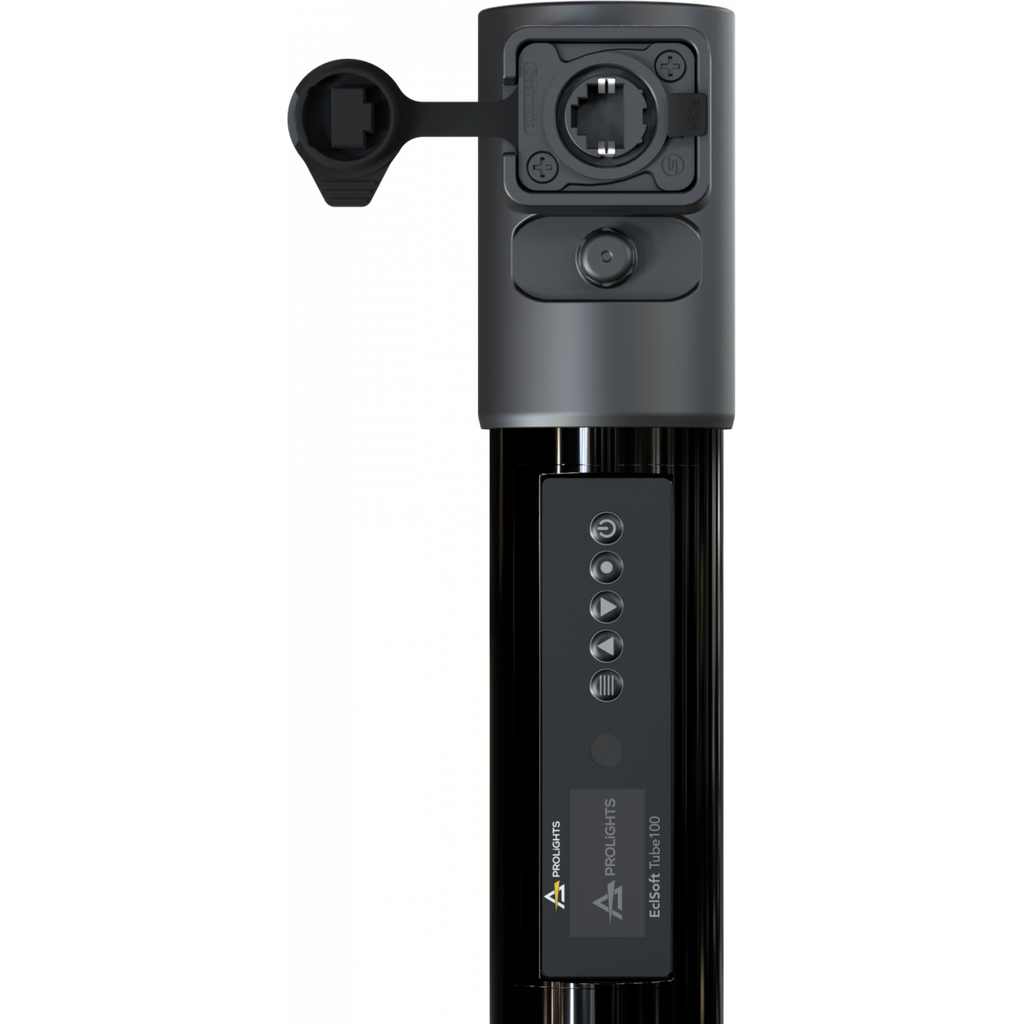

Data connection:

Seetronic RJ45 IP65 IN

ELECTRICAL
