Prolights ECLSOFTLINEARIP

كشّاف إضاءة ناعمة LED خطّي TW وملوّن، IP65، 230W، مع مؤثرات بكسل وإضاءة

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLSOFTLINEARIP

الفئة: إضاءة ناعمة

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

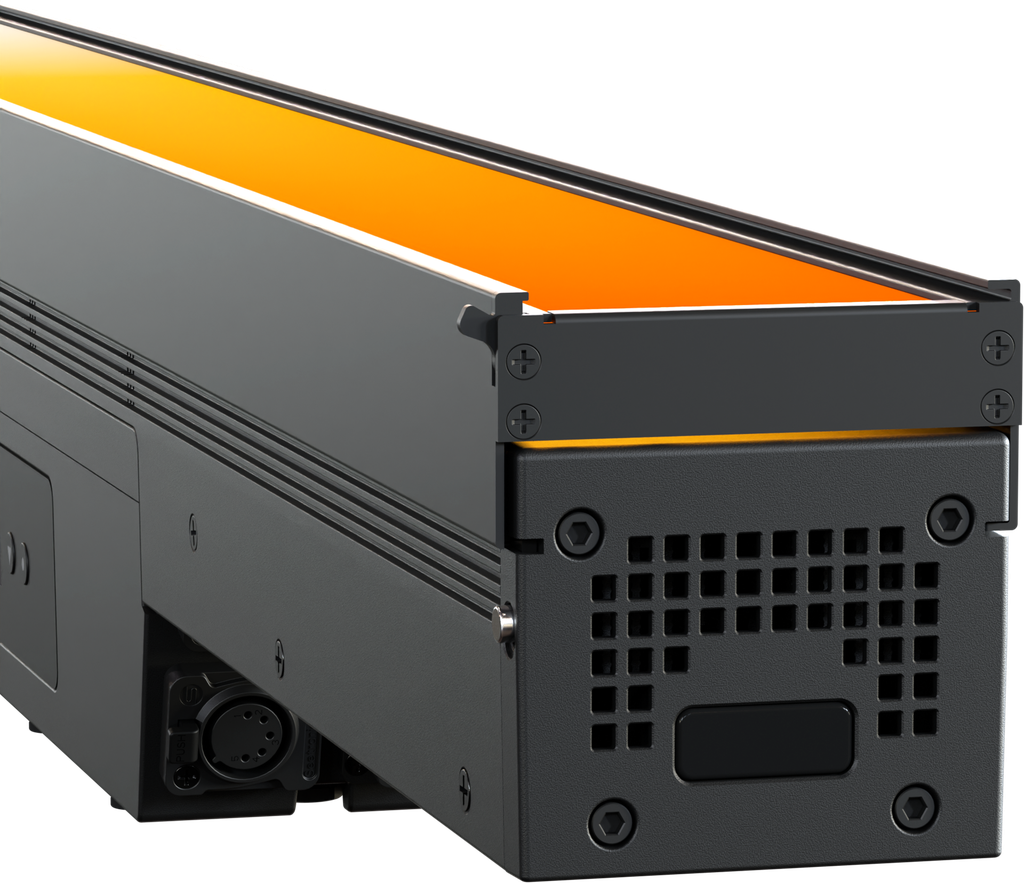

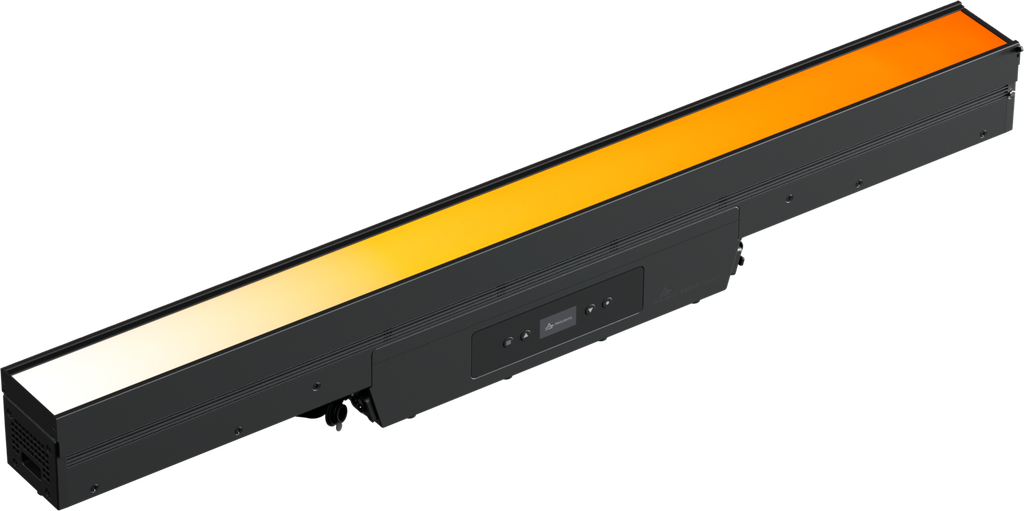

The EclSoft Linear is an IP65 rated linear soft light, with all the main features of the successful EclPanel range, in a new form factor and waterproof design.

Each of its 15 pixels can be controlled individually through DMX/RDM, Ethernet protocols, Wireless DMX (CRMX and W-DMX), or the built-in cinema effects engine.

The EclSoft Linear has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT linear and CCT presets with +/- green shift, source emulation and industry-standard colour gels.

There are several accessories available for the EclSoft Linear, including optical filters and beam shaping accessories.

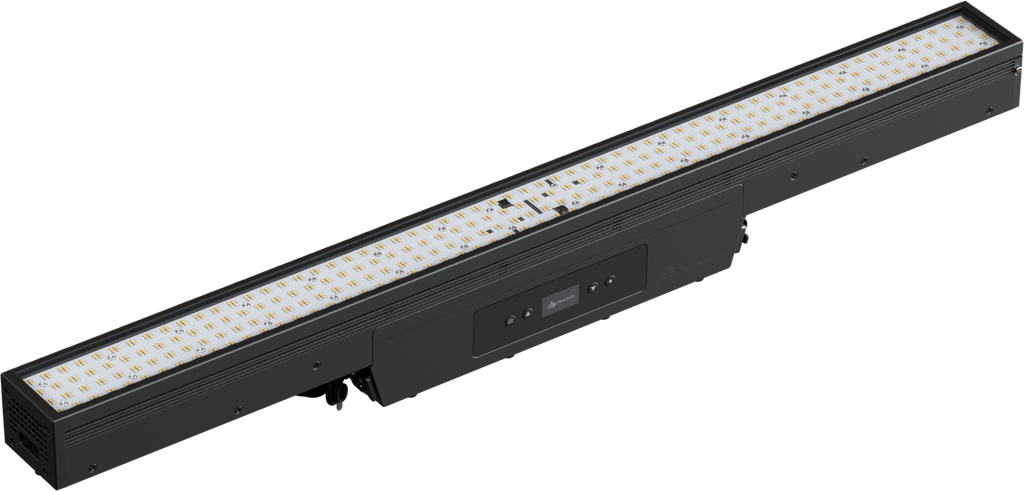

The 230W RGB + Warm White LED engine producing nearly a 13,000 lumen output, whilst keeping perfectly mixed colours and precise white tones, from tungsten to daylight, maintaining a high CRI, TLCI and TM-30 values.

The onboard driver, built-in power supply, easy rigging and cabling make this fixture the perfect tool for every film, TV or touring production.

230W RGB + Warm White engine, producing nearly a 13,000 lumen output

CRI > 92 R9 > 96; TLCI > 87

15 individually controlled pixels with built-in cinema effects engine

DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)

The EclSoft Linear is an IP65 rated linear soft light, with all the main features of the successful EclPanel range, in a new form factor and waterproof design.

Each of its 15 pixels can be controlled individually through DMX/RDM, Ethernet protocols, Wireless DMX (CRMX and W-DMX), or the built-in cinema effects engine.

The EclSoft Linear has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT linear and CCT presets with +/- green shift, source emulation and industry-standard colour gels.

There are several accessories available for the EclSoft Linear, including optical filters and beam shaping accessories.

The onboard driver, built-in power supply, easy rigging and cabling make this fixture the perfect tool for every film, TV or touring production.

Features:
230W RGB + Warm White engine, producing nearly a 13,000 lumen output
CRI > 92 R9 > 96; TLCI > 87
15 individually controlled pixels with built-in cinema effects engine
DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)

LIGHT SOURCE

Source:

230
W

RGB + Warm White LEDs
Luminous flux:

12'994

@4.000 K with LD filter
Lux:

220
lx

@5 m full
CRI:

92 @3.200 K; 93 @5.600 K
R9:

96 @3.200 K; 92 @5.600 K
TLCI:

89 @5.600 K
TM30 Rf:

91 @3.200 K; 90 @5.600 K
TM30 Rg:

107 @3.200 K; 106 @5.600 K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

103
°
Field angle:

155
°
Lens type:

high-quality glass lens optics
Additional optics:

Mountable Medium Density diffusion filter (included)

COLOUR SYSTEM

Colour mixing:

RGB + Warm White
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2,800 K - 10,000
K

with 28 K resolution
Colour wheel:

virtual colour wheel with macros

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Pixel patterns:

pre-programmed pixel macros and cinema lighting effects
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

DMX512, RDM, ArtNet, sACN, CRMX
Pixel control:

15

section control
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 36000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

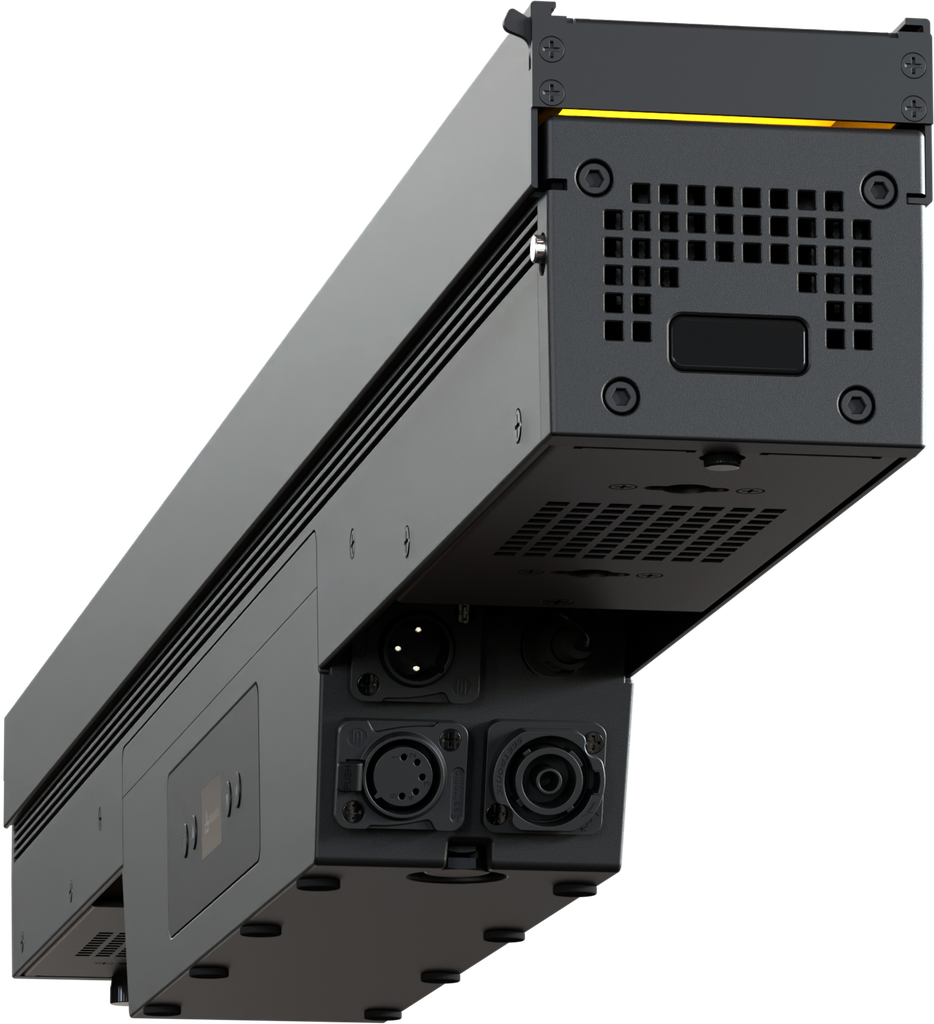

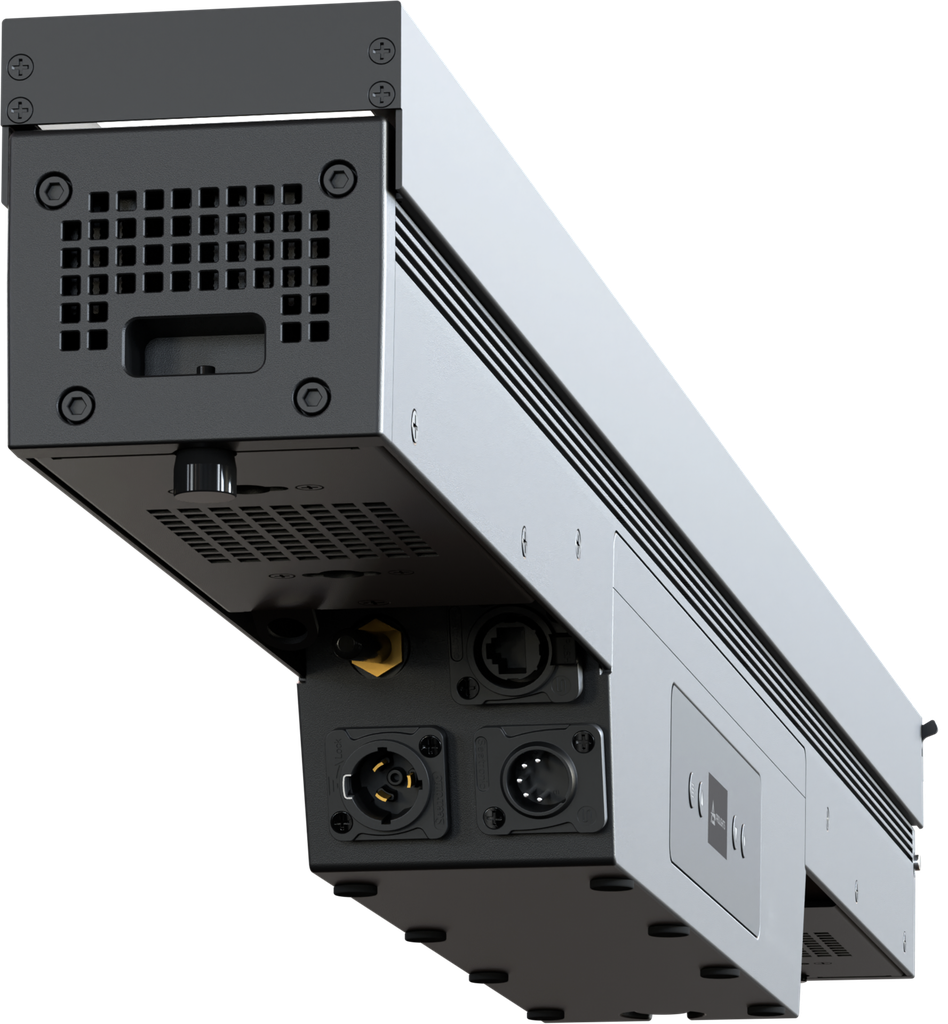

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection:

Seetronic Ethernet IP IN connector
Low Voltage DC connector:

XLR 3p for 48V
