Prolights ECLPENDANTJRTUBK

إضاءة معلّقة مبتكرة بمصدر LED أبيض بقدرة 100W، تنغستن، أسود

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLPENDANTJRTUBK

الفئة: إضاءة معلّقة

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

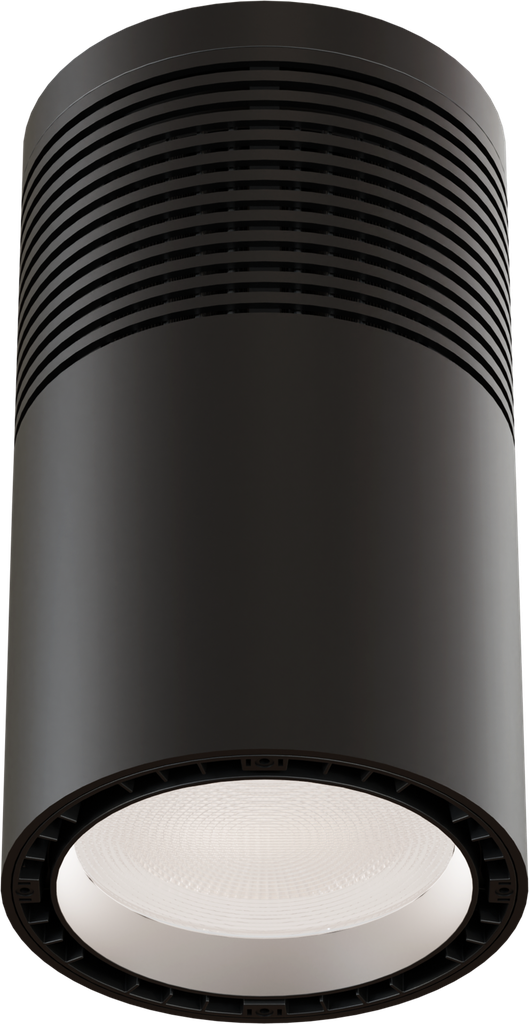

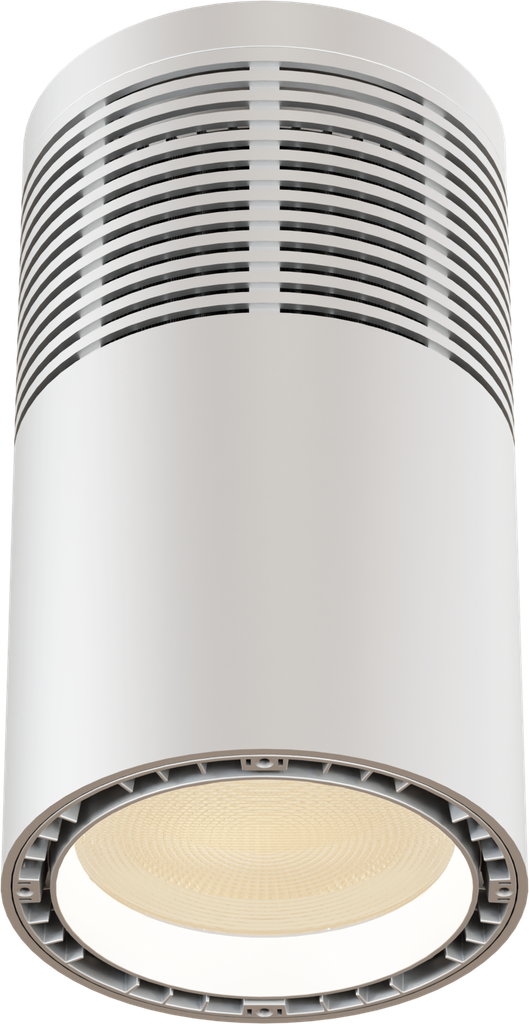

The EclPendant Jr is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.

This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.

The EclPendant Jr has a 100-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.

Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).

The EclPendant Jr was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.

The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.

The EclPendant Jr has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

100W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling

AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)

Extensive mounting option possibilities, optics and accessories are all easily changeable

The EclPendant Jr is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.

This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.

Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).

The EclPendant Jr has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

Features:
100W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
Extensive mounting option possibilities, optics and accessories are all easily changeable

LIGHT SOURCE

Source:

100
W

White COB LED
Source CCT:

K

see available versions
Luminous flux:

(TU) 6'948 lm; (NW) 7'401 lm; (DY) 7'706

@Full
Lux:

(TU) 1'372 lx: (NW) 1'524 lx; (DY) 1'600
lx

@5 m full
CRI:

(TU) > 96 - (NW) > 96 - (DY) > 94
R9:

(TU) > 98 - (NW) > 92 - (DY) > 97
TLCI:

(TU) > 95 - (NW) > 97 - (DY) > 97
TM30 Rf:

(TU) > 94 - (NW) > 93 - (DY) > 91
TM30 Rg:

(TU) < 105 - (NW) < 103 - (DY) < 103
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

20
°
Field angle:

40
°
Lens diameter:

122
mm
Lens type:

fresnel lens
Other:

see available accessories

COLOUR SYSTEM

Colour mixing:

see available versions

DYNAMIC EFFECTS

Static mode:

selection of static dimmer
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DALI Type6,

DMX512, RDM, CRMX
DMX channels:

UNO / DUO / Standard / Extended
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Other:

16bit control of dimmer

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

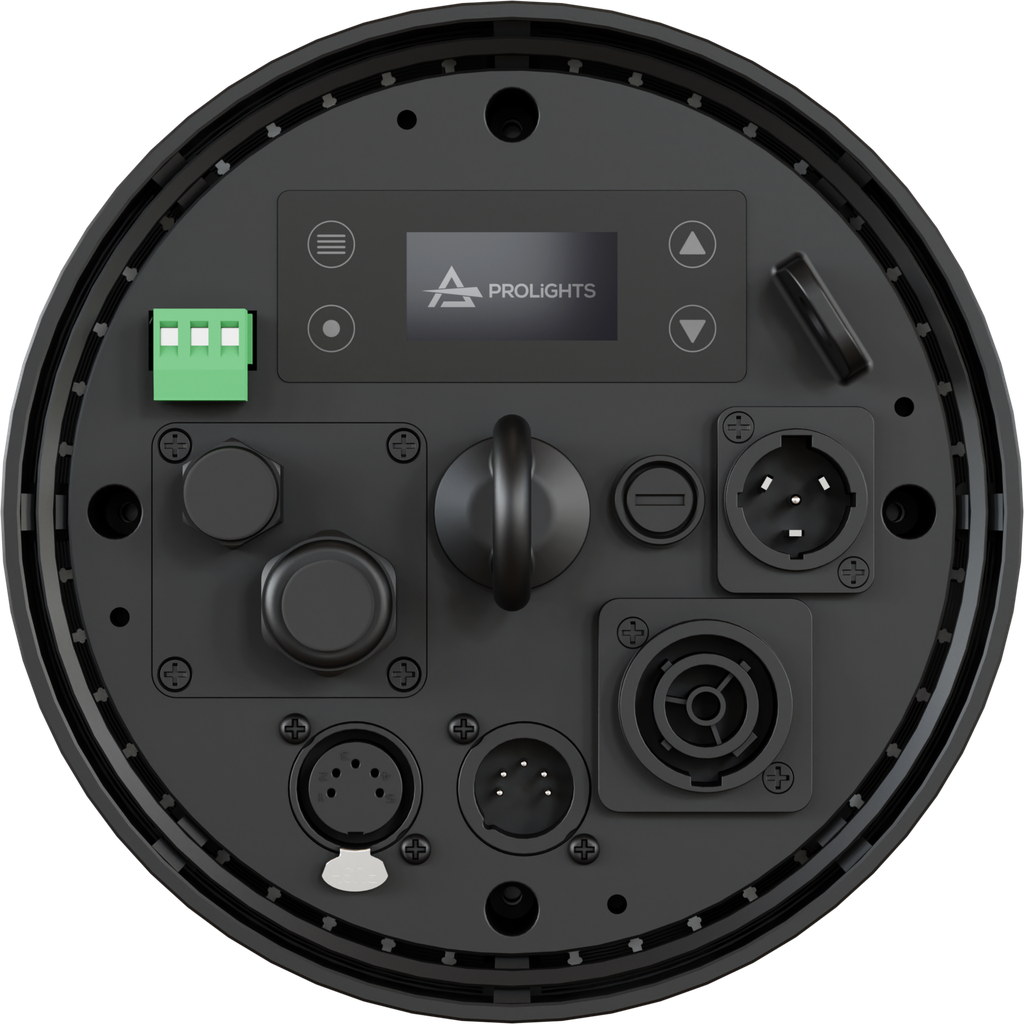

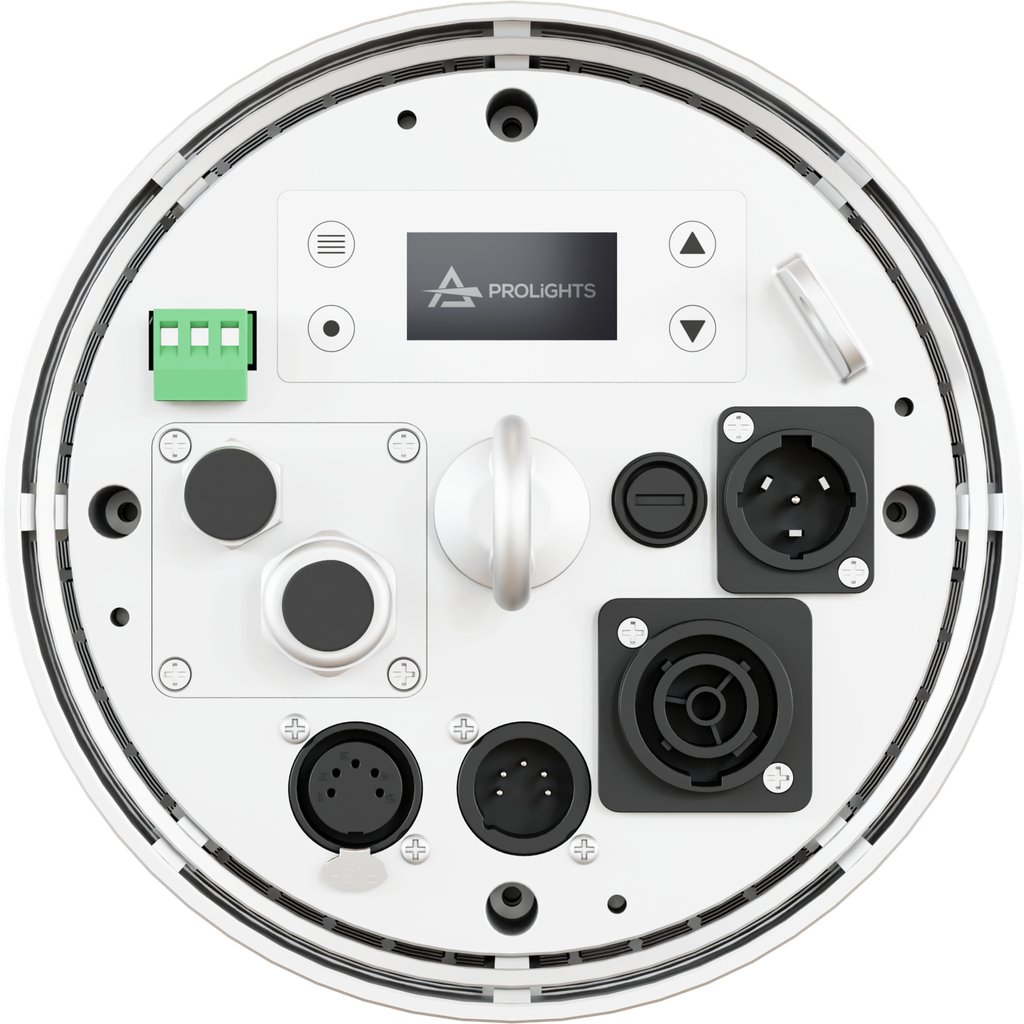

CONNECTIONS

Power connection:

screw terminal block,

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

screw terminal block,

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Low Voltage DC connector:

DC 48V through screw terminal block
