Prolights ECLPARIPLFCBK

كشّاف موضعي LED IP65 بمصدر واحد 300W RGB+WW، يشمل بصريات 15°، أسود

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLPARIPLFCBK

الفئة: كشّافات Par وواش

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

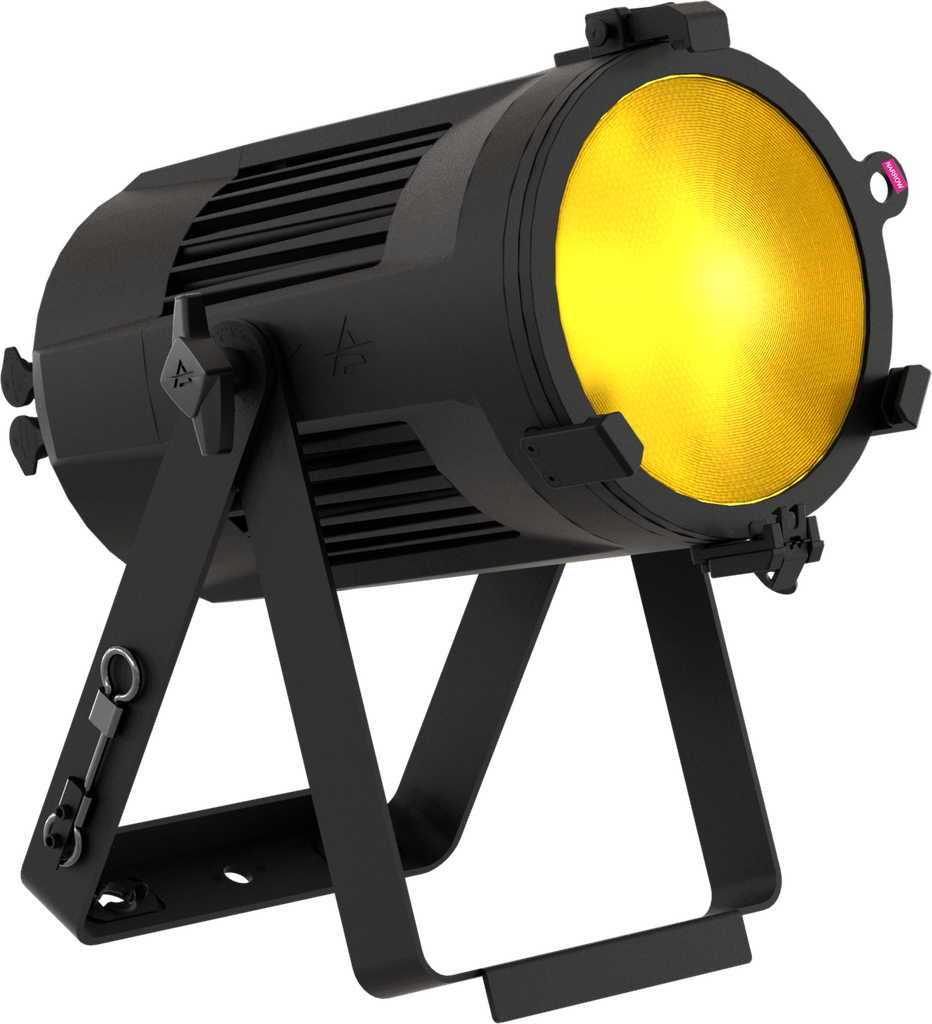

The EclPar IPLFC stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications. This robust fixture is powered by a 300W RGB+WarmWhite light source, capable of producing up to 12.000 fixture lumens with remarkable efficiency and advanced color control.

Integrated with the PROLIGHTS Spektra OS, the EclPar IPLFC excels in delivering superior white light reproduction, boasting high CRI and TM30 values. This system ensures advanced color control, maintaining consistency across all fixtures.

Its compact and silent design renders the EclPar IPLFC an indispensable tool for both indoor and outdoor stages, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

300W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values

Flex lens system: 15° on-board - 30° , 60° and asymmetric optional

IP65 for exterior application

Features:
300W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
IP65 for exterior application

LIGHT SOURCE

Source:

300
W

RGB+WW LED array
Luminous flux:

(15°) 10'919 lm; (30°) 11'494 lm; (60°) 12'045 lm

@Full
Lux:

(15°) 5'581lx; (30°) 1'866lx; (60°) 624
lx

@5 m full
CRI:

96,2 @3'200K; 92,2 @5'600K
R9:

94,2 @3'200K; 97,8 @5'600K
TLCI:

92 @3'200K; 90 @5'600K
TM30 Rf:

93,5 @3'200K; 89,3 @5'600K
TM30 Rg:

105,8 @3'200K; 105,8 @5'600K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

(on-board) 15° - (opt) 30°, 60
°
Field angle:

(on-board) 23
°
Lens diameter:

172
mm
Lens type:

parabolic reflector in combination with HD fresnel lens
Additional optics:

(opt) 30°, 60°
Other:

possible to mount lens both on the internal side and on the external side

COLOUR SYSTEM

Colour mixing:

RGB + Warm White
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K ~ 10.000
K
Macros:

Gels library on-board

DYNAMIC EFFECTS

Static mode:

selection of static dimmer, colors and color temperature
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

1 / 2 / 5 / 9 / 10 / 12 / 18
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

3

RGB backlight push-encoders
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

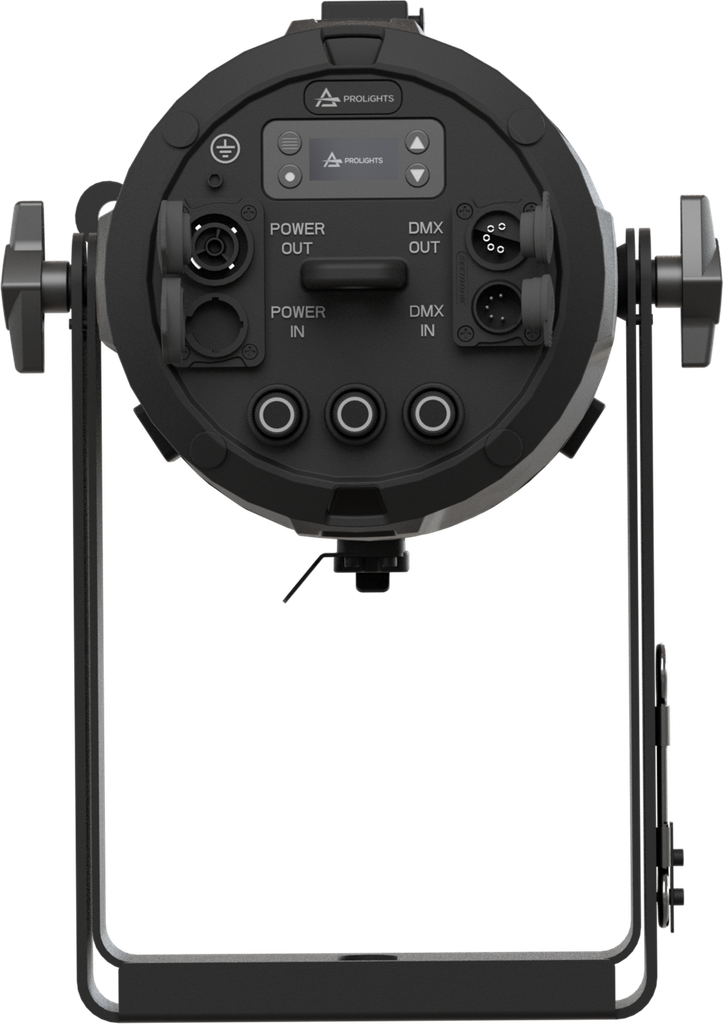

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

315
W
Output (at 230V):

6

units on a single power line
Standby power:

2,2 W
Power factor:

> 0,94

PHYSICAL

IP rating:

IP65 for temporary outdoor use
Cooling:

forced-air with IP-rated low-noise fan
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD):

275x402x382
mm
Weight:

8,35
kg

INSTALLATION

Suspension and fixing:

hanging bracket with quick lock system designed for use with OMEGA bracket or floor stand (accessory), hanging system through eye bolt
Other:

Front mount holder for accessories as barn door, filter frame
