Prolights EclNanoPanel TWC

إضاءة ناعمة LED تعمل بالبطارية أبيض قابل للضبط وملوّن بقدرة 30W، بكسل ومؤثرات إضاءة

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLNANOPANELTWC

الفئة: إضاءة ناعمة

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

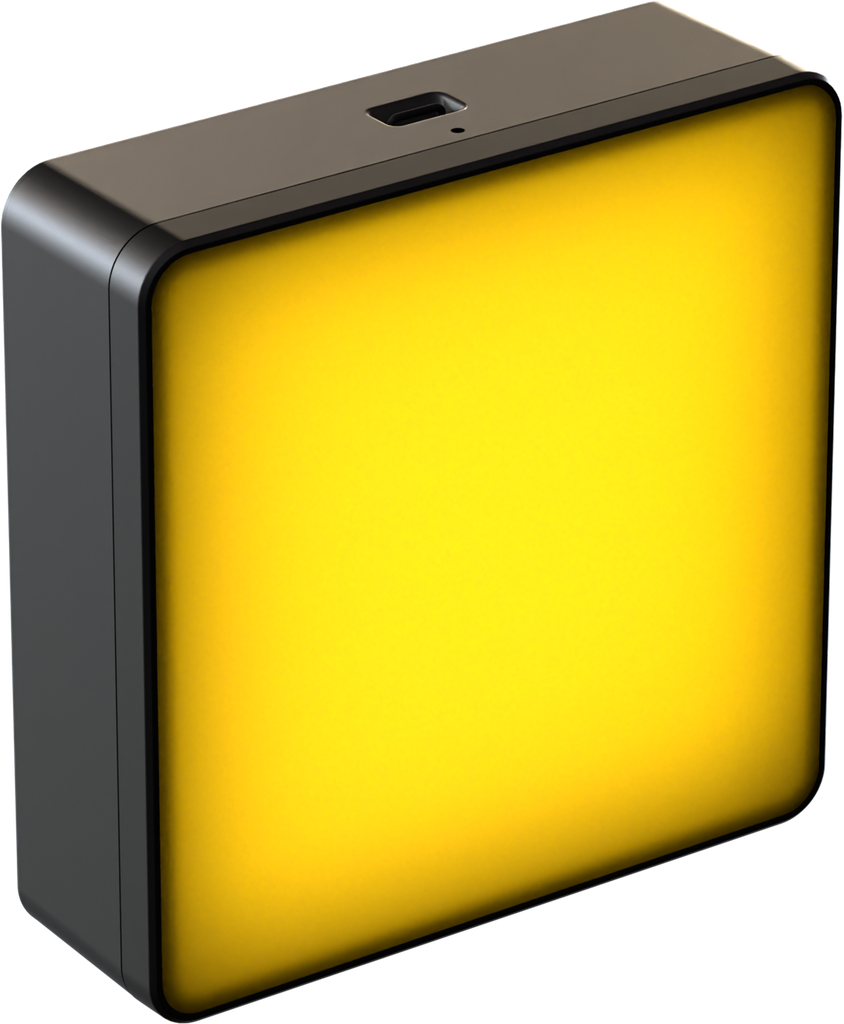

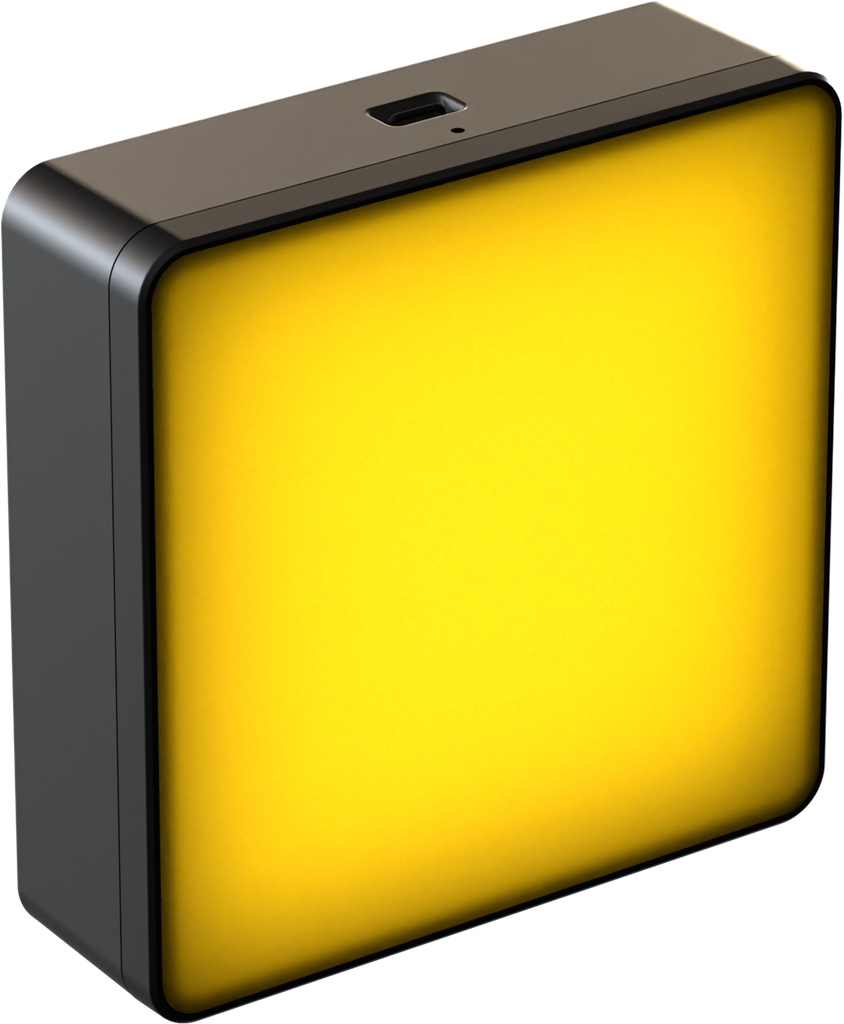

The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire with a surprisingly powerful 1,800-lumen output.

This compact fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and onboard pixel cinema effects.

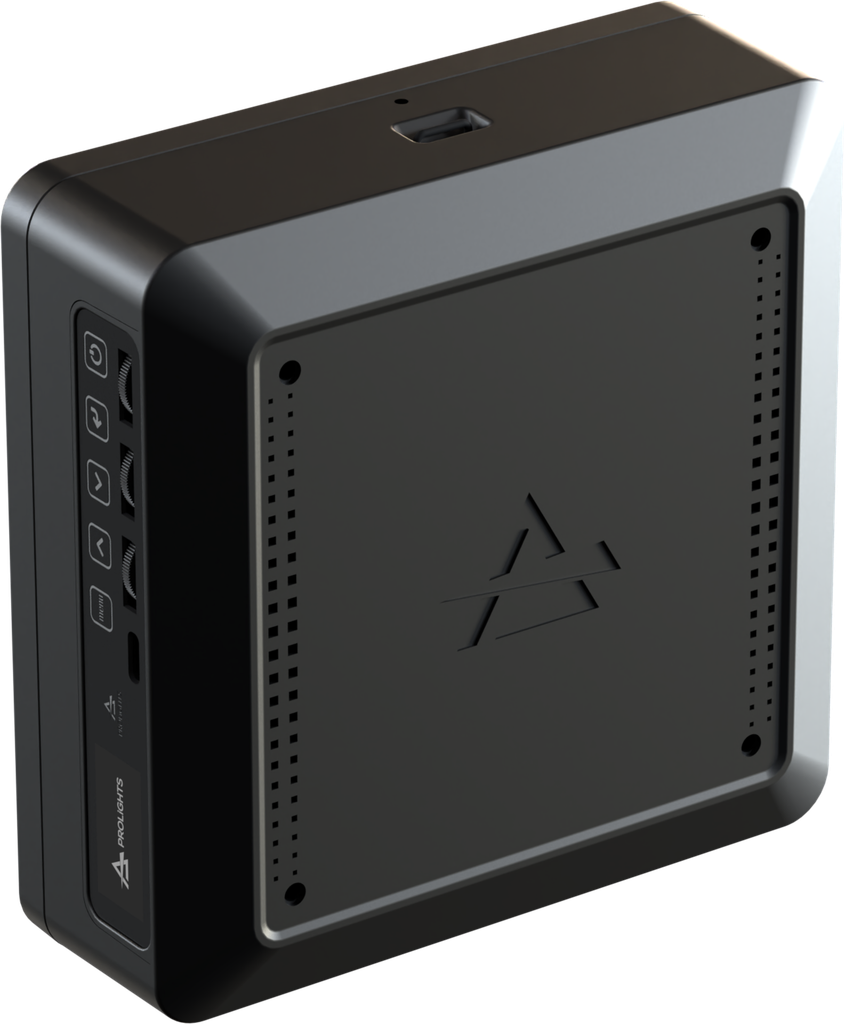

The EclNanoPanel TWC has three precision encoders with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the four sections has individual or simultaneous control, allowing to play customizable, cinematic effects through its FX engine or from a console.

Magnetized beam-shaping optical accessories are available, including eggcrates, barndoors, diffusers, and threads for easy mounting on stands or camera rigs.

The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

Compact-sized soft light with wireless control (CRMX and W-DMX) and battery-powered

30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output

Magnetized beam-shaping optical accessories are available

This compact fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and onboard pixel cinema effects.

Each of the four sections has individual or simultaneous control, allowing to play customizable, cinematic effects through its FX engine or from a console.

Magnetized beam-shaping optical accessories are available, including eggcrates, barndoors, diffusers, and threads for easy mounting on stands or camera rigs.

The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

Features:
Compact-sized soft light with wireless control (CRMX and W-DMX) and battery-powered
30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output
Magnetized beam-shaping optical accessories are available

LIGHT SOURCE

Source:

30
W

RGB + Warm White LEDs
Luminous flux:

1'829

@3.200 K with LD filter
Lux:

690
lx

@1 m
CRI:

94,6 @3.200 K; 94,9 @5.600 K
R9:

97,1 @3.200 K; 96 @5.600 K
TLCI:

92 @5.600 K
TM30 Rf:

97,7 @3.200 K; 89,3 @5.600 K
TM30 Rg:

102,5 @3.200 K; 102,3 @5.600 K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

105
°
Field angle:

159
°
Lens type:

magnetic light density

diffusion panel (interchangeable)
Additional optics:

see available accessories

COLOUR SYSTEM

Colour control:

XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
Colour mixing:

RGB + Warm White
CCT:

Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
White presets:

2,800 K - 10,000
K
Colour wheel:

virtual colour wheel with macros
Macros:

several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Pixel patterns:

pre-programmed pixel macros and cinema lighting effects
FX generator:

4

controllable sections
Static mode:

selection of static colour
Manual mode:

manual adjustment of intensity, CT, colour correction from knob
Auto mode:

built-in programs with execution speed adjustment
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

DMX512, RDM, CRMX + WDMX
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

selectable mode through 3

rotatory knobs
IR:

infrared sensor controlled by remote (included in the pack, not included in single unit)
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 36000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOX1+ENPTWCYCABLE (not included)

BATTERY

Battery:

11.1
V

lithium
Estimated battery life:

up to 2 / 6 / 8 / 12 / 18 h (selectable)
Recharge connection:

USB type C
Recharge time:

2,5
h (max)
Battery level indicator:

shown on display

CONNECTIONS

Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Adaptors:

USB type C to XLR connectors
Low Voltage DC connector:

USB type C

ELECTRICAL
