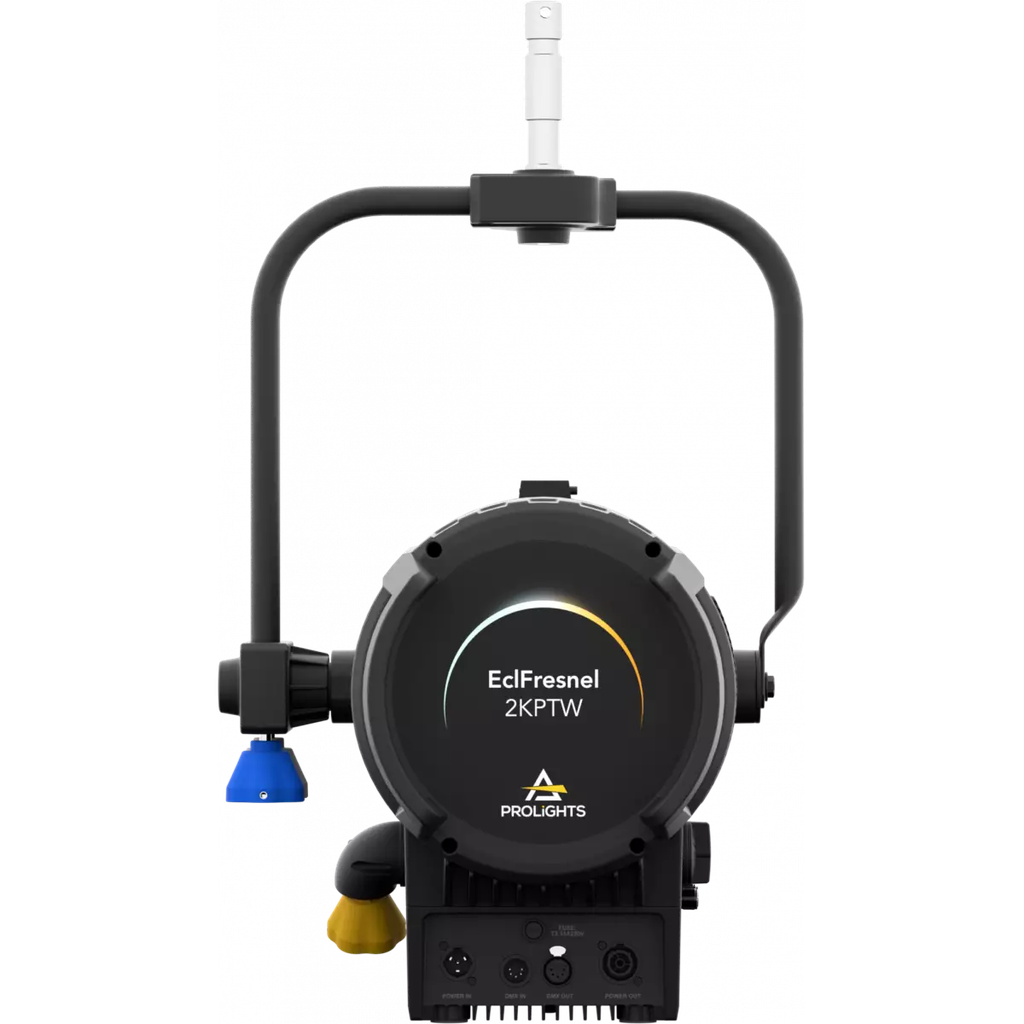

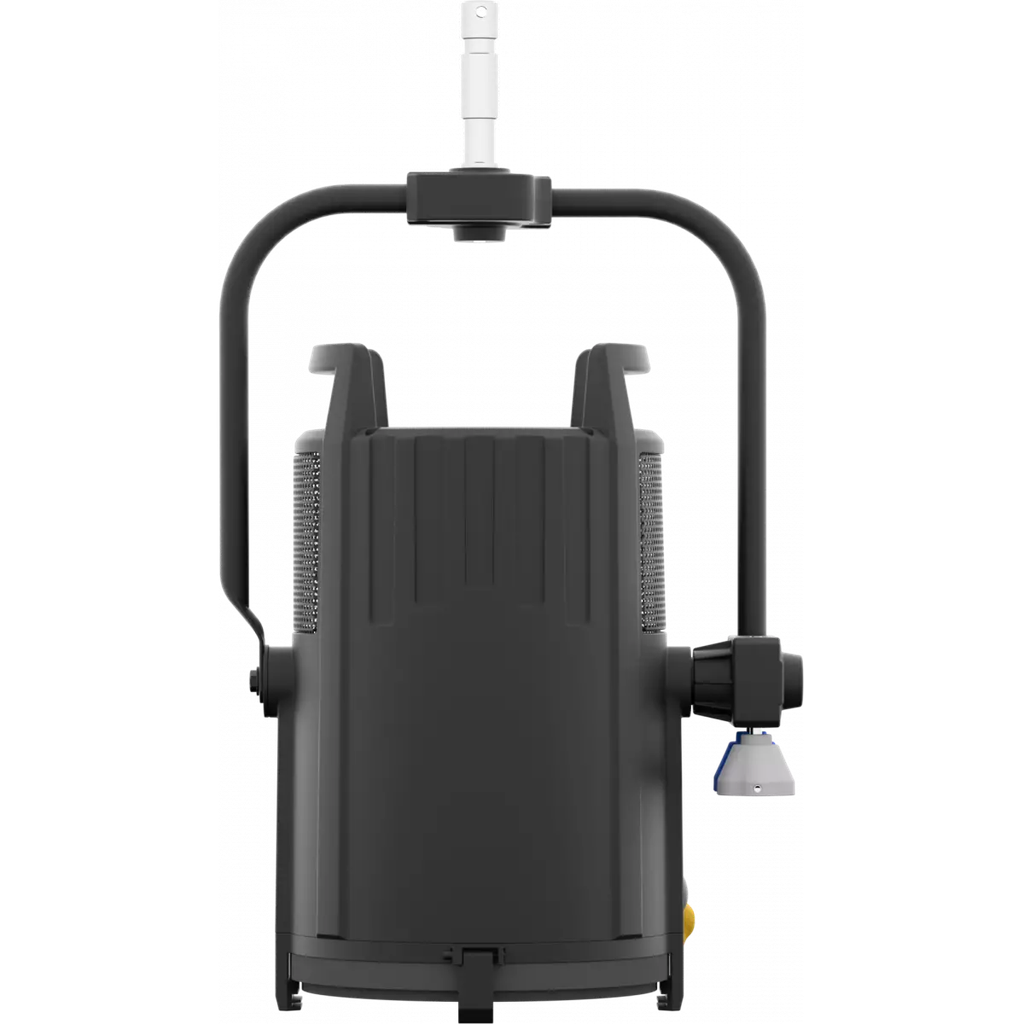

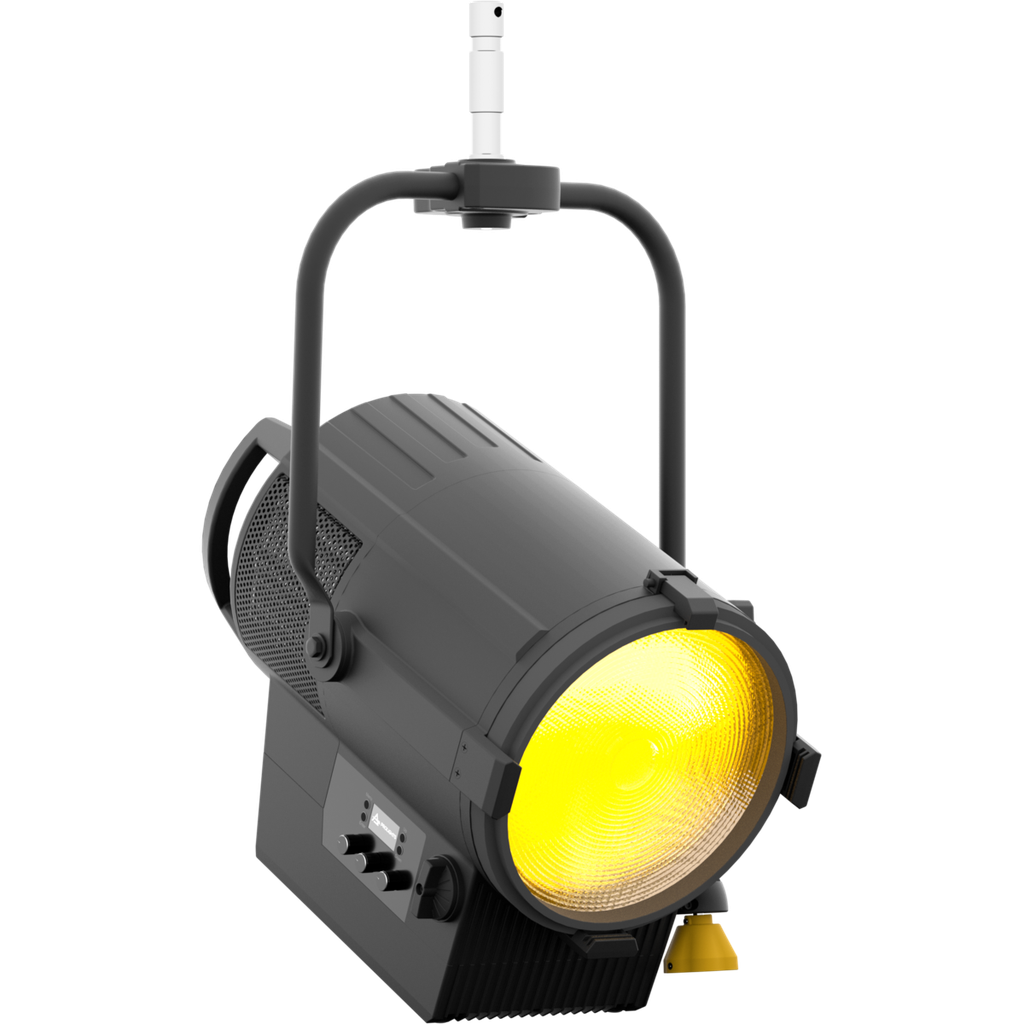

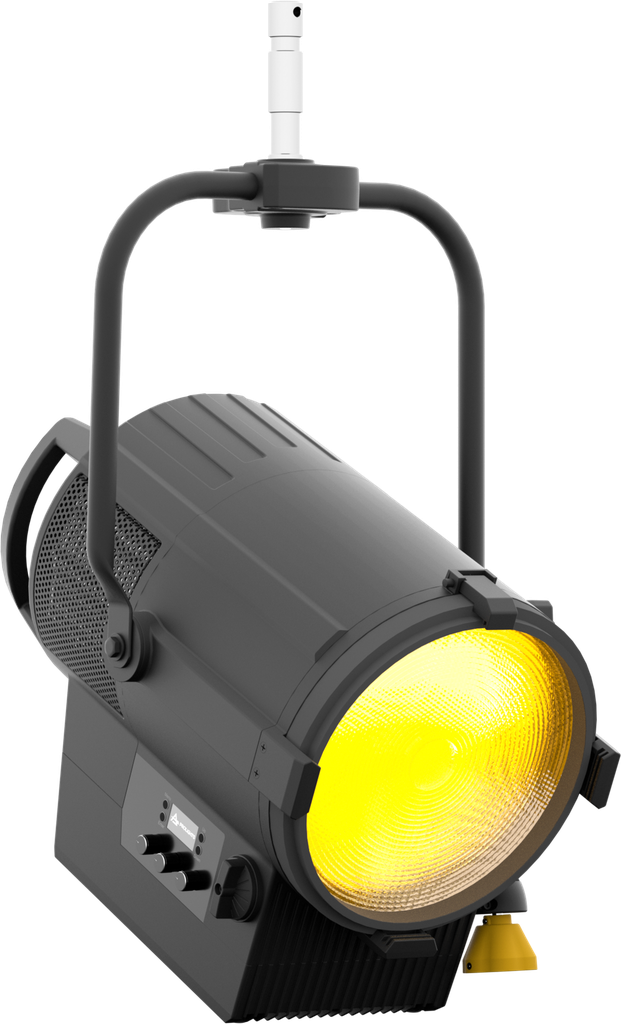

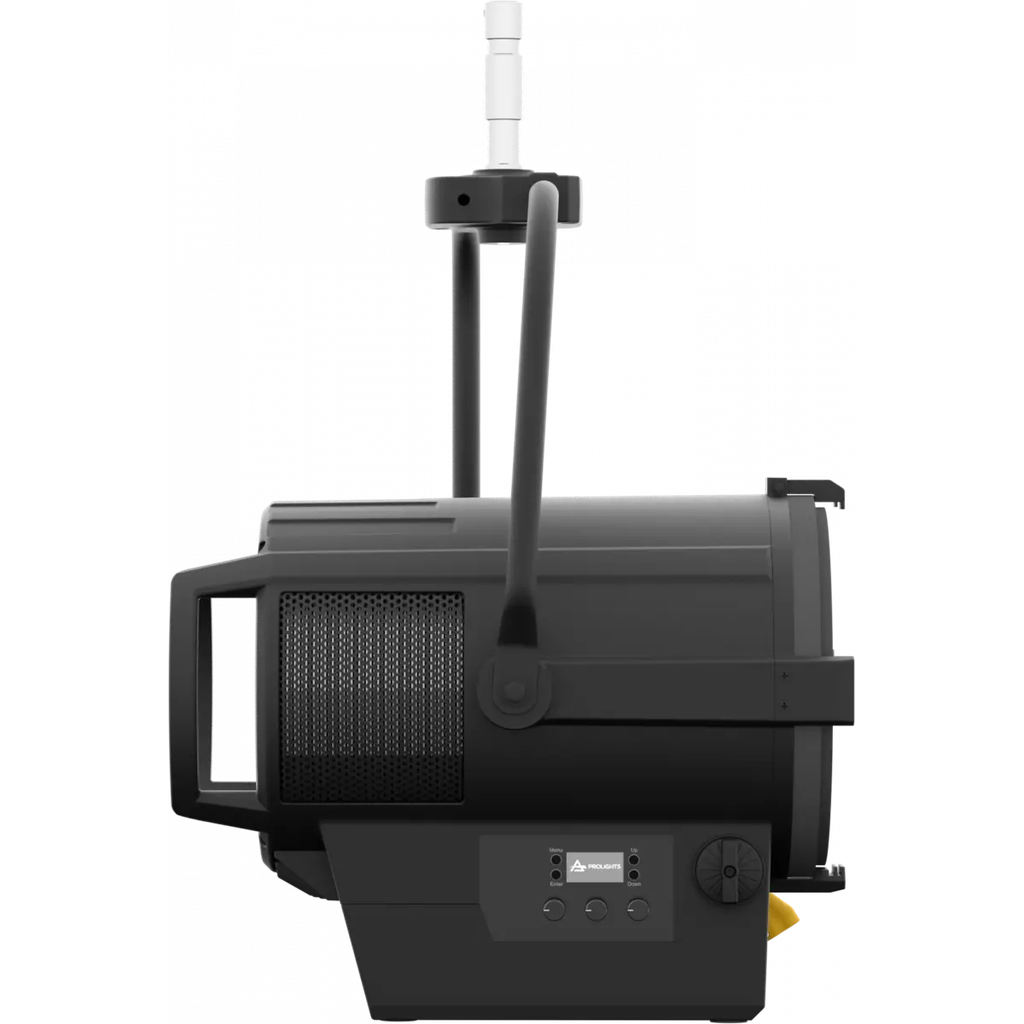

Prolights ECLFR2KPTW

كشّاف فرينل PO BK، LED 500W بألوان كاملة و TW، 17-76°، يشمل بارن دور

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLFR2KPTW

الفئة: كشّاف فرينل

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

EclFresnel 2KPTW is an advanced LED replacement of traditional 2K Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction. The optical system harnesses the power of a 500W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources. Featuring HDL dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KPTW delivers both on performance and quality of output that is demanded from this level of light.

Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing

+/- green and magenta white tuning

Truly silent operation making it perfect for studio and stage use

Features:
Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
+/- green and magenta white tuning
Truly silent operation making it perfect for studio and stage use

LIGHT SOURCE

Source:

500
W

6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
Source CCT:

2.800 K - 10.000
K
Luminous flux:

(17°) 10'100 lm - (76°) 13'400

@Full
Lux:

(17°) 3'864 lx - (76°) 710
lx

@5 m full
CRI:

89 @3.200 K; 90,7 @5.600 K
R9:

80 @3.200 K; 85,4 @5.600 K
TLCI:

87 @5.600 K
TM30 Rf:

89,4 @3.200 K; 86,2 @5.600 K
TM30 Rg:

101,6 @3.200 K; 102,1 @5.600 K
Source life expectancy:

> 70.000 h

OPTICS

Zoom range:

17° - 76
°

manual
Lens diameter:

250
mm
Lens type:

fresnel zoom lens
Other:

spigot, barndoor and gel frame included

COLOUR SYSTEM

Colour mixing:

6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K - 10.000
K
Colour wheel:

virtual colour wheel with macros
Macros:

several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Static mode:

selection of static colour
Manual mode:

manual adjustment of intensity, CT, colour correction from knob
Auto mode:

built-in programs with execution speed adjustment
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

DMX512, RDM, rotatory knob
DMX channels:

1 / 2 / 5 - 1 / 5 - 2 / 7 - 1 / 7 - 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Master/Slave:

for synchronised operation of more units linked in a chain
Other:

16bit control of dimmer and colour
