Prolights ECLEXPOFL300FCBK

كشّاف فيضي LED غير متماثل بألوان كاملة RGB+أبيض دافئ بقدرة 300W، أسود

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLEXPOFL300FCBK

الفئة: سيكلوراما

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

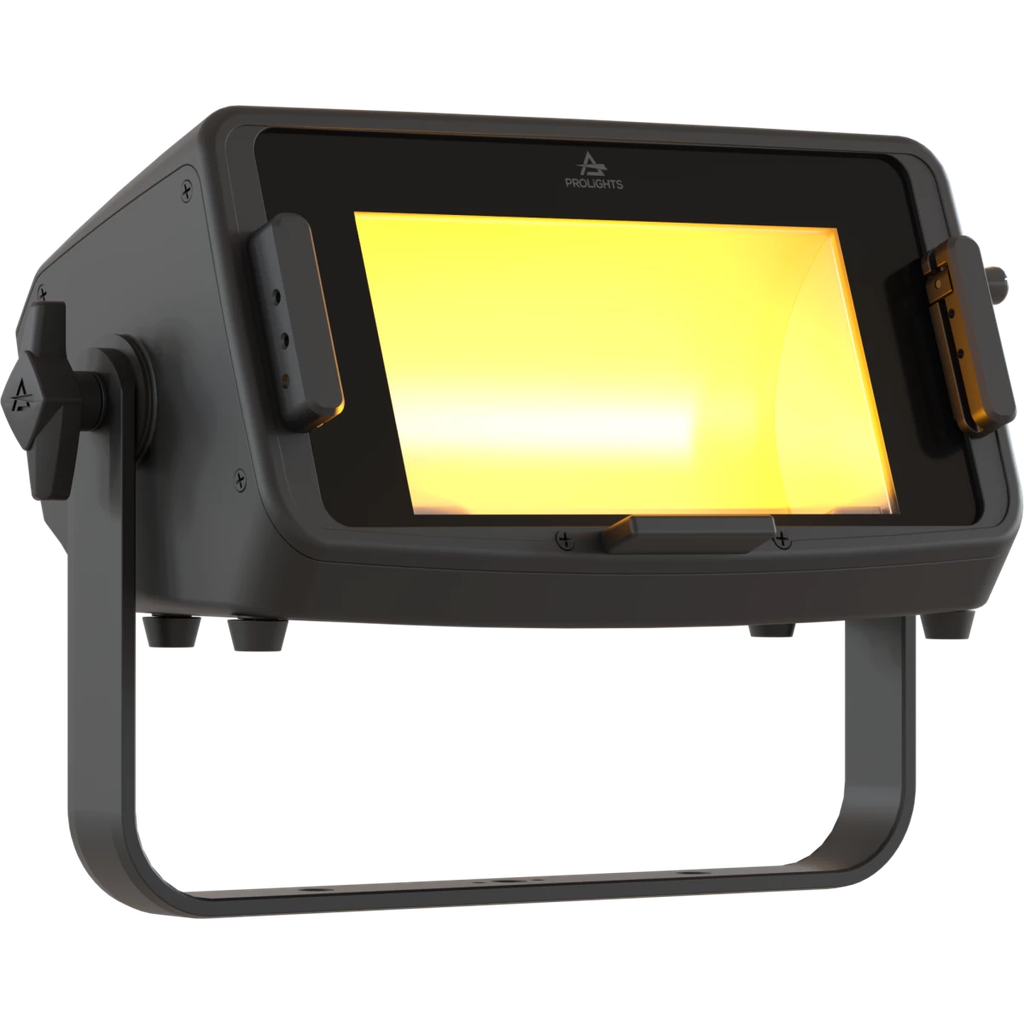

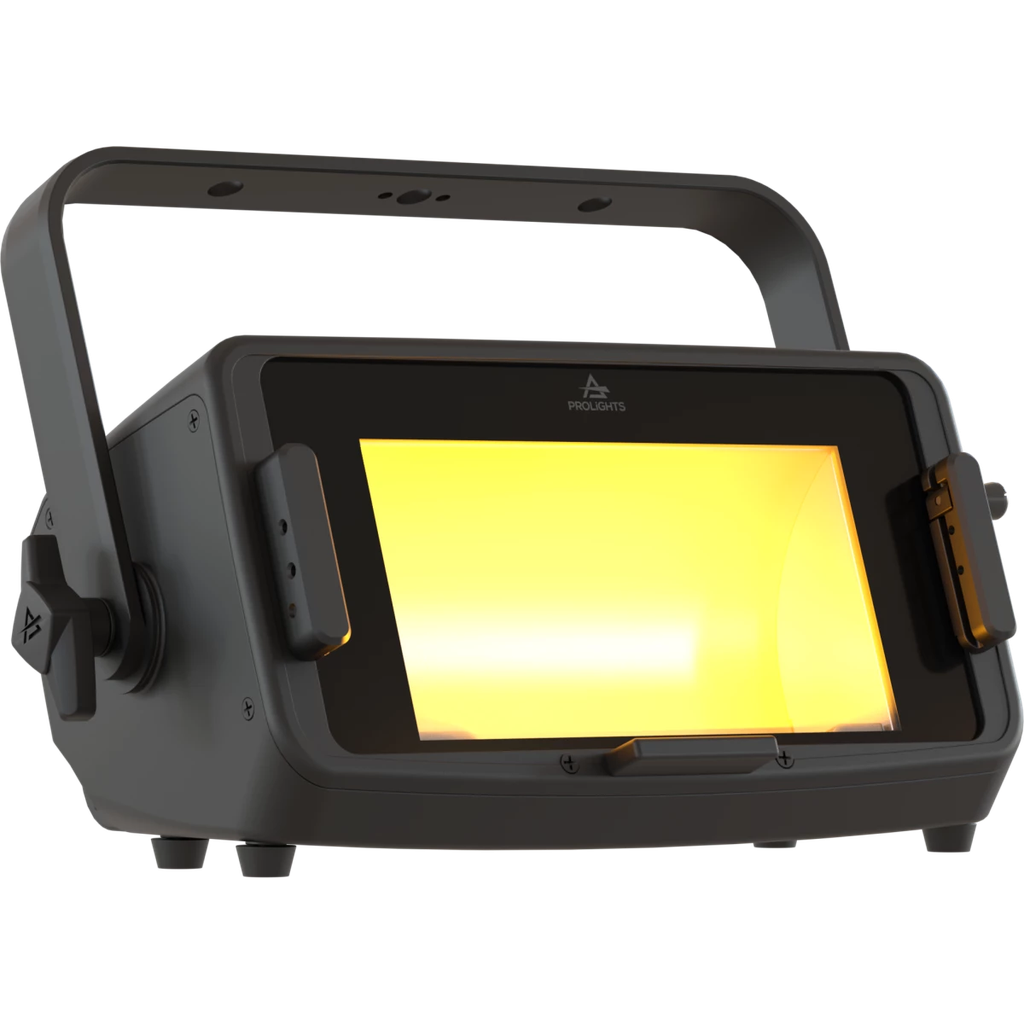

The EclExpo Flood300FC is a Full Spectrum high power LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

The EclExpo Flood300FC has a calibrated 300W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for exhibition floodlights.

300W calibrated RGB+WarmWhite source, with high CRI and TM30

Asymmetric beam angle of 100° (horizontal) x 60° (vertical)

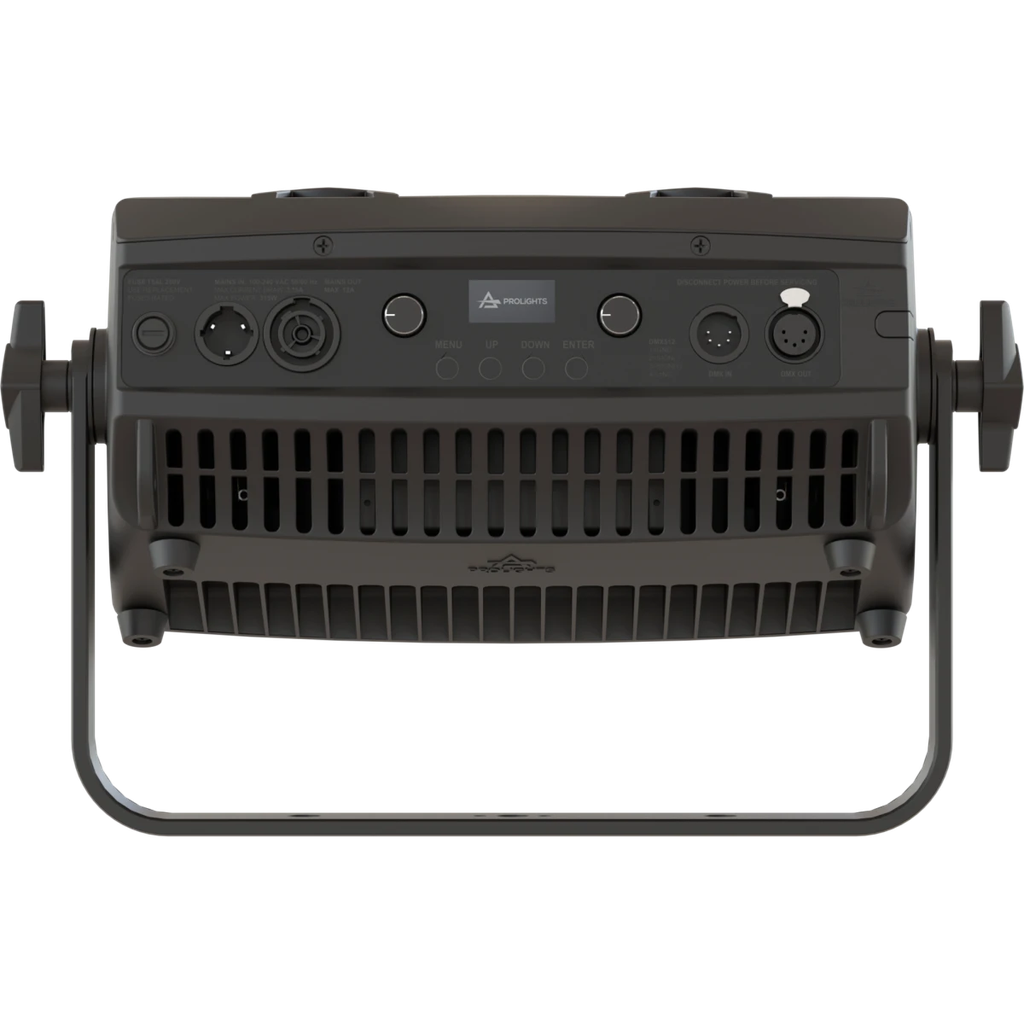

Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

Its unique design and performance set a new standard for exhibition floodlights.

Features:
300W calibrated RGB+WarmWhite source, with high CRI and TM30
Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

LIGHT SOURCE

Source:

300
W

RGB + Warm White LED
Luminous flux:

10'197

@3.200 K
Lux:

119
lx

@5 m
CRI:

93,6 @5'600K
R9:

95,2 @5'600K
TLCI:

93 @5'600K
TM30 Rf:

91,7 @5'600K
TM30 Rg:

105,3 @5'600K
Source life expectancy:

> 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Optics:

asymmetrical beam reflector in pure aluminium 99,6%
Beam angle:

(H) 100° x (V) 60
°
Additional optics:

5° smooth filter on-board

COLOUR SYSTEM

Colour mixing:

RGB + Warm White
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K - 10.000
K
Colour wheel:

built-in white presets

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Static mode:

selection of static dimmer, colors and color temperature
Manual mode:

manual adjustment of intensity, CT, colour correction from knob
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

1/2/5/9/10/12/18
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

2

rotatory knobs
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL
