Prolights ECLEXPOFL150IPFCB

كشّاف فيضي LED غير متماثل IP65 بقدرة 150W بألوان كاملة RGB+أبيض دافئ

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLEXPOFL150IPFCB

الفئة: سيكلوراما

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

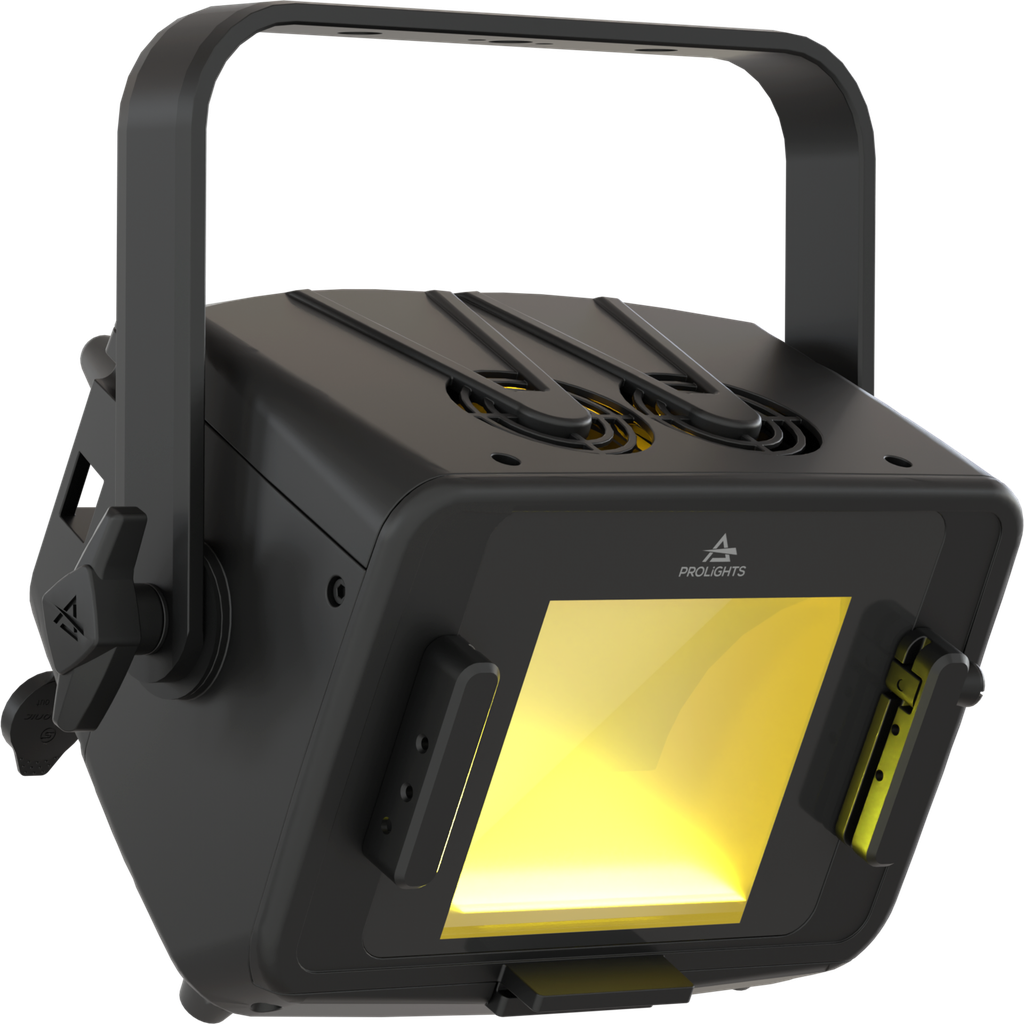

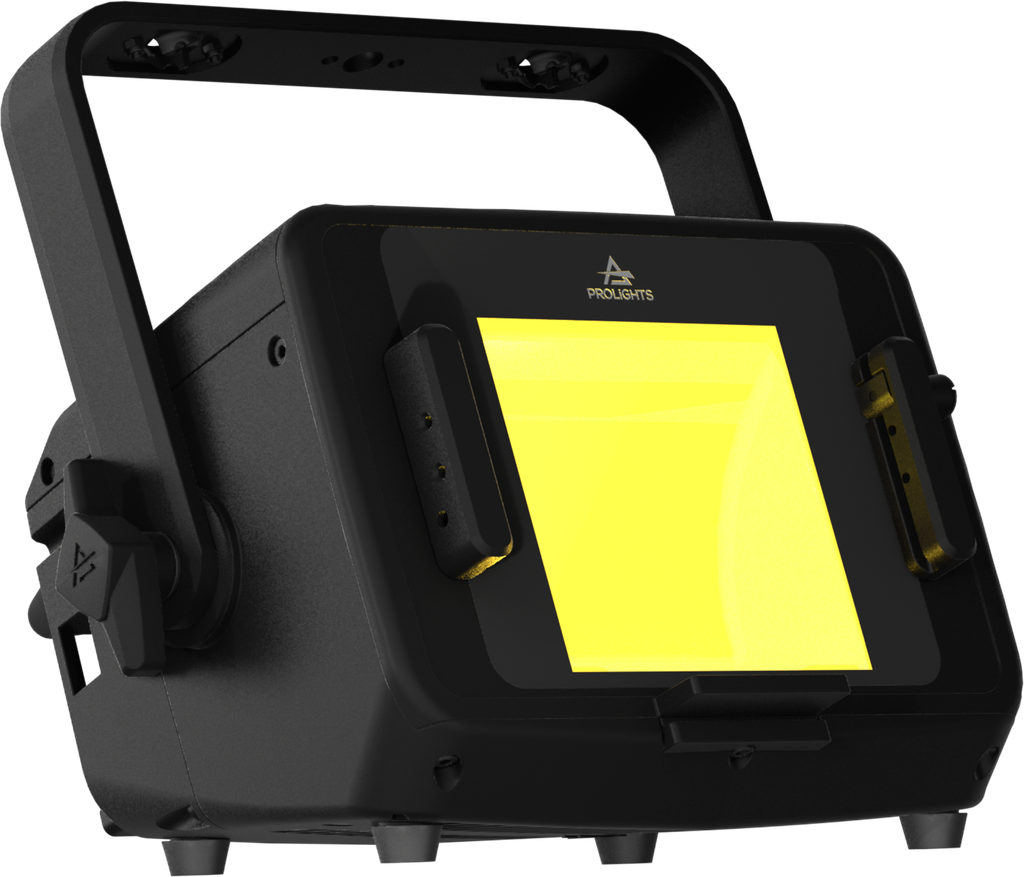

The EclExpo Flood150IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood150IP is available in two source variants:

the EclExpo Flood150IPFC has a calibrated 150W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;
the EclExpo Flood150IPVW has a 150W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9.

This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for outdoor exhibition floodlights.

IP65 water and dust resistant

150W calibrated RGB+WarmWhite source, with high CRI and TM30

Asymmetric beam angle of 100° (horizontal) x 60° (vertical)

Xlr5p in/through for DMX/RDM control and communication, on-board W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood150IP is available in two source variants:

the EclExpo Flood150IPFC has a calibrated 150W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;
the EclExpo Flood150IPVW has a 150W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9.

Its unique design and performance set a new standard for outdoor exhibition floodlights.

Features:
IP65 water and dust resistant
150W calibrated RGB+WarmWhite source, with high CRI and TM30
Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Xlr5p in/through for DMX/RDM control and communication, on-board W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

LIGHT SOURCE

Source:

150
W

RGB + Warm White LED
Luminous flux:

5'235

@3.200 K
Luminous flux:

6'210

@5.600 K
Lux:

69
lx

@5 m 3.200 K
Lux:

83
lx

@5 m 5.600K
CRI:

91,6 @5'600K
R9:

96,9 @5'600K
TLCI:

90 @5'600K
TM30 Rf:

89,3 @5'600K
TM30 Rg:

106,2 @5'600K
Source life expectancy:

> 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Optics:

asymmetrical beam reflector in pure aluminium 99,6%
Beam angle:

(H) 100° x (V) 60
°
Additional optics:

5° smooth filter on-board

COLOUR SYSTEM

Colour mixing:

RGB + Warm White
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K - 10.000
K
Colour wheel:

built-in white presets

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Static mode:

selection of static dimmer, colors and color temperature
Manual mode:

manual adjustment of intensity, CT, colour correction from knob
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX
DMX channels:

1 / 2 / 5 / 9 / 10 / 12 / 18
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

2

rotatory knobs
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

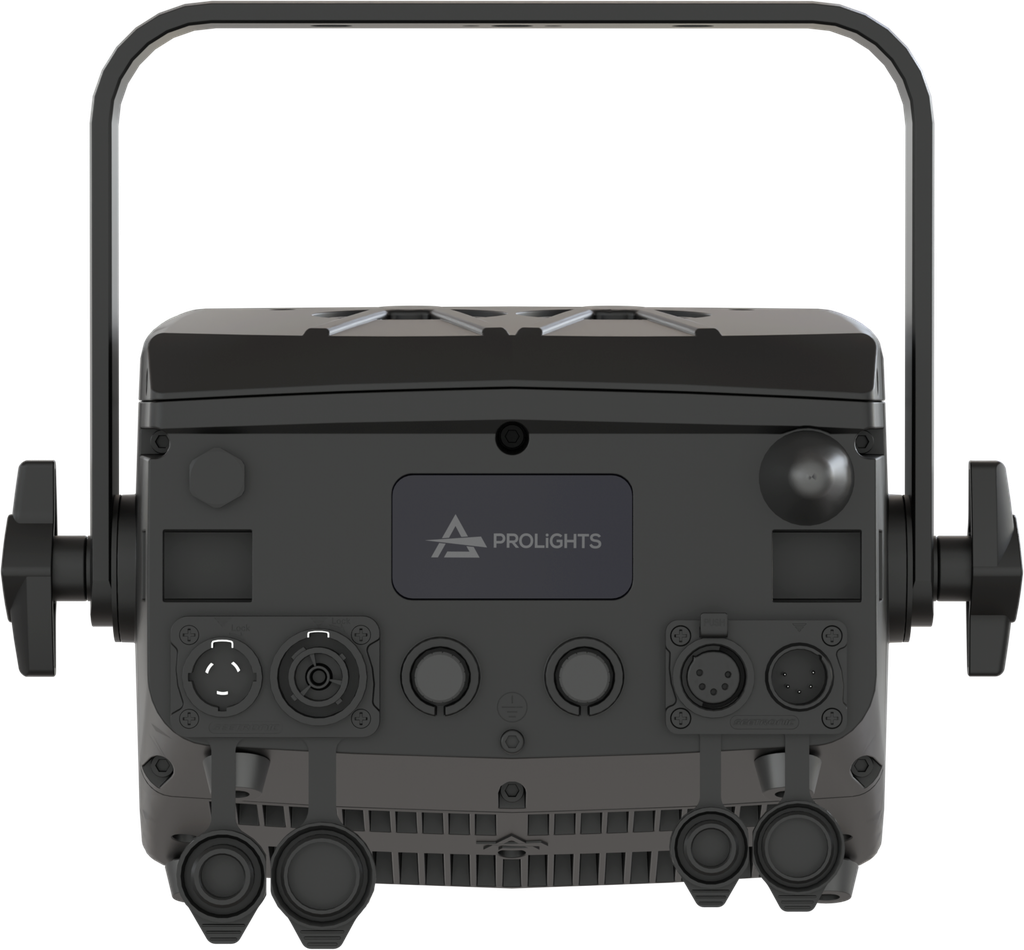

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

IP65

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL
