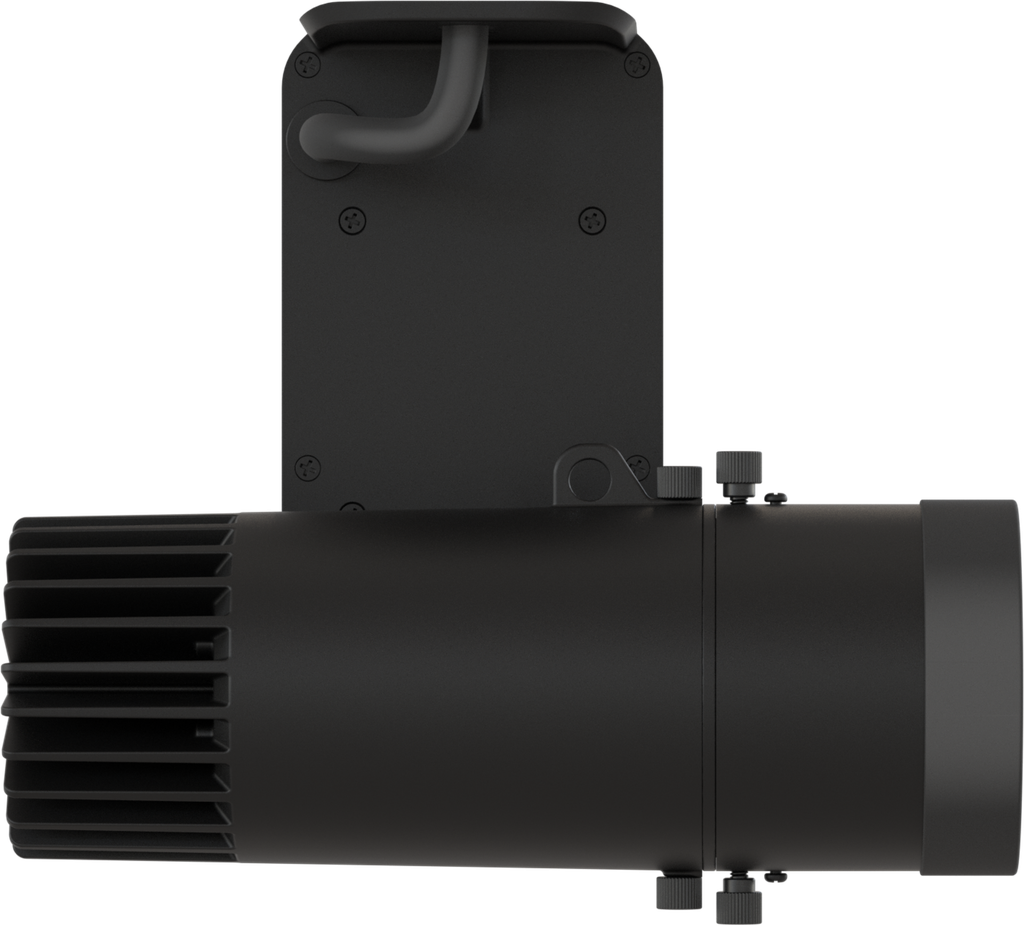

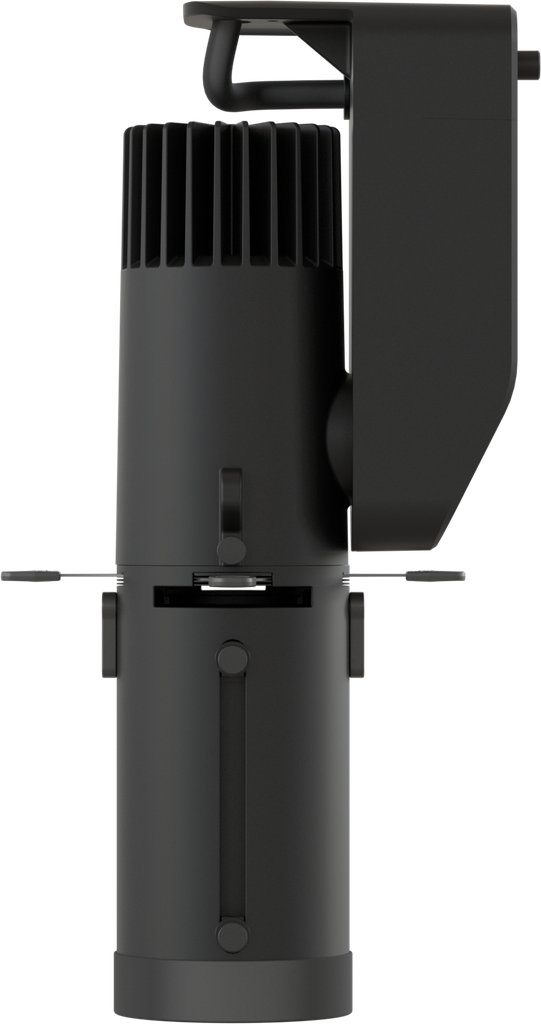

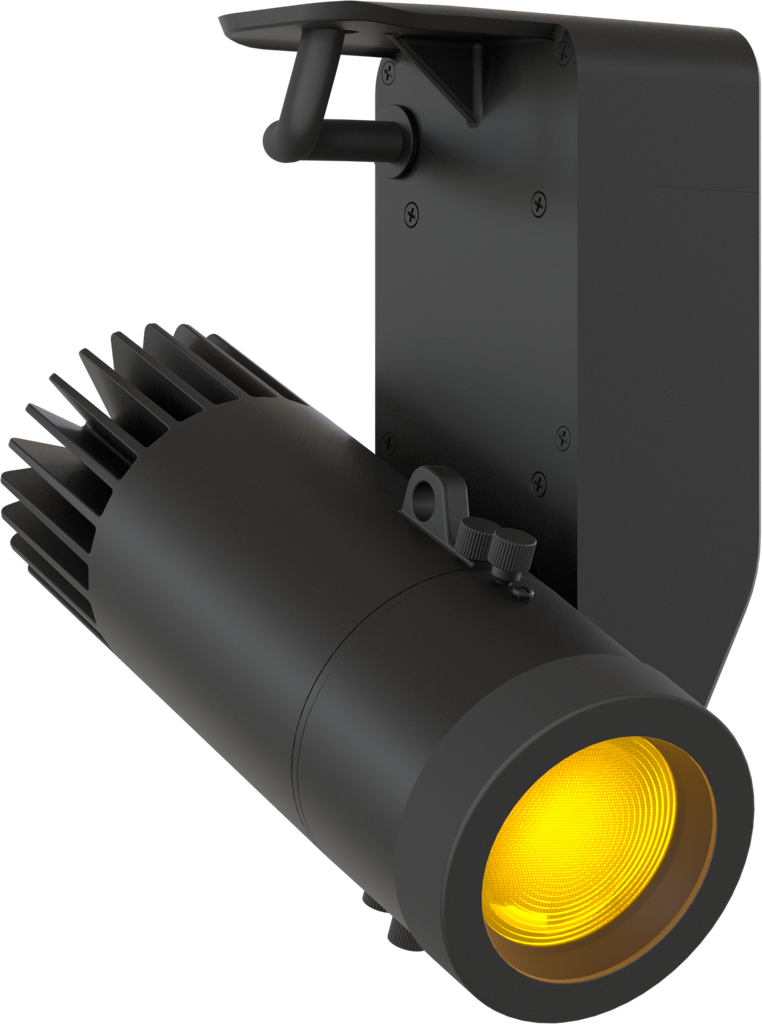

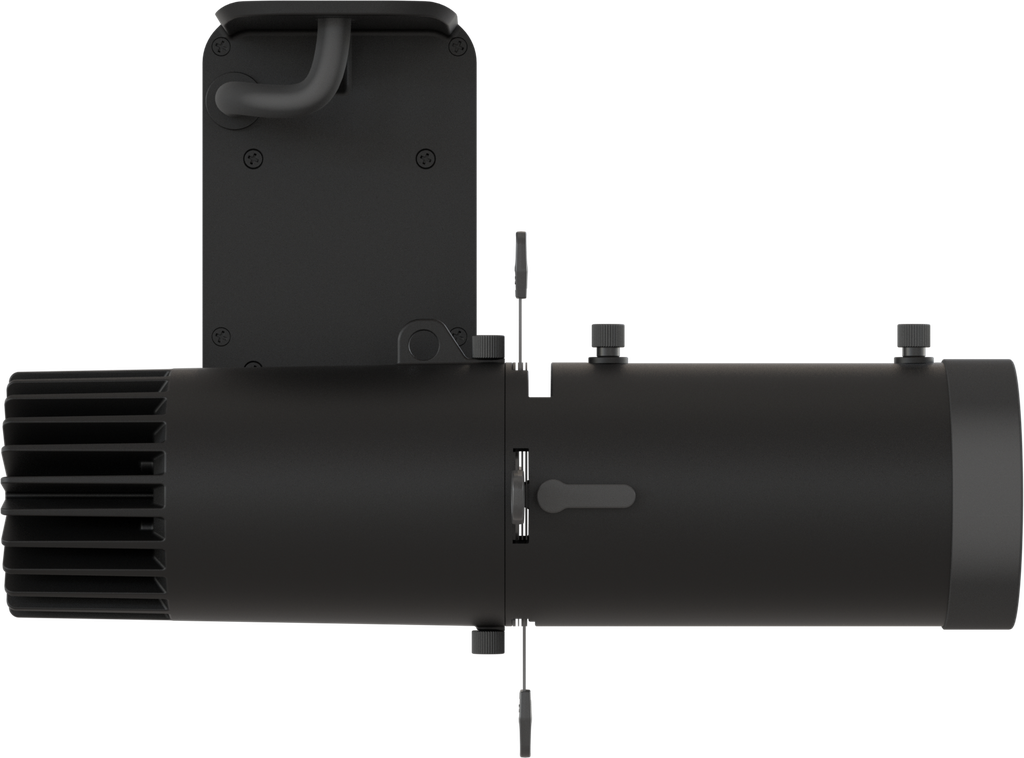

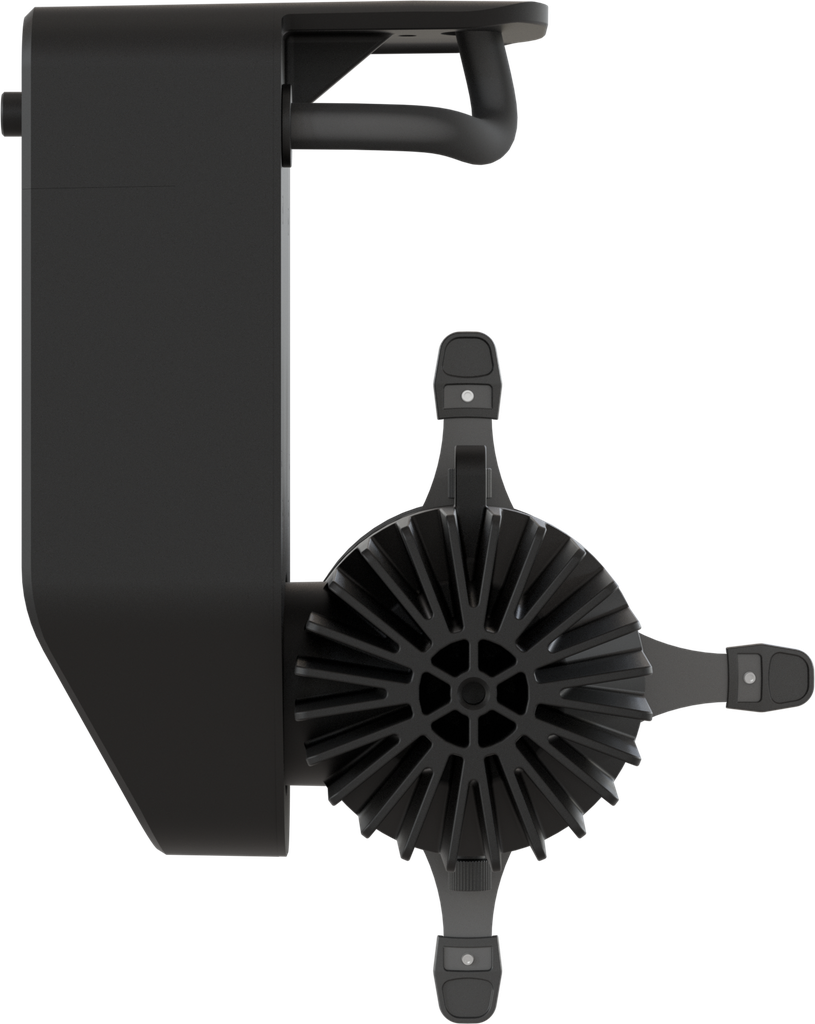

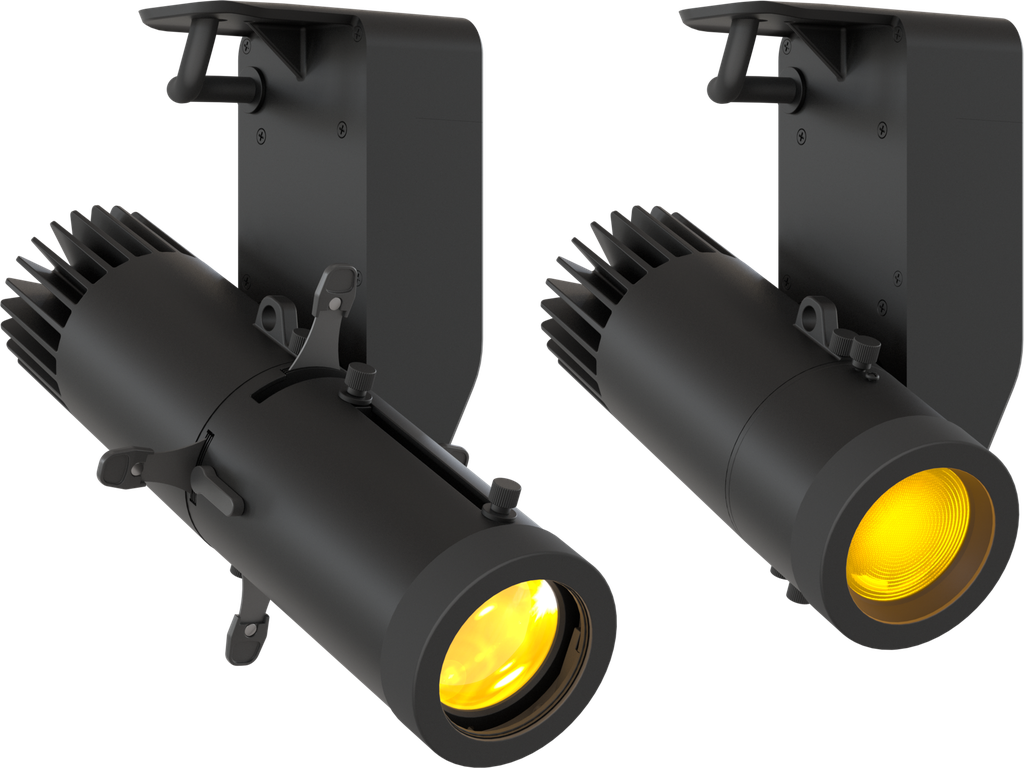

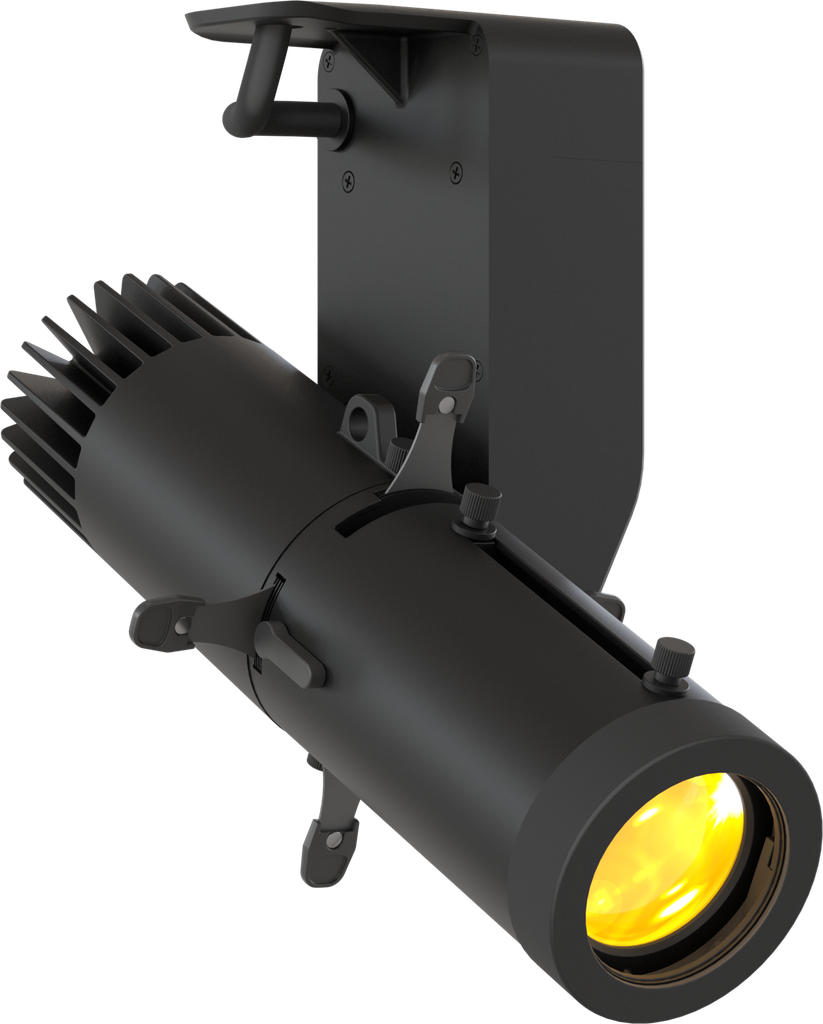

Prolights ECLDISPLAYXBFCB

كشّاف موضعي LED RGB+لايم بقدرة 40W مع تحكم سلكي (DMX وتعتيم بالمفتاح دوّار)، بدون عدسة، أسود

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLDISPLAYXBFCB

الفئة: أضواء المعارض

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

The EclDisplay XB series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.

Each EclDisplay XB unit can be programmed and controlled via RDM, built-in input control protocols such as DMX and local knob dimming.

At the heart of the EclDisplay XB is a highly efficient 40 W RGB+Lime, LED source, capable of delivering both a Full Colour spectrum and also tunable White. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay XB not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

40W RGB+Lime LED

Up to 600 lm @full

Data control through RDM, DMX, optional CRMX receiver and local knob dimming

Compatible with all EclDisplay lenses: profile (zoom and static) or wash optics

Each EclDisplay XB unit can be programmed and controlled via RDM, built-in input control protocols such as DMX and local knob dimming.

Features:
40W RGB+Lime LED
Up to 600 lm @full
Data control through RDM, DMX, optional CRMX receiver and local knob dimming
Compatible with all EclDisplay lenses: profile (zoom and static) or wash optics

LIGHT SOURCE

Source:

40
W

RGB + Lime LEDs
Luminous flux:

(profile 36 HD) 644 lm; (profile 2040 HD - min) 584 lm - (profile 2040 HD - max) 571

@Full
Lux:

(profile 36 HD) 121 lx; (profile 2040 HD - min) 372 lx - (profile 2040 HD - max) 107
lx

@5 m full
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8
°
Other:

360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
Other:

(profile lens) shutter blades lockable
Other:

(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

Colour mixing:

RGB + lime / full colour
CCT:

CCT control through dedicated DMX channel
Colour wheel:

virtual colour wheel with macros

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

5 / 6 / 15
ch
RDM:

for remote addressing and parameter configuration
Display:

user interface through DATAMASTER external coder (not included)
Stand Alone:

1

push encoder

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

screw terminal blocks
Wireless Connection:

optional LumenRadio TiMo RX RDM - CRMX and W-DMX compatible
Data connection:

screw terminal blocks

ELECTRICAL
