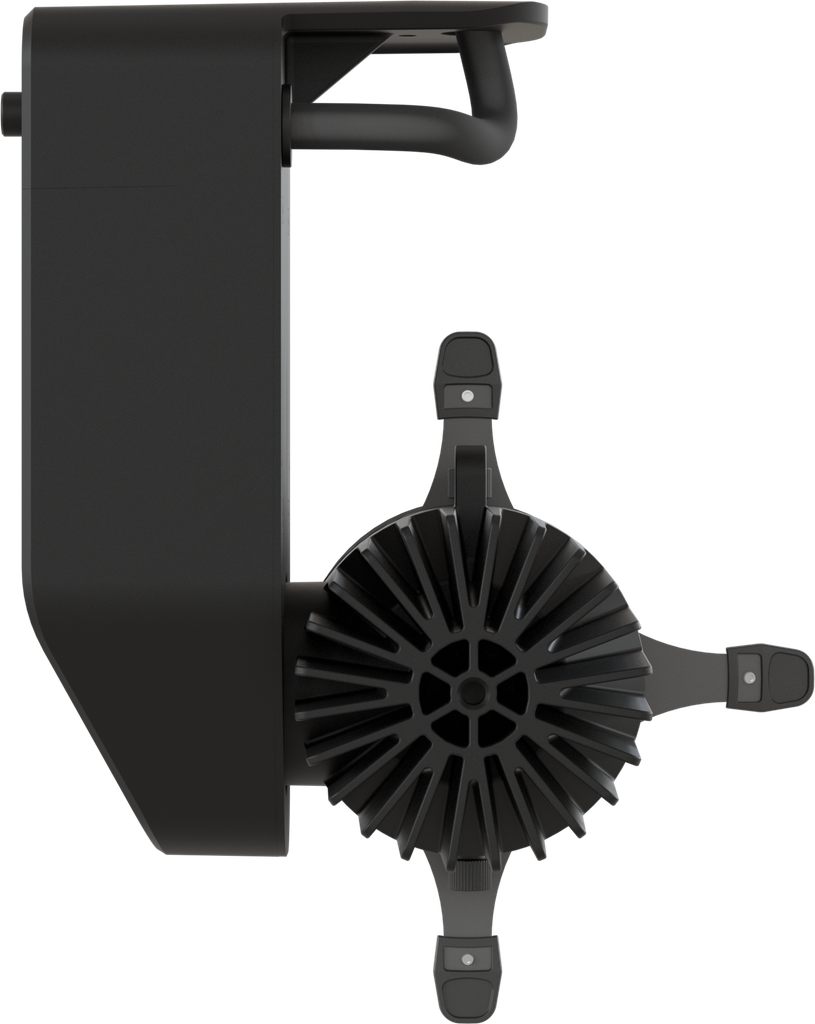

Prolights ECLDISPLAYCRMXVWW

كشّاف موضعي LED أبيض متغيّر بقدرة 35W، تحكم لاسلكي CRMX وسلكي، بدون عدسة، أبيض

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLDISPLAYCRMXVWW

الفئة: أضواء المعارض

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

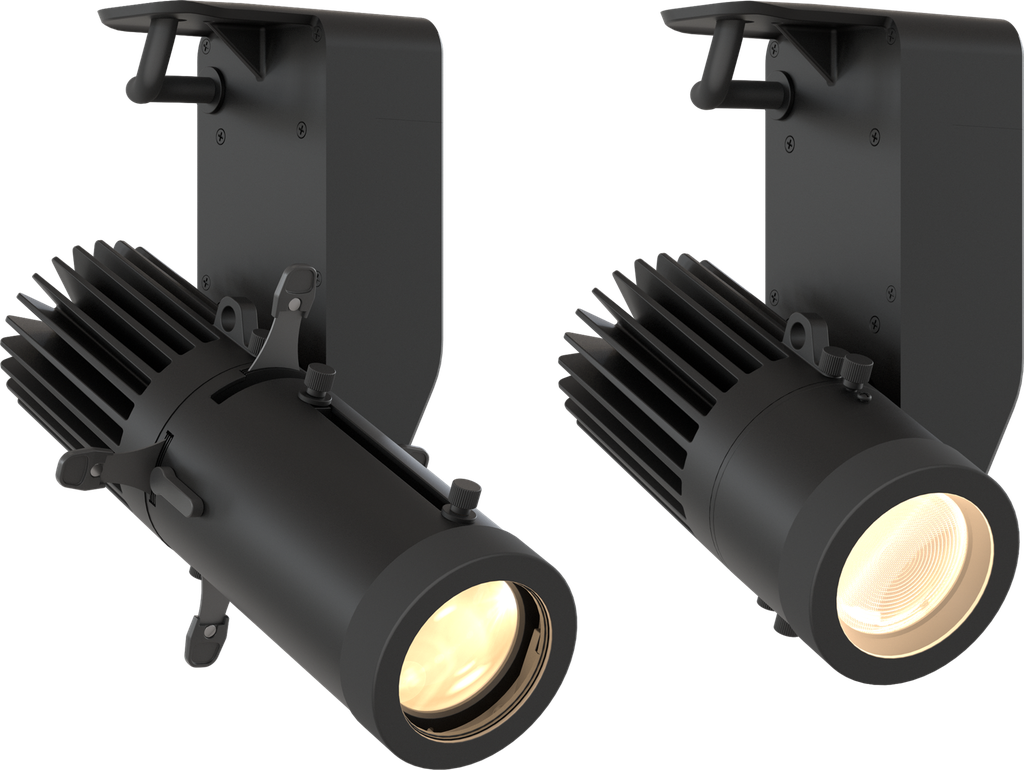

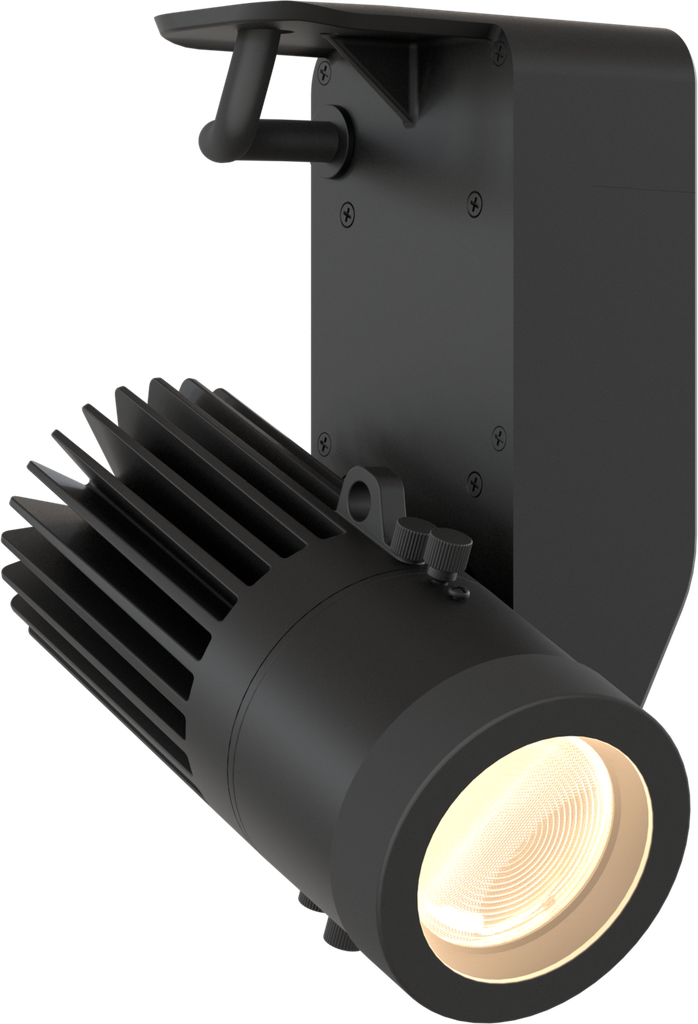

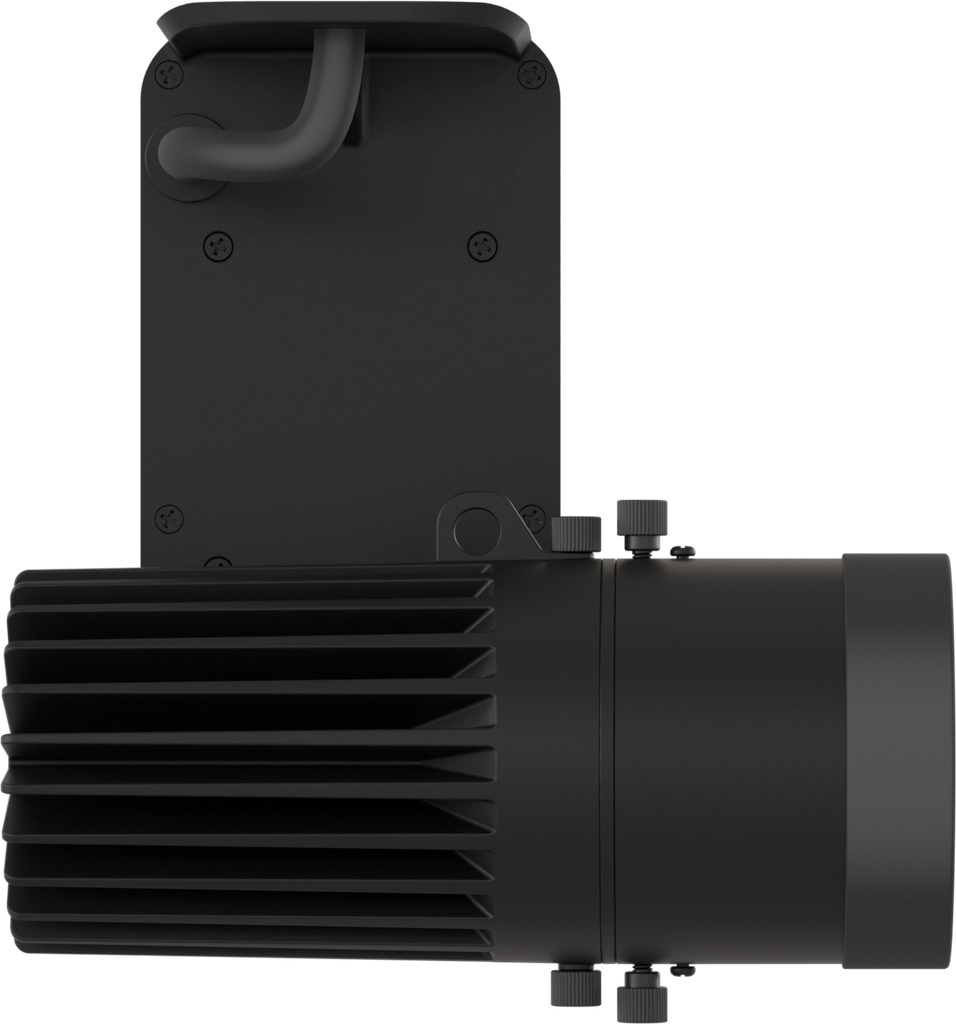

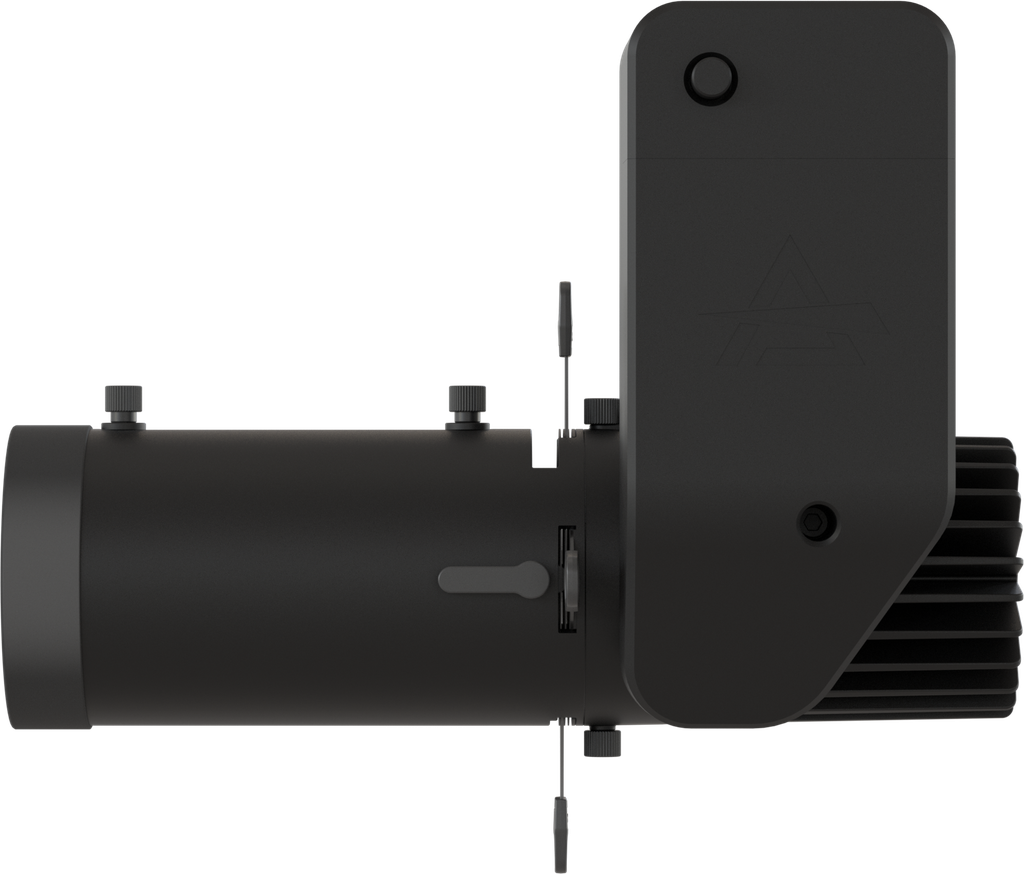

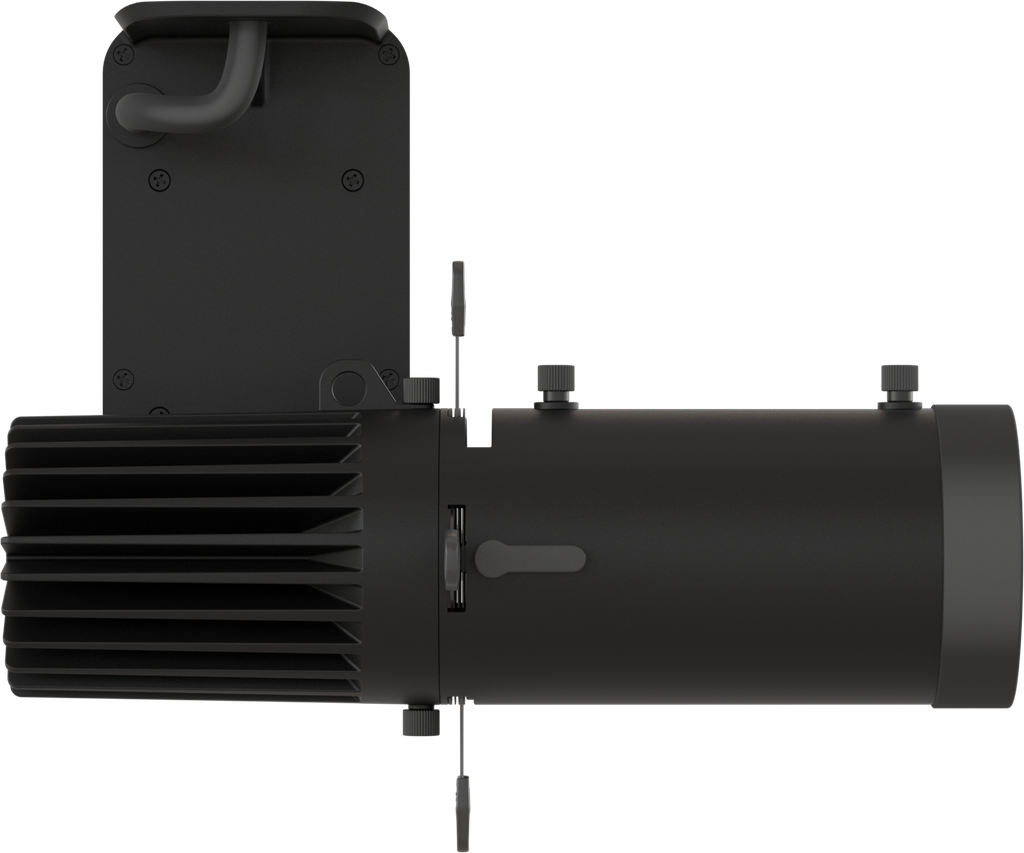

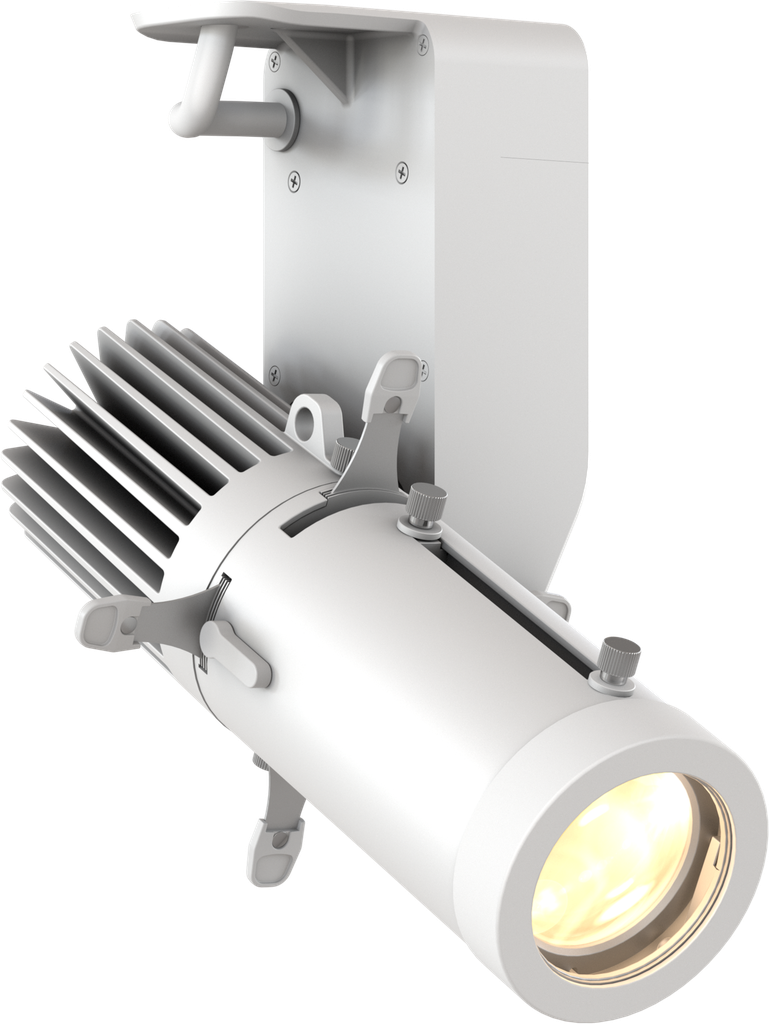

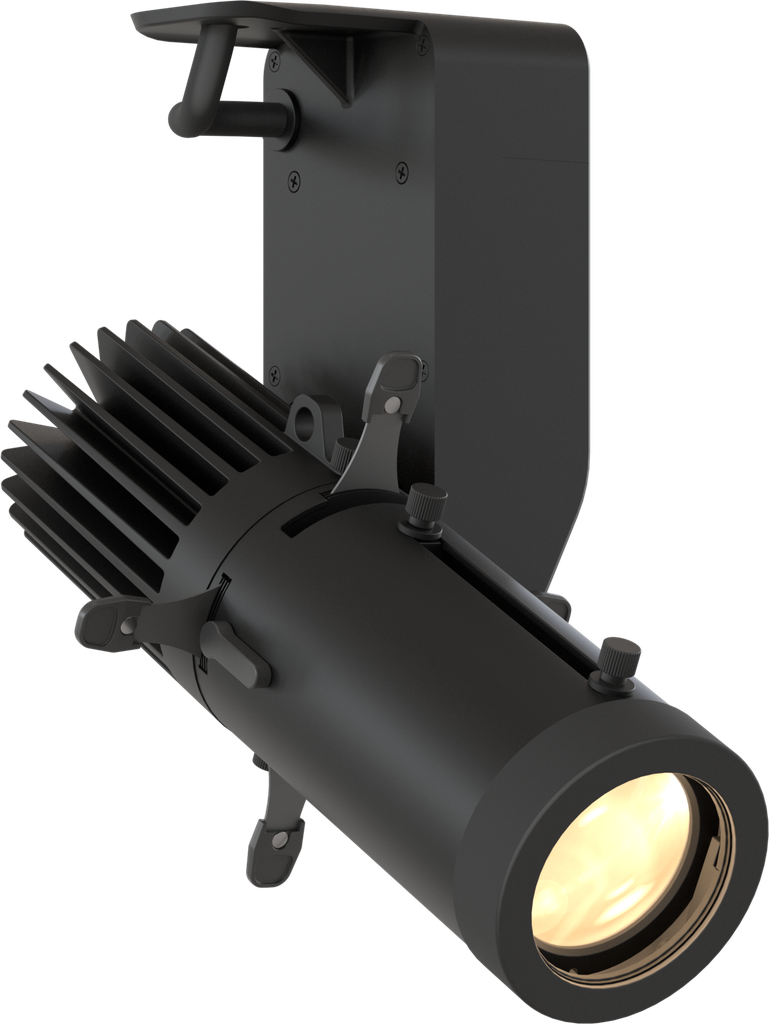

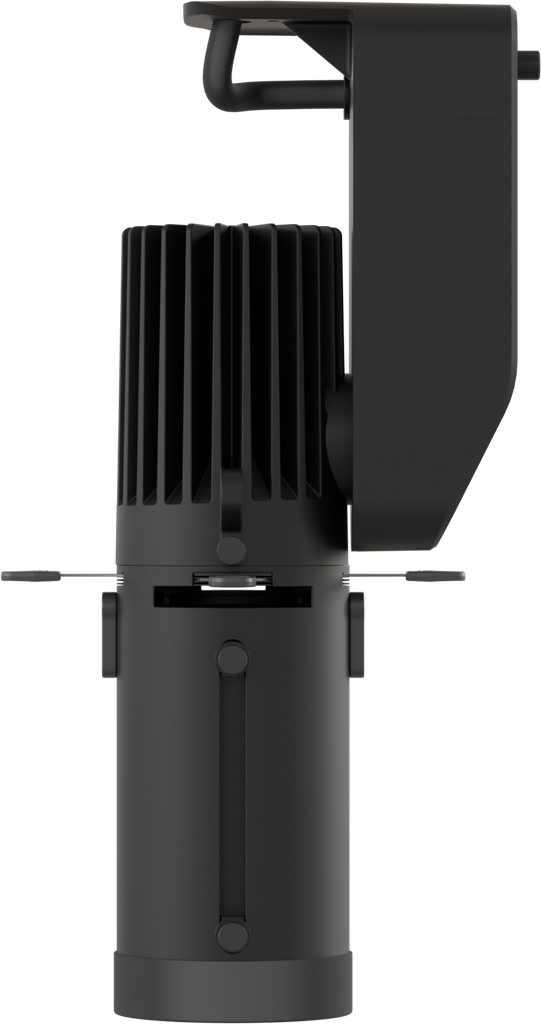

The EclDisplay CRMX series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.

Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.

At the heart of the EclDisplay CRMX is a highly efficient White, high CRI LED source. This source is offered in multiple color temperature options: 35 W Variable White and 25 W 2.700K, 3,000 K, 4,000 K, and 5,600 K. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay CRMX not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

Data control through wireless CRMX, RDM, DMX and local knob dimming

High CRI White LED available in 35W Variable White and 25W 2.700K, 3.000 K, 4.000 K, 5.600 K

Multiple lens options: Profile (zoom and static) or wash optics

Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.

Features:
Data control through wireless CRMX, RDM, DMX and local knob dimming
High CRI White LED available in 35W Variable White and 25W 2.700K, 3.000 K, 4.000 K, 5.600 K
Multiple lens options: Profile (zoom and static) or wash optics

LIGHT SOURCE

Source:

35
W

Variable White LED
Source CCT:

2700K to 5600K
K
Luminous flux:

(profile 2040 - min) 1124 lm - (profile 2040 - max) 1087 lm; (wash 2550 - min) 921 lm - (wash 2550 - max) 1370 lm; (wash 1530 - min) 975 lm - (wash 1530 - max) 1218
Luminous flux:
Lux:

(profile 2040 - min) 602 lx - (profile 2040 max) 160 lx; (wash 2550 - min) 186 lx - (wash 2550 - max) 76 lx; (wash 1530 - min) 451 lx - (wash 1530 - max) 181
lx

@5 m
Lux:

lx

@5 m
CRI:

2700K: >96; 5600K: >96
R9:

2700K: >89; 5600K: >93
TLCI:

2700K: >96; 5600K: >97
TM30 Rf:

2700K: >91; 5600K: >92
TM30 Rg:

2700K: <100; 5600K: <100
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8
°
Other:

360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
Other:

(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

Colour mixing:

warm white + cold white -

tunable white
CCT:

linear CCT control

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Static mode:

selection of static dimmer
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX
DMX channels:

1 / 2 / 3 / 4
ch
RDM:

for remote addressing and parameter configuration
Display:

user interface through DATAMASTER external coder (not included)
Stand Alone:

1

push encoder

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

screw terminal blocks
Wireless Connection:

integrated LumenRadio TiMo RX RDM - CRMX and W-DMX compatible
Data connection:

screw terminal blocks

ELECTRICAL
