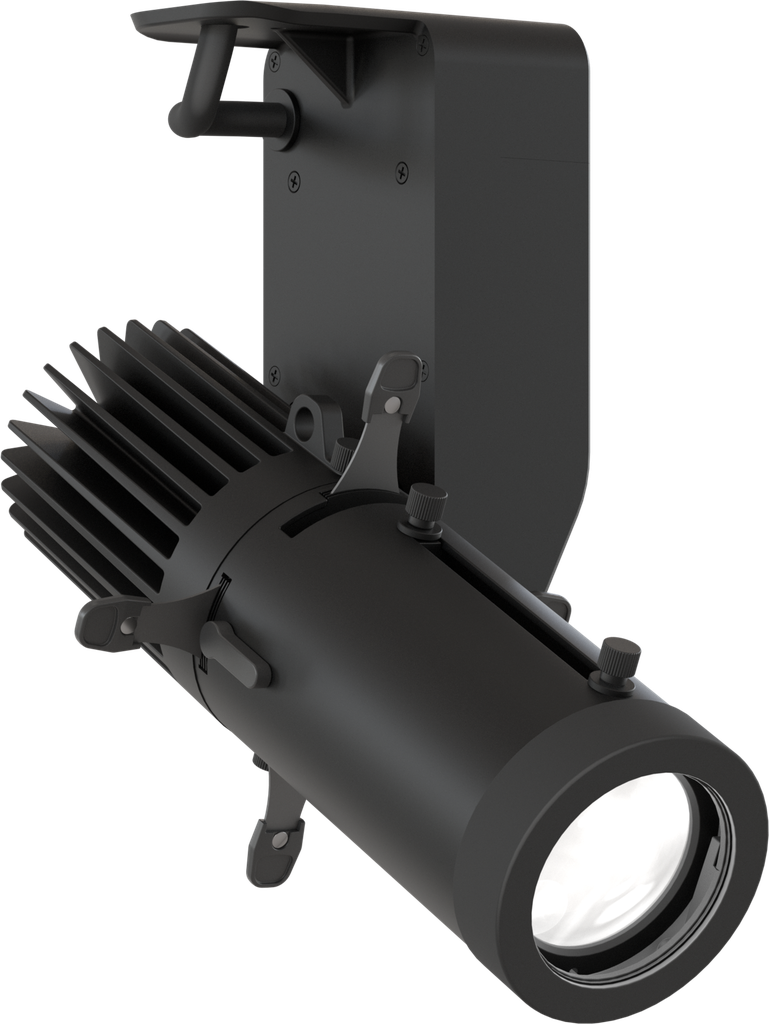

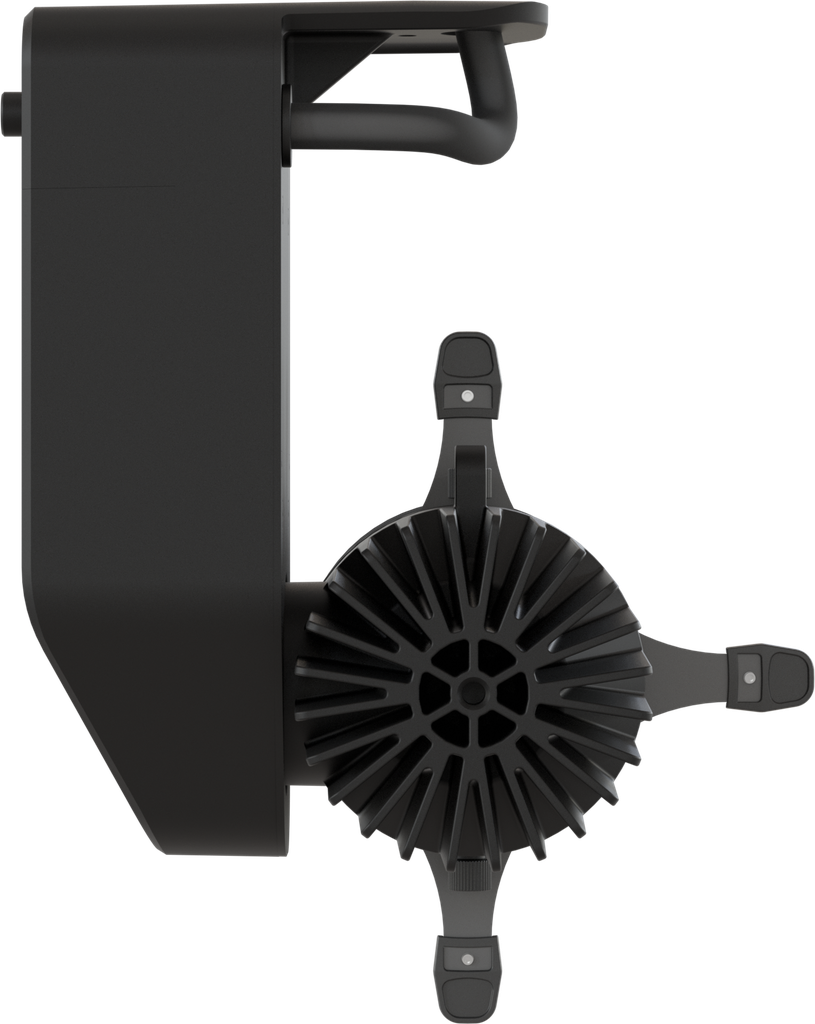

Prolights ECLDISPLAYCRMX27B

كشّاف موضعي LED 2700K بقدرة 25W مع تحكم لاسلكي CRMX وسلكي، بدون عدسة، أسود

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLDISPLAYCRMX27B

الفئة: أضواء المعارض

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

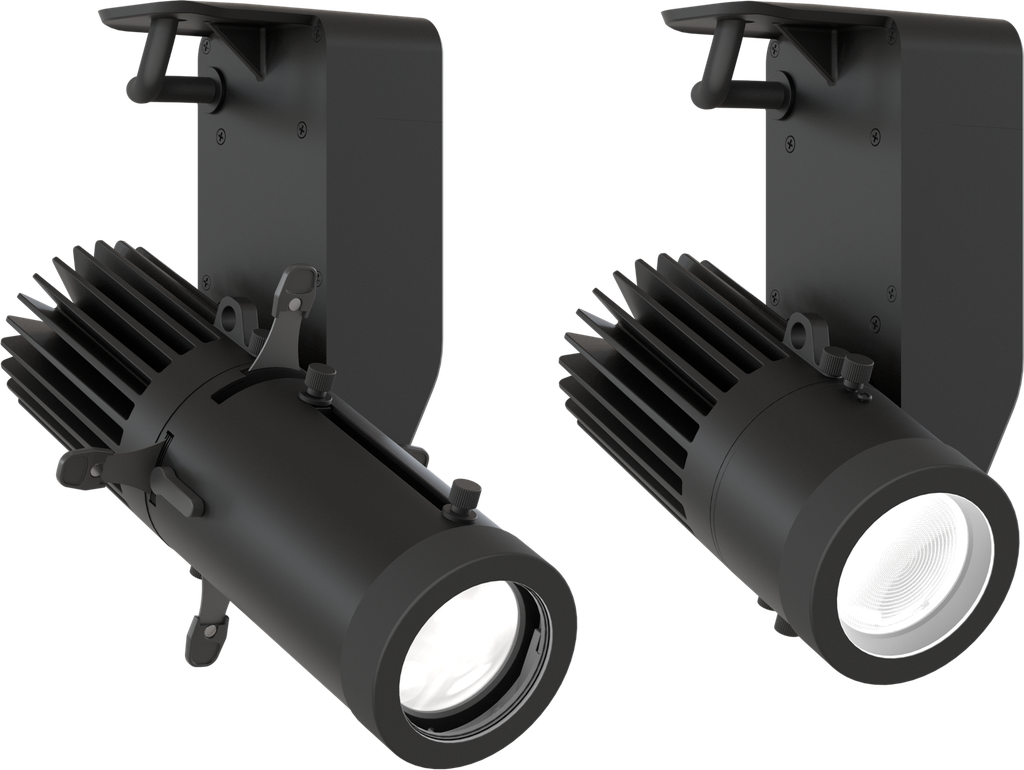

The EclDisplay CRMX series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.

Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.

At the heart of the EclDisplay CRMX is a highly efficient White, high CRI LED source. This source is offered in multiple color temperature options: 35 W Variable White and 25 W 2.700K, 3,000 K, 4,000 K, and 5,600 K. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay CRMX not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

Data control through wireless CRMX, RDM, DMX and local knob dimming

High CRI White LED available in 35W Variable White and 25W 2.700K, 3.000 K, 4.000 K, 5.600 K

Multiple lens options: Profile (zoom and static) or wash optics

Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.

Features:
Data control through wireless CRMX, RDM, DMX and local knob dimming
High CRI White LED available in 35W Variable White and 25W 2.700K, 3.000 K, 4.000 K, 5.600 K
Multiple lens options: Profile (zoom and static) or wash optics

LIGHT SOURCE

Source:

25
W

White COB LED
Luminous flux:

2.700K: (profile - 20°) 1'270 lm - (profile - 40°) 1'301 lm; (wash 2550 - min) 999 lm - (wash 2550 - max) 1'454 lm; (wash 1530 - min) 1'069 lm - (wash 1530 - max) 1'317 lm

@Full
Luminous flux:

3.000K: (profile - 20°) 1'352 lm - (profile - 40°) 1'377 lm; (wash 2550 - min) 1'116 lm - (wash 2550 - max) 1'663 lm; (wash 1530 - min) 1'196 lm - (wash 1530 - max) 1'468 lm
Luminous flux:

4.000K: (profile - 20°) 1'581 lm - (profile - 40°) 1'568 lm; (wash 2550 - min) 1'242 lm - (wash 2550 - max) 1'788 lm; (wash 1530 - min) 1'329 lm - (wash 1530 - max) 1'639 lm
Luminous flux:

5.600K: (profile - 20°) 1'687 lm - (profile - 40°) 1'700 lm; (wash 2550 - min) 1'367 lm - (wash 2550 - max) 1'997 lm; (wash 1530 - min) 1'493 lm - (wash 1530 - max) 1'843 lm
Lux:

2.700K: (profile - 20°) 676 lx - (profile - 40°) 194 lx; (wash 2550 - min) 229 lx - (wash 2550 - max) 81 lx; (wash 1530 - min) 556 lx - (wash 1530 - max) 190 lx
lx

@5 m full
Lux:

3.200K: (profile - 20°) 610 lx - (profile - 40°) 185 lx; (wash 2550 - min) 234 lx - (wash 2550 - max) 83 lx; (wash 1530 - min) 571 lx - (wash 1530 - max) 208 lx
lx

@5 m full
Lux:

4.000K: (profile - 20°) 782 lx - (profile - 40°) 235 lx; (wash 2550 - min) 272 lx - (wash 2550 - max) 98 lx; (wash 1530 - min) 683 lx - (wash 1530 - max) 232 lx
lx
Lux:

5.600K: (profile - 20°) 853 lx - (profile - 40°) 250 lx; (wash 2550 - min) 292 lx - (wash 2550 - max) 107 lx; (wash 1530 - min) 720 lx - (wash 1530 - max) 261 lx
lx
CRI:

> 97 @2.700K; > 98 @3.000K; > 98 @4.000K; >95 @5.600K
R9:

> 89 @2.700K; > 90 @3.000K; > 90 @4.000K; >82 @5.600K
TLCI:

> 92 @2.700K; > 98 @3.000K; > 98 @4.000K; >98 @5.600K
TM30 Rf:

> 95 @2.700K; > 95 @3.000K; > 94 @4.000K; >93 @5.600K
TM30 Rg:

< 99 @2.700K; < 99 @3.000K; < 100 @4.000K; <101 @5.600K
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8
°
Other:

360° lens rotation - optional 360° rotating barndoors and gel frame holder
Other:

(profile lens) shutter blades lockable
Other:

(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Static mode:

selection of static dimmer
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

Local Knob, DMX, RDM, CRMX
DMX channels:

1 / 2 / 3 / 4
ch
RDM:

for remote addressing and parameter configuration
Display:

user interface through DATAMASTER external coder (not included)
Stand Alone:

1

push encoder

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

screw terminal blocks
Wireless Connection:

integrated LumenRadio TiMo RX RDM - CRMX and W-DMX compatible
Data connection:

screw terminal blocks
