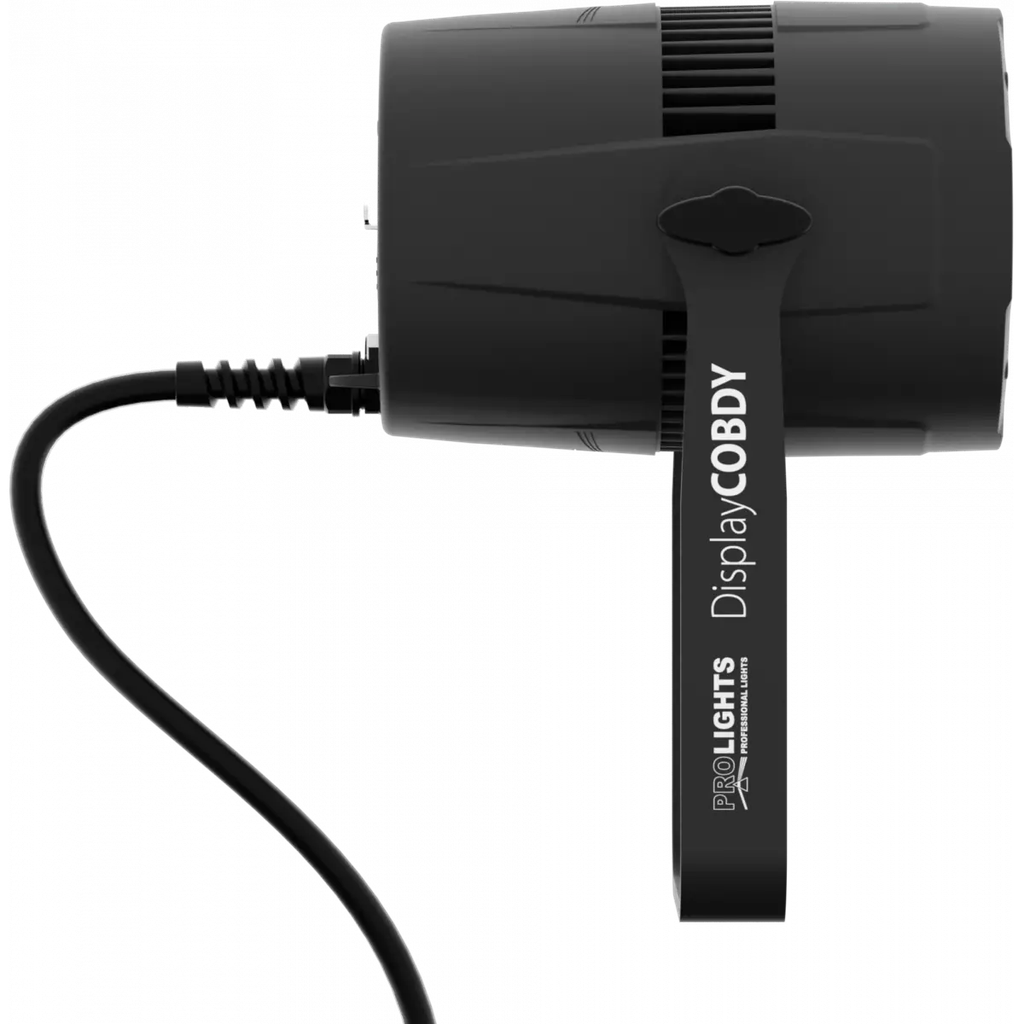

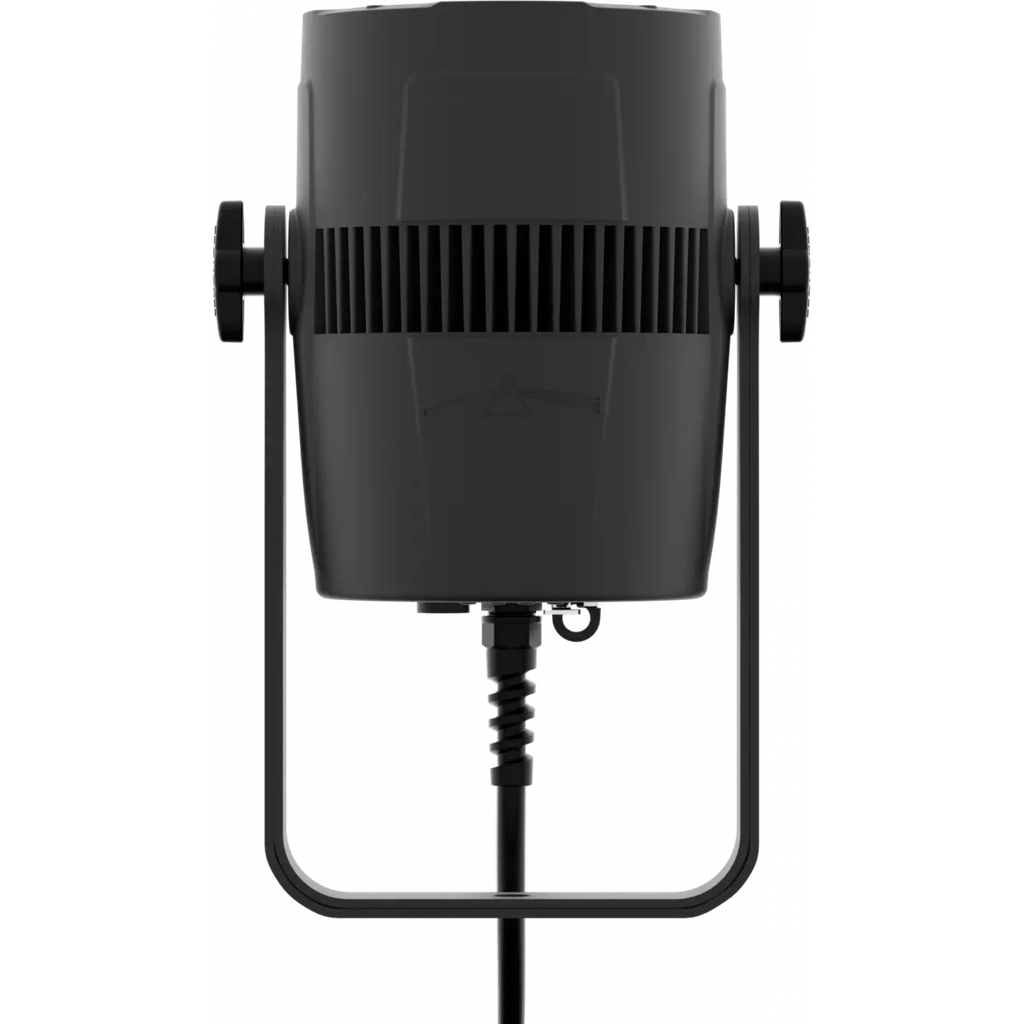

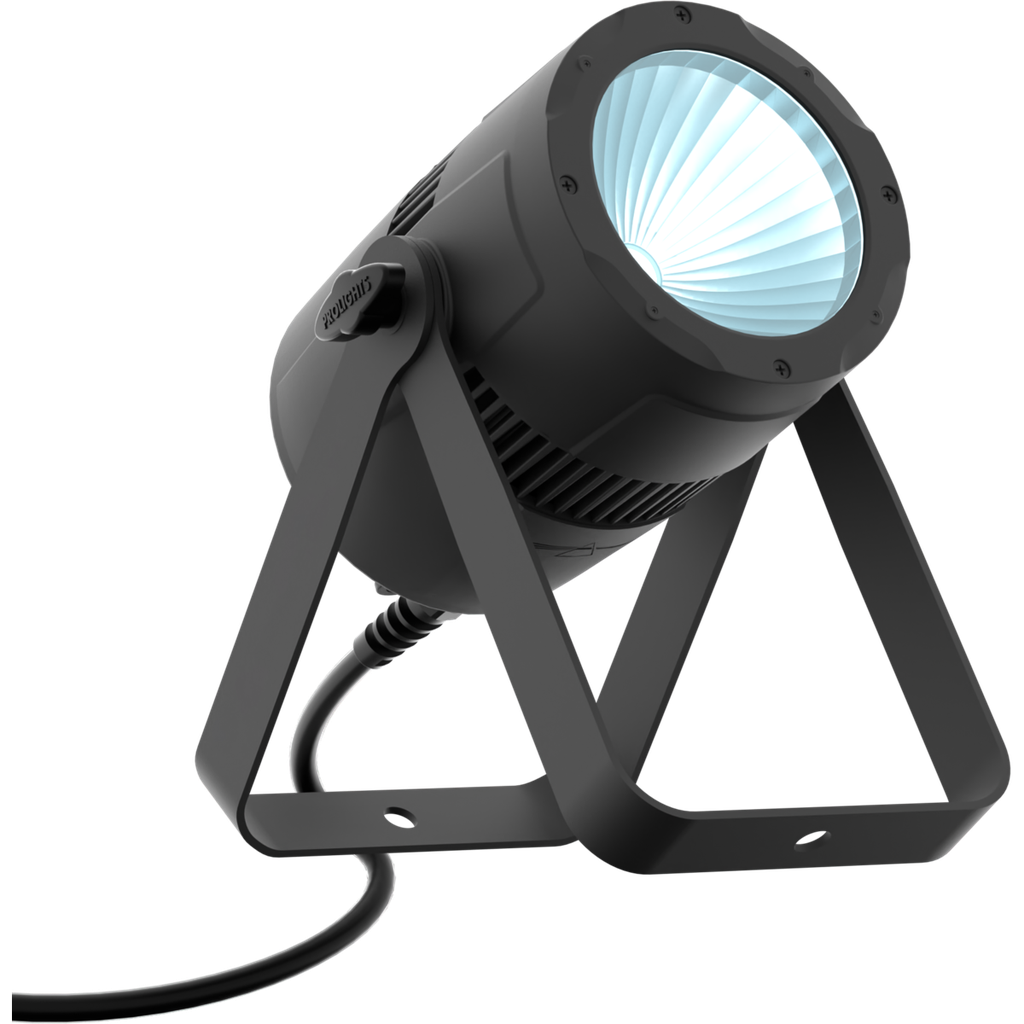

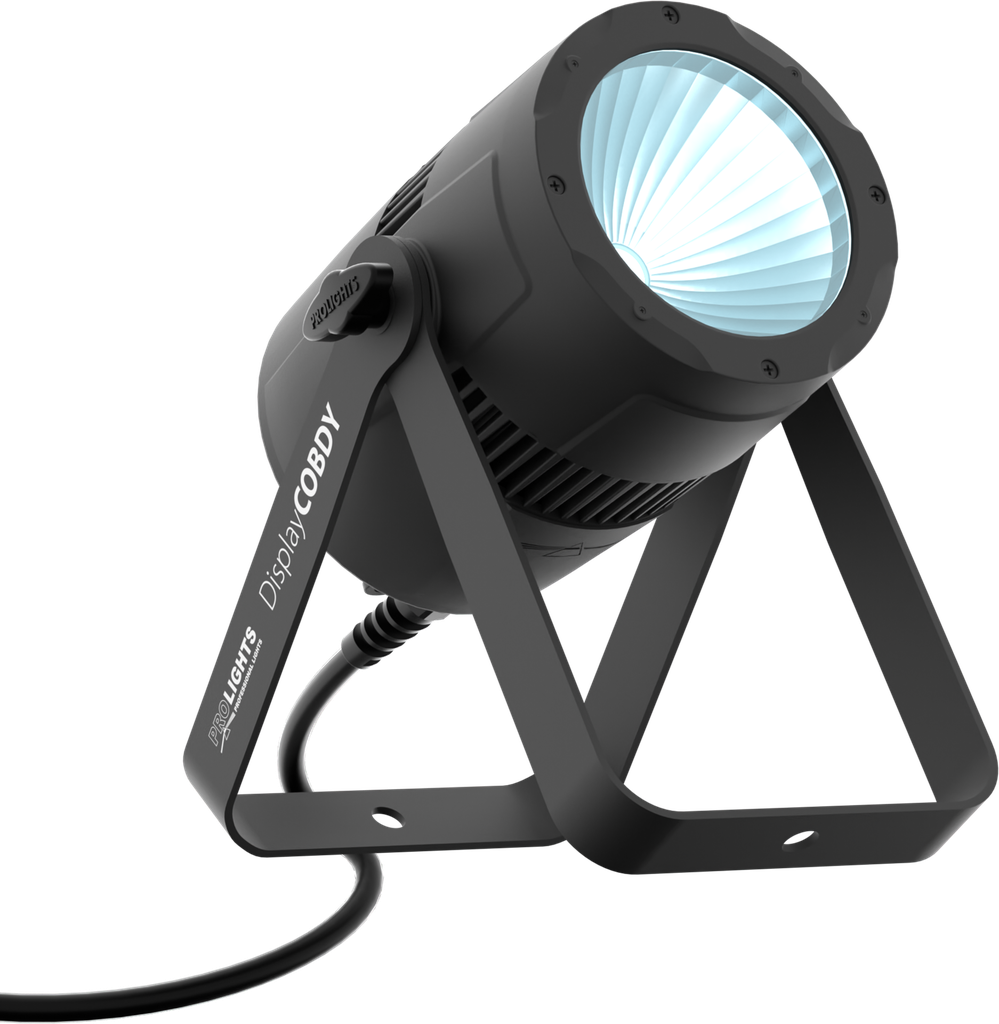

DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).
DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).
Features:Compact LED PAR with high CRI 45W cold white COB source
HD dimming and an extensive and even colour palette.
Flexible lens options of 15° - 30° - 60° and functional barn doors
- Source:45WWhite COB LED
- Source CCT:5.000K
- Luminous flux:(30°) 2'651 - (60°) 2'684@Full
- Lux:(30°) 313lx@5 m full
- Lux:(60°) 120lx@5 m full
- CRI:>91
- R9:>58
- TLCI:>91
- TM30 Rf:>88
- TM30 Rg:>98
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:60°
- Field angle:80°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:30° (inc) - 15° (opt)
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512
- DMX channels:1 / 2 / 5ch
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:moulded IP power IN connector

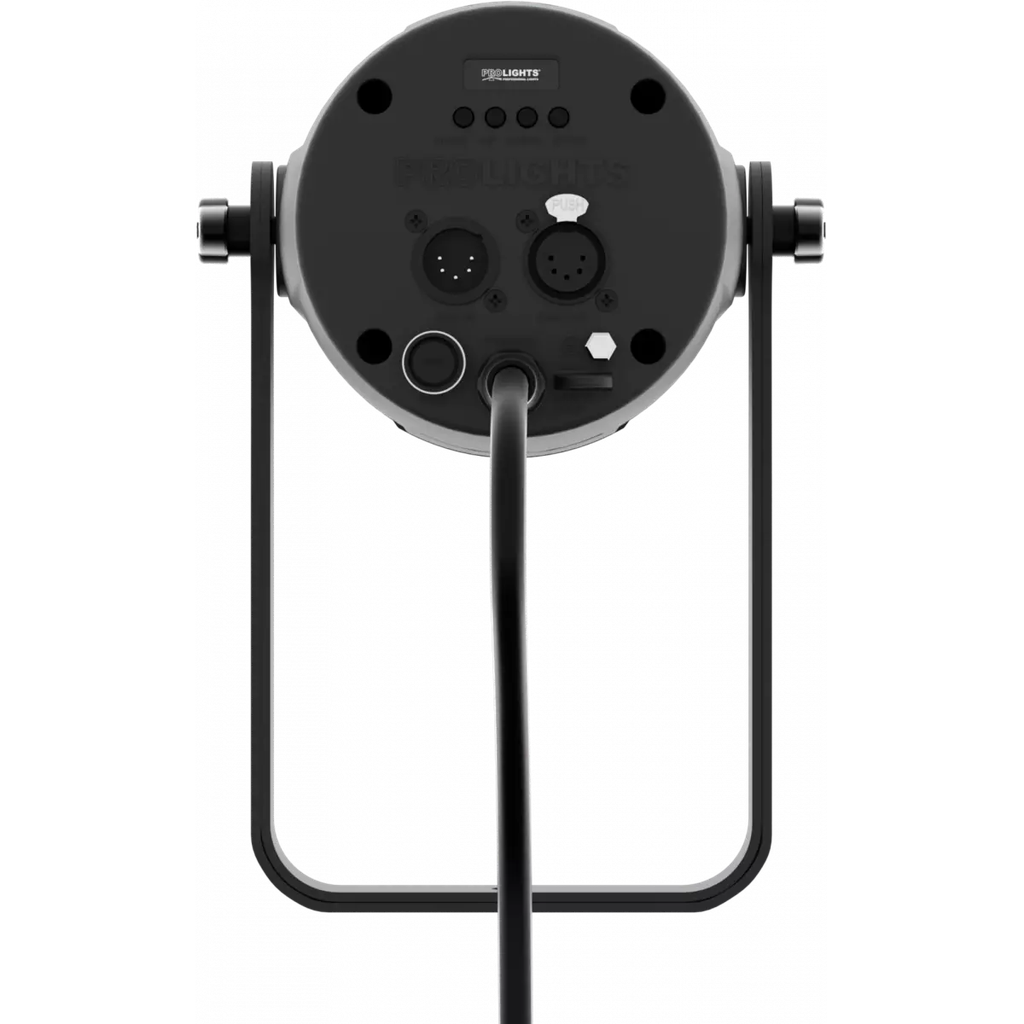

- Signal connection:XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):54W
- Output (at 230V):29units on a single power line
- Power factor:>0,98
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):166x118x250mm
- Weight:1,85kg
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Compliance:CE, UKCA, RCM
