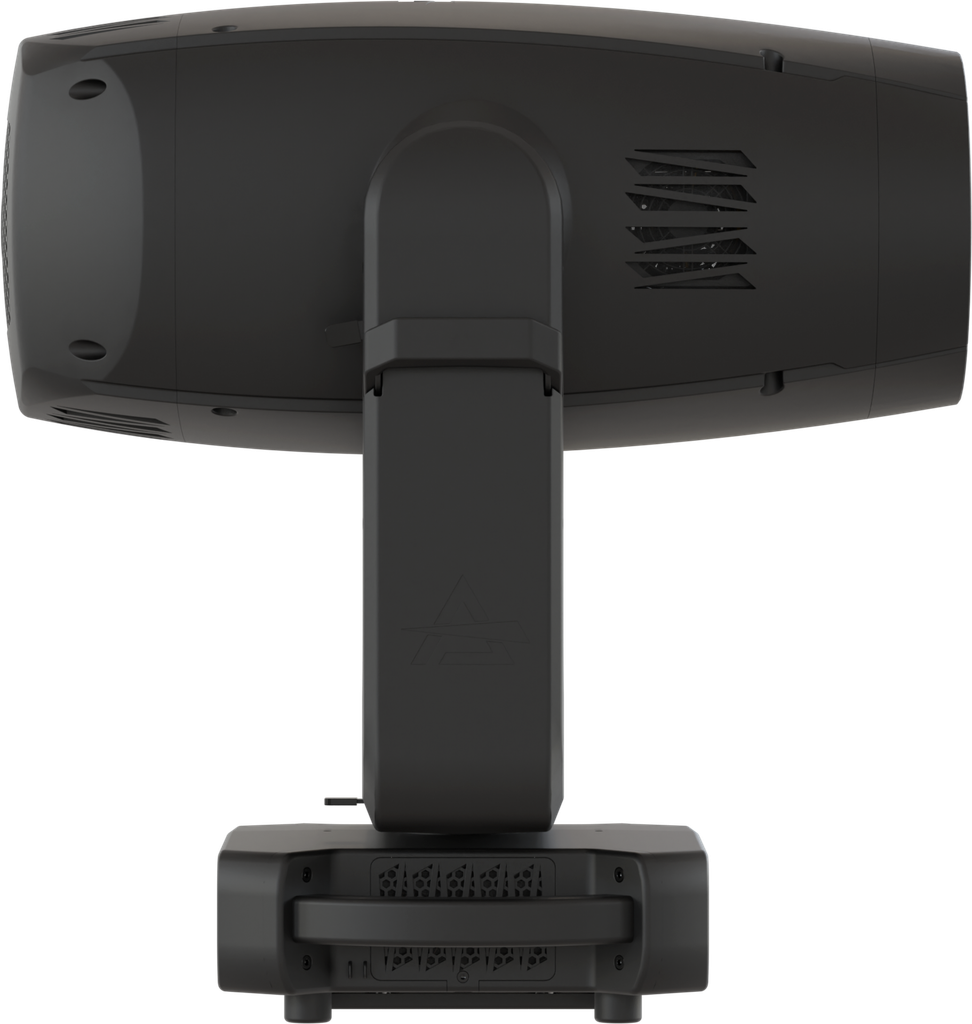

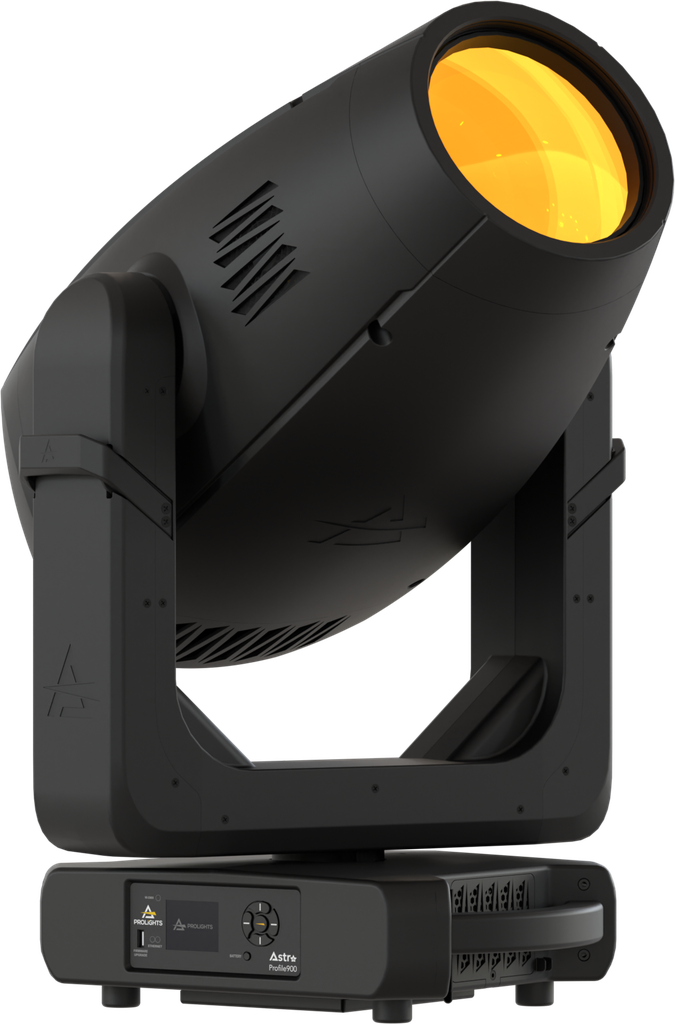

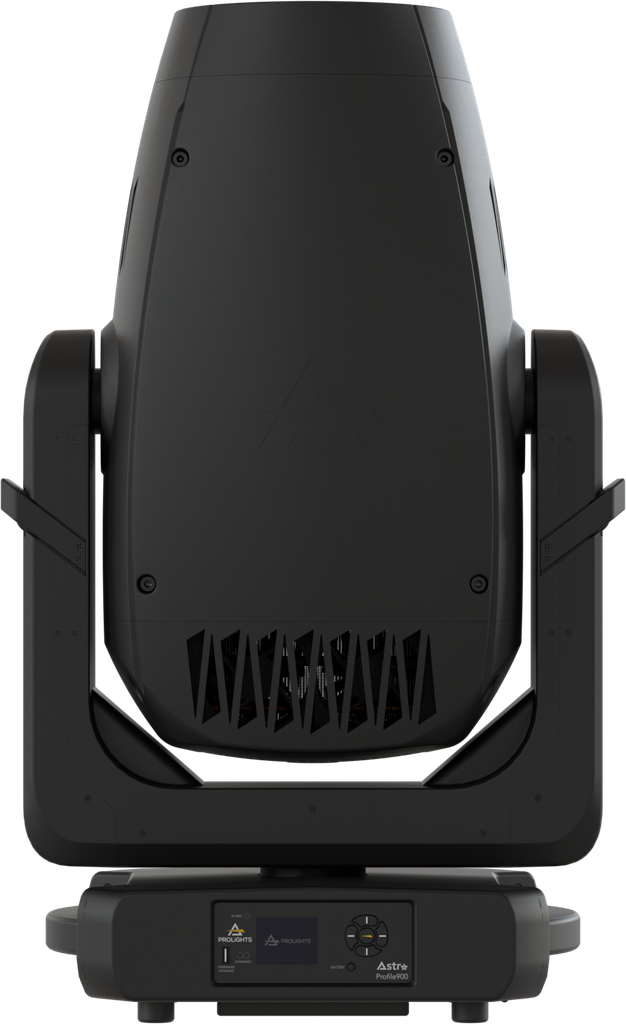

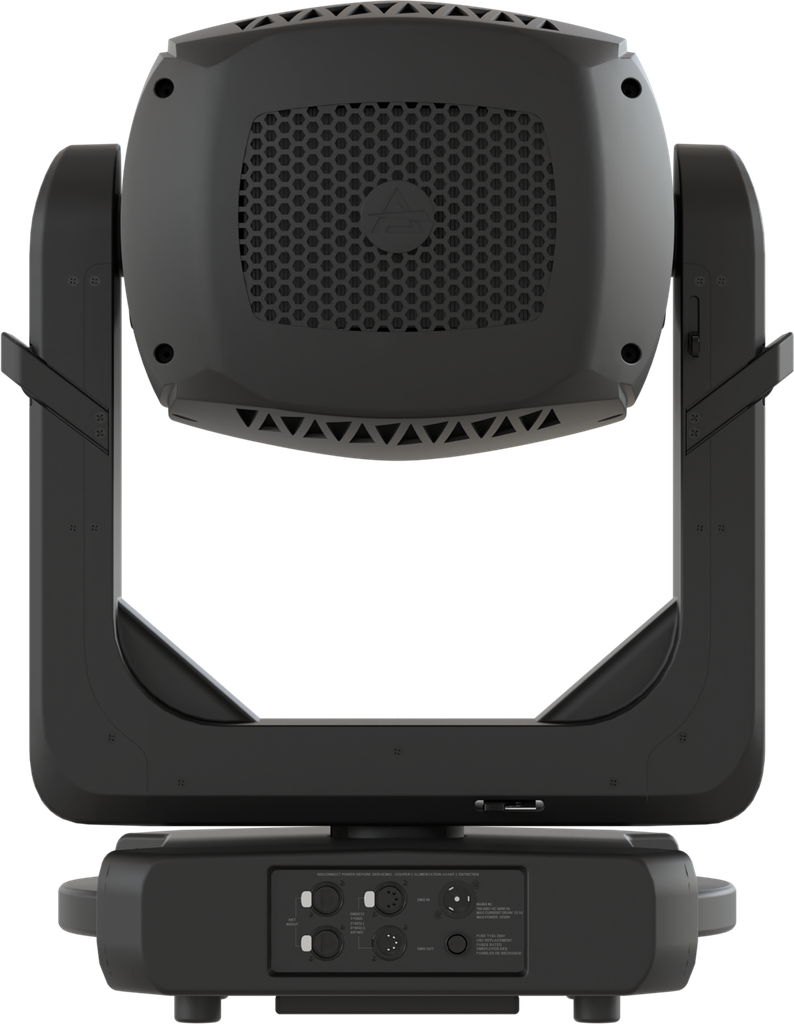

Prolights ASTRAPROFILE900HQ

بروفايل برأس متحرك عالي الجودة بقدرة 900W، 6000K و CRI 96، مع بصريات 185mm وزوم 5° - 52°

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ASTRAPROFILE900HQ

الفئة: أضواء متحركة داخلية

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

The Astra Profile900HQ is the flagship, high-quality profile moving head designed for large-scale theaters, TV & Film production. Powered by a 900W LED source with CRI 96, it delivers a bright and perfectly balanced 6000K White, making it an exceptional key light for any major production.

Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.

For precise color control, the Astra Profile900 features linear CMY+CTO mixing and a color wheel, delivering high output saturated colors and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs.

900W 6000K White LED source with CRI 96Ra

185mm front lens with a 5°-52° zoom

MotiOs enhances motion speed, precision, and responsiveness across motorized features

CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris

Features:
900W 6000K White LED source with CRI 96Ra
185mm front lens with a 5°-52° zoom
MotiOs enhances motion speed, precision, and responsiveness across motorized features
CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris

LIGHT SOURCE

Source:

1000
W

White LED (driven @900W)
Source CCT:

6.000
K
Luminous flux:

(5,4°) 13'969 lm - (med) 25'941 lm - (52°) 25'311 lm
Lux:

(5,4°) 74'135 lx - (med) 9'836 lx - (52°) 1'659
lx

@5 m
CRI:

96
R9:

90
TLCI:

97
TM30 Rf:

>91
TM30 Rg:

<99
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

5,4° - 52
°

motorised linear zoom
Lens diameter:

185
mm
Lens type:

HD anti-reflection lenses with achromatic coating
Focus:

motorised 16-bit with tracking

COLOUR SYSTEM

Colour mixing:

linear CMY
CCT:

linear CTO correction 2.700 K ~ 6.000 K
Colour wheel:

open + 6

colour filters

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Shutter system:

4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel:

animation wheel with CW and CCW rotation
FX generator:

2

prisms overlap for spectacular aerial effects
Circular prism:

4
-f

with bi-directional rotation, indexing
Linear prism:

6
-f

with bi-directional rotation, indexing
Frost:

dual soft-edge and heavy with one interchangeable element
Iris:

5 - 100
%

motorised iris

GOBOS

Rotating gobos:

7

rotating gobos + open, interchangeable, indexing
Gobo size:

30 mm outer / 25 mm image / up to 3 mm thickness
Rotating gobos:

7

rotating gobos + open, interchangeable, indexing
Gobo size:

30 mm outer / 25 mm image / up to 3 mm thickness

CONTROL

Supported Protocols:

DMX512, RDM, ArtNet, sACN, CRMX
DMX channels:

46
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface

MOVEMENT

Pan:

540
°

- 16-bit resolution
Tilt:

270
°

- 16-bit resolution
Position feedback:

automatic repositioning after external movement
Pan / tilt lock:

for transport and maintenance

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 50000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive

CONNECTIONS

Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

Neutrik XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection:

Neutrik Art-Net

RJ45 IN/OUT
EtherFlow:

Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
