Prolights ASTRAHYB330IP

رأس متحرك هجين بقدرة 330W، IP65 مع زوم 3-50° و CMY

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ASTRAHYB330IP

الفئة: أضواء متحركة خارجية , أضواء متحركة داخلية

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

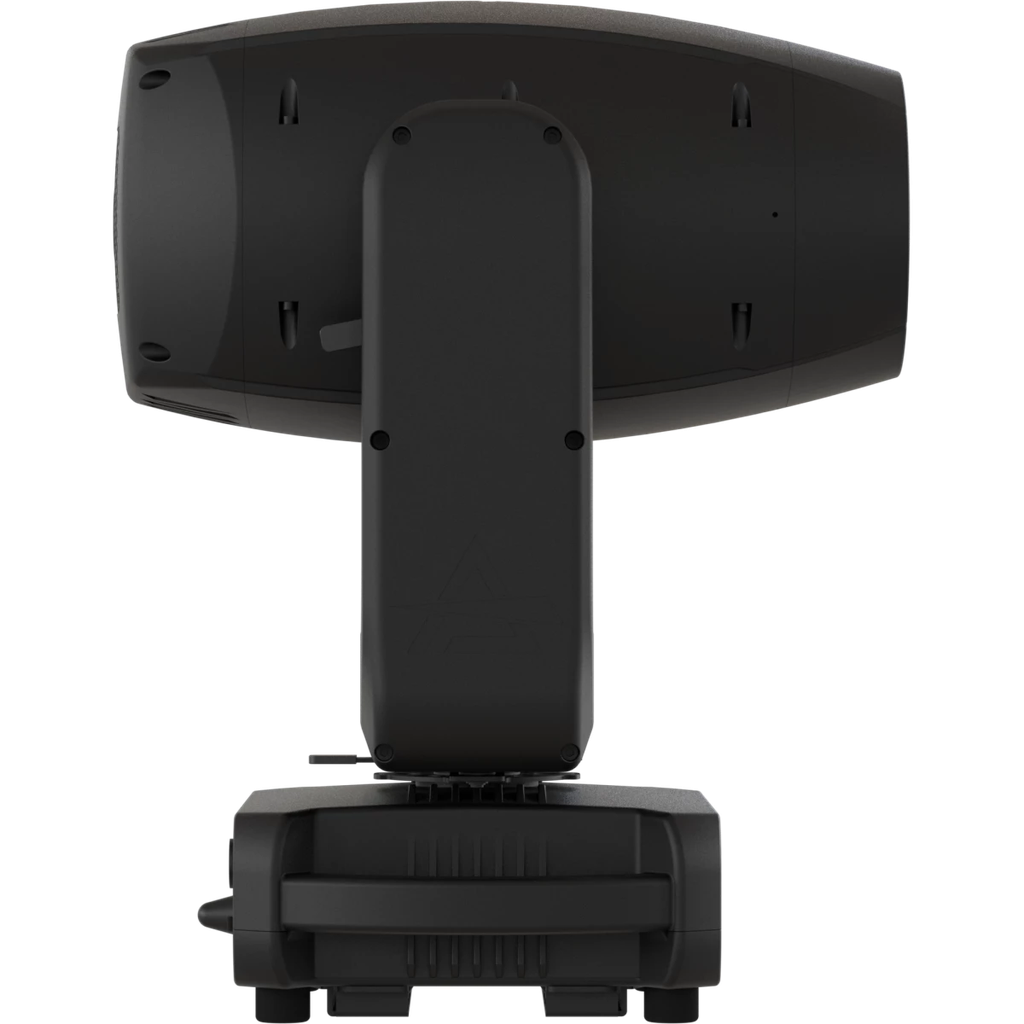

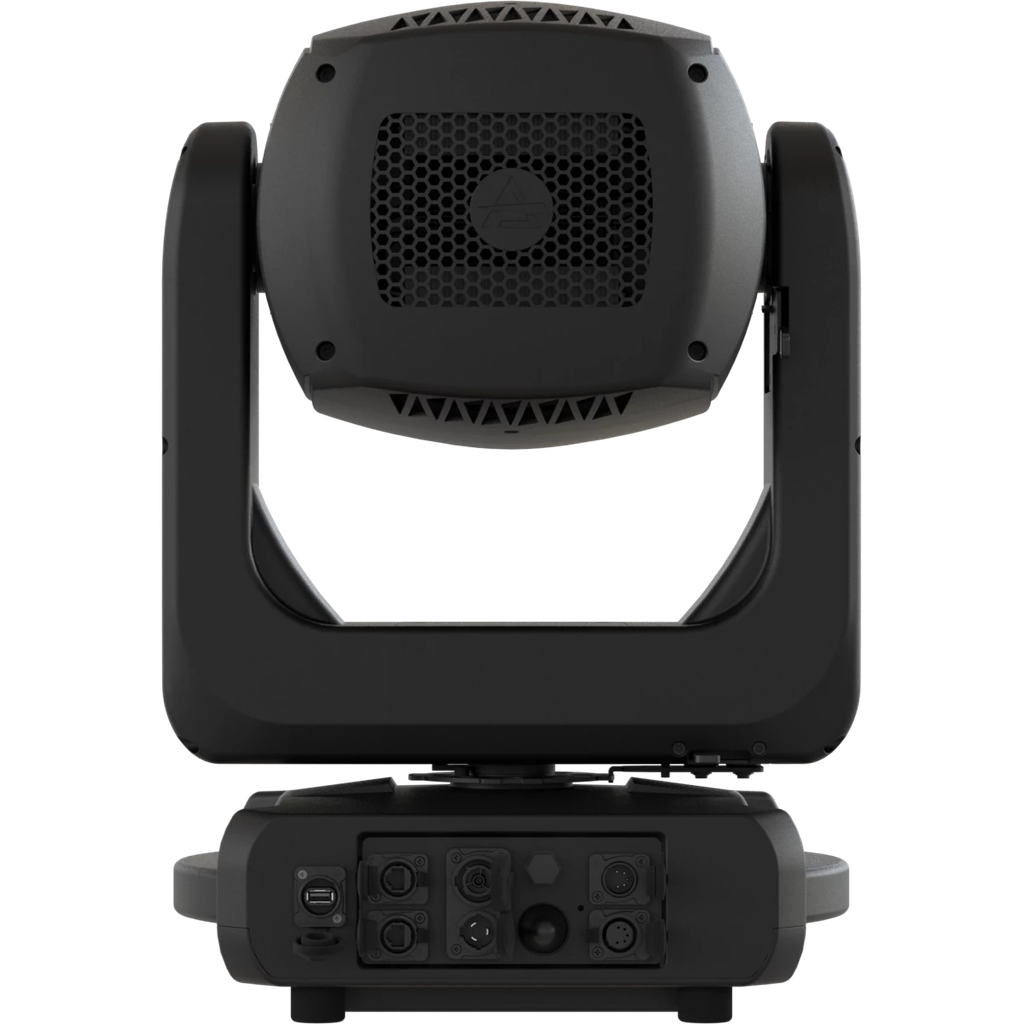

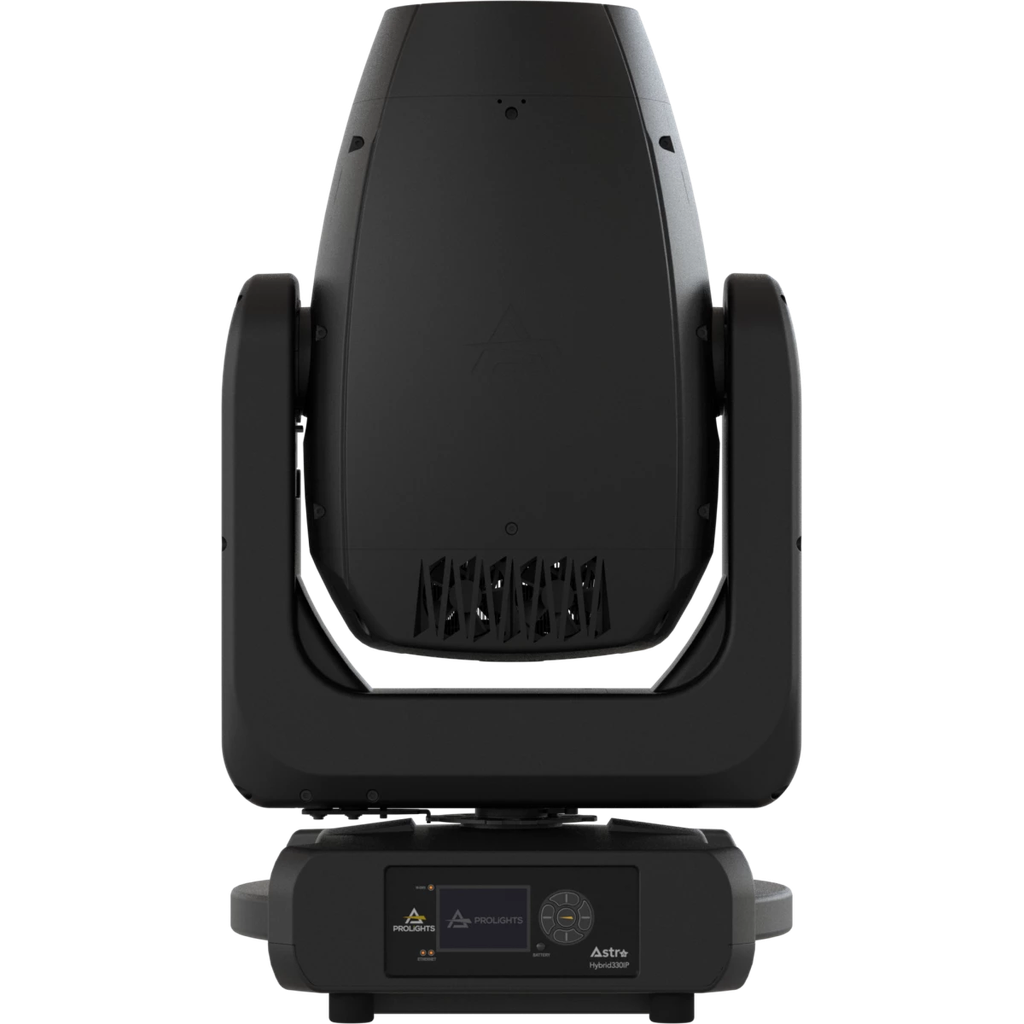

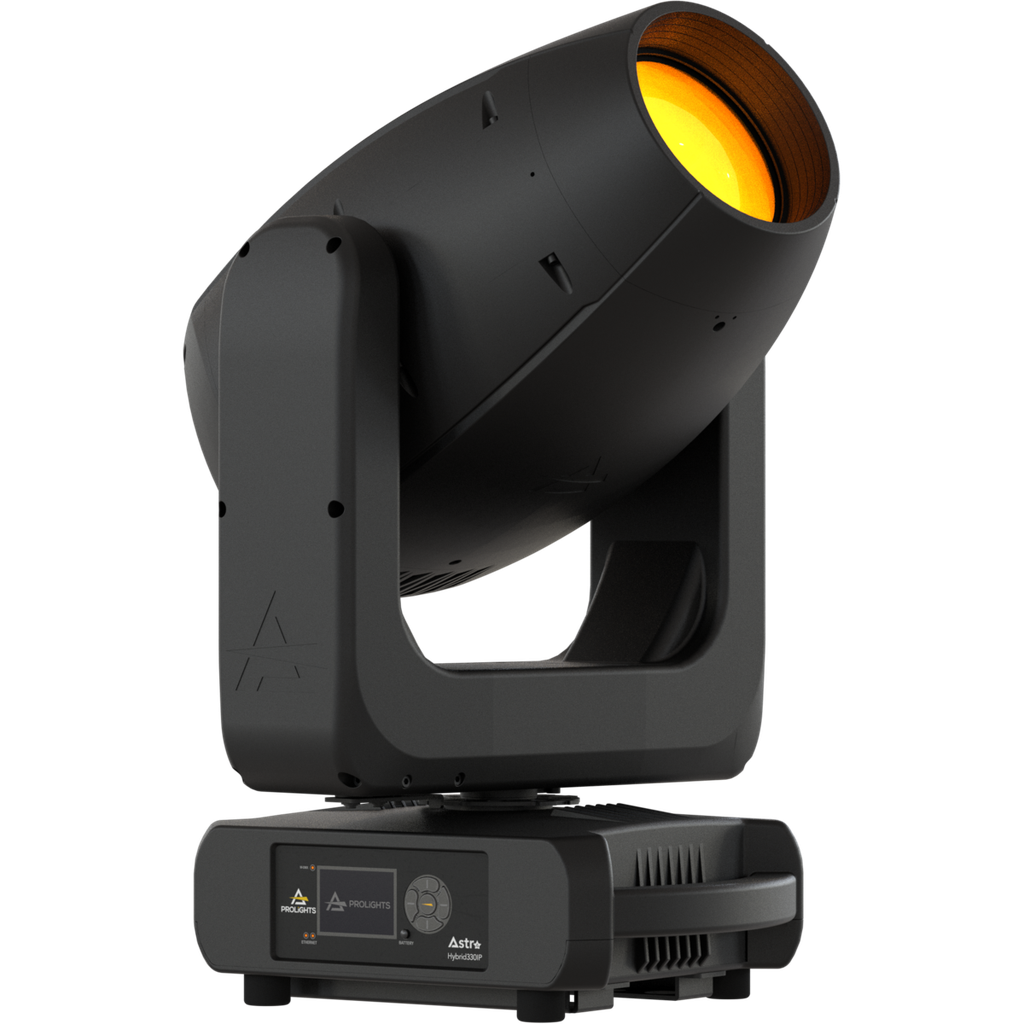

The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

IP65 hybrid moving light with 330W LED source

Linear zoom ranging from 3° to 50°

25 kg

The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

Features:
IP65 hybrid moving light with 330W LED source
Linear zoom ranging from 3° to 50°
25 kg

LIGHT SOURCE

Source:

330
W

high-power white LED
Source CCT:

7.000
K
Luminous flux:

(3°) 8'493 lm - (50°) 15'272
Lux:

(3°) 114'701 lx - (50°) 1'882
lx

@5 m full
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

3° - 50
°

motorised linear zoom
Lens diameter:

140
mm
Lens type:

HD anti-reflection lenses with achromatic coating
Focus:

motorised 16-bit

COLOUR SYSTEM

Colour mixing:

CMY colour system on 3 gradually fading colour wheels
CCT:

on wheel 2.400 K and 3.200 K
Colour wheel:

HighCRI+8

dichroic filters on 3 independent colour wheels

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Animation wheel:

animation wheel with CW and CCW rotation
FX generator:

2

prisms overlap for spectacular aerial effects
Circular prism:

8
-f

with bi-directional rotation, indexing
Linear prism:

6
-f

with bi-directional rotation, indexing
Frost:

linear 0-100%

GOBOS

Rotating gobos:

8

rotating gobos + open, interchangeable, indexing
Gobo size:

20 mm outer / 16 mm image / up to 3 mm thickness
Fixed gobos:

11

fixed gobos + open

CONTROL

Supported Protocols:

DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX
DMX channels:

29
ch
RDM:

for remote addressing and parameter configuration
Display:

LCD high resolution colour display with autoflip

MOVEMENT

Pan:

540
°

- 16-bit resolution
Tilt:

270
°

- 16-bit resolution
Position feedback:

automatic repositioning after external movement
Pan / tilt lock:

for transport and maintenance

ELECTRONICS

Dimmer:

linear 0 - 100% mechanical dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 50000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

IP65

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection:

IP65 Art-Net

RJ45 IN/OUT
EtherFlow:

Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
Max power consumption (230V):

517
W
Output (at 230V):

4

units on a single power line
Standby power:

85W
Power factor:

> 0,98
