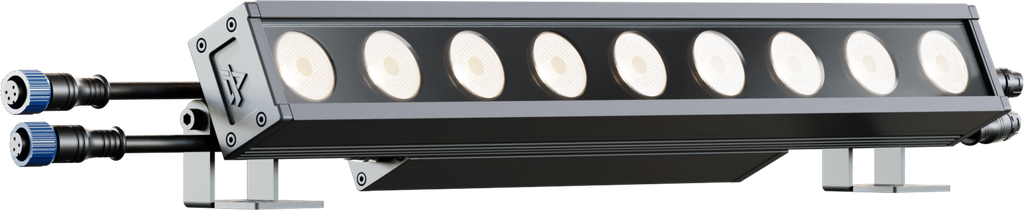

The ArcShine M18VW and ArcShine M9VW are a series of linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.
There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 4W each, with Variable White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.
Optic: 8° lenses capable of delivering multiple angles with optional holographic filters.
Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.
The ArcShine M18VW and ArcShine M9VW are a series of linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.
There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 4W each, with Variable White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.
Optic: 8° lenses capable of delivering multiple angles with optional holographic filters.
Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.
Features:IP66 design, AC 100-240V and driver on-board, DMX/RDM controllable
Variable White colour mixing, with 4W LED emitters
Optic: 8° lenses capable of delivering multiple angles with optional holographic filters
Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°. 30°x60°
- Source:9x4WVariable White LED
- Source CCT:Kdedicated variable CCT channel (2800-6500 K)
- Luminous flux:(8°) 2'460 lm; (8°+20°) 2'343 lm; (8°+40°) 2'314 lm; (8°+60°) 2'282 lm; (8°+1060°) 3'371 lm; (8°+3060°) 2'464@Full
- Lux:(8°) 1'462 lx; (8°+20°) 260 lx; (8°+40°) 101 lx; (8°+60°) 80 lx; (8°+1060°) 184 lx; (8°+3060°) 101lx@5 m full
- CRI:>85
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:8°
- Additional optics:see available accessories
- Colour mixing:Variable White
- CCT:CCT control through dedicated DMX channel
- Macros:built-in white presets
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 5 / 9ch
- RDM:for remote addressing and parameter configuration
- Display:user interface through DATAMASTER external coder (not included)
- Stand Alone:available through DATAMASTER external coder (not included)
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer and colour
- Tilt:180°with manual adjustment
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1-30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:moulded IP power IN/OUT connectors
- Signal connection:moulded IP signal IN/OUT connectors
- Adaptors:XLR and BARE END 16A adaptors included
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):40W
- Output (at 230V):34units on a single power line
- Power factor:>0,94
- IP rating:IP66 for outdoor installations
- IK rating:IK09 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy aluminium profile
- Finish:basalt grey (RAL 7012)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):500x106x71mm
- Weight:3kg
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Compliance:CE, UKCA, RCM, cTUVus, FCC
