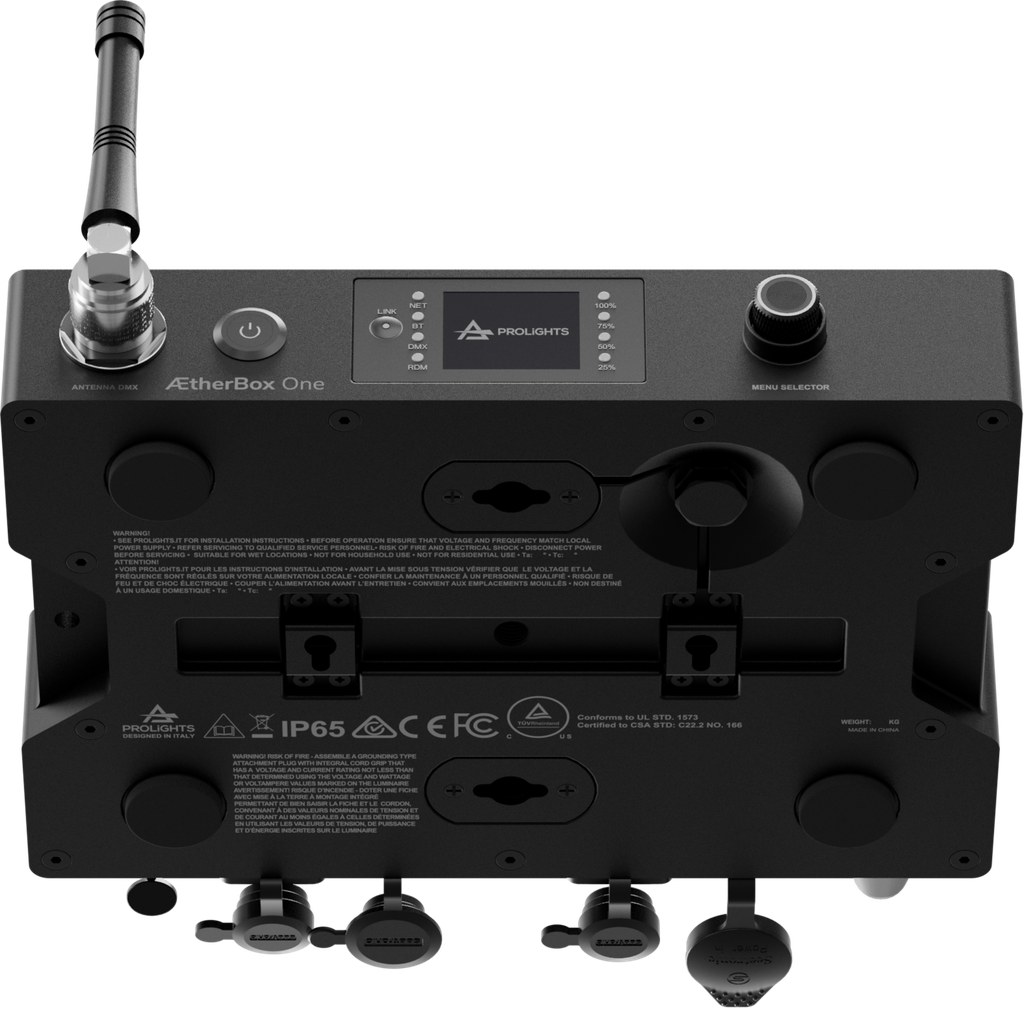

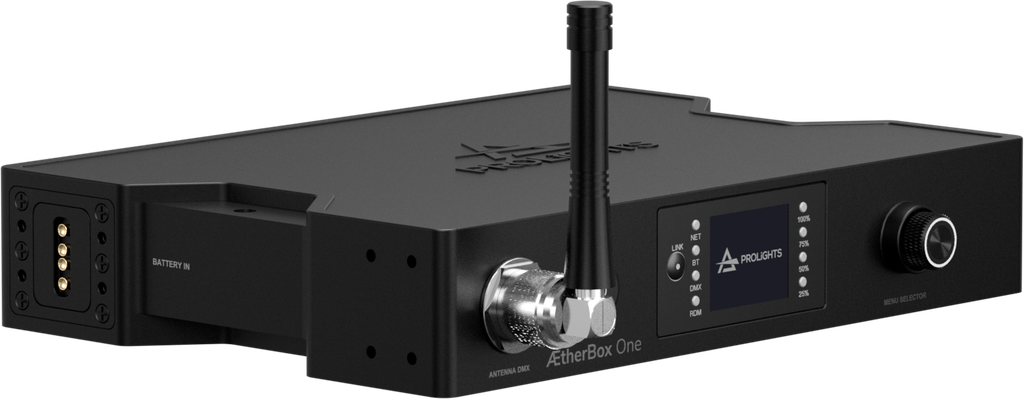

The AetherBox One is a robust IP65-rated single universe CRMX transceiver, designed for professional use in any venue, whether it be indoor or outdoor, on stages or sets. It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting CRMX transmission protocol.

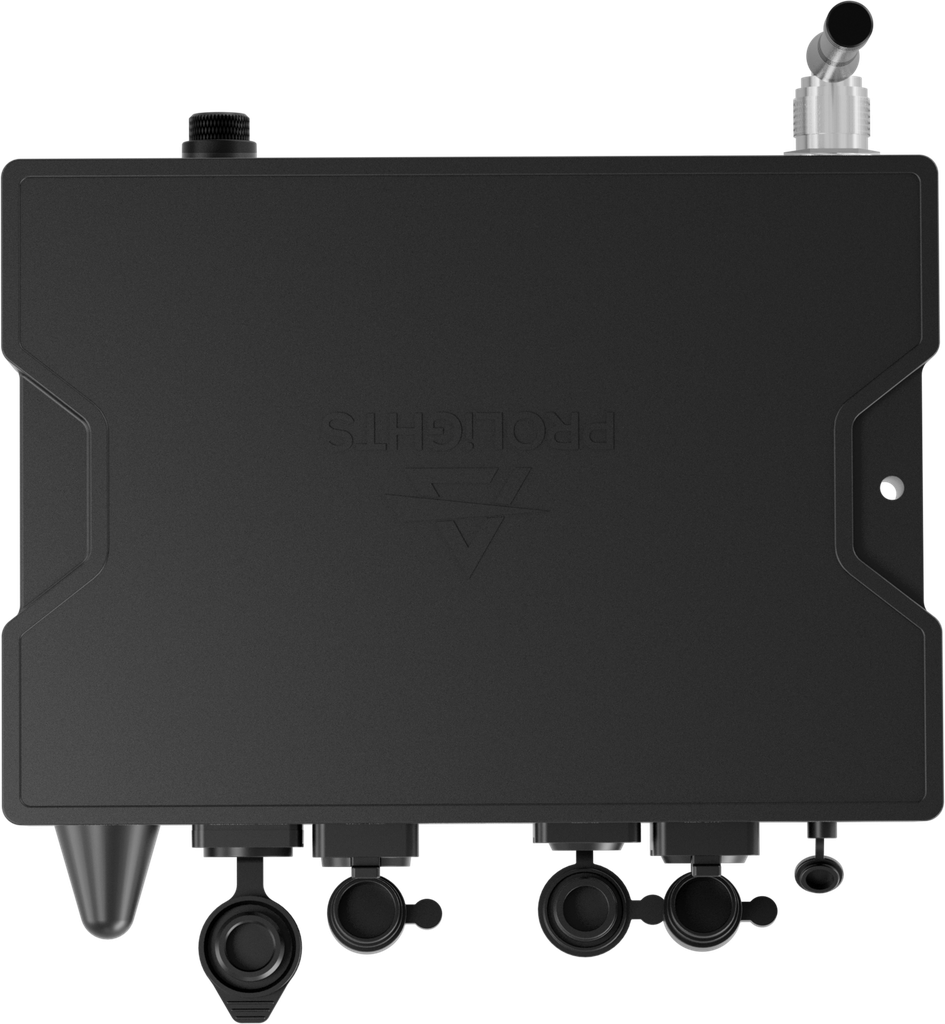

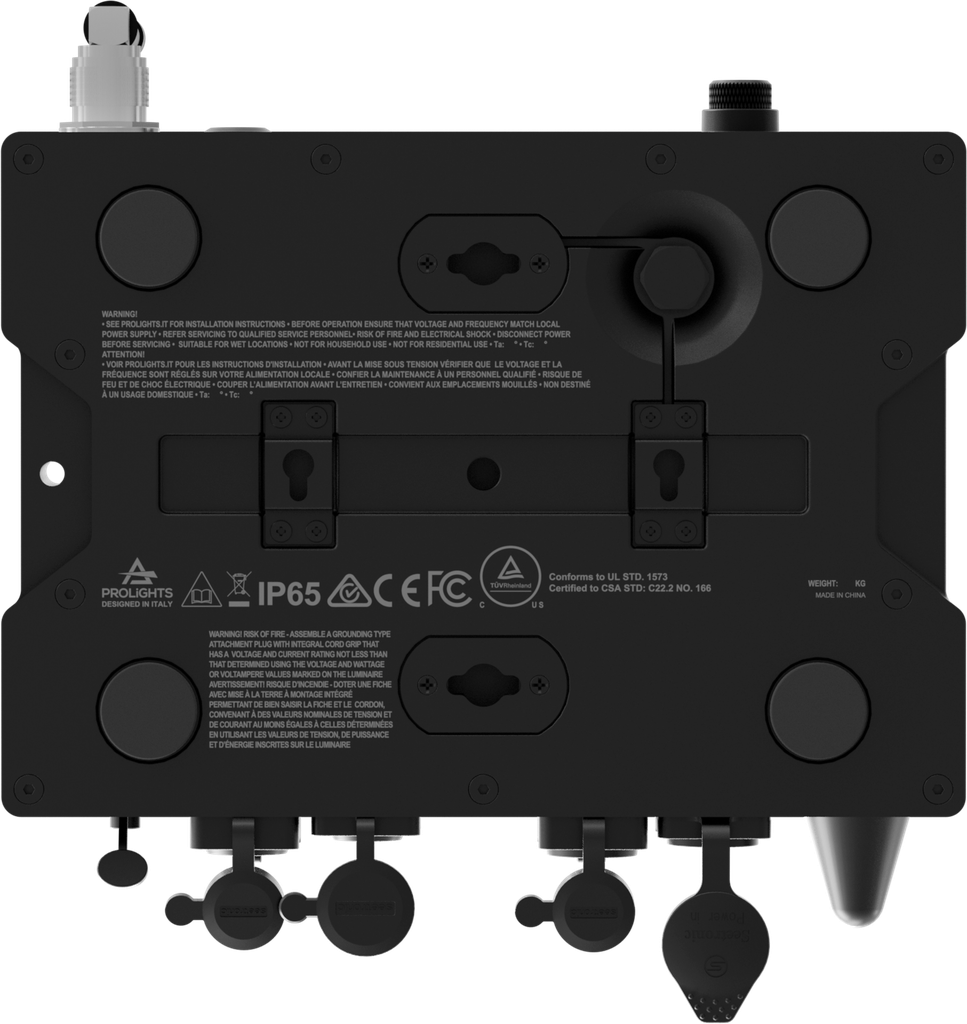

Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ⅜ threads for additional anchoring options.
The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, NP-F battery type operation via an adapter box accessory or via POE. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.
The AetherBox One is a robust IP65-rated single universe CRMX transceiver, designed for professional use in any venue, whether it be indoor or outdoor, on stages or sets. It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting CRMX transmission protocol.
Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ⅜ threads for additional anchoring options.
The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, NP-F battery type operation via an adapter box accessory or via POE. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.
Features:IP65 single universe CRMX transceiver

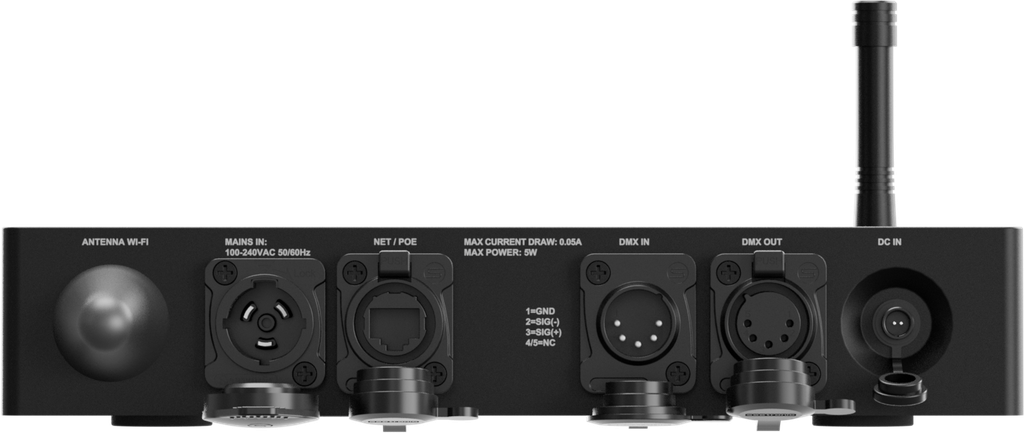

XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth
Rack mounting, truss mounting, camlocks, M10 and ⅜ threads anchoring options
Main power DC12V input, POE and NP-F battery type operation via an adapter box accessory
Available operating modes: TX mode and RX mode
Compatible with: CRMX, G4S, G3, and CRMX2 - CRMX2 operates as a receiver only
- Supported Protocols:DMX512, RDM, ArtNet, sACN, CRMX, Bluetooth
- DMX channels:512ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Other:1 push encoder, 1 LINK/UNLINK button and status LEDs on-board
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Battery:2x7,2VNP-F550/F570/F750/F770 type battery via dedicated accessory
- Power connection:Seetronic powerCON TRUE IP65 IN
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:1xintegrated LumenRadio TimoTwo FX (full RDM) - CRMX, CRMX² (RX only) and W-DMX compatible, Bluetooth enabled
- Transmission range:up to 80 meters with the included AEB2DBA90D antenna in open field
- Data connection:Seetronic Ethernet IP IN connector
- Low Voltage DC connector:Weipu SA6(12-48V), Battery slots
- Mains power supply:100-240V - 50/60Hz
- Low Voltage DC mains:12V via DC IN, 2x7.2V via battery slots, POE
- Max power consumption (230V):3W
- Standby power:1,7 W
- Power factor:> 0,95
- IP rating:IP65 for temporary outdoor use
- Housing:Weatherproof IP65 construction
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):245x45x241mm
- Weight:1,8kg
- Suspension and fixing:M10 and 3/8'' threaded insert for easy installation, wall mount, velcro strips, Omega clamp
- Hardware on-board:rack-mount hardware
- Compliance:CE, RCM, FCC, cTUVus
