The AetherBox Lite is a versatile, single universe Wireless CRMX Transceiver, offering compatibility with both Lumen Radio CRMX and Wireless DMX G3 and G4S protocols.
This compact unit provides flexible power and signal processing options via chassis connectors or terminal blocks. Its design allows for track mounting, enabling the streaming of signals on tracks equipped with a data bus option.
The AetherBox Lite is an effective solution for small and medium-sized live events or installations, delivering reliable wireless control in various settings.
The AetherBox Lite is a versatile, single universe Wireless CRMX Transceiver, offering compatibility with both Lumen Radio CRMX and Wireless DMX G3 and G4S protocols.
This compact unit provides flexible power and signal processing options via chassis connectors or terminal blocks. Its design allows for track mounting, enabling the streaming of signals on tracks equipped with a data bus option.
The AetherBox Lite is an effective solution for small and medium-sized live events or installations, delivering reliable wireless control in various settings.
Features:Single Univers Wireless CRMX Transceiver unit
Power IN and DMX In/Out through chassis mount connectors and terminal blocks
Either LumenRadio CRMX and Wireless DMX G3 and G4S transmission option
- Supported Protocols:DMX512, RDM, CRMX + WDMX, Bluetooth
- RDM:for remote addressing and parameter configuration

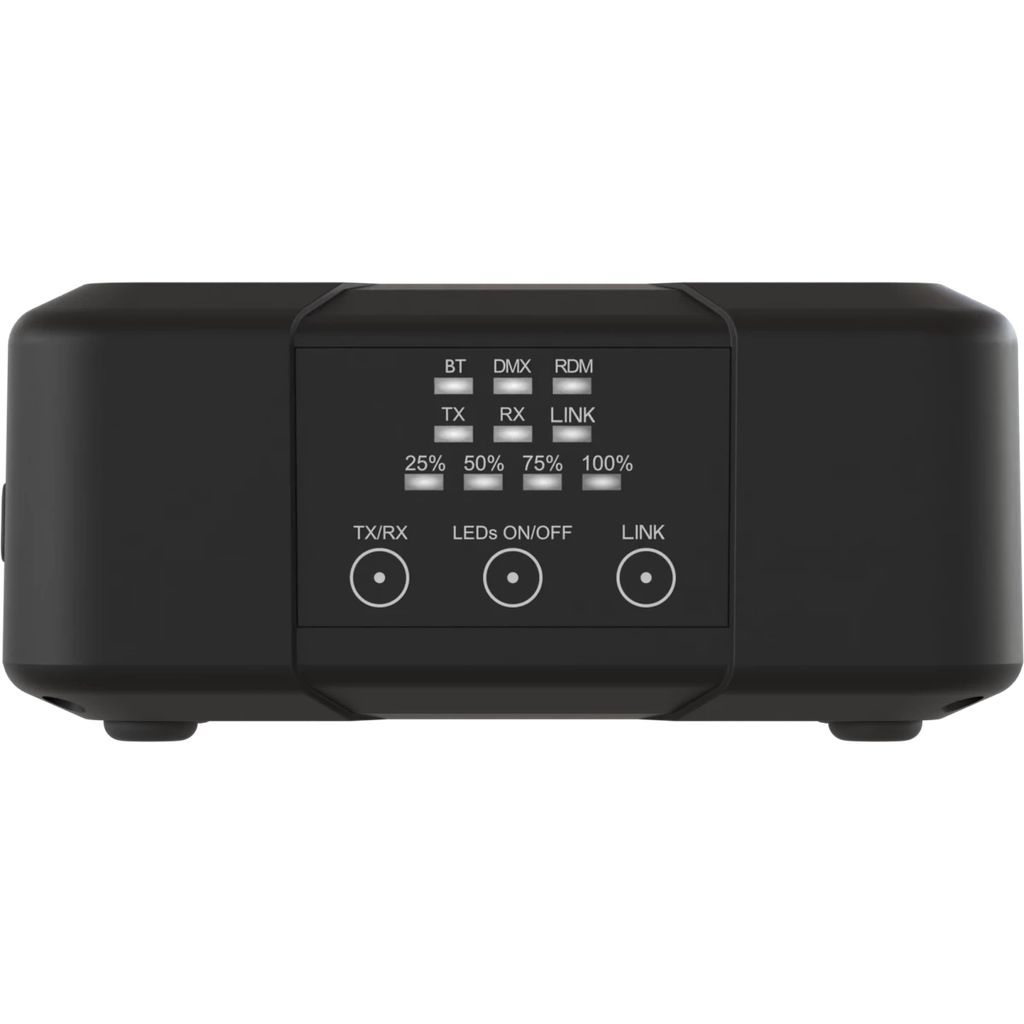

- Other:3 control buttons and status LEDs on-board
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:screw terminal block,Seetronic powerCON TRUE IN

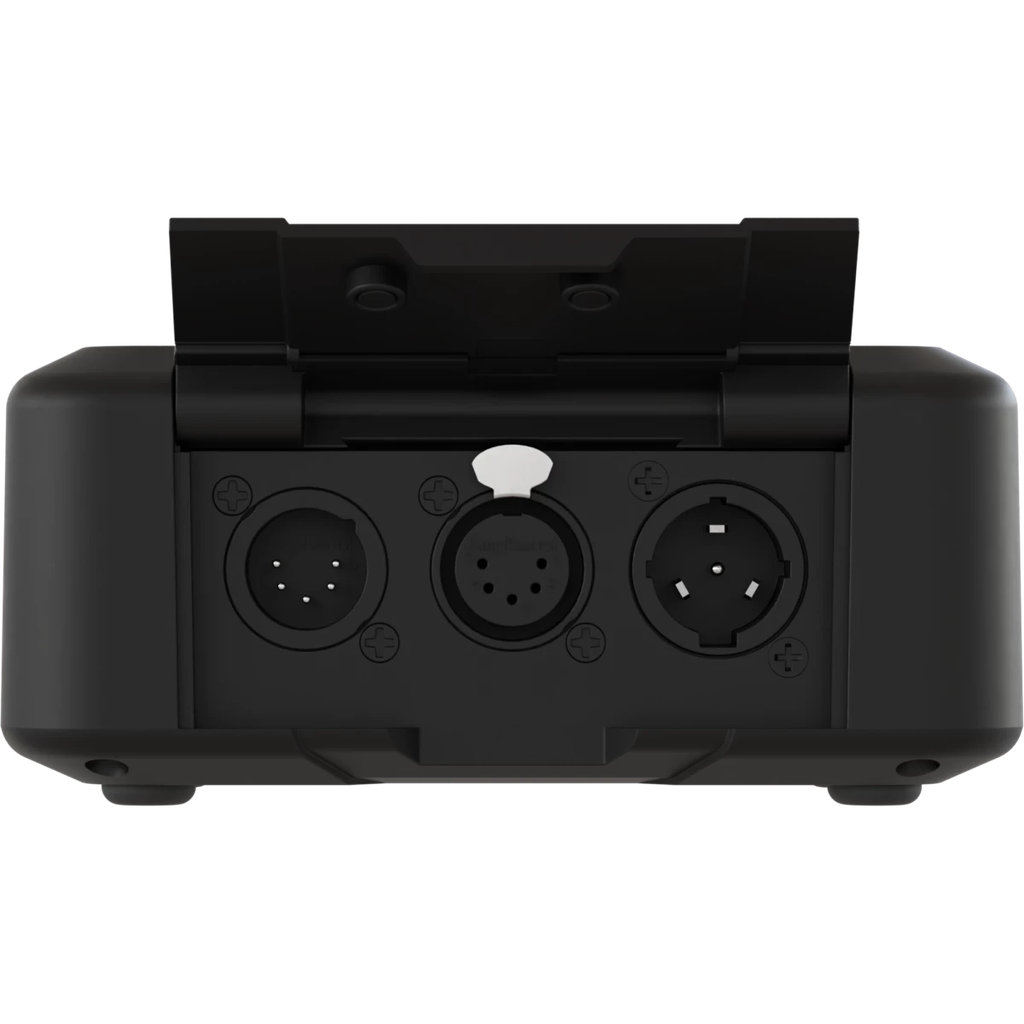

- Signal connection:screw terminal block,Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TimoTwo FX (full RDM) - CRMX, CRMX² (RX only) and W-DMX compatible, Bluetooth enabled
- Transmission range:up to 100 meters in open field
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):5W
- Power factor:> 0,95
- IP rating:IP20
- Housing:Sturdy polycarbonate body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):140x60x100mm
- Weight:0,4kg

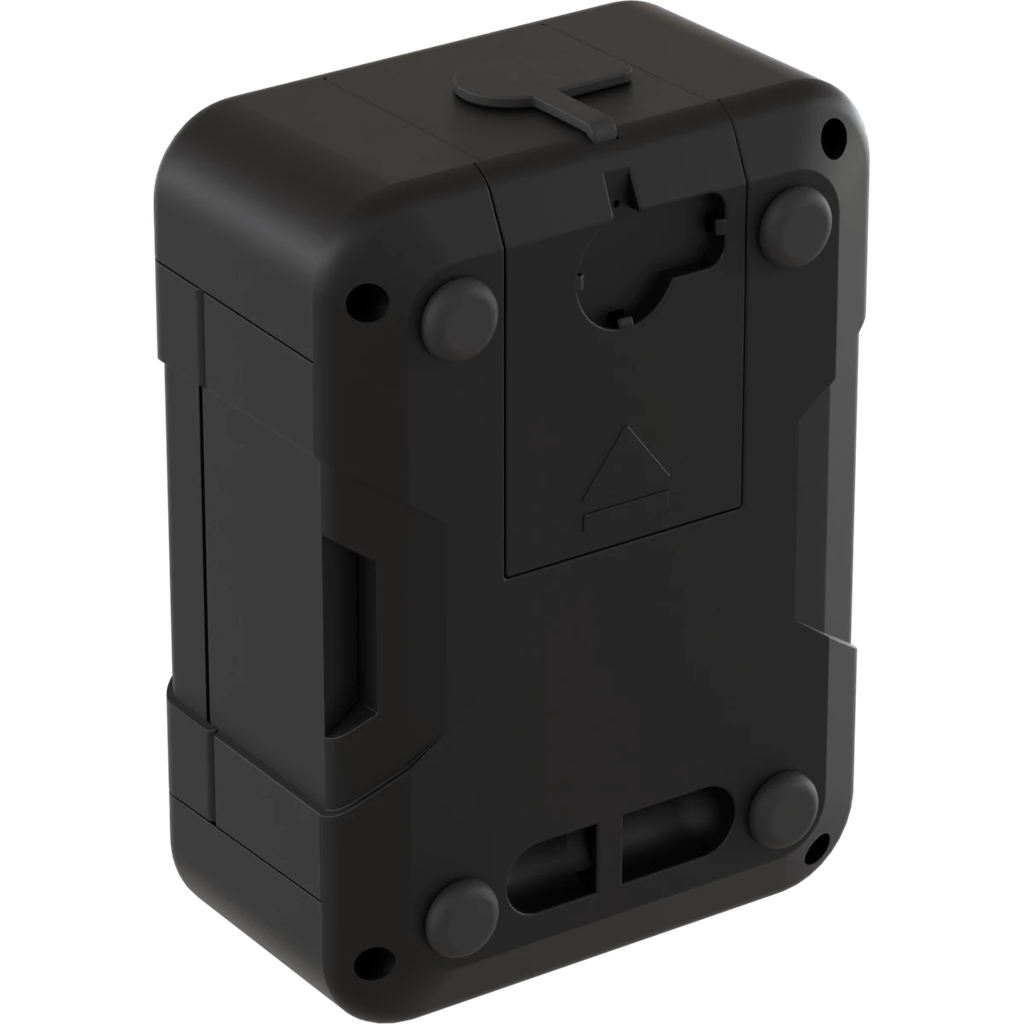

- Suspension and fixing:track-adapter option (track not included), for fixing in suspension
- Hardware on-board:see available accessories
- Compliance:CE, RCM, FCC, cTUVus
