An icon of stage lighting, reimagined.

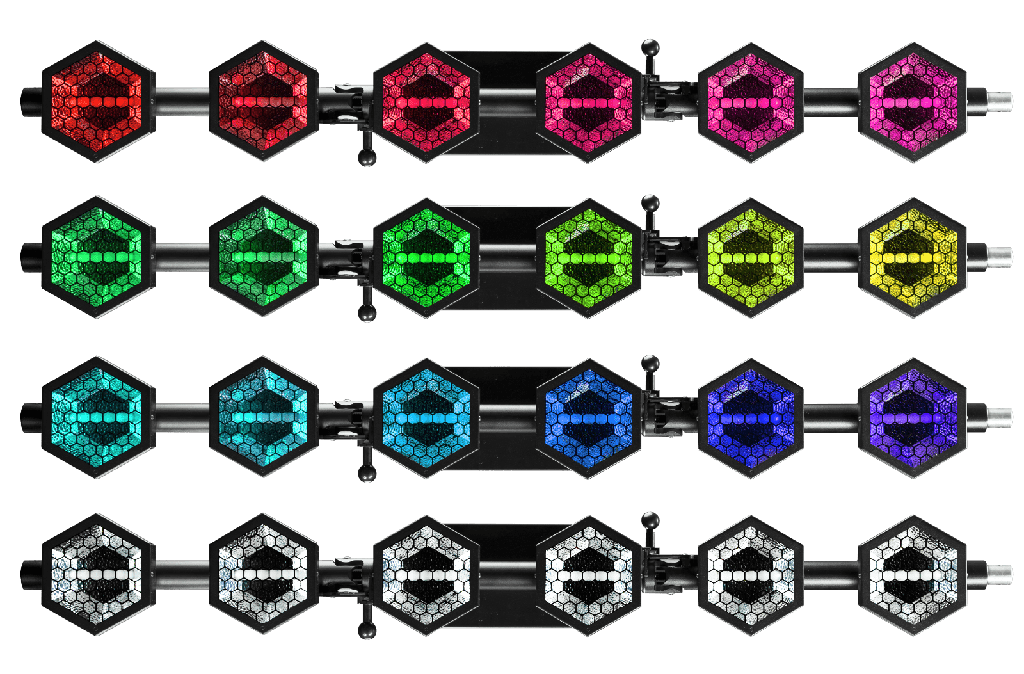

P2 EVO now features Portman haloLED sources with full halogen emulation, and an RGBW glow that runs at 16-bit for ultra-smooth colour mixing.

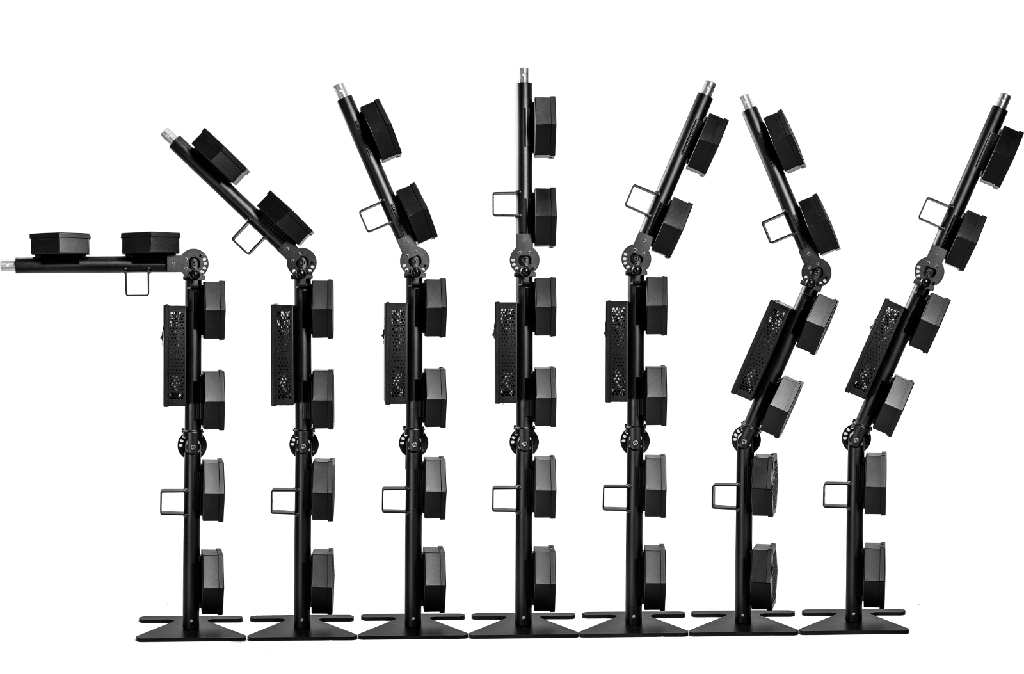

Two locking hinges bend the fixture forward or back, so units link into lines, arches, semi-arches and rings. It connects seamlessly with EVO ELEMENT and the E-CONN 4-way connector.
Key features

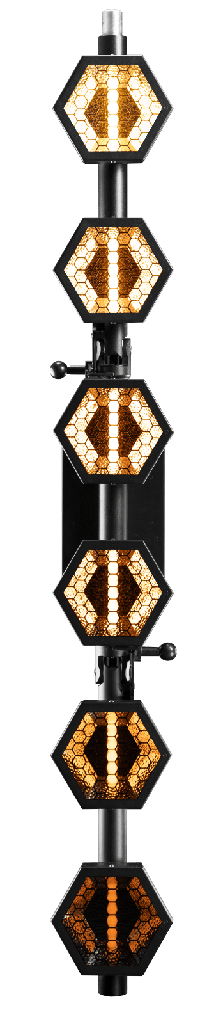

- 6 x 60 W Portman haloLED with true tungsten emulation
- 6 x 12 W RGBW glow, 16-bit colour mixing
- Bendable construction with 2 locking hinges
- Compatible with EVO ELEMENT and the E-CONN 4-way connector
- 6 DMX modes (12-67 channels), RDM, macros, W-DMX option
- Base, height adaptor and hanging adaptor included
Specifications
| Dimensions (H x W x D) | 172 x 21 x 17 cm (67.7 x 8.3 x 6.7 in) |
| Weight | 12.5 kg (27.5 lbs) |
| Light sources | 6 x 60 W haloLED dim-to-warm white; 6 x 12 W RGBW glow |
| Colour temperature | 1600-3200 K white; RGBW glow |
| CRI | >90 |
| Optics | High-reflective hammered reflector, opal diffuser |
| Power consumption | max 300 W |
| Input voltage | 100-240 V, 50/60 Hz |
| Power connector | PowerCON TRUE1 in / thru |
| Control connector | 5-pin XLR in / out |
| Control features | 6 DMX modes (12-67 DMX channels), RDM, macros, W-DMX (optional module) |
| User interface | High-contrast LCD display, highlighted buttons |
| Rigging | 2 x 12 mm (1/2 in) holes for clamp on back; base and hanging adaptor (with 12 mm hole) included |
| Mounting position | Any |
| IP rating | IP20 (indoor) |
| Warranty | 24 months |
| What's in the box | Fixture, 2 m power cord (PowerCON TRUE1 to no plug), base, height adaptor, hanging adaptor, 3 x spigots and cotters, user manual |
User manual and DMX chart: see Downloads. Fixture libraries and firmware: Portman support portal.
