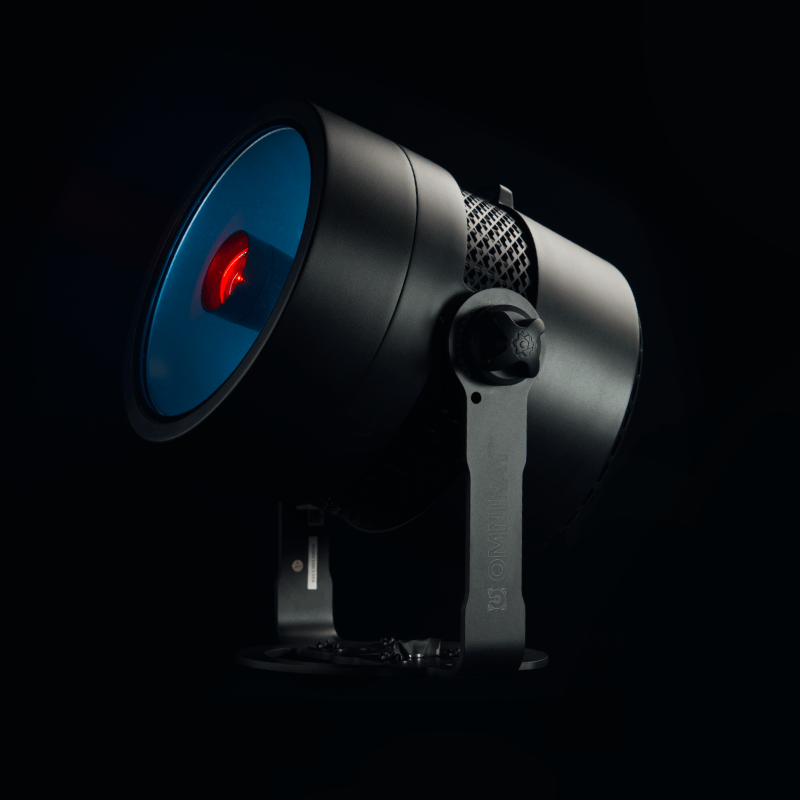

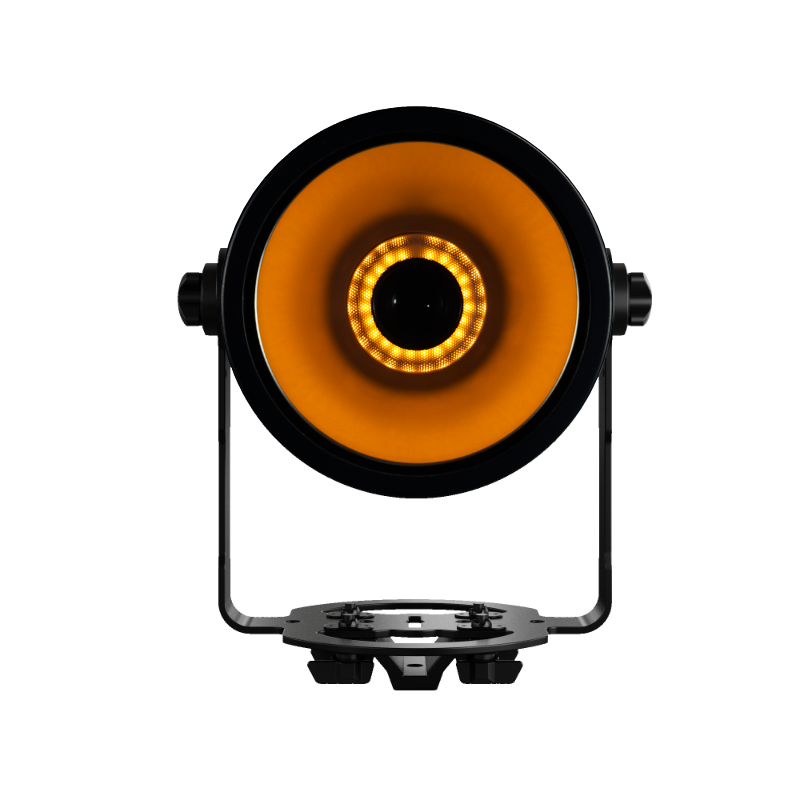

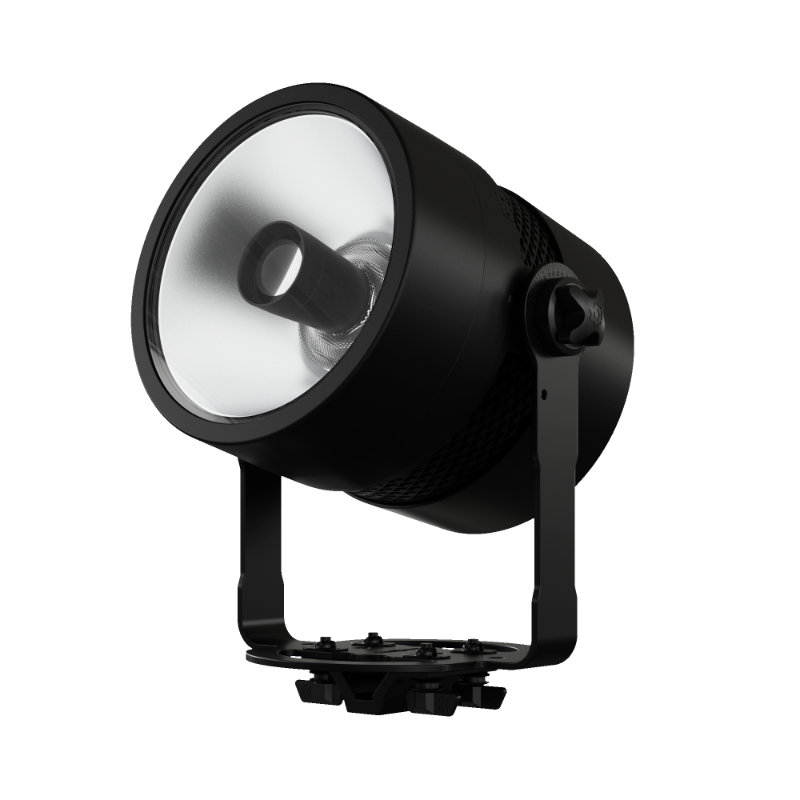

The world's first Hybrid Utility Fixture.
OMNIRAY introduces a brand-new category of stage lighting: PAR, blinder, narrow beam and eye candy in one. An all-in-one design means you achieve more with fewer fixtures, saving time, space and costs.

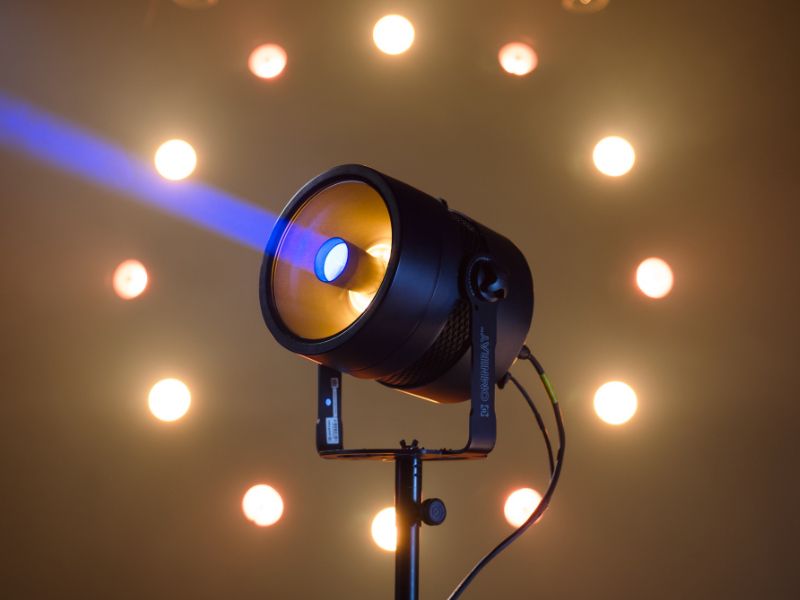

A wide and powerful 440 W RGBWLA wash with CRI above 95, and a secondary 40 W RGBW narrow beam for dramatic mid-air effects. Magnetic lens overlays and accessories lock securely in 8 positions, and the IP65 housing is ready for any environment.
Key features

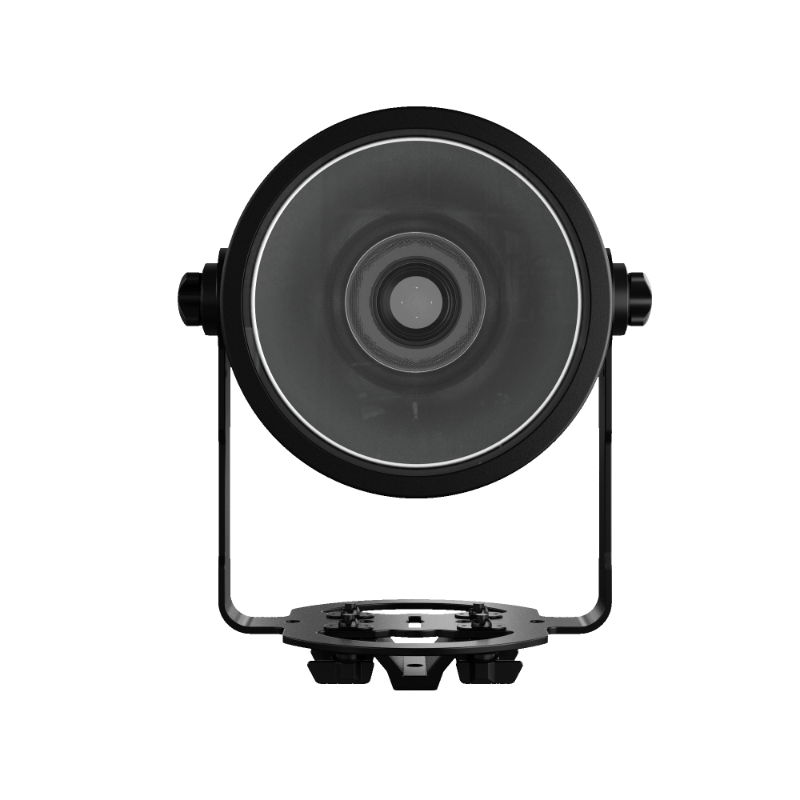

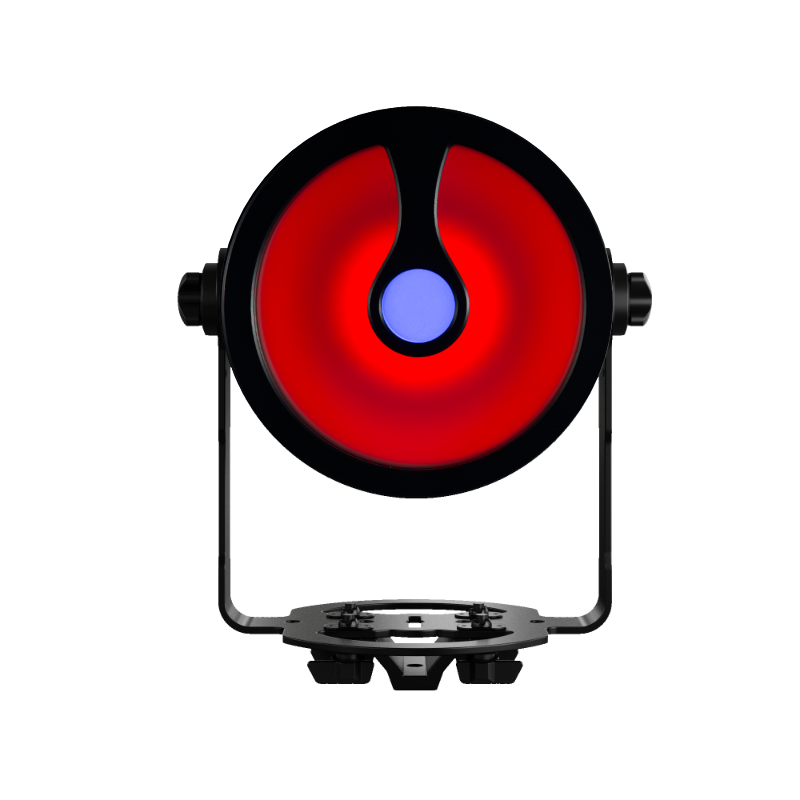

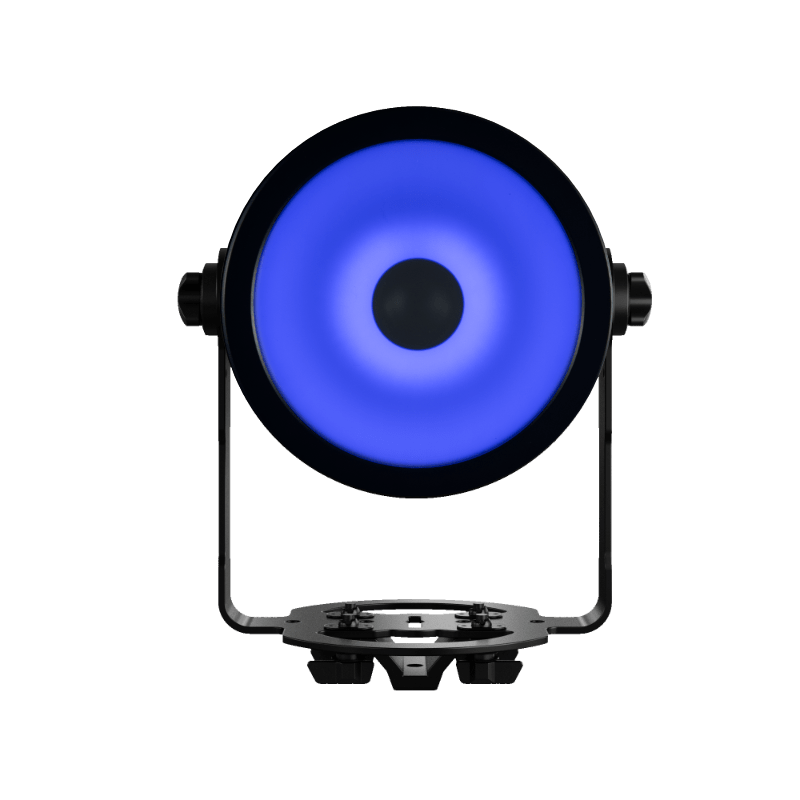

- Two light sources: 440 W RGBWLA wash (90°) and 40 W RGBW narrow beam (3.8°)
- CRI >95 (calibrated mode), 16-bit, 12.5 kHz LED engine
- IP65: rain and dust resistant
- Magnetic accessories: decorative covers, radial and elliptical diffusers, Fresnel lens

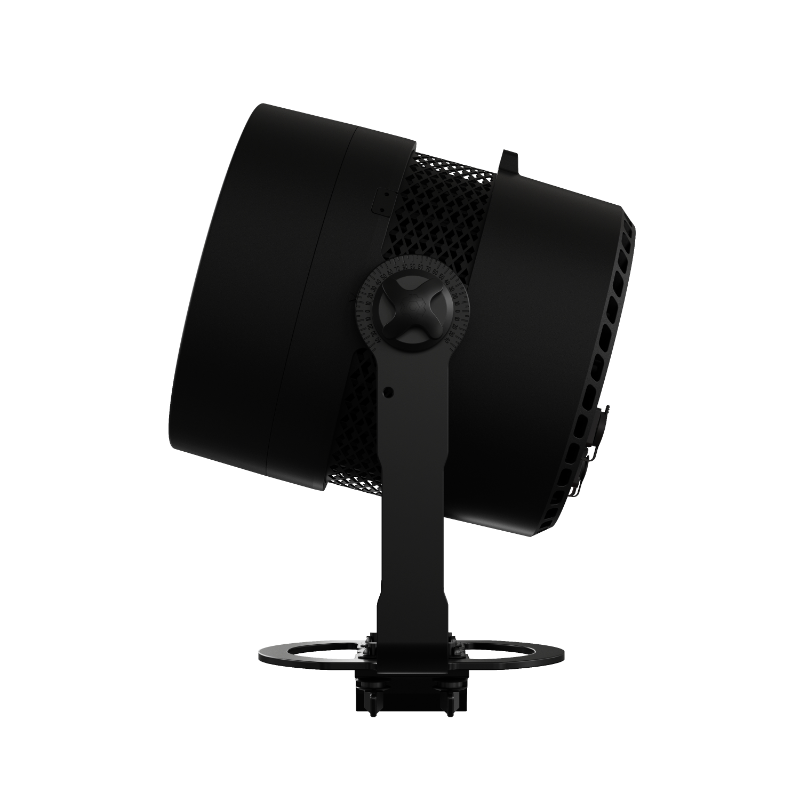

- Big-plate yoke with omega brackets, precision tilt
- 8 DMX modes (8-28 channels), RDM, influencer / follower mode, CRMX option
Specifications
| Weight (fixture only) | 14 kg (30.87 lbs) |
| Light sources | Main: 440 W RGBWLA, 90° beam; narrow: 40 W RGBW, 3.8° beam |
| Colour temperature | 2000-6500 K (main); 6000 K (narrow) |
| Total luminous flux | 8,000 lm |
| CRI | >95 (calibrated mode) |
| Power consumption | max 450 W |
| Input voltage | 100-240 V, 50/60 Hz |
| Power connector | PowerCON TRUE1 in / thru |
| Control connector | DMX / RDM in / thru: 5-pin XLR; firmware from USB-A flash drive |
| Control features | 8 DMX modes (8-28 channels), RDM, macros, influencer / follower mode, CRMX (optional module) |

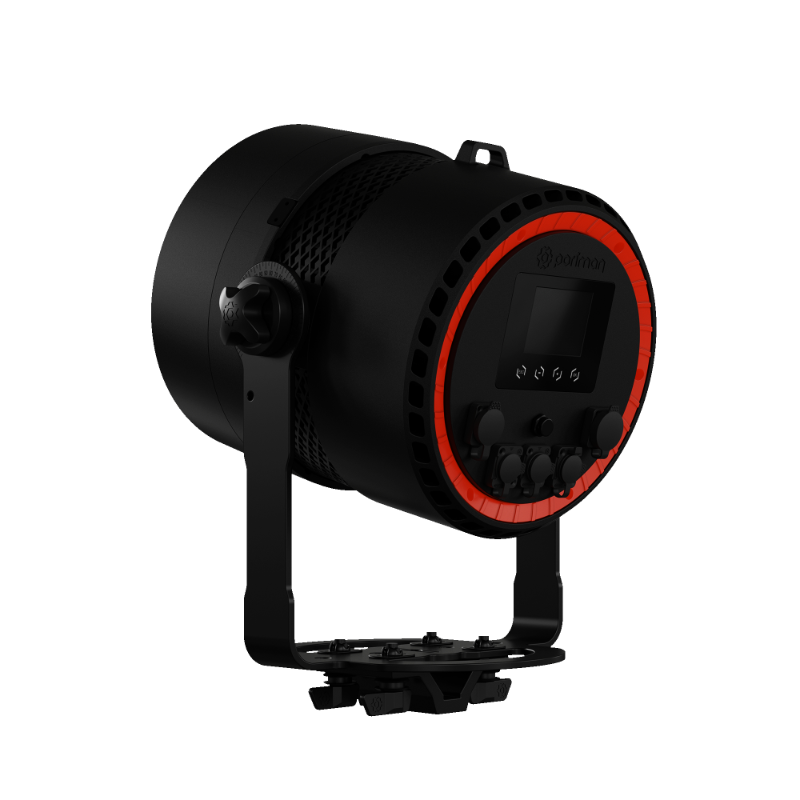

| User interface | OLED display, highlighted touch buttons, Colour Feedback System |
| Mounting position | Any |
| IP rating | IP65 |
| Certificates | CE, RoHS, ETL, UL, UKCA |
| Warranty | 24 months |
| What's in the box | Fixture, AC power cord (PowerCON TRUE1 to no plug), OMNICLE decorative magnetic cover, user manual |
| Optional accessories | Omega bracket with 1/4 fast locks; magnetic diffuser 20°, elliptical diffuser 10 x 60°, micro Fresnel F220; CRMX; 4-unit flight case, 1-unit soft bag |
User manual and DMX chart: see Downloads. Fixture libraries and firmware: Portman support portal.
