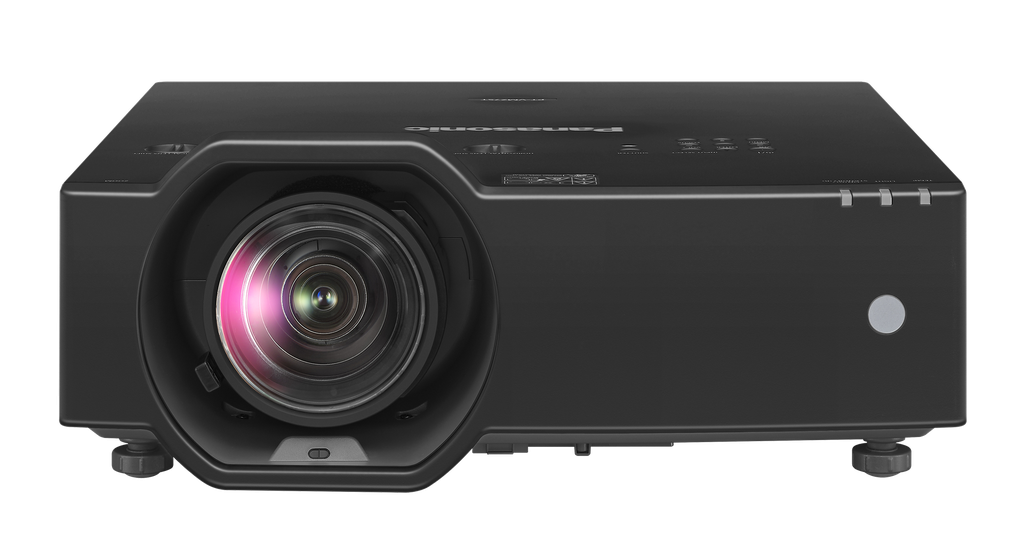

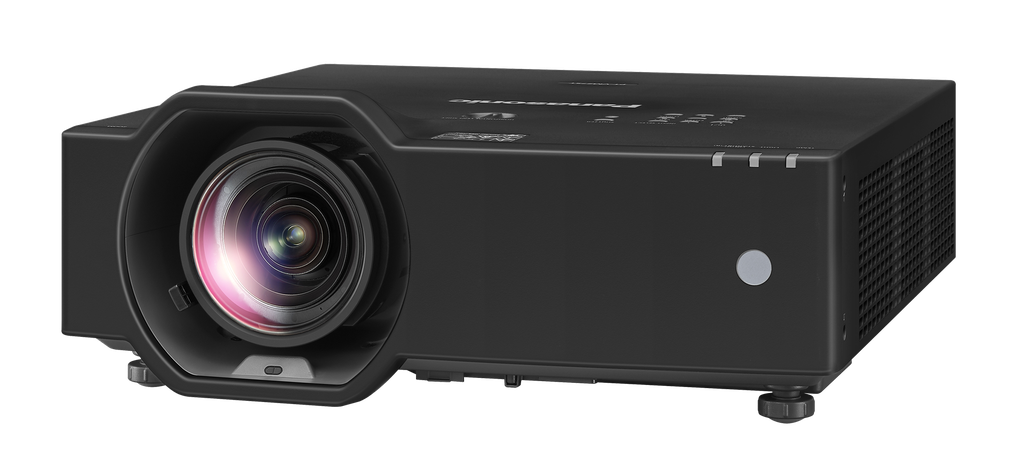

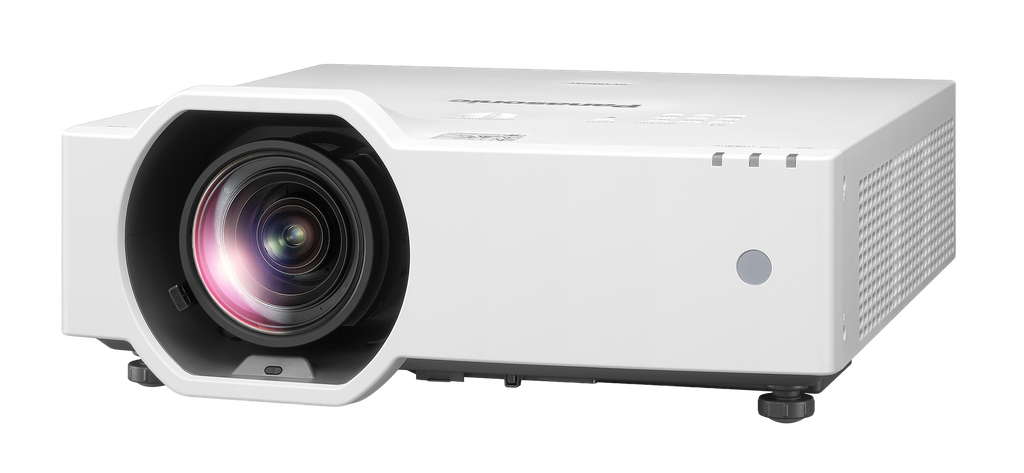

Panasonic PT-VMZ7ST

PT-VMZ7ST — 3LCD Short-Throw Laser Projector, WUXGA, 7,000 lm

The short-throw member of the family: same generation of electronics as the VMZ82, but with a 0.797–1.01:1 lens that puts a 100-inch image on the wall from 1.72 m. That's the whole point — the presenter stands in front of the screen without casting a shadow, and the projector sits close enough that cable runs and mount hardware stay simple. Beyond the classroom and meeting-room use case it's built for golf simulators and museum work: 7,000 lm, 5,000,000:1 dynamic contrast, the new Vivid Green mode, and curved-screen correction that now adjusts each side independently. Powered focus via the remote matters more here than usual, since short-throw units end up in awkward, hard-to-reach mounting positions.

Key Features:

• Short throw: 0.797–1.01:1, 100-inch image from 1.72 m, up to 300 inches — minimal presenter shadowing
• Powered focus by remote control, no ladder work for fine adjustment
• 7,000 lm (ANSI) WUXGA with 5,000,000:1 dynamic contrast
• 1.2x optical zoom plus Digital Zoom Extender to 1.27:1 for working around ceiling obstructions
• Lens shift +50% V / ±20% H — wider vertical range than the standard-throw models
• Angle Monitor gyro sensor shows pitch and roll on screen for a one-person install
• New Screen Adjustment GUI: Grid (11 x 17), 6-Point, 4-Corner, and independent curved-screen correction
• 4K DIGITAL LINK (HDBaseT™) plus 4K signal input over both HDMI™ inputs with CEC
• IPv6, Art-Net DMX, PJLink™ Class 2, Crestron Connected® V2, XiO Cloud and Extron XTP® support
• Data cloning to up to 99 sub-projectors over LAN or USB
• Approx. 56% recycled resin in the main body; foam-free recyclable packaging
• 20,000 h to 50% output (24,000 h ECO) with washable long-life ECO Filter
• Built-in scheduling, Auto Power On, Image Detection power saving, ~1 second Quick Startup
• Daylight View Basic, Vivid Green mode, 21:9 widescreen support, DICOM Simulation
• QR-code wireless pairing and PressIT compatibility (both optional)

Lens: Fixed 1.2x short-throw zoom with powered focus, built in (no optional lens options).

Specifications:

• Projector type: 3LCD (transparent LCD panel x 3, R/G/B)
• Light output: 7,000 lm (ANSI)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 5,000,000:1
• Screen size: 1.77–7.62 m (70–300 in), 16:10
• Lens: 1.2x manual zoom, 0.797–1.01:1, powered focus, F 1.53–1.66
• Keystone: V ±25°, H ±35°
• Terminals: HDMI™ x 2, D-sub 15-pin, DIGITAL LINK/LAN, LAN, USB Type A, RS-232C, audio in/out
• Speaker: 10 W monaural
• Power: AC 100–240 V, max. 345 W
• Noise: 37 dB (Normal) / 32 dB (Quiet 1) / 27 dB (Quiet 2)
• Dimensions (W x H x D): Approx. 414 x 120 x 424 mm
• Weight: Approx. 8.4 kg
• Operating temperature: 0–45 °C
