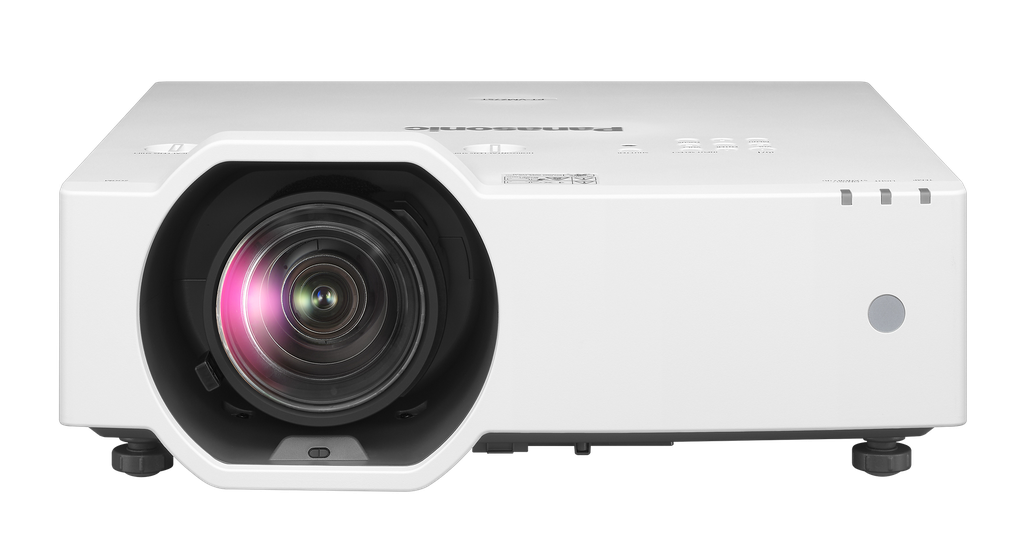

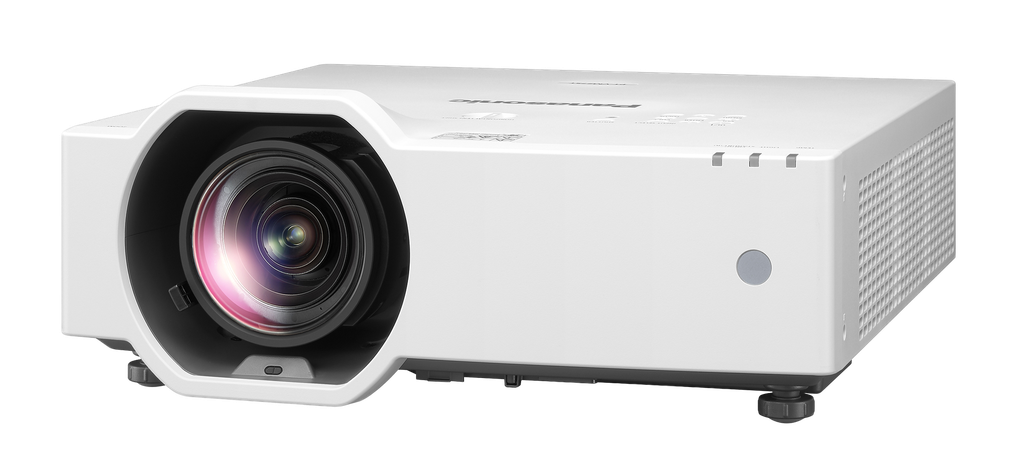

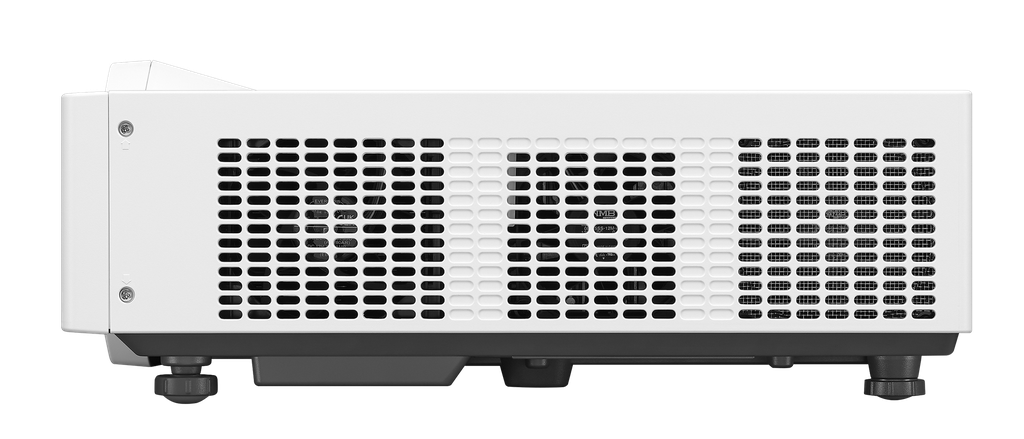

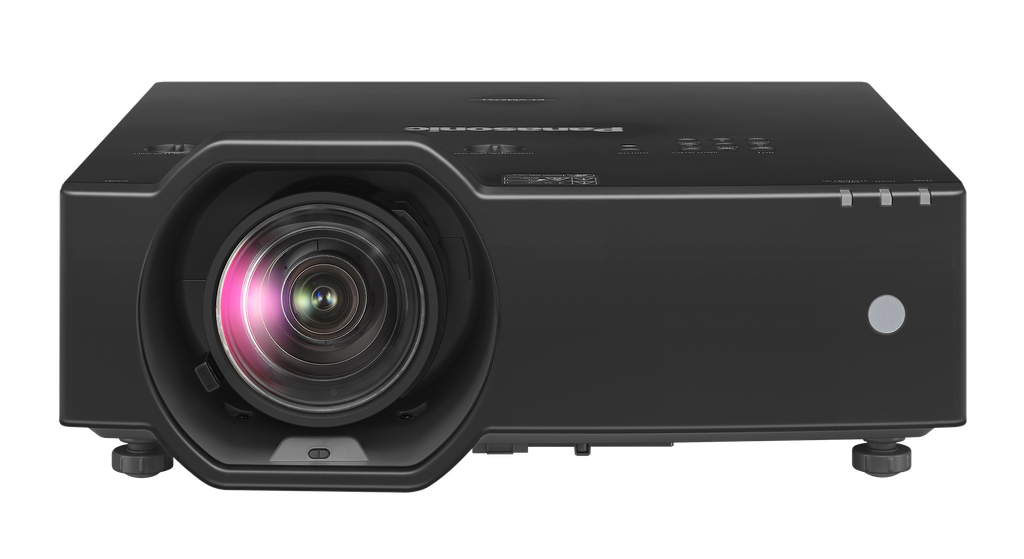

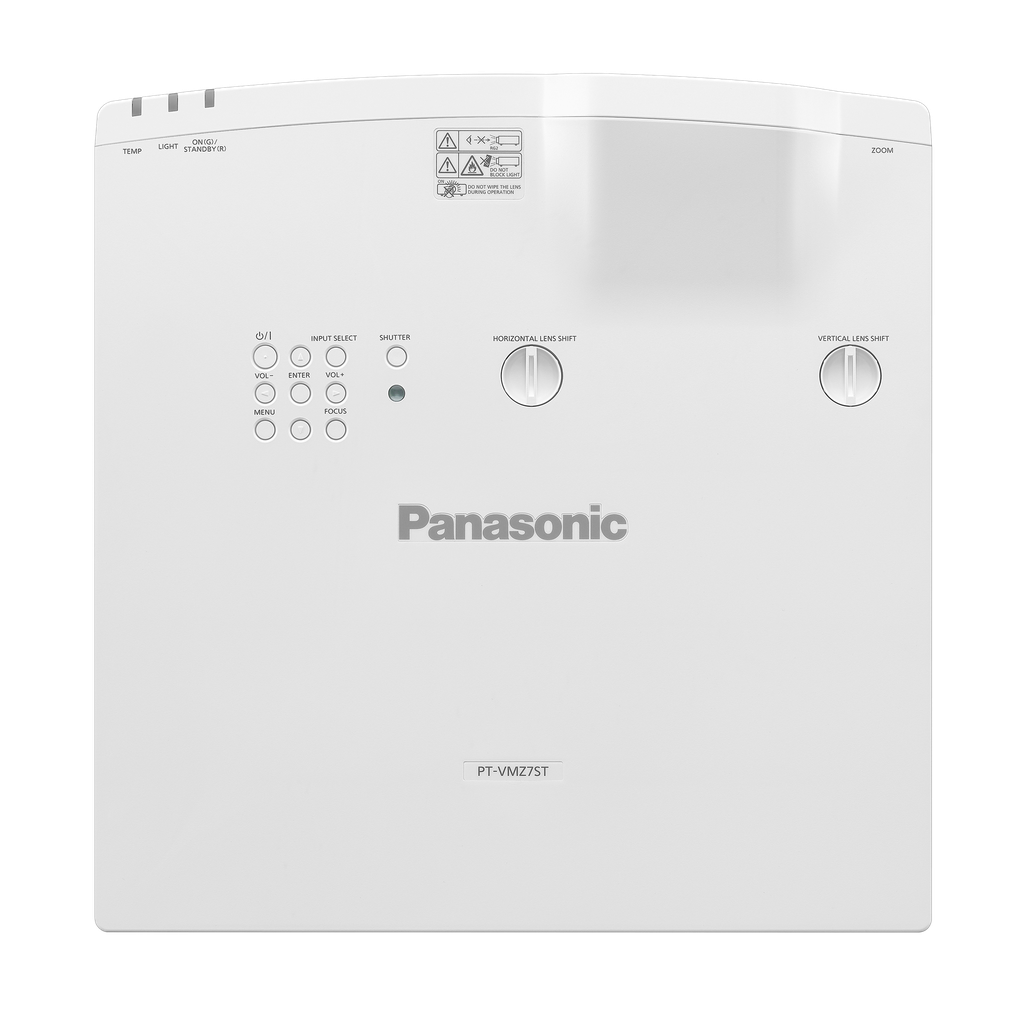

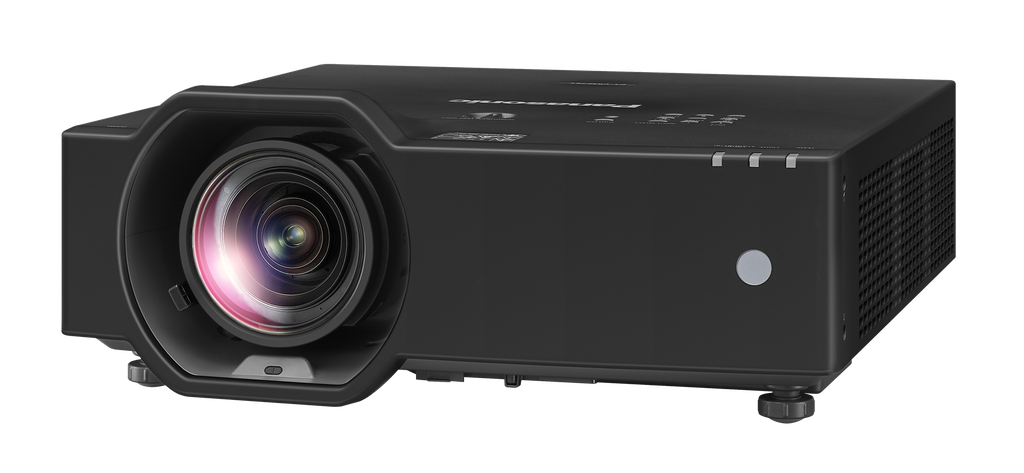

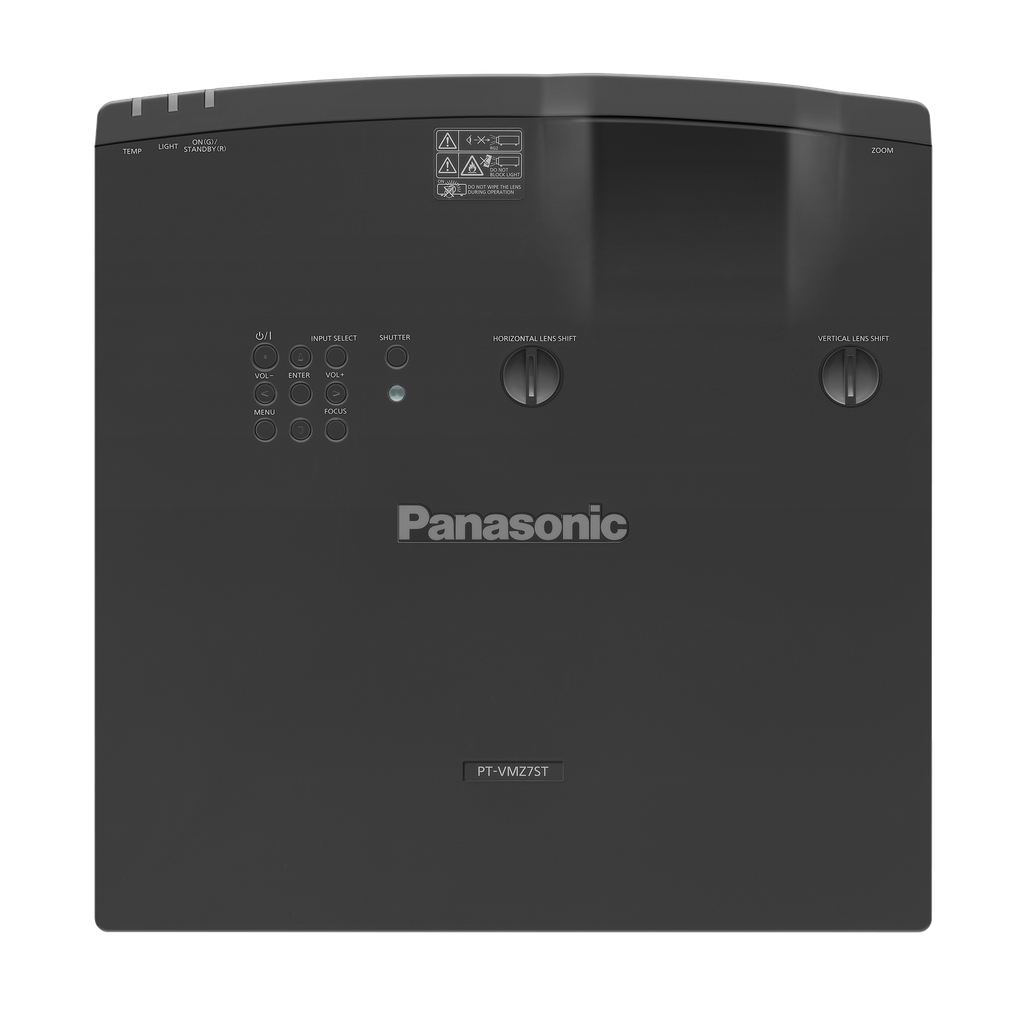

Panasonic PT-VMZ6ST

PT-VMZ6ST — 3LCD Short-Throw Laser Projector, WUXGA, 6,200 lm

The second model in the short-throw pair: identical body, identical 0.797–1.01:1 lens and identical feature set to the VMZ7ST, stepped down to 6,200 lm for rooms that don't need the full output. It's the quieter of the two — 25 dB in Quiet 2, the lowest figure in the range and soft enough to sit under during a hybrid lesson — and it draws less power at every setting. A 100-inch image from 1.72 m means the presenter stands in front of the screen without a shadow, and powered focus by remote saves a ladder trip when the projector ends up somewhere awkward. Suits classrooms, meeting rooms, golf simulators and museum installs where the room lights stay on but the screen isn't oversized.

Key Features:

• Short throw: 0.797–1.01:1, 100-inch image from 1.72 m, up to 300 inches — minimal presenter shadowing
• 6,200 lm (ANSI) WUXGA with 5,000,000:1 dynamic contrast
• 25 dB in Quiet 2 — the quietest projector in the range
• Powered focus by remote control, no ladder work for fine adjustment
• 1.2x optical zoom plus Digital Zoom Extender to 1.27:1 for working around ceiling obstructions
• Lens shift +50% V / ±20% H
• Angle Monitor sensor shows pitch and roll on screen for a one-person install
• New Screen Adjustment GUI: Grid (11 x 17), 6-Point, 4-Corner, and independent curved-screen correction
• 4K DIGITAL LINK (HDBaseT™) plus 4K signal input over both HDMI™ inputs with CEC
• IPv6, Art-Net DMX, PJLink™ Class 2, Crestron Connected® V2, XiO Cloud and Extron XTP® support
• Data cloning to up to 99 sub-projectors over LAN or USB
• Approx. 56% recycled resin in the main body; foam-free recyclable packaging
• 20,000 h to 50% output (24,000 h ECO) with washable long-life ECO Filter
• Built-in scheduling, Auto Power On, Image Detection power saving, ~1 second Quick Startup
• Daylight View Basic, Vivid Green mode, 21:9 widescreen support, DICOM Simulation
• QR-code wireless pairing and PressIT compatibility (both optional)

Lens: Fixed 1.2x short-throw zoom with powered focus, built in (no optional lens options).

Specifications:

• Projector type: 3LCD (transparent LCD panel x 3, R/G/B)
• Light output: 6,200 lm (ANSI)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 5,000,000:1
• Screen size: 1.77–7.62 m (70–300 in), 16:10
• Lens: 1.2x manual zoom, 0.797–1.01:1, powered focus, F 1.53–1.66
• Keystone: V ±25°, H ±35°

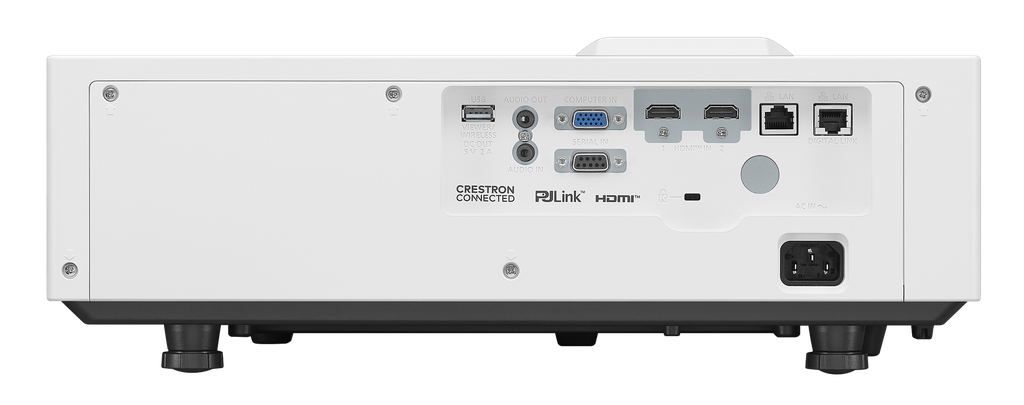

• Terminals: HDMI™ x 2, D-sub 15-pin, DIGITAL LINK/LAN, LAN, USB Type A, RS-232C, audio in/out
• Speaker: 10 W monaural
• Power: AC 100–240 V, max. 320 W
• Noise: 35 dB (Normal) / 30 dB (Quiet 1) / 25 dB (Quiet 2)
• Dimensions (W x H x D): Approx. 414 x 120 x 424 mm
• Weight: Approx. 8.3 kg
• Operating temperature: 0–45 °C
