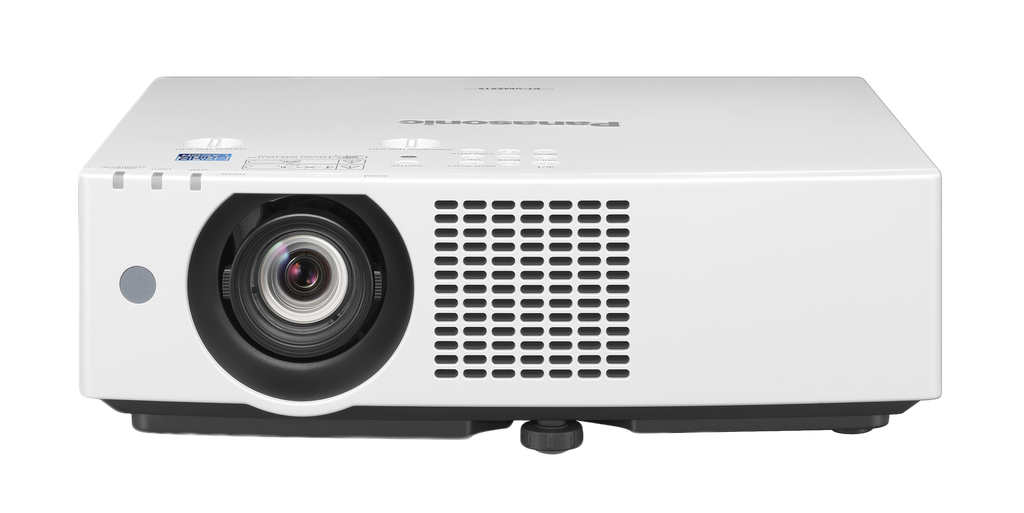

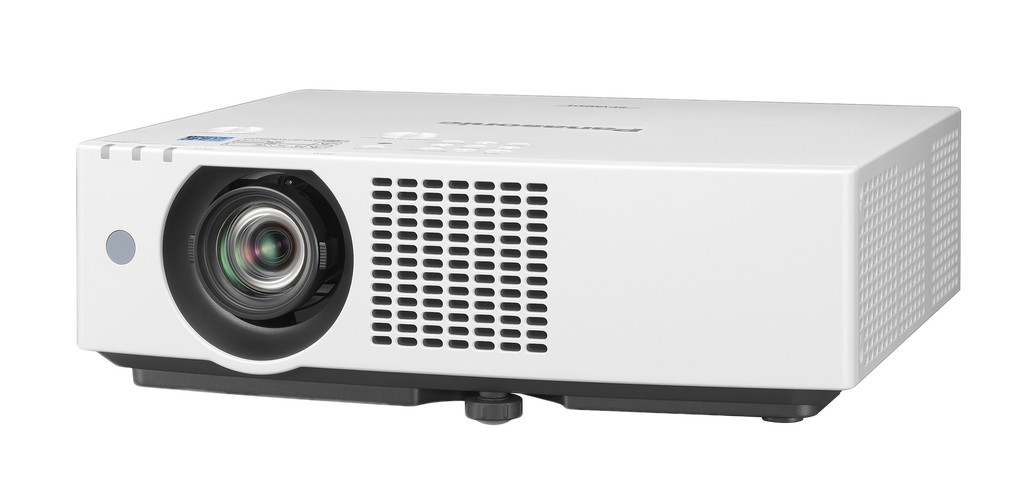

Panasonic PT-VMZ51S

PT-VMZ51S — 3LCD Laser Projector, WUXGA, 5,200 lm

The value-focused variant of the VMZ51. Identical optics, identical picture, identical 6.5 kg body — the difference is that DIGITAL LINK is dropped, keeping the cost down for rooms where the source is local and a single LAN port is all the network integration needed. For standard meeting rooms and classrooms where the laptop sits on the table rather than in a rack down the corridor, nothing is lost. The laser light source still takes lamp replacement off the table for the life of the room, and the zoom, lens shift and 6-Point Screen Correction still handle awkward retrofit mounting positions.

Key Features:

• 5,200 lm (ANSI) WUXGA with 3,000,000:1 contrast — stays legible with the lights on
• 6.5 kg, same compact chassis as the rest of the VMZ71 Series
• 20,000 h to 50% output (24,000 h ECO), no lamp changes
• 1.6x zoom (1.09–1.77:1) plus Digital Zoom Extender to 2.21:1
• Lens shift +44% V / ±20% H, 6-Point Screen Correction, free 360-degree installation
• QR-code wireless pairing from a phone or laptop (optional AJ-WM50 module)
• 4K/30p input over HDMI™ with CEC support
• LAN port with PJLink™ Class 2 for network monitoring and control
• Memory Viewer plays media direct from USB
• 26 dB in Quiet mode; washable filter, approx. 20,000-hour cycle

Lens: Fixed 1.6x manual zoom, built in (no optional lens options).

Specifications:

• Projector type: 3LCD (transparent LCD panel x 3, R/G/B)
• Light output: 5,200 lm (ANSI)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 3,000,000:1
• Screen size: 0.76–7.62 m (30–300 in), 16:10
• Lens: 1.6x manual zoom, 1.09–1.77:1, F 1.60–2.12
• Keystone: V ±25°, H ±35°
• Terminals: HDMI™ x 2, D-sub 15-pin x 2, LAN, USB Type A, RS-232C, audio in x 2 / out x 1 (no DIGITAL LINK)
• Speaker: 10 W monaural
• Power: AC 100–240 V, max. 300 W
• Noise: 36 dB (Normal) / 26 dB (Quiet)
• Dimensions (W x H x D): 399 x 115 x 348 mm
• Weight: Approx. 6.5 kg
• Operating temperature: 0–45 °C
