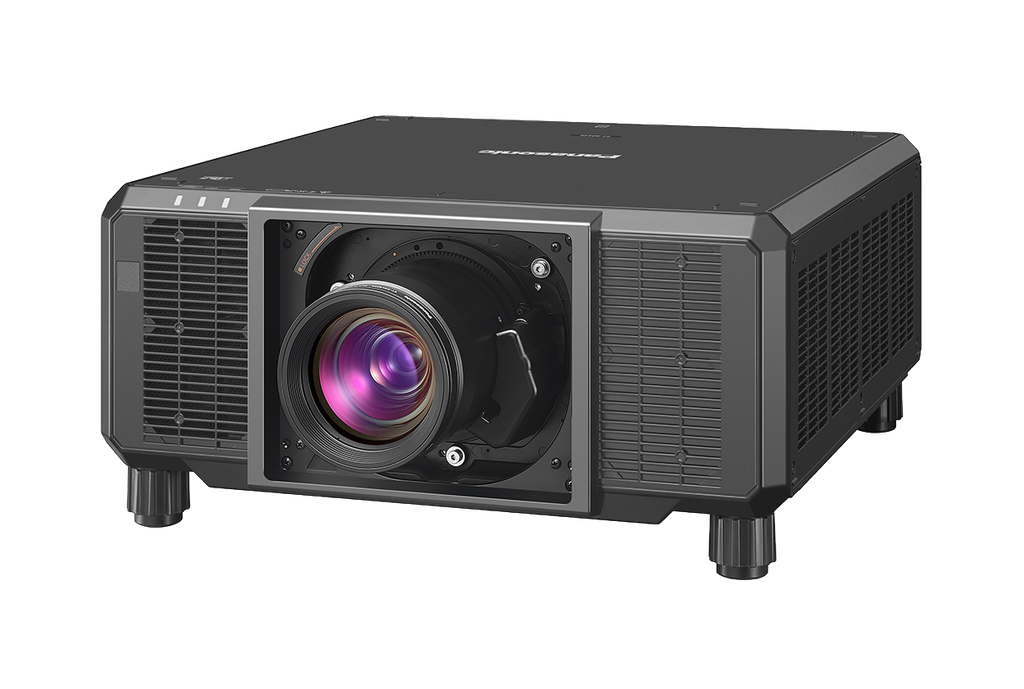

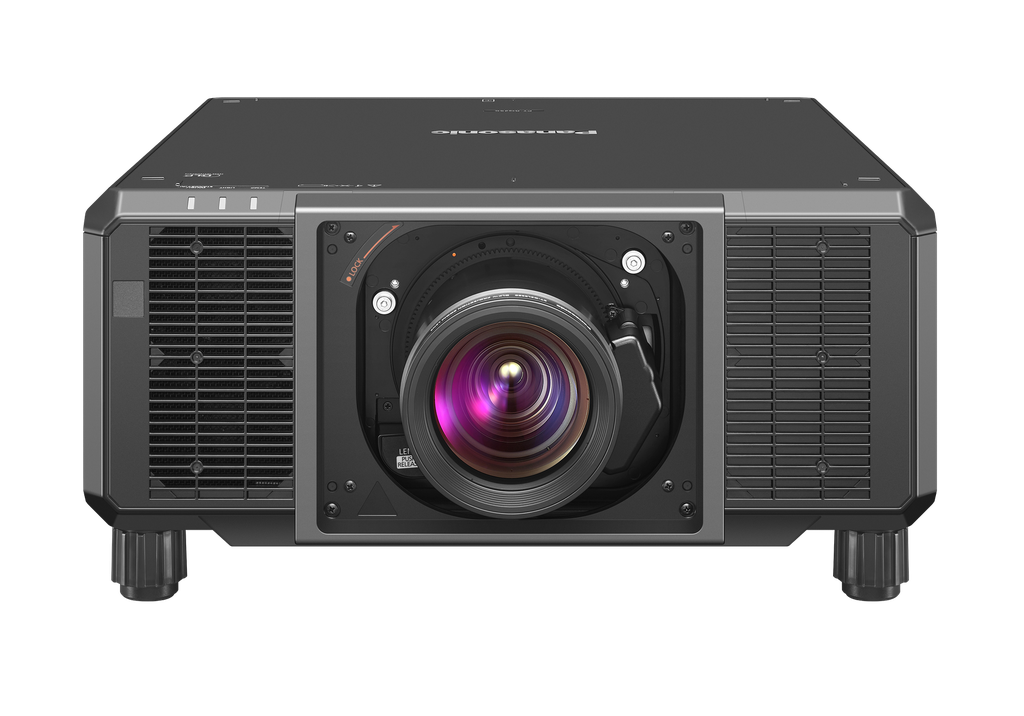

PT-RZ24K — 3-Chip DLP™ WUXGA Projector, 20,000 lm
The PT-RZ24K is the WUXGA sibling of the PT-RQ25K, delivering more for less with the same world's-smallest-and-lightest footprint in its brightness class, just at 1920 x 1200 resolution instead of native 4K. It's a great fit when you don't need the extra pixel count but still want that compact, two-person-portable body and rock-solid reliability. Like the RQ25K, it shares its lens lineup and Intel® SDM-ready slot, so it slots straight into your existing fleet without forcing new hardware purchases.
Key Features:
- 20,000 lm (ANSI) / 21,000 lm (center), WUXGA (1920 x 1200 px) resolution
- Same compact, lightweight body as the PT-RQ25K, easy transport and install for a two-person crew
- Intel® SDM-ready slot for optional Digital Link, 12G-SDI, PressIT wireless, and third-party function boards
- Remote Preview LITE lets you check signal integrity on a laptop before projection, without walking up to the screen
- Improved Dynamic Contrast (25,000:1) with frame-by-frame scene analysis for sharper light/dark detail
- Multi Laser Drive Engine with Failover Circuitry keeps the module running even if a single diode fails
- Free 360-degree installation through any axis
- NFC-enabled for quick network setup before AC power is even connected
- 4K signals are automatically converted to WUXGA on this model, so it still accepts 4K sources without extra conversion hardware
Compatible Lenses: Full 3-Chip DLP™ lens lineup under 35,000 lumens (excludes RQ50K-dedicated optics)
Specifications:
- Projector type: 3-Chip DLP™ projector
- Light output: 20,000 lm (ANSI) / 21,000 lm (center)
- Resolution: WUXGA (1920 x 1200 pixels)
- Contrast ratio: 25,000:1 (typ.)
- Screen size: 1.78–25.40 m (70–1000 in), depending on lens
- Lens: Optional (not included)
- Power supply: AC 100–120V / AC 200–240V, 50/60Hz
- Maximum power consumption: 1,470 W (200–240V) / 1,060 W (100–120V)
- Operation noise: 46 dB (Normal) / 43 dB (Eco) / 46 dB (Quiet)
- Dimensions (W x H x D): Approx. 550 x 220 x 570 mm
- Weight: Approx. 35 kg
- Operating temperature: 0–45°C
- Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control (iOS/Android)
