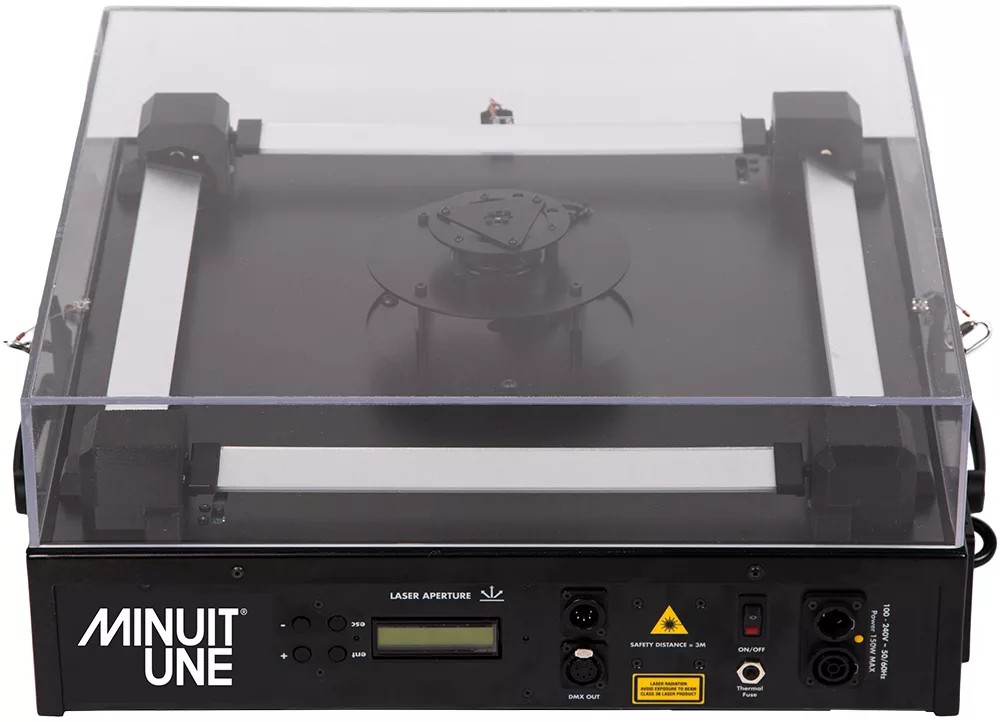

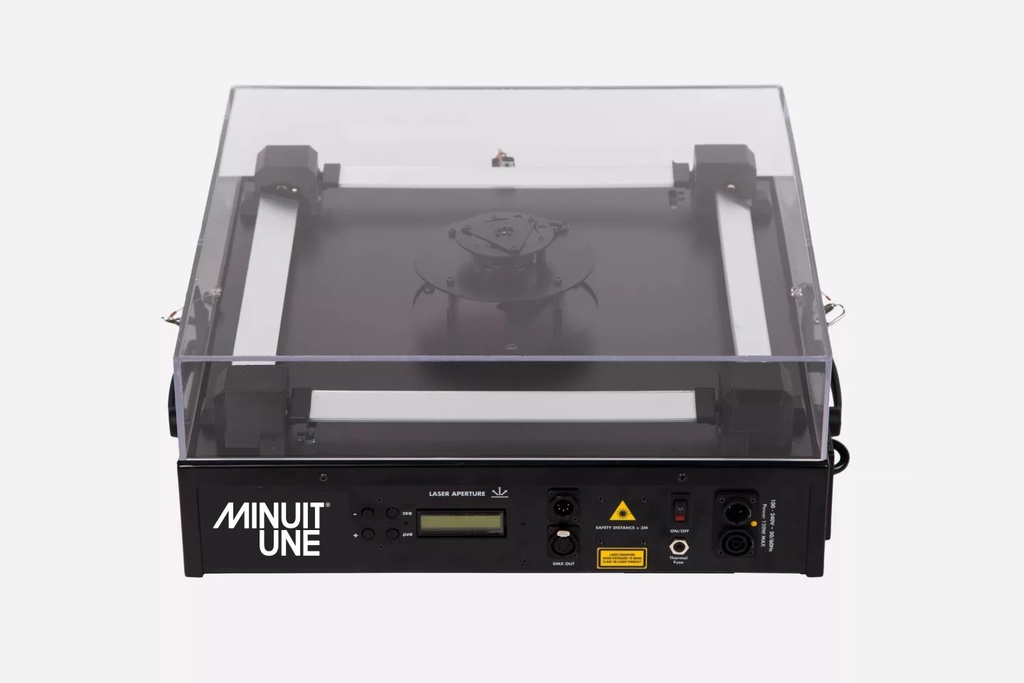

The IVL Carré by Minuit Une is a multi-directional laser-based fixture: four directive light planes, one from each side of the square, for immersive designs in mid-sized venues.
Key Features
4 independent tilts producing 4 light planes, 16-bit control
Each tilt works as a directive light or as a wash light
1, 2, 4, 8, 16, 32 or 64 beams from one single source
Smooth RGB colour spectrum
Attachable in any position; aluminium body, PMMA cover
Intuitive programming on any DMX console
Technical Specifications
Size: 594 x 591 x 113 mm
Weight: 16 kg
Light source: Class 3B laser product, 10 W embedded, smooth RGB spectrum
Scanning: brushless DC motor, constant scanning rate 333 Hz
Movement: 4 mirrors, one on each side, 0° to 360° on each mirror, 16-bit DMX control
DMX: 25 channels in mode 1
Power: 100 to 240 V, 50/60 Hz, 125 W maximum
Connections: Neutrik powerCON TRUE1 in/out, 5-pin XLR DMX in/out
Mounting: eight quarter-turn locking points for Omega brackets, 4 M10 threads, safety cable point
Protection rating: IP20
