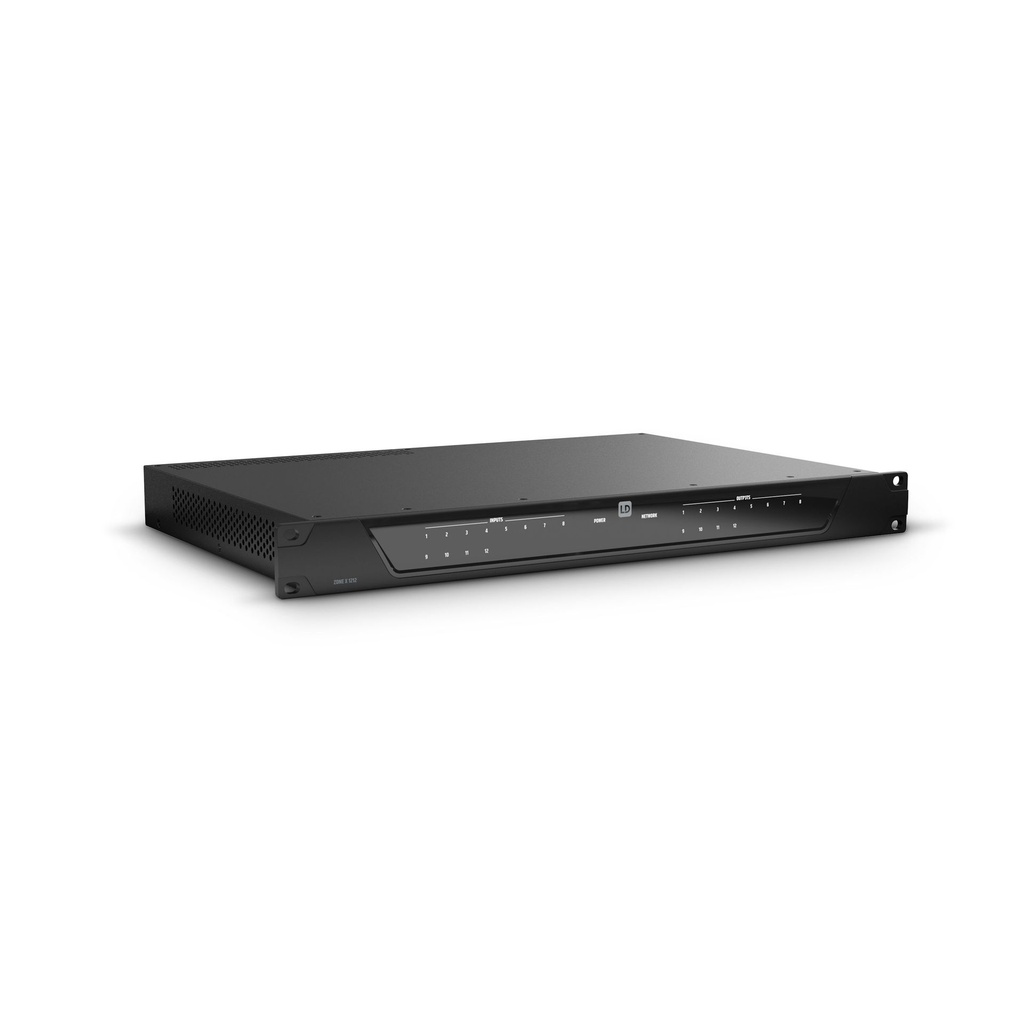

Installations are becoming increasingly more complex. Where microphones and speakers once had to be switched or even rewired by hand, now there are flexible routing options using presets and automated processes. The DSP matrix processor ZONE X 1212 from LD Systems enables all that and more.
With its DSP hybrid architecture, the ZONE X 1212 can adapt your sound system for different circumstances and possible uses. Choose one of the different DSP templates and use the event scheduler to set up calendar-managed workflows with automated preset options. Everything you need: Twelve balanced mic/line inputs with low-noise microphone preamplifiers and separate switchable 48V phantom power as well as twelfe balanced line outputs are available. There are also eight GPI and GPO logic ports which can be used e.g. for automated processes and the integration of third-party devices. The front panel with only 1 RU looks very tidy. The ZONE X 1212 is easy to set up and manage via Ethernet with the universal software Xilica Designer (Mac/Windows) providing an overview of all connections and settings. An Ethernet + Dante card with 64 x 64 channels can be installed as an upgrade option for audio over IP applications. The Dante standard opens up a whole world of compatible devices from different manufacturers for all conceivable applications.
From routing and processing of different microphone and speaker groups, in a church for example, to complex multi-room installations with calendar-managed routing for different configurations - the ZONE X 1212 makes everything possible.
- DSP processor with hybrid architecture that allows users to adapt to different installation requirements via templates
- 40-bit floating point DSP engine with Analog Devices dual core SHARC+ and ARM Cortex A5 processor
- New generation Linux operating system
- Premium microphone preamplifiers and high resolution 32 bit-AD/DA converters
- 12 balanced audio mic/line inputs with 48V phantom power selection per channel
- 12 balanced line outputs
- 8 GPI and 8 GPO logic ports
- Ethernet interface for remote control via the universal control software Xilica Designer; Ethernet + Dante card optionally available
- Integrated event scheduler
General
| Product type | Installation DSP Audio Matrix |
|---|
General data
| Audio inputs | 12 balanced line outputs |
|---|---|
| Audio output | 12 balanced line outputs |
| Logic inputs | 8 GPI - short to ground to activate |
| Logic outputs | 8 GPO - LED (3mA) or Sink (300mA) |

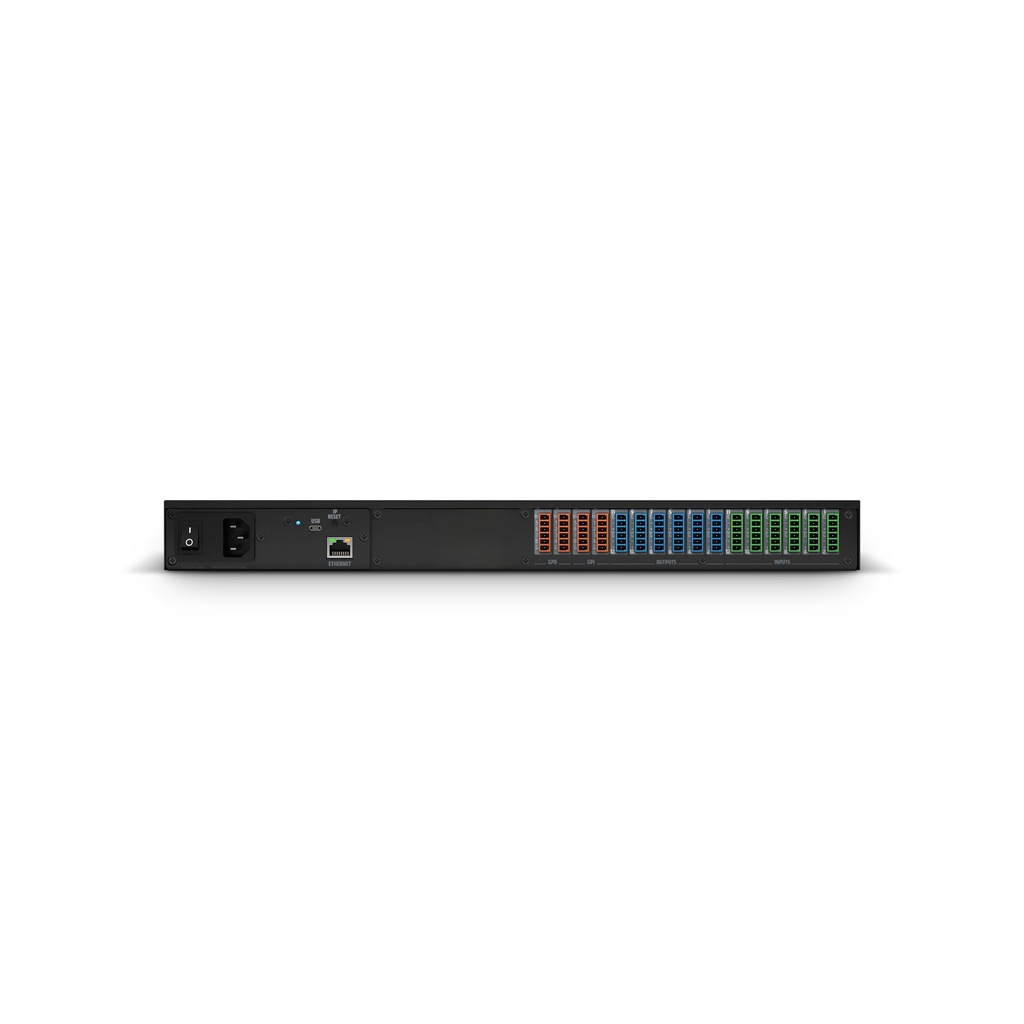

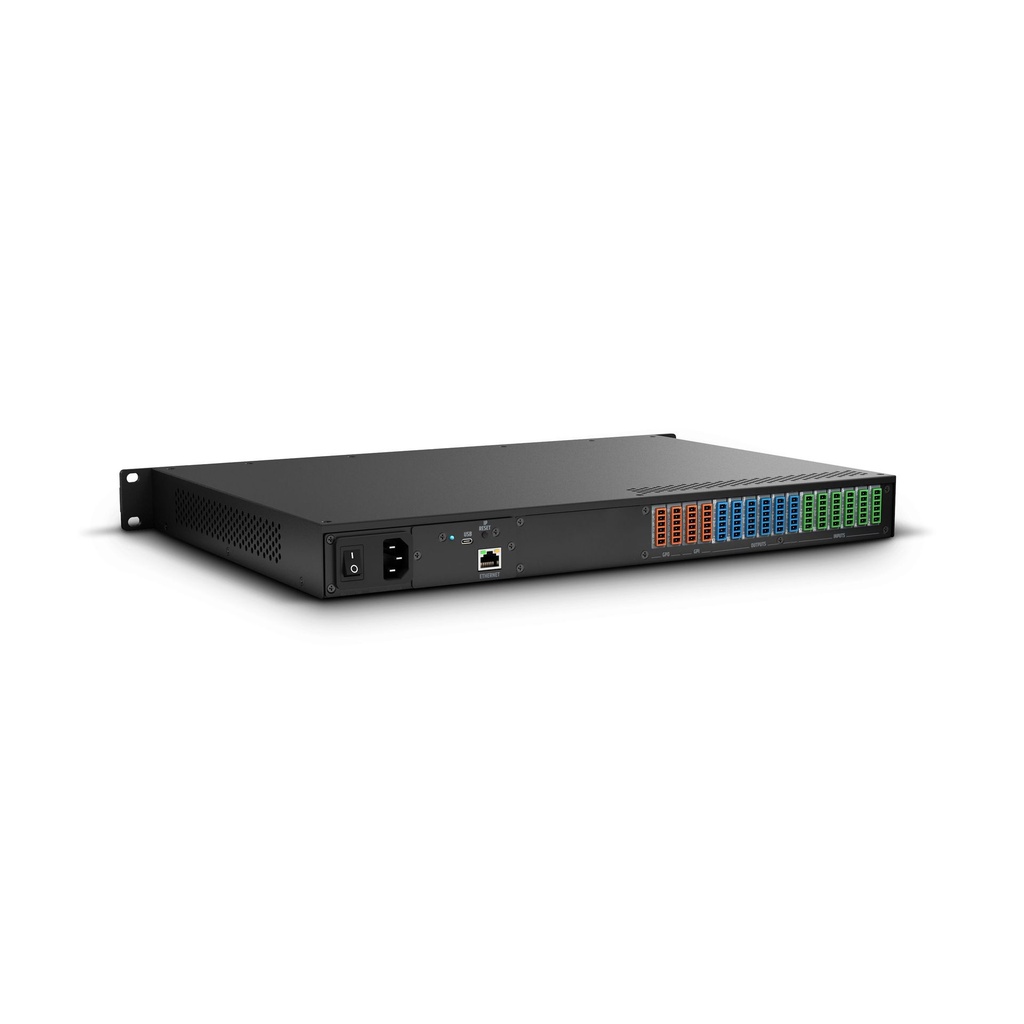

| Connectors | 3-pin Terminal Block Pitch 3.81mm, I/O Connectors, Ethernet RJ45, Service connection MicroUSB Type-C |

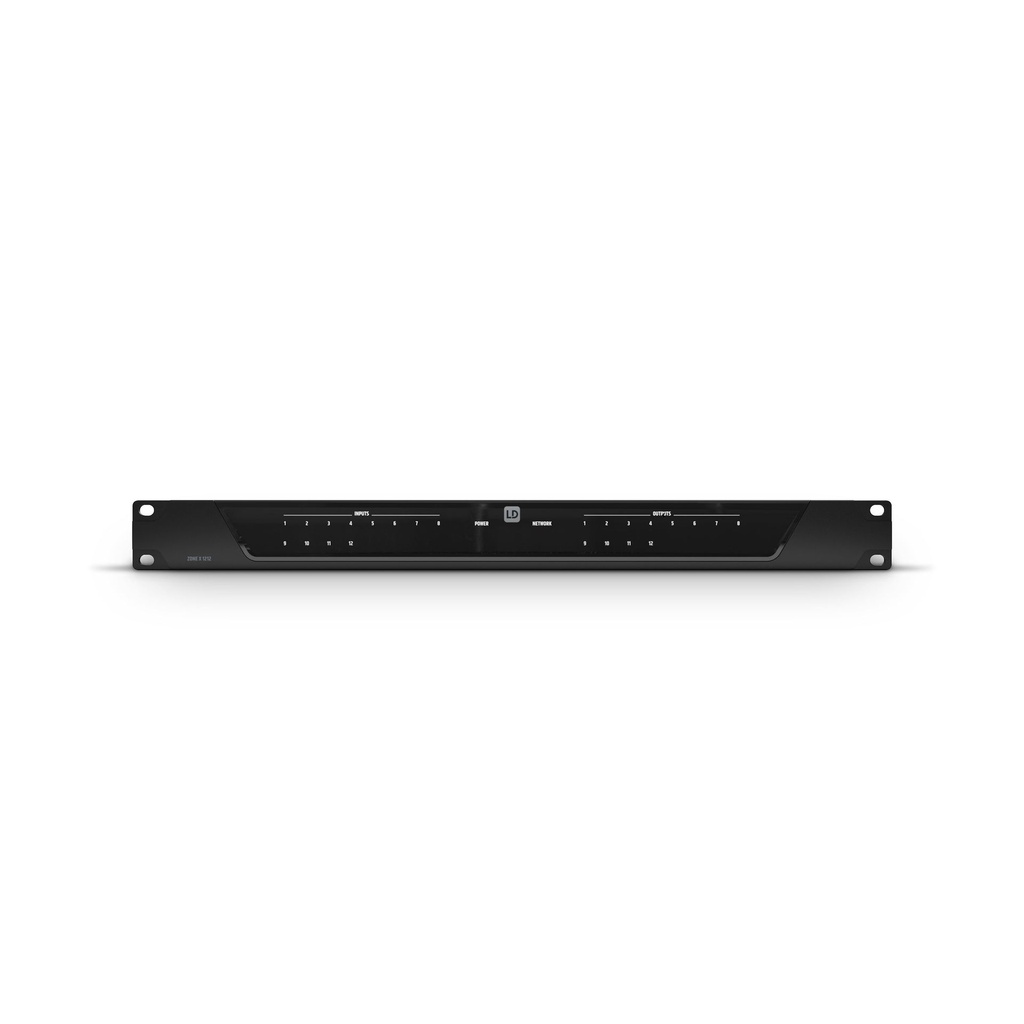

| Indicators | Power, Inputs 1 - 12 and outputs 1 - 12: Signal LED white, Network |
| Front panel controls | No |
| Rear panel controls | IP Reset, Power On/Off |
| Expansion Slot | For Ethernet- (ZONEX1212), Ethernet + Dante- (ZONEX1212D) |
| Cooling | Convection, passive |
| Operating voltage | Wide Range SMPS |
| Mains connector | 3-pole IEC mains connection (mains socket) |
| Operating voltage | 90 – 240 V AC; 50/60 Hz |
| Input fuse (mains) | T2,5 A L / 250 V |
| Inrush Current Power OFF-ON: | 21 A |
| Power Consumption @ idle mode | 23 W |
| Max. Power consumption | 60 W |
| Operating temperature | 0°C - 40°C; < 60% humidity |
| Width | 19“-Rack (483 mm) |
| Height | 1 RU (44.5 mm) |
| Depth | 315 mm (incl. terminal block connectors) |
Performance specifications
| Nominal input sensitivity | -22 dBu (Sine 1 kHz, Gain max) |
|---|---|
| Nominal input clipping | +20 dBu (Sine 1kHz) |
| Distortion factor (THD+N) | Line IN – OUT), Gain 0 dB), +13 dBu Signal, 20Hz - 20kHz |
| Intermodulation Distortion (SMPTE) | < 0.01% (-10dB below clip) Analyzer BW 90kHz |
| Frequency response | 15 Hz – 22 kHz (+/-0.15 dB) |
| Input Impedance | Line 4k Ohms (balanced) |
| Signal-to-noise ratio | >117 dB @ +20 dBu, Gain 0 dB, 20 kHz BW, A-weighted |
| Dynamic range (DR AES17) | 112 |
| Crosstalk | 120 dB @ 1 kHz, 105 dB @ 10 kHz, 120 dB @ 100 Hz |
| CMRR IEC | > 60 dB (1 kHz) |
| Max. Gain | 42 dB |
Digital Specifications
| DSP | 40-bit floating point Analog Devices Dual-core SHARC+ processor |
|---|---|
| System Latency: | 4.3 ms |
| AD/DA converter resolution | 32 bit |
| AD/DA converter sampling rate | 48 kHz |
